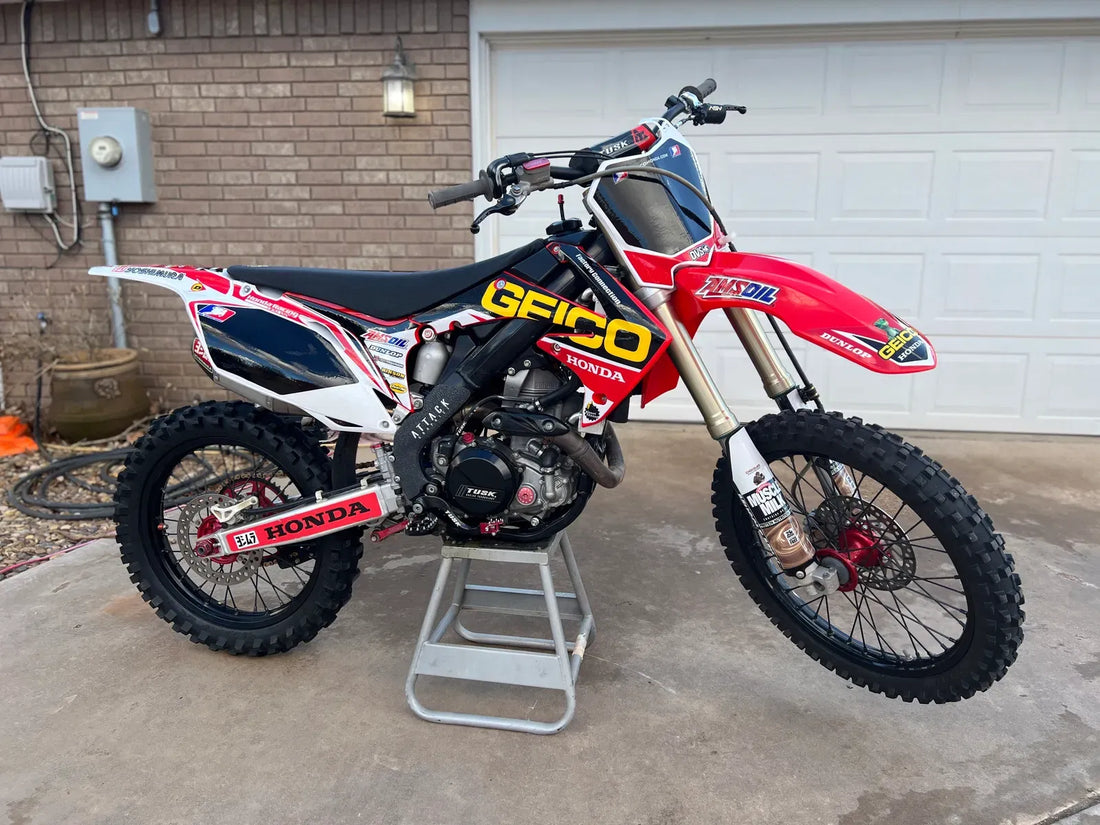

Why Your 2009 Honda CRF450R is Hard to Start: A Mechanic’s Guide to the Stator

Hey folks, I’m Jack Harlan—been wrenching on dirt bikes full-time for fifteen years now, mostly Hondas, out of my shop here in the Midwest. I’ve rebuilt more CRF450Rs than I can count, from bone-stock trail rigs to full-race bikes that see weekend MX tracks and weekday desert runs. One thing I’ve learned the hard way (and helped plenty of customers fix the same way) is that the magneto stator is the unsung hero of the electrical system—especially on the 2009 Honda CRF450R.

That first fuel-injected 450 was a game-changer when Honda rolled it out, but it also put bigger electrical demands on the charging and ignition system. When the stock stator starts to fade—and they do, usually right around the 50- to 80-hour mark—you feel it immediately: lazy throttle response, hard hot or cold starts, and that annoying hesitation right in the mid-range where you need crisp power the most.

If you’re staring at a 2009 CRF450R that’s suddenly hard to start, won’t hold a steady idle after a long ride, or just feels flat on the pipe, chances are you’re dealing with a failing magneto stator. I’ve pulled dozens of these out over the years, and the symptoms are always the same: weak or intermittent spark, voltage drops under load, and an EFI system that can’t get the fuel map it needs.

That’s exactly why I keep our premium ignition magneto stator in stock for the 2009 model year only. It’s engineered as a direct drop-in replacement for the OEM part number 31120-MEN-A31, built to deliver the higher voltage and rock-solid spark the fuel-injection system was designed around.

What Makes This 2009 Honda CRF450R Stator Different (and Better)

Most cheap aftermarket stators cut corners on wire quality and base-plate materials. Ours doesn’t. We use full copper-clad steel wire on high-purity copper windings mated to a heavy-duty aluminum mounting plate that shrugs off the constant vibration of off-road riding. The result is a stator that puts out consistent power exactly where the 2009 CRF450R EFI needs it—clean, stable voltage that translates straight into snappy throttle response and reliable ignition.

Key specs that matter when you’re in the garage or on the trail:

• Outer diameter: 98 mm (3.86 in)
• Inner diameter: 35 mm (1.38 in)
• Total line length: 934 mm (36.77 in)
• Plug-and-play wiring harness and mounting points that line up perfectly with your factory cover—no trimming, no headaches.

I’ve installed these on customer bikes ranging from weekend warriors to guys who race the GNCC series. Every single one reports the same thing: easier starting, smoother mid-range pull, and that “new bike” feeling again. No more guessing whether the bike will fire on the third kick or the thirtieth.

Why the 2009 CRF450R Is Especially Sensitive to Stator Problems

Unlike the carbureted years before and after, the ’09 was Honda’s first crack at fuel injection on the 450. The ECU demands steady, higher-voltage input to keep the injector pulsing correctly and the ignition timing spot-on. When your stock stator starts to drop output (and they almost always do from heat cycling and vibration), the bike feels exactly like it’s running out of fuel or spark—even though the tank is full and the plug looks fine.

I’ve seen it a hundred times: riders chasing phantom jetting issues or swapping coils when the real culprit was a tired magneto stator. Swapping in this premium unit fixes the root cause instead of chasing symptoms.

Installation: True Plug-and-Play for the DIY Rider

If you’re comfortable pulling the stator cover (most CRF owners are), this is a one-hour job. Drain a little coolant if your bike runs hot, remove the cover, unbolt the old stator, swap in the new one, torque to spec, and button it back up. The connectors match factory exactly—no splicing, no adapters. I always recommend a fresh gasket and a quick resistance check on the new windings just for peace of mind, but that’s it.

Pro tip from fifteen years of experience: while you’re in there, inspect your flywheel magnets too. If they’re loose or chipped, replace those at the same time—prevents the new stator from getting chewed up down the road.

Built for Real Off-Road Abuse—With Real Warranty Peace of Mind

We don’t just sell parts; we ride and race the same bikes you do. That’s why this stator carries a full six-month warranty and ships free on every order. At $49.99 it’s priced right for riders who want OEM-level fitment without the dealership markup or the gamble of no-name overseas units.

Whether you’re searching for a “2009 Honda CRF450R magneto stator replacement,” an “OEM 31120-MEN-A31 compatible ignition stator,” or simply the best way to restore crisp throttle response on your first-year EFI 450, this is the part that gets the job done right the first time.

Ready to get your CRF450R running like it did the day you bought it? Grab the Magneto Stator for Honda CRF450R (2009) | OEM 31120-MEN-A31 today and feel the difference on your next ride.

Ride safe, keep the rubber side down, and if you ever have questions about your CRF electrical system, drop me a line—I’m usually out in the shop answering emails between wrenches.

— Jack Harlan
Mechanic & Technical Support, GoFitMoto
15+ years turning wrenches on Honda dirt bikes
