Carburetor Intake Manifold Functionality & Maintenance
Having worked in the motorcycle industry for over ten years, I've noticed that even a minor component, which many often overlook, can significantly impact a bike's performance, comfort, and longevity.
The intake manifold is one of them. If you're aiming to enhance both performance and reliability, understanding the intake manifold is crucial. Whether you're an experienced rider, a hands-on mechanic, or simply interested in how your machine operates, this guide is relevant for you. It explains what the intake manifold does, its significance, and how to maintain it, using real-life examples throughout.
What is the carburetor intake manifold on a motorcycle?

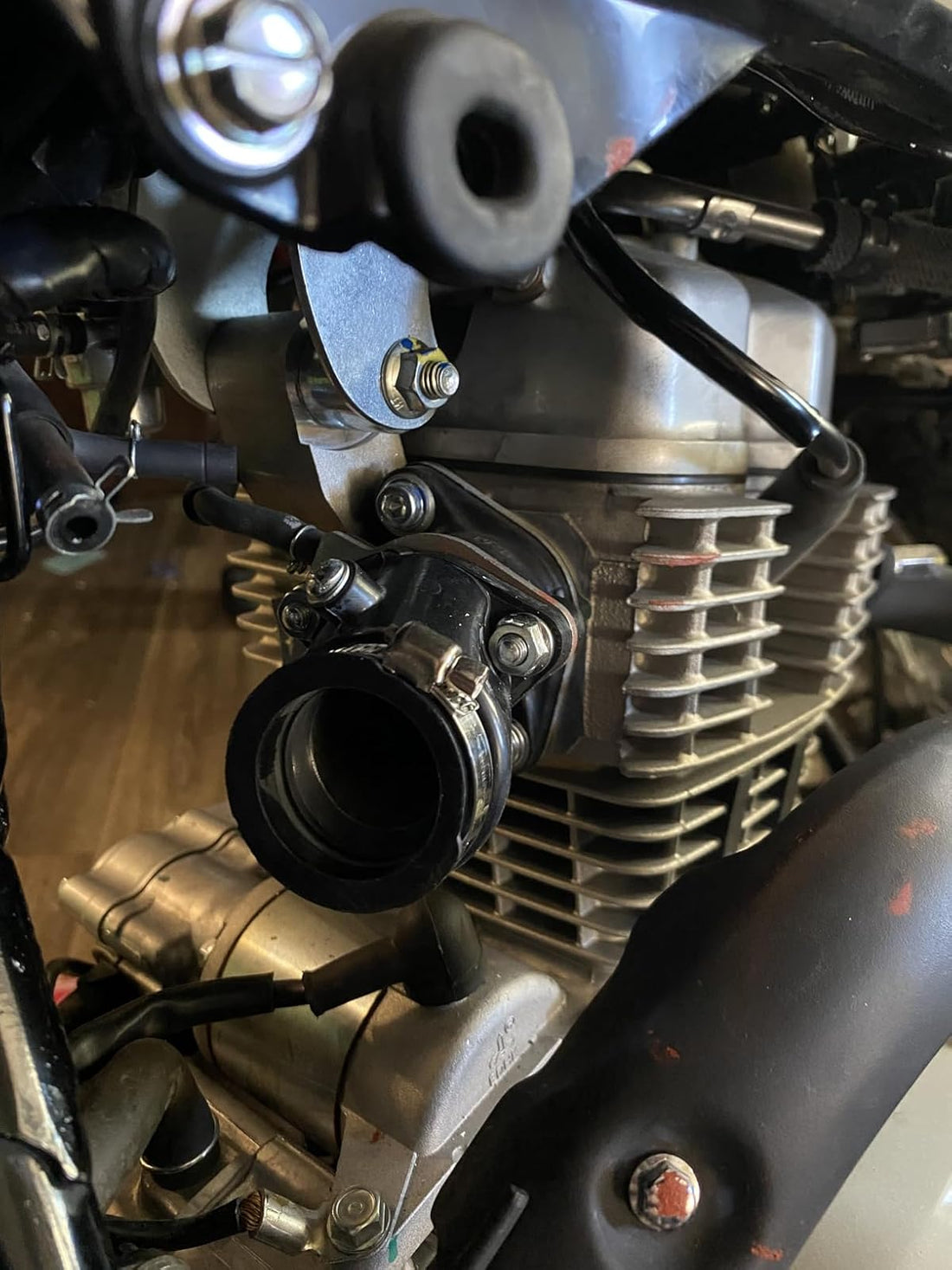

The intake manifold is the engine's main pathway for supplying air and fuel. This sealed route runs directly from the carburetor to the engine's intake ports. Its key role is to deliver the correct mixture of air and fuel from the carburetor into the combustion chambers. A properly designed and maintained manifold is crucial for effective combustion, resulting in increased power, quicker throttle response, and improved fuel efficiency.
Key Components and Their Functions
The intake manifold for a carburetor is more than just a hollow tube. It's a system made up of:
- Manifold Body: This is the primary component, typically constructed from aluminum, composite plastic, or rubber. The internal design and dimensions are adjusted to change the airflow and the engine's torque output.
- Gaskets and O-Rings: These crucial seals prevent leaks in the manifold, carburetor, and cylinder head. If they fail, it often leads to performance issues.
- Ports for the Vacuum: Small openings that connect to the engine's vacuum. These power important parts like the vacuum petcock (fuel valve), emission controls, and sometimes the gauge for your synchronizing tool.
How It Works: The Science of Delivery
The carburetor controls how much fuel goes into the air when you open the throttle. After that, the mixture moves to the intake manifold. Here is where things become interesting:
- Distribution: The manifold's internal design sends equal air and fuel to each cylinder in multi-cylinder engines. If this is out of balance, the engine will idle roughly, lose power, and wear out unevenly.
- Pressure and Flow: The manifold is designed to maintain a smooth, laminar airflow with minimal turbulence. Barriers or sharp edges can disrupt the mixture, reducing its efficiency. It also manages the pressure waves created when the intake valves open and shut.
- The Link to the Carburetor: The manifold is very important for bikes with carburetors. Carburetors use a difference in pressure (vacuum) to pull in fuel. If the manifold is leaking or not sealed well, it will break this vacuum signal, which will make it hard to tune, cause bad fuel metering, and make the engine idle erratically.
How It Affects Performance:More Than Just a Pipe
The state of your intake manifold has a direct impact on these areas:
- Throttle Response and Engine Power: An efficient, leak-free manifold ensures the engine receives the ideal fuel mixture for thorough combustion. This allows each drop of fuel to deliver maximum energy, resulting in increased power and quicker throttle response.
- Fuel efficiency: A properly sealed system prevents "lean" or "rich" conditions by blocking unmeasured air from entering and ensuring measured mixtures don't escape. This allows the carburetor or ECU to work efficiently, optimizing fuel consumption.
- Engine longevity: Distributing the mixture properly helps prevent "lean-out" in the cylinders, which can lead to overheating and damage. It also addresses issues like backfiring and engine knock, reducing stress on internal components.
How to Inspect and Maintain Your Carburetor Intake Manifold
To ensure your engine continues to function properly, you should routinely inspect and maintain the carburetor intake manifold.This helps avoid problems instead of just fixing them. First, we will list common signs and problems to look for. Next, we will discuss professional methods and upgrade options to maintain your intake system effectively.
Common Carburetor Intake Manifold Problems
Based on common workshop repairs,here are the most common places where things go wrong:
- Vacuum/Air Leaks: These are the top cause of issues. Cracks in rubber boots, dried O-rings, or broken gaskets let unmetered air enter the system. Symptoms: High or uneven idle, hesitation when accelerating, popping or backfiring (indicating a lean condition), and difficulty starting the engine.
- Cracking or warping: This happens a lot to older rubber or composite manifolds that are exposed to heat cycles and engine vibration. Overtightening metal manifolds can cause them to bend.
-
Carbon & Residue Accumulation: With time, oil vapor and fuel residues can cover the interior surfaces, quietly affecting both airflow and the quality of the mixture.
Professional Maintenance & Upgrade Tips
Check: When you do routine service, check the manifold for cracks, hardness (rubber), and looseness. One trick that a good mechanic uses is to spray a little bit of carburetor cleaner or propane around the boots while the engine is running. You have found a leak if the RPM changes.
Cleaning: Use a suitable solvent and a lint-free cloth to clean the inside of the manifold when you take off the carburetor. Please ensure that the Hoover ports are clear.
Gasket and boot replacement: This is something that wears out often. Every time you take the system apart, you should change the gaskets and O-rings. Make sure that rubber boots are flexible and fit snugly.
The Path to Upgrade: There are performance intake manifolds for many different platforms. They might have:
- Shorter/Longer Runners: Set up for either high-end power or low-end torque.
- Smoother Bores: Port-matched and polished to make the airflow less turbulent.
- Better Materials: More flexibility or resistance to heat.
Important Note: When you upgrade the manifold, you may need to re-jet it (if the engine is carbureted) or re-map it (if the engine is fuel-injected) to match the new airflow.
Conclusion: The Basis of Good Combustion
The intake manifold is not just a pipe that sits there. It is a tuned part that is very important to the air-fuel delivery system of your motorcycle. Knowing how it works lets you figure out what's wrong with it when it's running, do better maintenance, and make smart choices about performance upgrades. For a smooth, powerful, and dependable ride, an intake tract that is sealed and works well is a must. Always put diagnosing and fixing manifold problems first before going after complicated carburetor or ignition problems. You will often find the root cause right here.
