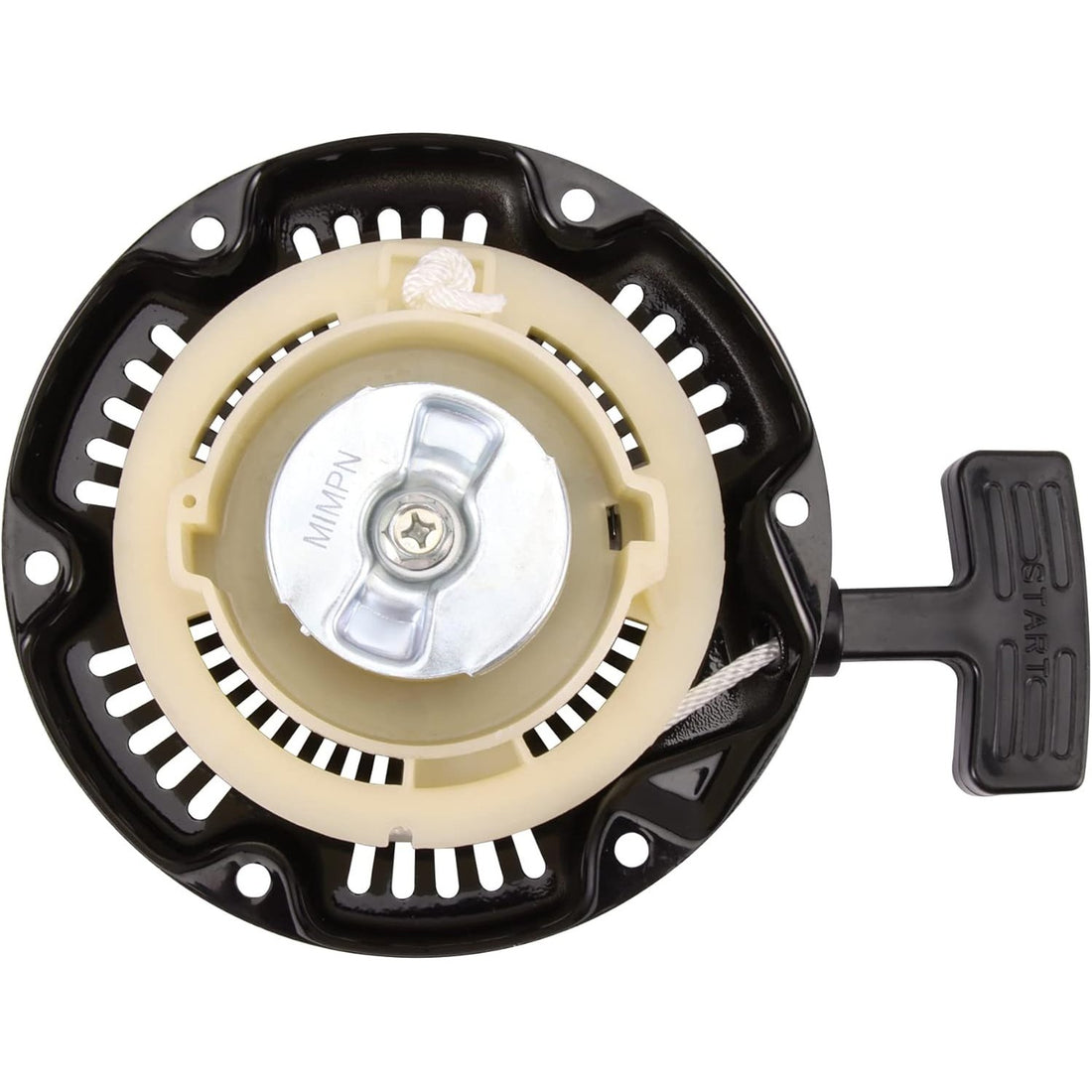

How Does a Recoil Starter Work? A Mechanic's Simple Guide
Introduction: The Trusty Yank-Start
You're out in the garage, ready for a ride. The key is on, the fuel is flowing. You give the recoil starter cord a firm, smooth pull, and with a satisfying chug-chug-vroom, your engine springs to life. It's a ritual for countless motorcycle and small engine owners.
But have you ever stopped mid-pull and thought, "How does this actually work?" It seems simple, but the engineering inside that small housing is a masterpiece of mechanical simplicity and reliability.
As a seasoned mechanic, I've fixed hundreds of these systems. In this article, we'll pull back the cover (figuratively!) on the recoil starter. We'll explore its inner workings, answer your most common questions, and give you the knowledge to understand—and even troubleshoot—this essential component.
The Core Problem: How to Go from a Stationary Engine to a Running One
Before we dive into the "how," let's clarify the "why." An internal combustion engine can't start itself. It needs an initial burst of kinetic energy to:
-
Draw the air-fuel mixture into the cylinder.
-
Compress that mixture.
-
Initiate the first power stroke.
In a car, a powerful electric starter motor handles this. But for many motorcycles, dirt bikes, lawnmowers, and generators, a lighter, cheaper, and more reliable solution is needed. That's the problem the recoil starter solves.
(Quick Interactive Question!)
What's the one small engine in your life that absolutely has to start on the first pull? Let me know in the comments below—for me, it's my old woodsplitter!
The Solution: A Clever System of Springs, Cogs, and Ropes
The recoil starter, also known as a pull start, is a brilliant piece of mechanical design. It converts the linear pulling force from your arm into the rotational force needed to crank the engine.
Let's break down the process step-by-step.
Key Components Inside Your Recoil Starter:
-
Pull Cord & Handle: The part you interact with.
-
Rewind Spring: A flat, coiled spring that stores energy.
-
Rope Pulley (or Reel): The spool that the cord wraps around.
-
Pawl(s) or Dogs: Small, spring-loaded levers that engage and disengage.
-
Starter Cup (or Ratchet): The notched housing attached to the engine's crankshaft.
The "How It Works" Cycle in 4 Steps:
Step 1: The Engagement (The Pull)
When you pull the cord, you're rotating the rope pulley. This rotation forces the pawls to pivot outward against their springs, like little feet kicking out. These pawls lock into the starter cup on the engine's crankshaft.
> > At this moment, your pulling force is directly transferred to the engine, cranking it over.
Step 2: The Engine's Job (Compression & Ignition)
As you continue the pull, the engine rotates through its cycle. The piston moves, compressing the air-fuel mixture. If all conditions are right (spark, fuel, compression), the engine will "fire," generating its own power. You'll feel this as the cord suddenly wanting to pull itself out of your hand.
Step 3: The Disengagement (The Return)
The instant the engine starts running on its own, it spins faster than you could ever pull. This rapid rotation flings the pawls back inward, retracting them into the pulley due to centrifugal force. They disengage from the starter cup.
> > This is a critical safety feature! It prevents the starter mechanism from being spun at dangerous, high speeds by the running engine.
Step 4: The Rewind (The Zip Back)
Remember that rewind spring we mentioned? As you pulled the cord, you also tightened this spring. Once you release the handle, the spring's stored energy is released, spinning the pulley in the reverse direction and rapidly rewinding the cord back into the housing, ready for the next start.
(Let's Pause for a Thought)
Isn't it elegant? The same action that engages the starter also primes the mechanism for its own reset. It's a perfect, self-contained system.
Common Recoil Starter Issues & Pro-Tip Fixes
Understanding how it works makes troubleshooting much easier. Here are two frequent problems:
-
Problem: The cord pulls too easily with no resistance.
-
Likely Cause: The pawls are not engaging. This could be due to worn/dirty pawls, broken pawl springs, or a damaged starter cup.
-
Quick Check: Remove the starter assembly and visually check if the pawls "kick out" when you turn the pulley.
-
-
Problem: The cord doesn't retract, or retracts slowly.
-
Likely Cause: A weak, broken, or misaligned rewind spring.
-
Pro Tip: Be very careful if disassembling the recoil housing. The rewind spring is under tension and can uncoil violently. Wear safety glasses!
-
FAQ: Your Recoil Starter Questions, Answered
Q: Are recoil starters and pull starters the same thing?
A: Yes! "Recoil starter" is the more technical term, but "pull start" is a perfectly common synonym. We use both here for clarity and SEO.
Q: My cord fully retracted and won't come out. How do I fix it?
A: This usually means the rewind spring has become un-hooked from its anchor point inside the pulley or housing. This requires disassembly to re-engage the spring—a job where a service manual is your best friend.
Q: Why is a recoil starter better than an electric start?
A: It's not always "better," but it has key advantages: it's lighter, has fewer parts to fail (no battery, solenoid, or heavy motor), and works independently of the electrical system, making it a fantastic backup option on dual-start machines.
Conclusion: An Enduring Testament to Simple Engineering
The humble recoil starter is a workhorse. It doesn't need a battery, it adds minimal weight, and when understood, it's surprisingly easy to maintain. The next time you give that cord a pull, you'll appreciate the clever interplay of springs and cogs working seamlessly to bring your machine to life.
Stay curious, and keep your engines running smoothly!
