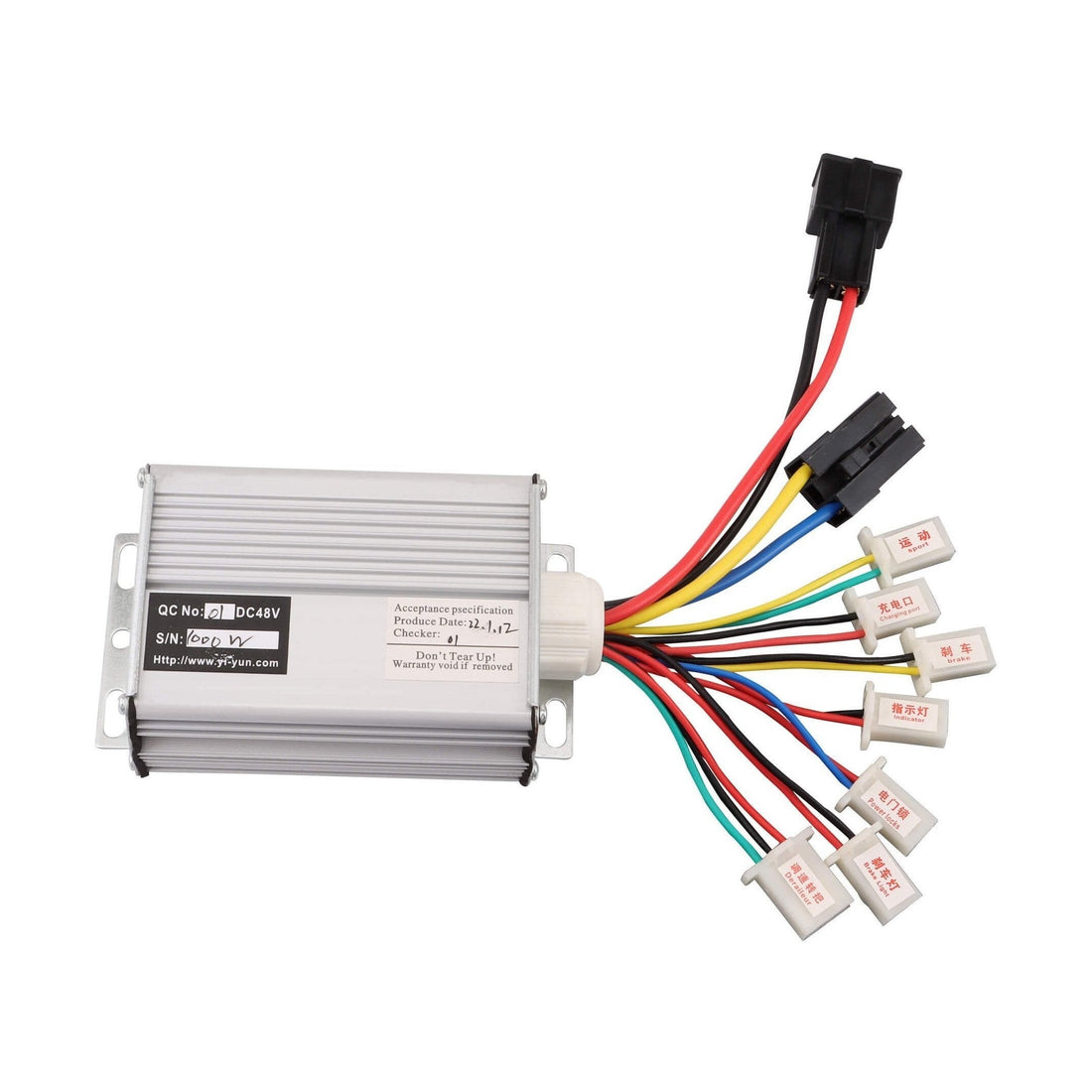

What Is a Brushed Electronic Speed Controller and Installation Guide

Hey there! Let's talk about that moment of frustration.

Your kid’s favorite electric toy car suddenly stops speeding and starts stumbling. Your reliable electric scooter has trouble going up hills, or your DIY e-bike project just won't give it smooth power.Before you think about replacing the whole motor or battery，the Brushed Speed Controller is a part that is often missed and is usually the cause of problems

I have been taking apart toy cars, fixing scooters, and making custom rides for more than ten years. This is where the answer usually lies when there is a power or control problem in a brushed motor system. This guide will make things easier. You'll find out what this little box does, why it's so useful for so many devices, and how to fix and replace it yourself.Let’s get your ride back to its best.

What is a Brushed Electronic Speed Controller?

Imagine you’re holding a regular garden hose with a spray nozzle.

• The pressure of water from the tap is your battery voltage.

• The stream of water is the electrical current.

• The garden you’re watering is your brushed DC motor.

If you only had an on/off valve, you'd either have a flood or nothing, which is bad for controlling plants! You need a way to change the flow exactly. That’s the electronic speed controller.

A Brushed Electronic Speed Controller (ESC) is that precision valve for electricity.It goes in between your battery and motor. It works as a super-fast switch instead of just connecting and disconnecting them, which would be jerky and stressful.

This is the main idea: It turns the power on and off thousands of times per second. The timing is what makes it work. The motor gets half the average power and runs at medium speed if it is ON half the time and OFF half the time. The motor gets most of the power and runs at almost full speed when it's ON 90% of the time. Pulse Width Modulation (PWM) is the name of this method. The controller is basically "chopping" the battery power into exact pulses to set the speed you want.

Interactive Check: Image of a light's dimmer switch. You're not just turning it on and off; you're also smoothly changing how bright it is. A brushed ESC does exactly that for the "power brightness" of your motor.

Brushed vs. Brushless: Why We prefer the Brushed

You probably heard about "brushless" motors in high-end e-scooters and fancy drones. They're great, but they need complicated and expensive controllers. The brushed DC motor is still the most common type of motor used in electric toy cars, entry-level scooters, many e-bikes, and DIY projects. And for good reason!

Inside a Brushed Motor:It's simple and beautiful. The outer casing (with magnets) and the inner spinning part (the armature) are the two main parts that need to be connected electrically for it to spin. Two spring-loaded carbon brushes press against a spinning copper ring (the commutator) to make this connection. The name "brushed" comes from the fact that these motors come into contact with something. This contact makes them buzz and sometimes spark inside.

Why They're a Perfect Match: A Brushed ESC is designed for this simple motor.The brushes and commutator inside the motor do the hard work of changing the electrical direction. The job of the ESC is simple and clear: it gets the signal from your throttle (or remote control) and uses PWM to control how much power goes down the two wires to the motor. No complicated three-phase sequences or fancy timing. This makes the system:

• More Affordable: You get strong control without having to pay for more complexity.
• Very Strong: With fewer electronic parts, there are fewer things that can break from moisture or vibration.
• Simple to Fix and Replace: Anyone with basic wiring skills can put one in.

Is Your Brushed Electronic Speed Controller Failing?

Let's figure it out. Always disconnect the battery before touching any wires!

Common Signs:

• No Power, No Go: You hit the throttle, but nothing happens. The battery is full
• The "Only Fast" Glitch: The device only works at full speed. The throttle or pedal doesn't do anything; it's either off or all the way up.
• Jerky or Stuttering Motion: The ride starts and stops in pieces, especially when going slowly.
• Stopping without warning: It works fine when it's cool, but after a few minutes of use, it shuts down (thermal shutdown).
• The Magic Smoke: If you smell burnt wood or see smoke, something has gone very wrong.

Step-by-Step Diagnostic Guide:

1. The Check for Connection: Check all the wires that go from the battery to the controller to the motor. Check for connections that are loose, wires that are pinched, or plugs that are corroded. Get these fixed first!
2. The Motor Test (the most important step): Unplug the motor wires from the controller. Quickly touch them directly to the right battery terminals. (Sparks are normal.) Do this quickly and make sure the wheels are off the ground! If the motor spins smoothly and strongly when you connect it directly, the motor is probably fine and the controller is the problem.
3. The Throttle Signal: If your controller has a multi-pin connector for the throttle, you may need a multimeter to see if it's sending a signal that changes (usually a voltage that changes when you press the throttle). But if the motor works on direct battery power, the controller is broken 9 times out of 10.

How to Choose the RIGHT Replacement Brushed ESC

It's not about getting the "best" controller; it's about getting the right one. Here is your checklist:

1.Voltage: This has to be the same as your battery. 12V, 24V, and 36V are all common voltages. If you put a 12V controller on a 36V battery, it will break right away.

2.Current Rating: THE MOST IMPORTANT SPEC. This is what gives the controller its "muscle." You need to find a controller that can handle more continuous current (in Amps) than your motor can draw at its highest level.

• How to look for it: Most of the time, the motor has a label. Look for words like "12V 100W" or "24V 250W." Use this equation: Watts / Volts = Amps.
• For example, a 250W motor on a 24V system uses about 10.4 Amps (250 / 24).
• The Golden Rule is to add a safety margin of at least 30% to 50%. Choose a controller that can handle 15 to 20 amps of continuous current for that 10.4A motor. If the controller is too small, it will get too hot and stop working.

3.Form Factor and Connectors: Check to see if it will fit in the space in your car. Make sure the wire connectors fit your throttle, battery, and motor. Don't worry if they don't; it's easy to splice wires, but matching connectors saves time.

4.Key Features to Look For:

• Low-Voltage Cutoff (LVC) keeps your battery from running too low, which could damage it permanently.
• Thermal Protection: If the controller gets too hot, it automatically lowers the power.
• Water Resistance: For scooters and e-bikes that are used outside, a sealed case is very important.

Installation Guide For Brushed ESC

One of the easiest electronic repairs is to replace a brushed ESC. Follow these steps:

1. Tools Needed: Wire cutters/strippers, electrical tape, heat shrink tubing (ideal), screwdrivers, and maybe a soldering iron.
2. Disconnect and Document: Take a clear picture of how everything is connected. After that, unplug the old controller and take out the battery.
3. Get the new controller ready: If the wires are too short or don't have the right connectors, carefully cut, strip, and solder or splice them. To make sure the seal is safe, professional, and waterproof, always cover connections with heat shrink tubing. Don't trust electrical tape alone on a car that shakes.

4. Connect in a Logical Order:

   • First, connect the motor wires. Polarity usually doesn’t matter for brushed motors—swapping them just makes the motor run in reverse.

   • Second, connect the throttle/control wires.

   • Third, double-check your battery polarity. Positive (RED) to positive, Negative (BLACK) to negative. Reversing this will destroy the new controller instantly.

5. Securely Mount: Use screws or zip ties to hold the controller to the frame. Metal parts help the heat escape. Don't let it get wet or touch the hottest parts of the car.

6. The Moment of Truth: Put the battery back in. Give the wheels some space. Gently push the throttle. It should work without any problems. Let it run for a minute, then touch the controller. It should be warm, not too hot.

Conclusion

You are no longer at the mercy of a strange black box. You know that the reliable, simple, and cheap link is what connects your battery and motor in perfect harmony.

Ready to find a perfect-match brushed ESC for your toy car, scooter, or DIY project?
[Browse our brushed speed controllers]. We’ve specifically chosen models with robust safety margins, key protections like LVC, and clear, beginner-friendly wiring diagrams because we use them in our own shop builds.

Are you having trouble with the math or aren't sure if it will work with your system?That’s what we’re here for. [Contact our expert team ：help@goofitmoto.com] with your motor and battery specs. We have more than ten years of experience working with all kinds of small electric vehicles. We'll help you find the right part to make your ride run fast and strong again.

Keep it simple, and keep it moving!
