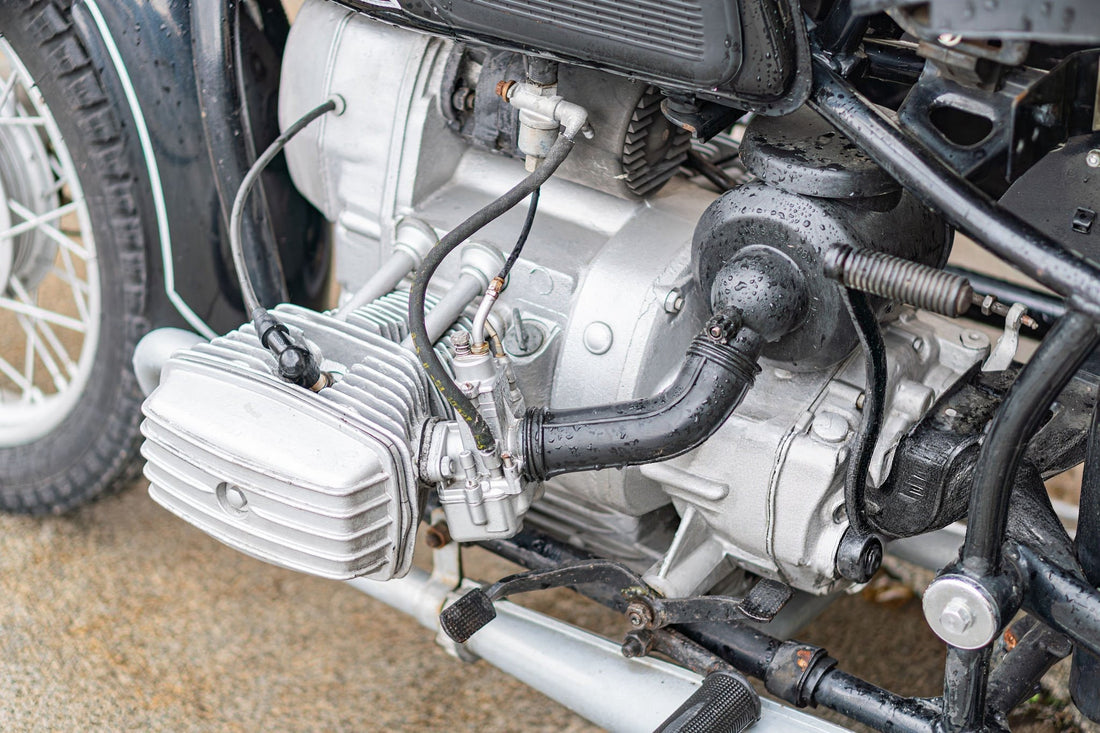

What is a Cylinder Head ? Guide To Cylinder Head Replacement

Hey there, fellow rider! As the owner of a motorcycle parts company and repair shop, I've seen a lot of bikes come in with problems that all come back to one important part: the cylinder head. If you're new to motorcycles or just starting to learn how to DIY repairs, you might be wondering, "What is a cylinder head, and why should I care?" Okay, let's get started.  Imagine your bike's engine as a kitchen. The cylinder head is like the lid on your pressure cooker, keeping the power inside and controlling the chaos. But what if that lid starts to crack or leak? Loss of power, overheating, or even a complete breakdown. Don't worry, in this post we'll go over common problems and solutions step by step,making it easy for beginners like you to understand and act.

What is a Cylinder Head, and Why Does it Matter?

The cylinder head is the top part of your motorcycle's engine. It sits above the cylinders and acts as the "roof" for the combustion chamber, where fuel and air mix to make power. Wikipedia says, "In a piston engine, the cylinder head sits above the cylinders, forming the roof of the combustion chamber." It is usually made of strong metals like aluminum or cast iron and has important parts like spark plugs, intake and exhaust valves, and passages for fuel or coolant.

Think about the coffee maker you use in the morning. The top part of the cylinder head is where hot water flows in, mixes with fuel and air, and brews the energizing cup (engine power). It controls the flow of air in motorcycles by letting in a new air-fuel mixture and pushing out exhaust. It also keeps everything sealed tight with a gasket. For many bikes, especially those with overhead valve (OHV) or overhead camshaft (OHC) designs, the cylinder head is very close to the cylinders to make the engine work better.

Why does this matter to you? A well-functioning cylinder head ensures smooth rides, better fuel economy, and longevity for your bike. But wear and tear from heat, vibrations, or poor maintenance can lead to warping, cracks, or gasket failures. Ever had a pot lid warp from too much heat? Same idea – it stops sealing properly, and your "brew" goes wrong.

How Do I Know If My Cylinder Head Needs Replacement?

Common red flags include:

• Overheating: The head controls the flow of coolant. If it's cracked, heat builds up quickly.
• Loss of power: Warped heads mess up combustion, which makes your bike feel tired.
• Weird exhaust: If you see white smoke, it means coolant is leaking in. If you see blue smoke, it means there are oil problems.
• Strange noises: If you hear strange noises like knocking or pinging, it could mean that the head's valves are broken.

These are common symptoms that your cylinder head might be the problem. It's simple for beginners to miss, but if you don't pay attention to it, a small problem might snowball into a big repair price.

I have a question for you: Have you looked at the temperature gauge on your bike lately? If it's going up and down a lot, you may need to take a closer look. We always start with a compression test in my shop. It's a simple tool that checks the pressure in the cylinders. Low readings often lead directly to the cylinder head.

Let's rely on tried-and-true information from experts for authority. Motorcycle repair manuals from companies like Haynes and Clymer explain how important the cylinder head is for sealing and controlling airflow for the health of the engine. You don't always have to replace it; occasionally just resurfacing or changing the gasket may do the trick. But if there are cracks, you should replace the whole cylinder head.

Step-by-Step Cylinder Head Replacement on a Common Bike

Replacing a cylinder head is a serious repair, but with proper preparation and patience, a competent DIYer can tackle it. Last week, a customer brought in his 2003 Honda Shadow 1100 with overheating problems. After diagnosing a warped cylinder head, we walked him through the replacement. Here's how you can do it too, broken down into clear steps.

Remember, safety first: Work in a well-ventilated area, wear gloves, and disconnect the battery.

Step 1: Preparation and Drain Fluids Drain the coolant and oil to avoid spills. Remove the fuel tank, exhaust headers, and any fairings blocking access. This clears the way to the engine top.

Step 2: Remove Accessories Detach spark plugs, valve covers, and cam chain tensioners. Loosen the head bolts in a crisscross pattern to avoid warping – start from the outside and work in.

Step 3: Lift Off the Old Cylinder Head Gently pry the head off using a soft mallet if needed. Inspect the gasket for damage; it's often the weak link. Clean the mating surfaces thoroughly with a scraper and solvent – no debris left behind!

Step 4: Install the New Cylinder Head Place a fresh gasket on the cylinder block. Lower the new head (from a reputable parts supplier like mine) into position. Torque the bolts to spec (check your bike's manual – usually 20-40 ft-lbs in stages) using a torque wrench. Reattach everything in reverse order.

Step 5: Refill and Test Refill fluids, reconnect the battery, and start the engine. Monitor for leaks and run a compression test. Break it in gently with short rides.

What Our Customers Say: Real Feedback from the Shop

"I thought it was just running hot..." – David, a Honda CB750 owner, ignored gradual overheating until coolant mixed with his oil. A replacement head and gasket solved it, but he learned: "That faint smell of coolant is a warning, not a quirk."

"John at the shop explained everything like I was his buddy, not just a customer. My bike's power is back, and it runs cooler than ever!" – Mike T., beginner rider with a Yamaha V-Star.

"A 'quick fix' cost me more." – Mike tried to seal a small leak with stop-leak additive. It clogged a coolant passage, leading to localized overheating and a warped head. His takeaway: "Address the root cause, not just the symptom."

"I was nervous about replacement costs, but the step-by-step guidance made me confident to help out. Saved me time and money – highly recommend!" – Sarah L., who fixed her Kawasaki Vulcan after following our advice.

Common Mistakes to Avoid During Cylinder Head Replacement

Even experienced mechanics can stumble.so here's where beginners often go wrong – and how to steer clear.

• Ignoring Torque Specs: ightening bolts in a circle or just "going by feel" will almost certainly warp the head. Always use a torque wrench and follow the manual's pattern.
• Skipping Cleaning: Old gasket residue can cause leaks. Risk: Engine seizure from poor sealing. Clean meticulously!
• Using Impact Tools: Never use an impact wrench on cylinder head bolts. The sudden, extreme force can damage threads and the aluminum head itself.
• Rushing the Break-In: Jumping straight to high speeds post-replacement stresses the head. Take it easy for the first 100 miles.

Conclusion

I've gone over the essentials in a way that is easy to understand but still complete, from "What is a cylinder head?" to the methods for replacing it. I own a motorcycle parts business and maintenance shop, so I know how important this information is for keeping your bike on the road. If problems keep happening, come by my shop or order parts from our online store. Don't forget to do routine maintenance. Check your head (the cylinder one!) when you change your oil.
Ready for your next repair challenge? What's your biggest motorcycle mystery? Drop a question below, and let's solve it together. Safe riding!
