What is a stator for a motorcycle? A Guide for Newbies

Hey, rider! Have you ever turned on your bike and heard a click, but the engine failed to start? Maybe your headlight gets dim when you stop, or the battery keeps dying even though it's brand new? If so, your motorcycle stator may be broken.

Don't worry if that sounds like technical jargon. At the end of this guide, you'll know exactly what a stator is, how it works, and why it's the most important part of your motorcycle's electrical system. Let's take it apart.

The Simple Comparison: Picture Your Motorcycle as a Person

To understand what the stator does, let's use a simple example:

• The Battery is like a quick energy drink for you. It provides the engine a boost of power to start it up (wake the body up) and run things when the engine is off.
• The Stator is like your heart and lungs working together. The engine makes and pumps electrical energy all the time to power everything and charge the battery.

The main job of a stator is to make electricity to keep the battery charged and power all the electrical parts while the engine is running.

Okay, but what does it look like?

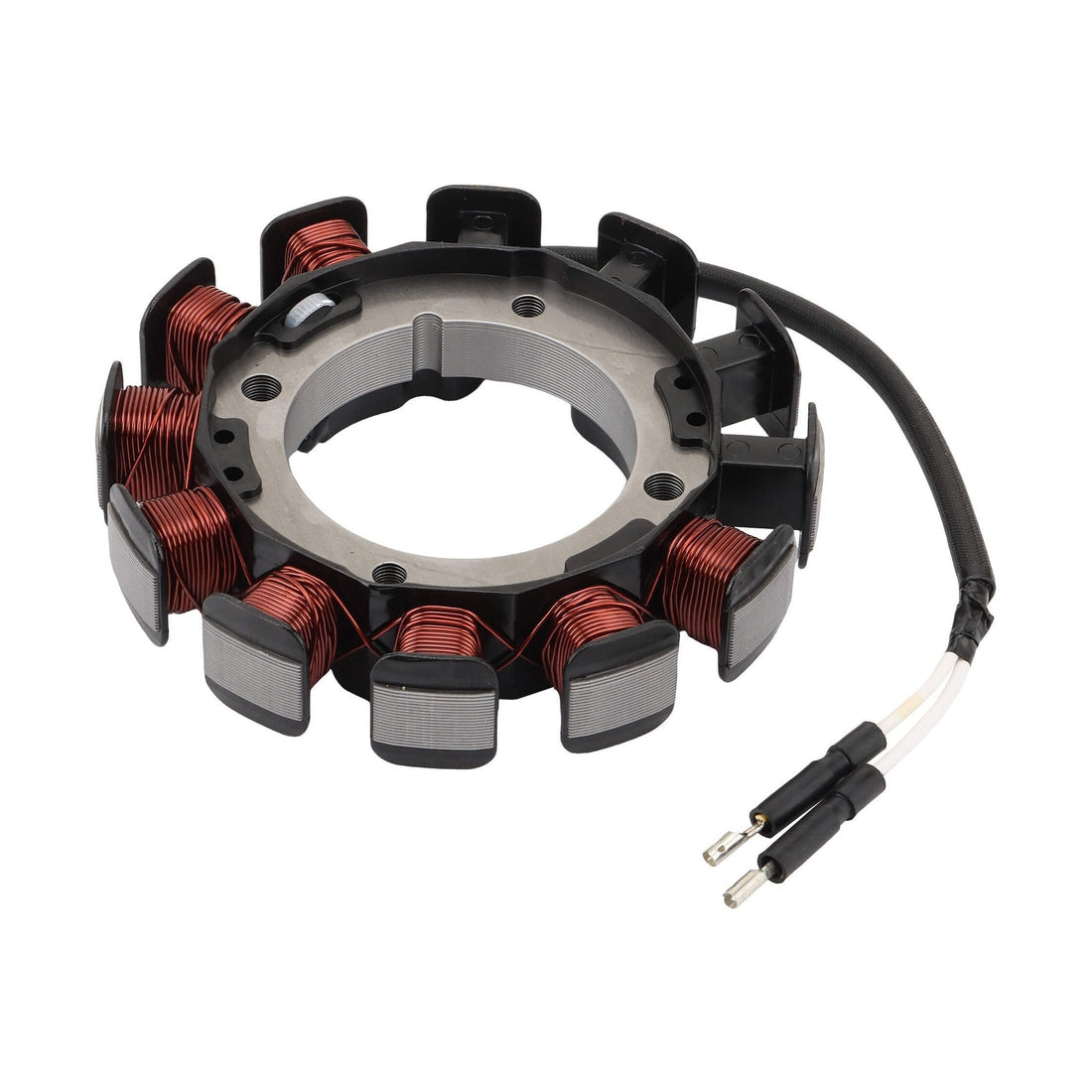

A motorcycle stator is a set of coiled copper wires that don't move and are usually found next to the engine's crankshaft inside the engine case. There is also a rotor (which spins) and a regulator/rectifier in your bike's charging system.

You might hear it called by a few other names, but they all refer to the same main part:

• Alternator Stator: This is a part of a modern AC charging system.
• Magneto Stator: This part makes power for the ignition spark directly and is often found on older or simpler bikes.
• Electric Motor Stator: This is a more general term for any part that doesn't move in an electric motor or generator, but the idea is the same.

How does a motorcycle stator work? The Three-Step Process

Let's take a look at how this magic works:

Step 1: Making a Magnetic Field

The rotor, which can be a permanent magnet or an electromagnet, is connected to the crankshaft of your engine. The rotor spins when you turn on the engine.

Step 2: Making Power

The magnetic field of the spinning rotor moves over the copper coils of the stator, which causes an alternating current (AC) to flow through the wires. The main idea behind electromagnetism is that moving through a magnetic field makes electricity.

Step 3: Making It Work

The stator's raw AC power isn't good for your bike's DC battery and parts. The Regulator/Rectifier is what makes this possible. It changes the AC power into DC power, and then it controls the voltage to a safe level (usually around 14 volts) so that the battery can be charged and the lights, ECU, fuel injectors, and other things can work.

Interactive Check: Next time your bike is sitting still, turn on your high beam and give the engine a little gas. Do you see how the light is getting brighter? Your stator makes more electricity as the rotor spins faster.

Signs that your stator is bad

How can you tell if your stator is broken? Keep an eye out for these signs:

1.  The most common sign is a dead or constantly discharging battery. The battery isn't charging.
2.  Hard to Start/Clicking Sound: The starter motor won't work if the battery is low on power.
3.  Lights that flicker or dim when the engine is running slowly, especially when it's idling.
4.  Electrical Parts Not Working Right: Gauges acting strange and fuel injection stumbling.
5.  The Smell of Burnt Melting: When stator coils get too hot, they can give off a strong, bad smell.
6.  Damage you can see: In the worst cases, the insulation may have melted or the windings on the stator may have turned black.

 Garage Tip: Before you blame the stator for a dead battery, always check the simple things first! A broken regulator/rectifier is a very common cause of the stator and battery dying. Make sure your battery terminals are also clean and tight. A lot of "charging problems" are just bad connections.

Would it be possible to test a stator? Yes, and you should!

A simple multimeter makes it easy for a beginner to test the basic stator. Before testing, always take the battery out.

•  Set your multimeter to Ohms (Ω) for the resistance test. Check the resistance between each of the stator's three pairs of output wires. Check your service manual to see what the readings should be. They should be low and steady, usually between 0.1 and 2.0 Ohms. A reading of "OL" (open loop) or very high means that the coils are broken.
•  AC Voltage Output Test: While the engine is running and the battery is connected, carefully measure the AC voltage between the stator wire pairs at different RPMs (like 3000 RPM). You should see a steady rise in voltage, which is usually between 50 and 90 volts AC, depending on the bike. If one pair shows a low or zero reading, it means the stator is bad.

 The Stator is the power plant for your bike

Don't think of the motorcycle stator as a strange part inside the bike. Instead, consider it to be the power plant that drives the engine. It's essential for any ride that lasts longer than a few minutes. If your stator isn't working, you're only using the battery's limited energy, which means a very short trip.

It's not just mechanics who need to know this part. If you know the signs of a bad stator, you can avoid a frustrating breakdown on the side of the road. Now you can say with confidence, "Hmm, let me check the charging system—starting with the battery connections, then maybe the stator and regulator."
