What Is CDI on a Motorcycle? What Does a CDI Box Do?

Hey, riders!  I've been in the workshop for more than ten years, and the one question I get from both new riders and experienced DIYers is, "What is a CDI box, and why does my bike need one?"

You're not the only one who has looked at your service manual or a forum and seen a lot of electrical jargon.  We're going to make this important part less mysterious today.  By the end of this guide, you'll learn what a CDI box does, how to identify issues with it, and how to fix them.

Let's get going.

What Is CDI on a Motorcycle?

You may have seen "CDI" in your bike's manual or on online forums. What does it mean, and why should you care?

Let's make it simple.

Capacitor Discharge Ignition is what CDI stands for.  The electronic brain decides when your engine should spark.  Without it, your spark plugs wouldn't know when to fire, and your engine wouldn't start.

Think of it like the switch that turns on the lights in your house.  When you flip the switch, a surge of electricity goes to the bulb right away.  The CDI box does the same thing: it takes power, stores it, and then sends a quick, strong burst to the spark plug at the *perfect millisecond* to light the fuel.

Older motorcycles had a mechanical system called "points ignition."  It worked by opening and closing physical contact points, like a timer from the past.  They worked, but they broke down, needed constant adjustments, and were likely to fail.  The CDI system was a revolution because it was all electronic.  It works better, is more accurate, and doesn't need any upkeep.  In the ten years I've been riding, I've seen a lot fewer bikes with CDI break down because of the ignition. This is a big reason why modern motorcycles start so easily and run so smoothly.

Does your bike crank but then stop or sputter when you start it, especially on a cold morning?  That might be an early sign that your CDI system is having trouble.  Read on to find out why.

What Does a CDI Box Do?

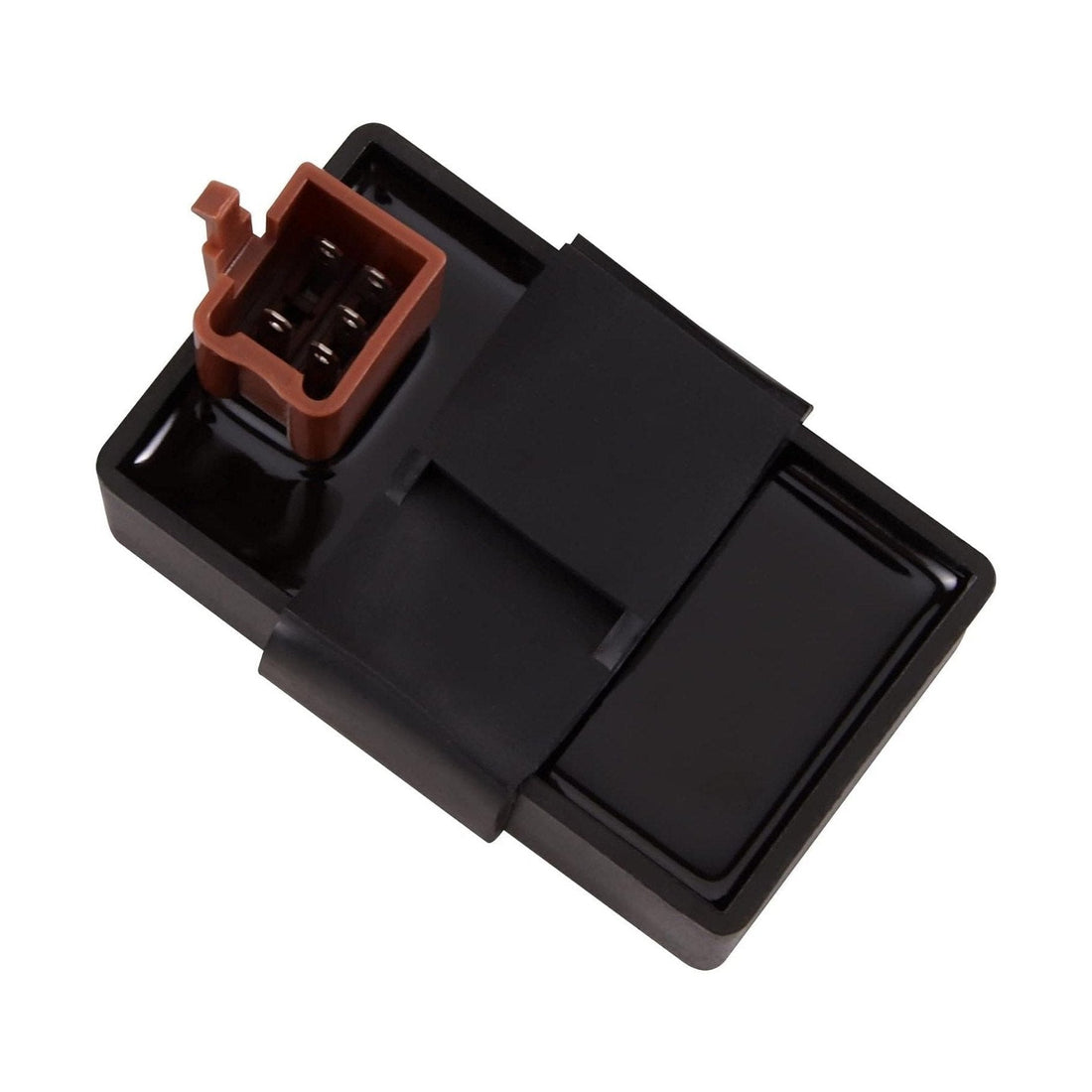

Okay, so it's called a CDI box. But what does this little black box under your seat or tank do to make your ride possible?

Its main job is to precisely control.  It does three main things:

1. Stores Energy: It has a capacitor inside, which is like a tiny, super-fast-charging battery that builds up an electrical charge.
2. Times the Spark: It uses sensors on your engine to figure out when the best time is to start the engine.
3. Releases the Spark: It sends a high-voltage spark to the plug, which releases the stored energy.

 Step-by-Step Process in Simple Terms:

1. Charge Up: The bike's charging system sends power to the CDI box, which fills the capacitor inside it as the engine turns over.
2. Hear: A sensor near the crankshaft or flywheel sends a message that says, "Piston is coming up!"  "Get ready!"
3. Calculate: The CDI's brain looks at its pre-programmed "map" to figure out the exact millisecond to spark based on how fast the engine is going.
4. Fire!: It sends the stored energy to the ignition coil, which turns it into a huge spark at the plug—**Boom!** Combustion.

Example :
When you rev your engine, it's like pushing the gas on a lawnmower.  The mower sputters if the "pop" of ignition happens at the wrong time.  Your CDI makes sure that "pop" happens just right, whether you're stopped at a stoplight or going full speed on the highway.  From my point of view, a broken CDI is a common cause of that annoying rough idle or slow acceleration.

Theory Made Easy:
It works on the idea of a capacitor, which is a part that can quickly store and release energy.  This makes the spark much hotter and more reliable than older systems could do.

Interactive Prompt: Think back to the last time you rode.  Did the engine feel quick and responsive or slow and uneven?  A healthy CDI box is what makes that smooth, powerful feel possible.

What does a CDI box do when you're riding?

Theory sounds good, but what happens when I'm driving down the highway or getting up on a cold morning?

Let's break down what happens on your ride into five easy steps:

1.  You turn the key：power goes from the battery to the CDI box.
2.  You Hit Start: The crankshaft turns, and the sensor sends the CDI regular timing pulses.
3.  The Box Thinks: It figures out "spark now for low RPM... spark earlier for high RPM" for each pulse.
4.  The Spark Travels: The command quickly goes to the ignition coil and then down the wire to the spark plug.
5.  Repeat: This happens hundreds of times a minute and smoothly changes as you ride.

A example from my store:
Imagine this:  A rider is on a trail when their dirt bike suddenly stops working after a long, hard ride.  It won't start again.  That usually means the CDI box is getting too hot, which happens a lot when it's near the engine.  I've changed a lot of boxes on the side of the road to get riders home.  The worst things for a CDI are heat and vibration.

2-Stroke or 4-Stroke?
In short, a 2-stroke engine fires every time it turns (a sprint), and a 4-stroke engine fires every other time it turns (a marathon).  The CDI is smart enough to know the difference and changes its timing signals to match.  That's why you can't just switch a CDI from one model to another; they're tuned to work with that model.

Question: Have you noticed a big difference in how well your bike runs after a tune-up?  If your mechanic talked about the ignition or CDI, let us know in the comments!  (From what I've seen with popular models like the Yamaha YZF and Kawasaki Ninja, a good ignition tune-up works wonders.)

Common CDI Boxes Problems & How to Find Them

What if my bike doesn't start or runs badly? Could the CDI box be to blame? How can I check without spending a lot of money on tools?

First, learn about the symptoms:

•  No-Start, Good Compression/Fuel: The engine turns over but never starts.  It's like having a broken remote: you press the button, but nothing happens.
•  Intermittent Stalling: The bike stops working for no reason when it's warm, but it might start up again later.  This is an old-fashioned failure caused by the heat.
•  Misfiring and backfiring: the engine hesitates and makes popping sounds from the exhaust.  A flickering light bulb is a good example of this. The spark isn't always there.
•  The RPM limiter is acting strangely: the engine "hits a wall" at low revs, not near the red line.

My Step-by-Step Checklist:
Safety First : Always disconnect the negative battery terminal before touching any electrical parts.

1.  Find the Box: Look in your owner's manual.  It's usually under the seat, on the side panel, or near the battery.  It's a small box made of plastic or metal that is sealed and has a lot of pins.
2.  Take a Look:  Take the connector out of the wall.  Check for rust, melted plastic, or burned pins.  This is the first sign that something is wrong.
3.  Check for a spark:  Take out a spark plug, put it back in its cap, and touch the metal body to the engine.  Turn the engine over.  Do you see a bright blue spark?  If there is no spark, there is a problem with the ignition system.
4.  The "Swap" Test ：You have found the problem if you can borrow a CDI from a bike that is the same as yours and it starts right away.
5.  Multimeter Basics: You can use a manual to check the resistance of the ignition coil and the pulse generator (sensor).  These break down more often than the CDI itself.  If you see "OL" (open loop) or zero, that part is bad.

Advice on how to avoid problems from experience:

•  Apply dielectric grease to and clean electrical connectors.
•  Make sure the CDI box is securely attached to reduce vibration.
•  Don't pressure wash the area around the CDI directly.

Interactive Element: What's the strangest or most annoying electrical problem you've had with your bike?  Comment about it; it may be about the ignition system, and we can discuss it!

Conclusion

To sum up, the CDI box on your motorcycle is the exact electronic controller of the ignition show.  It takes the guesswork out of timing, so you can count on smooth power, reliable starts, and better efficiency.

You know now:

• What it is : The ignition brain.
• What it does : It stores energy and times the spark just right.
• How it breaks : It gets too hot, vibrates, or gets old, which makes it hard to start and run.
• How to check : First, look at it and do a simple spark test.

The next thing you should do is learn more.  The next time your bike breaks down, you'll know exactly where to look.  Remember to be patient and put safety first when fixing your bike.

Last Question: Are you ready to get to know your bike better?  What will you look at first the next time your motorcycle won't start?

Ride safe and ride smart
