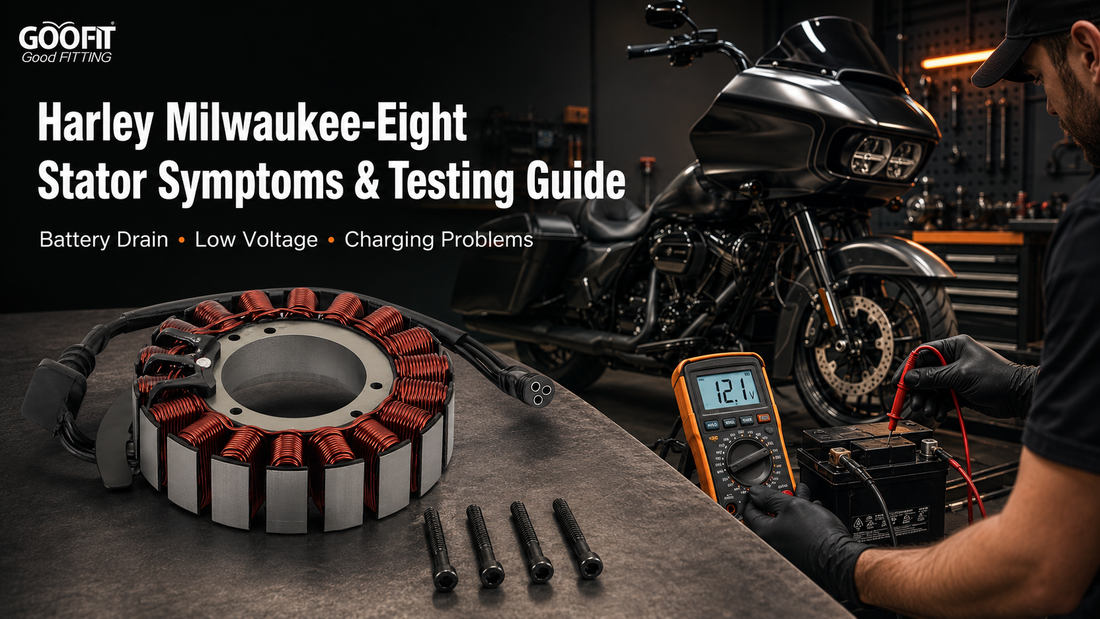

Why Is My Harley-Davidson Milwaukee-Eight Not Charging? Stator Symptoms, Testing, and Replacement Guide
A Harley-Davidson Milwaukee-Eight that repeatedly loses battery power can quickly become unreliable. The motorcycle may start after the battery is charged, crank slowly after a long ride, display a low-voltage warning, or refuse to restart at a fuel stop. Although the battery is often blamed first, it is only one possible cause.
The battery, stator, voltage regulator, connectors, grounds, and accessory load operate as one charging system. Replacing a stator without checking the other components may leave the original fault unresolved. Harley-Davidson service information likewise advises testing the charging system, battery, stator, and voltage regulator when the motorcycle does not charge normally.
If testing confirms an internal stator fault, compare the original assembly with this replacement stator for Harley-Davidson Milwaukee-Eight Touring and FXDR models, designed for selected applications using OEM 29900042A.
Quick answer: A failing Milwaukee-Eight stator may cause repeated battery discharge, slow cranking, low running voltage, unstable lighting, electrical warnings, stalling, or failure to restart after riding. A weak battery, faulty voltage regulator, damaged connector, poor ground, or excessive accessory load can cause similar symptoms, so test the complete system before replacing parts.
What Does the Stator Do on a Harley-Davidson Milwaukee-Eight?
The stator is the stationary part of the alternator assembly. Copper windings are arranged around a laminated core. As the engine turns the rotor, its magnetic field moves past the windings and generates three-phase alternating current.
That AC output travels to the voltage regulator/rectifier, which converts it to direct current and controls the voltage supplied to the battery and motorcycle.
In simple terms, the stator generates electricity, the voltage regulator controls it, and the battery stores it.
If stator output becomes too low, the motorcycle may temporarily run from the battery’s stored energy. Once that reserve drops too far, electronic systems may become unstable, the starter may crank slowly, or the engine may stall and fail to restart.
Harley-Davidson parts catalogs identify OEM 29900042A as a three-phase stator assembly in Touring, Trike, and FXDRS alternator-and-regulator systems.
Common Harley Milwaukee-Eight Stator Failure Symptoms
A damaged stator can produce several warning signs, but no single symptom proves the stator has failed. Look for a pattern and confirm it with electrical tests.
Common symptoms include:
- The battery repeatedly loses charge.
- A charged or recently replaced battery becomes weak again.
- The starter cranks slowly after riding.
- The motorcycle starts cold but will not restart when warm.
- A low-voltage or system-voltage warning appears.
- Headlights, instruments, or accessories become dim or unstable.
- Running voltage remains low as engine speed increases.
- Electrical accessories reset or work intermittently.
- Charging performance becomes worse as the engine heats up.
- The stator or regulator connector is discolored, corroded, or melted.
- One stator phase produces a noticeably different reading.
- Stator windings appear dark, overheated, or damaged.
These symptoms indicate a charging-system problem, but they do not automatically confirm a failed stator. A weak battery, damaged regulator, loose ground, poor connector, or wiring fault can produce many of the same signs.
Bad Stator, Weak Battery, or Faulty Voltage Regulator?
Use the test results to narrow down the fault before opening the primary drive or ordering parts.
| Test or Observation | More Likely Cause | Next Step |
|---|---|---|
| Battery fails a load test | Weak battery | Charge or replace it first |
| Battery is good, but running voltage stays low | Stator, regulator, wiring, or connector | Inspect connections and test stator output |
| One phase differs from the other two | Damaged stator winding | Compare resistance and AC output |
| A phase has an unwanted path to ground | Shorted stator or harness | Isolate the stator and retest |
| Stator AC output is balanced, but DC charging is abnormal | Regulator, wiring, or ground | Test the regulator and voltage drop |
| Connector is burned or melted | High-resistance connection | Replace damaged terminals and housing |
| Charging works cold but drops when hot | Heat-related fault | Repeat testing at operating temperature |
| Voltage falls mainly when accessories are switched on | Excessive load or poor connection | Inspect accessory wiring and system capacity |
Harley-Davidson’s service guidance treats low charging as a system-level problem and recommends checking the battery, stator, voltage regulator, and related circuit rather than assuming one component is responsible.
How to Test a Harley Milwaukee-Eight Stator
Charging-system testing involves electrical connectors, a running engine, and hot or moving parts. Secure the motorcycle correctly, work in a ventilated area, and use the service manual for the exact model and year.
1. Fully Charge and Test the Battery
Begin with a fully charged, known-good battery.
Inspect the battery case, positive terminal, negative terminal, cables, and main grounds. A battery can show an acceptable open-circuit voltage and still fail when the starter places it under load, so a proper load or capacity test is preferable.
Testing the charging system with a weak battery may produce misleading results and place unnecessary stress on the remaining components.
2. Inspect the Stator and Regulator Connections
Disconnect the battery before separating electrical connectors.
Inspect the stator-to-regulator connection and nearby harness for:
- Melted or discolored plastic
- Darkened or loose terminals
- Corrosion or moisture
- Oil contamination
- Brittle insulation
- Damaged crimps
- Chafed or pinched wiring
- Poor engine, frame, or battery grounds
Do not simply clean and reuse a severely overheated connector. Heat can reduce terminal tension and increase electrical resistance. Connecting a new stator to damaged terminals may cause continued low output or another overheating failure.
3. Check Battery Voltage With the Engine Running
Measure battery voltage with the engine off, then repeat the measurement while the engine runs at the speed and conditions specified in the correct service manual.
The important question is whether the voltage rises and remains controlled while the engine is running.
If the voltage stays low, fluctuates significantly, or rises excessively, continue isolating the stator, voltage regulator, connectors, wiring, and grounds. Do not use a charging specification taken from an unrelated Harley-Davidson platform or model year.
4. Compare Phase-to-Phase Resistance
Turn off the engine and disconnect the stator from the voltage regulator.
A three-phase stator requires measurements between all three terminal combinations. Each phase-to-phase resistance result should be close to the others.
A substantially different result can indicate:
- An open winding
- A partially shorted winding
- Heat-damaged insulation
- A damaged lead or connector
Because stator resistance is usually low, the resistance of the multimeter leads can affect the reading. Use the model-specific service specifications as the final standard.
5. Check Each Phase for a Short to Ground
Measure between each stator phase terminal and a clean engine ground.
Where the service procedure expects the windings to remain isolated, continuity to ground may indicate damaged insulation or an internal short.
Keep the stator disconnected from the rest of the motorcycle harness during this test. When an abnormal path appears, inspect the stator lead and connector before concluding that the short is inside the windings.
6. Compare Three-Phase AC Output
Set the multimeter to AC voltage and compare all three phase combinations while the engine runs at the same specified speed.
Balanced output is important. If two phase combinations produce similar readings and the third is substantially lower, one section of the stator may be failing.
Keep the probes from touching each other, the motorcycle frame, or nearby moving components. Use the correct procedure and expected values for the exact motorcycle rather than numbers taken from an older Twin Cam, Sportster, or unrelated charging system.
7. Repeat the Test When the Motorcycle Is Warm
Some winding-insulation and connection faults appear only after heat builds up.
If the motorcycle charges normally when cold but loses output after an extended ride, repeat the running-voltage and three-phase AC-output tests while the symptom is present.
Be careful around the hot engine, exhaust, and primary-drive components.
Why Problems May Appear Under Accessory Load
Touring motorcycles may operate audio systems, navigation devices, auxiliary lights, heated clothing, phone chargers, communication equipment, and other accessories.
These loads do not automatically damage a healthy stator, but they can expose:
- A weak battery
- Marginal charging output
- A poor ground
- A high-resistance connector
- Undersized accessory wiring
- An incorrectly installed electrical accessory
Compare charging performance with nonessential accessories switched off and then on.
If voltage drops sharply only when additional loads are active, inspect the accessory wiring, grounds, fuses, and connections before blaming the stator.
OEM 29900042A Fitment and Output Notes
Harley-Davidson parts catalogs identify 29900042A as a three-phase stator assembly.
Touring and Trike catalogs commonly list it within a 48-amp alternator system, and the 2019 FXDRS catalog also identifies it as a three-phase 48-amp stator. Some Softail catalogs list the same OEM number as part of a 40-amp system. This shows why amperage alone should not be used to identify the correct replacement.
The GOOFIT replacement is listed for selected:
- 2017–2024 Milwaukee-Eight Touring models
- Electra Glide, Street Glide, Road Glide, and Road King applications
- CVO Touring applications
- Milwaukee-Eight Trike applications
- 2019–2020 FXDR or FXDRS 114 applications
Its listed specifications are:
| Specification | Details |
|---|---|
| Replacement OEM | 29900042A |
| System Type | Three-phase stator |
| Outer Diameter | 144 mm / 5.67 in |
| Inner Diameter | 65 mm / 2.56 in |
| Iron Core Height | 20 mm / 0.80 in |
| Material | Copper windings with heat-resistant insulation |
These fitment details and dimensions should be compared with the original part before ordering.
Do not assume every Milwaukee-Eight motorcycle uses the same stator. Confirm:
- Original OEM number
- Exact model and year
- Connector and terminal layout
- Mounting-hole positions
- Outer and inner diameter
- Iron core height
- Harness routing
- Rotor and regulator configuration
After confirming the part number and physical configuration, compare the original assembly with this 29900042A Harley-Davidson alternator stator.
Why Can a Replacement Stator Fail Again?
A new stator may fail early or continue to show low output when the underlying problem remains unresolved.
Possible causes include:
- A damaged or sulfated battery
- A faulty voltage regulator
- A burned stator connector
- Loose terminals creating resistance
- Poor engine or frame grounds
- Chafed or pinched wiring
- A damaged rotor
- A trapped stator lead
- Incorrect harness routing
- Improper installation
- Incorrectly wired accessories
The stator, battery, regulator, and wiring must work together. Do not install a new stator into a system that still contains a melted connector, failing battery, poor ground, damaged rotor, or defective voltage regulator.
What to Check Before Installation
Use the correct service manual and obtain the required gaskets, seals, fluids, tools, and fastener specifications before beginning.
- Disconnect the battery.
- Confirm OEM 29900042A and compare both stators.
- Verify the dimensions, mounting holes, harness, and connector.
- Inspect the regulator plug, DC wiring, grounds, and rotor.
- Test the battery and voltage regulator.
- Repair overheated connectors or damaged terminals.
- Route the harness exactly like the original.
- Prevent wires from being pinched during reassembly.
- Follow model-specific torque and sealing instructions.
- Verify charging performance after installation.
Professional installation is recommended when the installer is not experienced with Harley-Davidson primary-drive and charging-system service.
When Should You Replace the Stator?
Replacement is reasonable when the battery has passed testing, the connectors and grounds are serviceable, and electrical measurements confirm a stator fault.
Evidence may include:
- Unbalanced phase readings
- An unwanted short to ground
- Low AC output on one phase
- Output that falls after the engine becomes warm
- Burned or darkened windings
- Damaged insulation
- Physically damaged stator leads
Do not replace the stator based only on a dead battery, hard starting, or one low-voltage warning.
Long storage, parasitic draw, battery age, accessory wiring, voltage-regulator failure, and poor electrical connections can produce similar symptoms.
Frequently Asked Questions
Can a Bad Harley Stator Drain a New Battery?
A failed stator usually allows the battery to lose charge because the charging system is not replacing the electricity used while the engine runs.
That differs from a parasitic draw, which discharges the battery while the motorcycle is switched off or parked.
How Do I Know Whether the Stator or Voltage Regulator Is Bad?
Check the stator phases for balanced resistance, isolation from ground, and balanced AC output.
If stator output is correct but battery-side DC charging remains abnormal, the voltage regulator, connector, DC wiring, or ground becomes more likely.
Can I Test a Milwaukee-Eight Stator Without Removing It?
Most resistance, ground-isolation, and AC-output tests can be completed through the disconnected stator connector.
Removal is normally required for direct physical inspection or replacement.
Does OEM 29900042A Fit Every Milwaukee-Eight Motorcycle?
No. Confirm the exact model, year, OEM catalog, connector, dimensions, mounting arrangement, rotor, and regulator configuration.
Is 29900042 the Same as 29900042A?
Some aftermarket listings use 29900042 as an earlier or related reference, but 29900042A should be treated as the primary verified number for this replacement.
Compare the original part number and model-specific catalog before ordering.
Final Diagnosis and Replacement Advice
A Harley-Davidson Milwaukee-Eight that repeatedly loses battery power should be diagnosed as a complete charging system.
Start with the battery and cable connections, inspect the stator and regulator plugs, check running voltage, compare all three stator phases, and evaluate the voltage regulator before replacing components.
This test-first approach reduces unnecessary parts replacement and helps identify overheated connectors, poor grounds, and accessory-related voltage drop before they cause another failure.
Once testing confirms the stator is faulty, review the fitment and specifications for this Harley Milwaukee-Eight Touring and FXDR replacement stator.
Confirm OEM 29900042A, the connector, 144 mm outer diameter, 65 mm inner diameter, 20 mm iron core height, model, and year before purchase.
How We Prepared This Guide
This guide was prepared by reviewing Harley-Davidson OEM alternator-and-regulator parts catalogs, comparing the replacement stator’s listed dimensions and fitment information, and organizing a practical diagnostic sequence for battery, connector, wiring, stator, and voltage-regulator faults.
Model-specific Harley-Davidson service information should always take priority over general diagnostic guidance.
