Harley-Davidson Milwaukee-Eight Touring FXDR Stator 2017–2024 | 29900042A
Harley-Davidson Milwaukee-Eight Touring FXDR Stator 2017–2024 | 29900042A
Couldn't load pickup availability
Product Overview

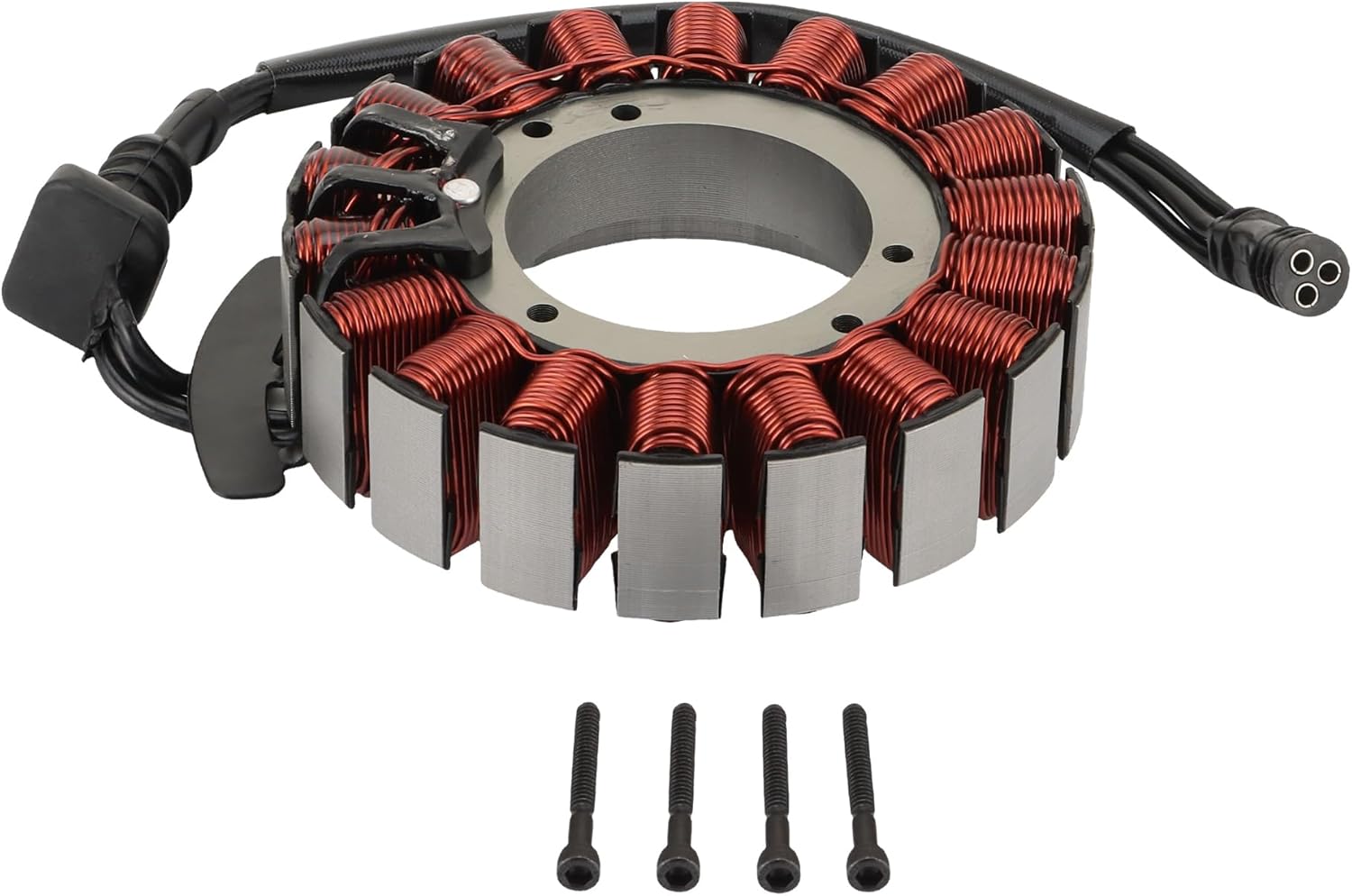

Restore reliable charging performance to your Harley-Davidson Milwaukee-Eight motorcycle with this replacement magneto stator coil.
Designed to replace Harley-Davidson OEM 29900042A, this stator helps provide stable electrical output for the charging system and supports normal battery charging, lighting, and electrical accessory operation. It is a practical replacement for common charging-related problems such as weak battery charging, low voltage output, intermittent electrical failure, or a failing alternator stator.
This stator is commonly listed for selected Harley-Davidson Touring models from 2017–2024 and FXDR / FXDRS 114 models from 2019–2020. Harley-Davidson official parts catalogs also list 29900042A as a stator assembly in Touring and Trike alternator/regulator diagrams.

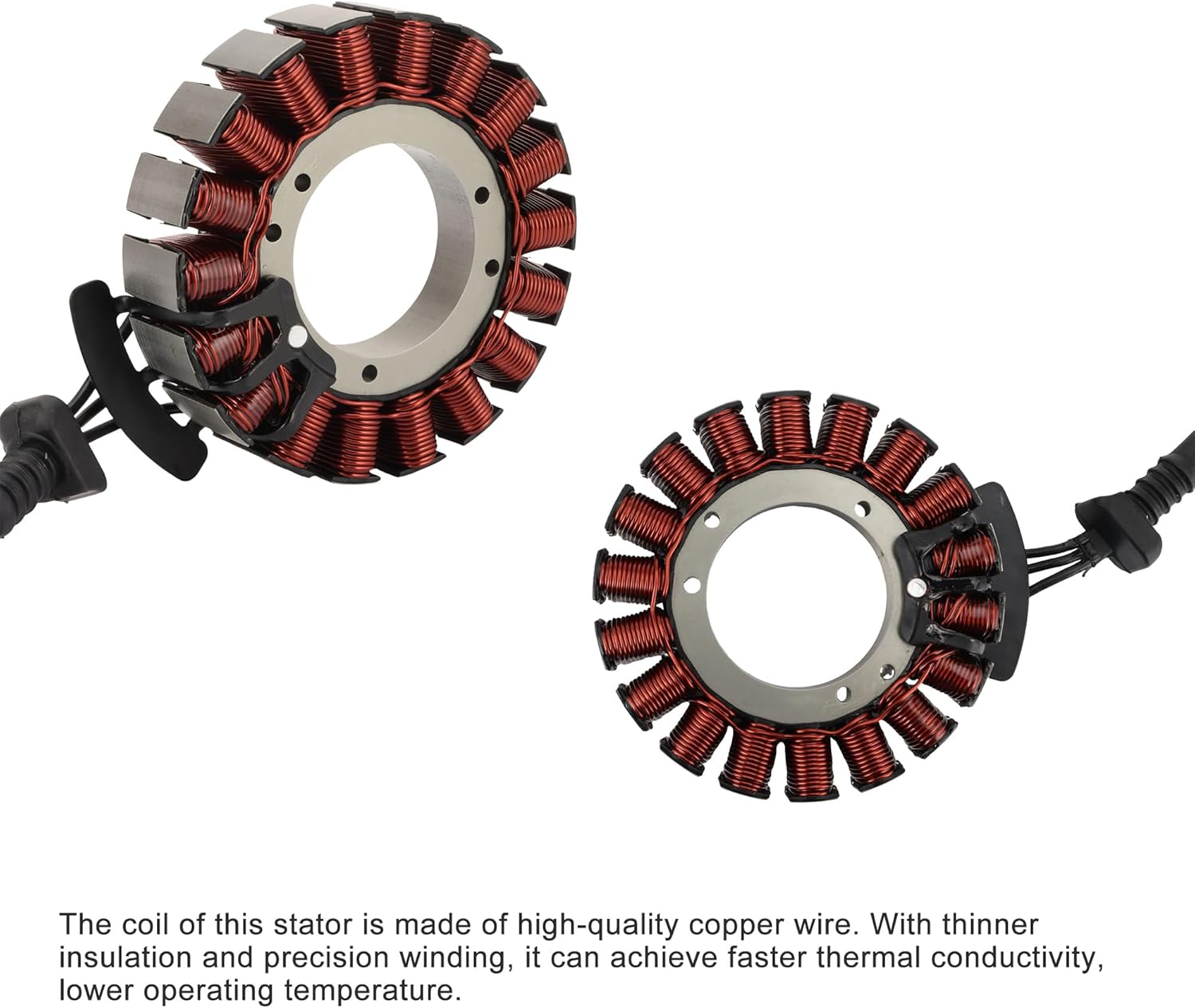

Built with quality copper windings and heat-resistant insulation, this replacement stator is designed to handle the heat, vibration, and electrical load commonly found in Harley-Davidson big-twin applications.
Product Compatibility
| Brand | Model / Series | Sub-Model / Notes | Year Range | OEM Reference |
|---|---|---|---|---|
| Harley-Davidson | Touring Series | Milwaukee-Eight Touring models; verify by OEM number | 2017–2024 | 29900042A |
| Harley-Davidson | Electra Glide / Street Glide / Road Glide / Road King Series | Select Milwaukee-Eight Touring applications | 2017–2024 | 29900042A |
| Harley-Davidson | CVO Touring Models | Selected CVO Touring models using compatible alternator stator | 2017–2024 | 29900042A |
| Harley-Davidson | Trike Models | Selected Milwaukee-Eight Trike applications | 2017–2024 | 29900042A |
| Harley-Davidson | FXDR 114 / FXDRS | Softail FXDR application | 2019–2020 | 29900042A |
OEM Cross Reference
| OEM Part Number | Brand | Notes |
|---|---|---|
| 29900042A | Harley-Davidson | Stator assembly / alternator stator |
| 29900042 | Harley-Davidson | Earlier / related reference in some aftermarket listings; verify before purchase |
Specifications
| Specification | Details |
|---|---|
| Product Type | Magneto Stator Coil / Alternator Stator |
| Replacement OEM Number | 29900042A |
| Application | Harley-Davidson Milwaukee-Eight charging system |

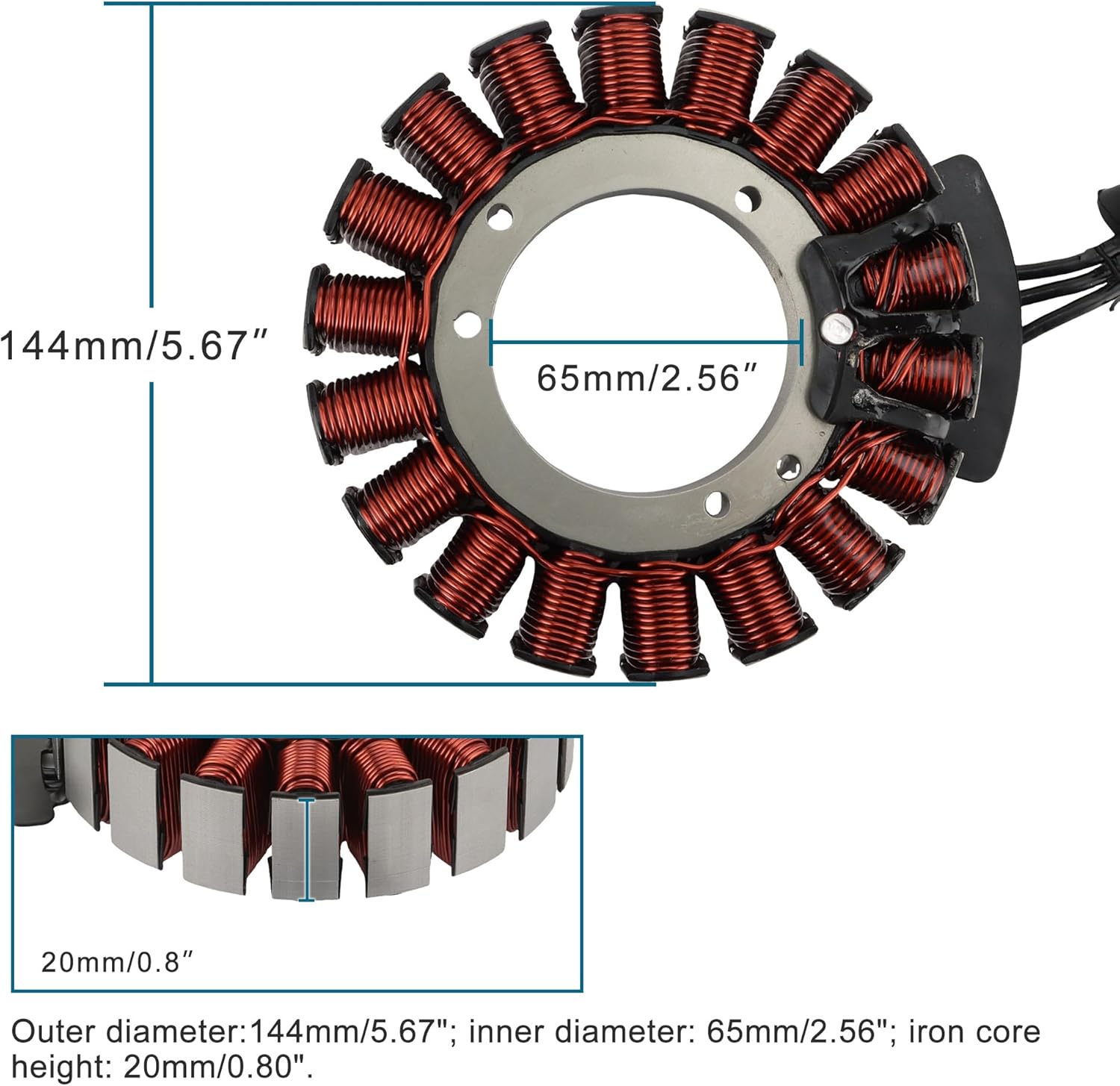

| Outer Diameter | 144 mm / 5.67 in |
| Inner Diameter | 65 mm / 2.56 in |
| Iron Core Height | 20 mm / 0.80 in |
| System Type | 3-phase stator assembly |
| Material | Copper windings with heat-resistant insulation |
| Installation | Professional installation recommended |
Key Features
- Replaces Harley-Davidson OEM stator number 29900042A
- Designed for selected Milwaukee-Eight Touring, Trike, CVO Touring, and FXDR applications
- Helps restore stable charging output and electrical system performance
- Supports normal battery charging, lighting, and motorcycle electrical load
- Heat-resistant winding construction helps reduce failure risk under high-temperature operation
- Built for Harley-Davidson big-twin vibration and charging-system demands
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Harley-Davidson Milwaukee-Eight Touring FXDR Stator 2017–2024. Key physical/spec details from the product data include Outer Diameter: 144 mm / 5.67 in, Inner Diameter: 65 mm / 2.56 in, Iron Core Height: 20 mm / 0.80 in. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?

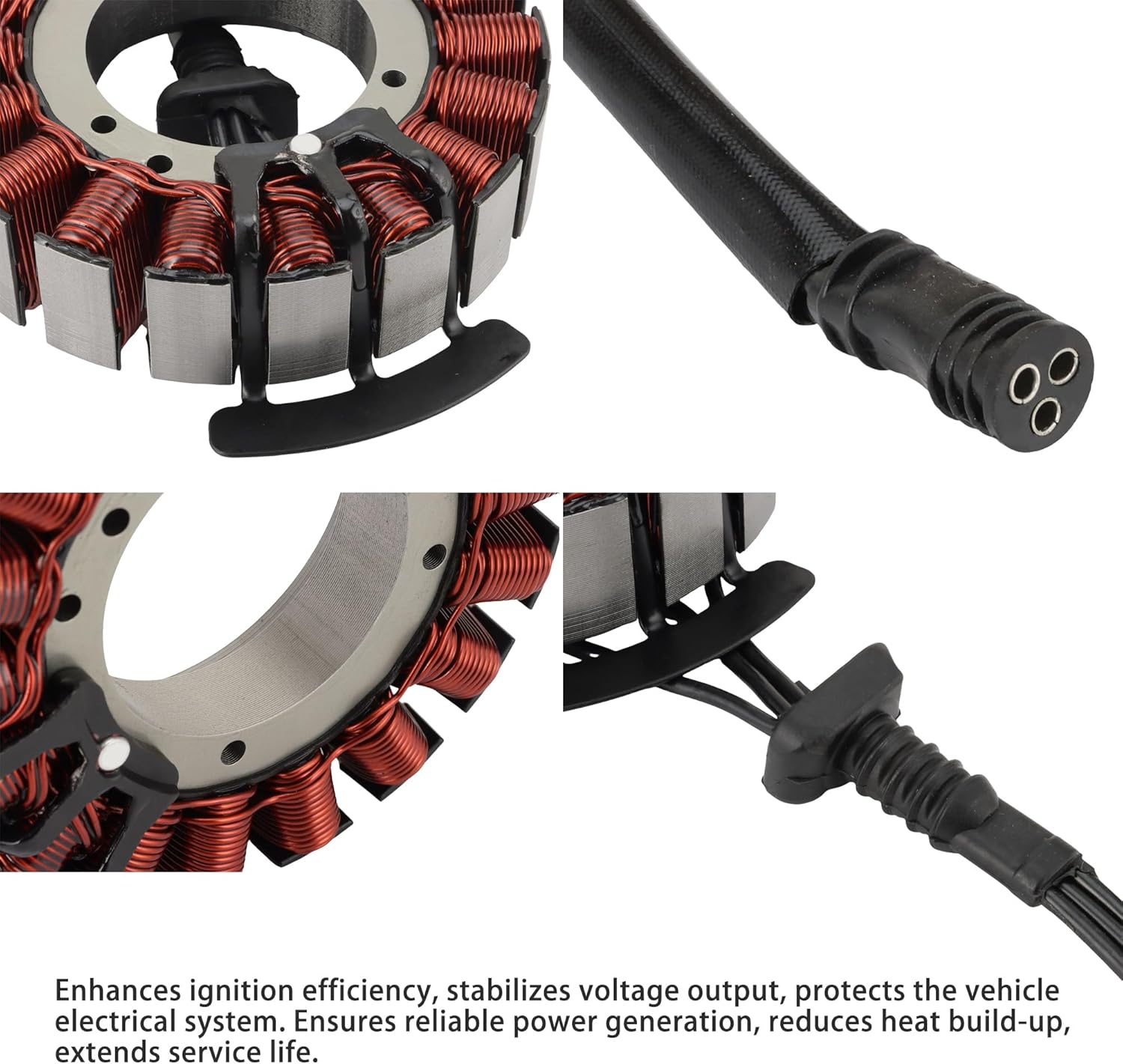

Yes. If your original part has a stamped OEM or manufacturer number, match that number first before ordering. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Harley models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. Model years outside 2017–2024, 2019–2020, 2017, 2024, 2019 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Recheck listed specs such as Outer Diameter: 144 mm / 5.67 in, Inner Diameter: 65 mm / 2.56 in, Iron Core Height: 20 mm / 0.80 in. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
