17T Transmission Drive Shaft for GY6 200cc ATV Quad
17T Transmission Drive Shaft for GY6 200cc ATV Quad
Verfügbarkeit für Abholungen konnte nicht geladen werden
Product Overview

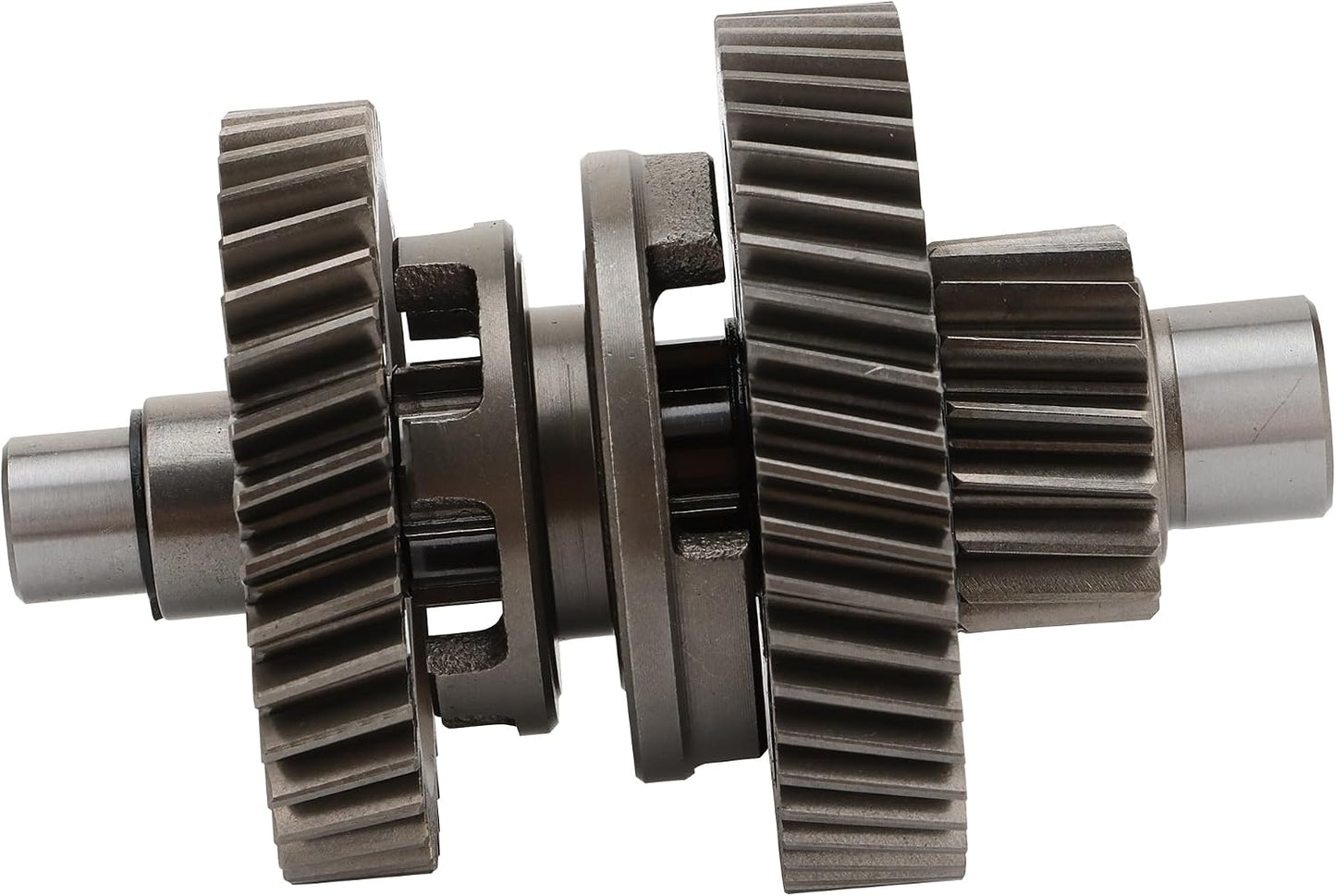

Replace a worn or damaged transmission component with this 17T transmission drive shaft gear assembly, designed for compatible GY6 200cc engine ATVs, 4 wheelers, and quads.
The assembly features 17T, 36T, and 49T gear sections with an overall length of approximately 117mm / 4.6 in.
Designed for compatible GY6 gearbox configurations, this replacement shaft transfers rotational power through the transmission and helps restore normal drivetrain operation when the original gears, splines, or shaft surfaces are worn or damaged.
Product Compatibility
| Engine / Application | Fitment Notes |
|---|---|
| GY6 200cc Engine | Verify transmission and gear configuration |
| ATV | Selected GY6 200cc models |
| 4 Wheeler | Compare original shaft dimensions |
| Quad | Match gear count and shaft design |
| Chinese ATV | Compatible GY6-style transmissions only |
Specifications
| Specification | Details |
| Product Type | Transmission Drive Shaft Gear Assembly |
| Gear Configuration | 17T / 36T / 49T |
| Overall Length | Approx. 117 mm / 4.61 in |
| Listed Shaft Diameters | Approx. 15 mm / 0.59 in & 20 mm / 0.79 in |
| 17T Gear Diameter | Approx. 35 mm / 1.38 in |
| 36T Gear Diameter | Approx. 69 mm / 2.72 in |
| 36T Gear Height | Approx. 14 mm / 0.55 in |
| 49T Gear Diameter | Approx. 78 mm / 3.07 in |
| 49T Gear Height | Approx. 17 mm / 0.67 in |
| Engine Type | GY6 200cc |
| Vehicle Type | ATV / 4 Wheeler / Quad |
| Condition | New |
| Package Quantity | 1 Assembly |
Key Features
- 17T / 36T / 49T Gear Configuration: Designed to match compatible GY6 200cc transmission assemblies.
- 117mm Overall Length: Provides an important measurement for checking replacement fitment.
- Multiple Shaft Diameters: Includes approximately 15mm and 20mm shaft sections.
- Transmission Replacement: Suitable for replacing worn gears, damaged splines, or a damaged transmission shaft.
- GY6 200cc Application: Designed for selected Chinese ATVs, quads, and 4 wheelers using the matching gearbox configuration.
Teilen
Passform-FAQ
Passt dieses Teil zu meinem spezifischen Modell und Baujahr?
This transmission shaft is designed for selected GY6 200cc engine ATVs, 4 wheelers, and quads.
Fitment depends on the gearbox configuration rather than engine displacement alone. Compare the original shaft dimensions, gear counts, splines, and bearing locations before ordering.
Muss ich die OEM-Teilenummer verwenden?
No specific OEM part number is provided.
For accurate fitment, compare the 17T / 36T / 49T gear configuration, 117mm shaft length, shaft diameters, and overall gear layout with your original part.
Für welche Modelle oder Situationen passt dieser Teil nicht?
This shaft is not confirmed for:
GY6 50cc engines
GY6 125cc / 150cc transmissions
Engines using a different gearbox design
Shafts with different gear counts
Different shaft lengths or diameters
Applications with incompatible splines or bearing locations
Was sollte ich vor der Bestellung überprüfen?
Confirm:
Engine uses the compatible GY6 200cc transmission
Gear configuration is 17T / 36T / 49T
Overall shaft length is approximately 117mm
Shaft diameters match approximately 15mm and 20mm
17T gear diameter is approximately 35mm
36T gear diameter is approximately 69mm
49T gear diameter is approximately 78mm
Splines and bearing surfaces match
Product photos match your original transmission assembly
