Harley Sportster 883 1200 32A Stator 1989–1999 | 29970-88
Harley Sportster 883 1200 32A Stator 1989–1999 | 29970-88
Verfügbarkeit für Abholungen konnte nicht geladen werden
Product Overview

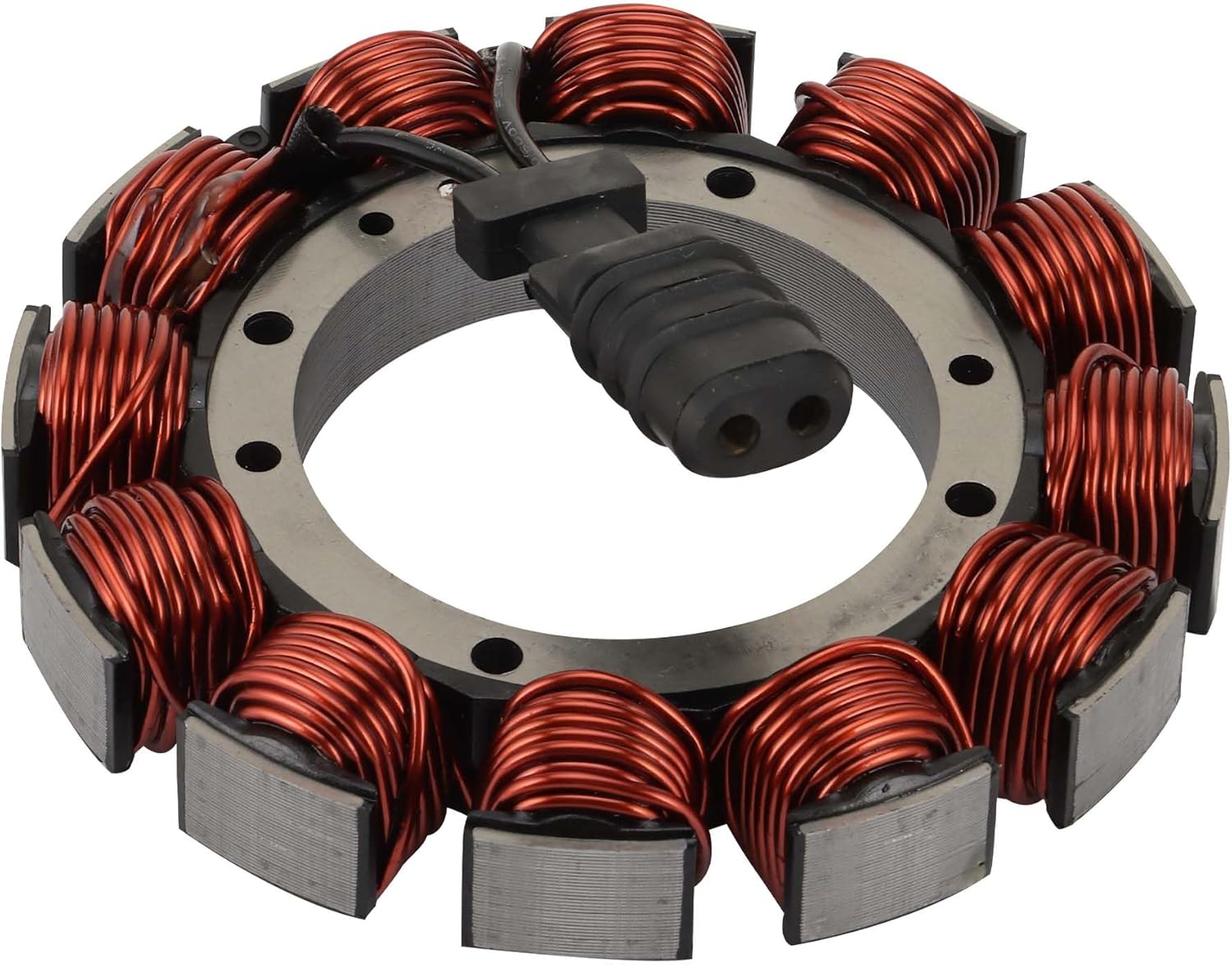

Restore reliable charging performance to your Harley-Davidson Sportster with this replacement 32 Amp magneto stator coil.
Designed to replace Harley-Davidson OEM 29970-88 and related interchange numbers, this stator helps provide stable electrical output for the charging system. It is a practical replacement for common stator-related issues such as weak battery charging, low voltage output, intermittent electrical failure, charging system instability, or a failing alternator stator.
Built with quality copper windings and heat-resistant insulation, this stator is designed to handle the heat, vibration, and electrical load commonly found in Harley-Davidson Evolution V-Twin motorcycles.
Product Compatibility
| Brand | Model | Sub-Model / Notes | Year Range | OEM Reference |
|---|---|---|---|---|
| Harley-Davidson | Sportster 883 | XLH883 | 1989–1999 | 29970-88, HD01-123 |
| Harley-Davidson | Sportster 883 Deluxe | XLH883 Deluxe | 1989–1995 | 29970-88, HD01-123 |
| Harley-Davidson | Sportster 883 Hugger | XLH883 Hugger | 1989–1999 | 29970-88, HD01-123 |
| Harley-Davidson | Sportster 883 Custom | XLH883C | 1999 | 29970-88, HD01-123 |
| Harley-Davidson | Sportster 1200 | XLH1200 | 1989–1999 | 29970-88, HD01-123 |
| Harley-Davidson | Sportster 1200 Custom | XLH1200C | 1996–1999 | 29970-88, HD01-123 |
| Harley-Davidson | Sportster 1200 Sport | XLH1200S | 1996–1999 | 29970-88, HD01-123 |
OEM Cross Reference
| OEM / Interchange Number | Brand / Reference | Notes |
|---|---|---|
| 29970-88 | Harley-Davidson | Main 32 Amp stator replacement number |
| 2997088 | Harley-Davidson format | Same number without dash |
| 29970-88A | Harley-Davidson | Interchange / superseding reference |
| 2997088A | Harley-Davidson format | Same number without dash |
| 29970-88B | Harley-Davidson | Interchange / superseding reference |
| 2997088B | Harley-Davidson format | Same number without dash |
| 29970-88C | Harley-Davidson | Interchange / superseding reference |
| 2997088C | Harley-Davidson format | Same number without dash |
| 29970-88D | Harley-Davidson | Later / commonly listed current reference |
| 2997088D | Harley-Davidson format | Same number without dash |
| HD01-123 | Aftermarket reference | Common aftermarket interchange number |
| HD01123 | Aftermarket reference | Same number without dash |
Specifications
| Specification | Details |
|---|---|
| Product Type | Magneto Stator Coil / Alternator Stator |
| Charging Output | 32 Amp |
| Voltage | 12V system |
| Replacement OEM Numbers | 29970-88, 2997088, HD01-123 |

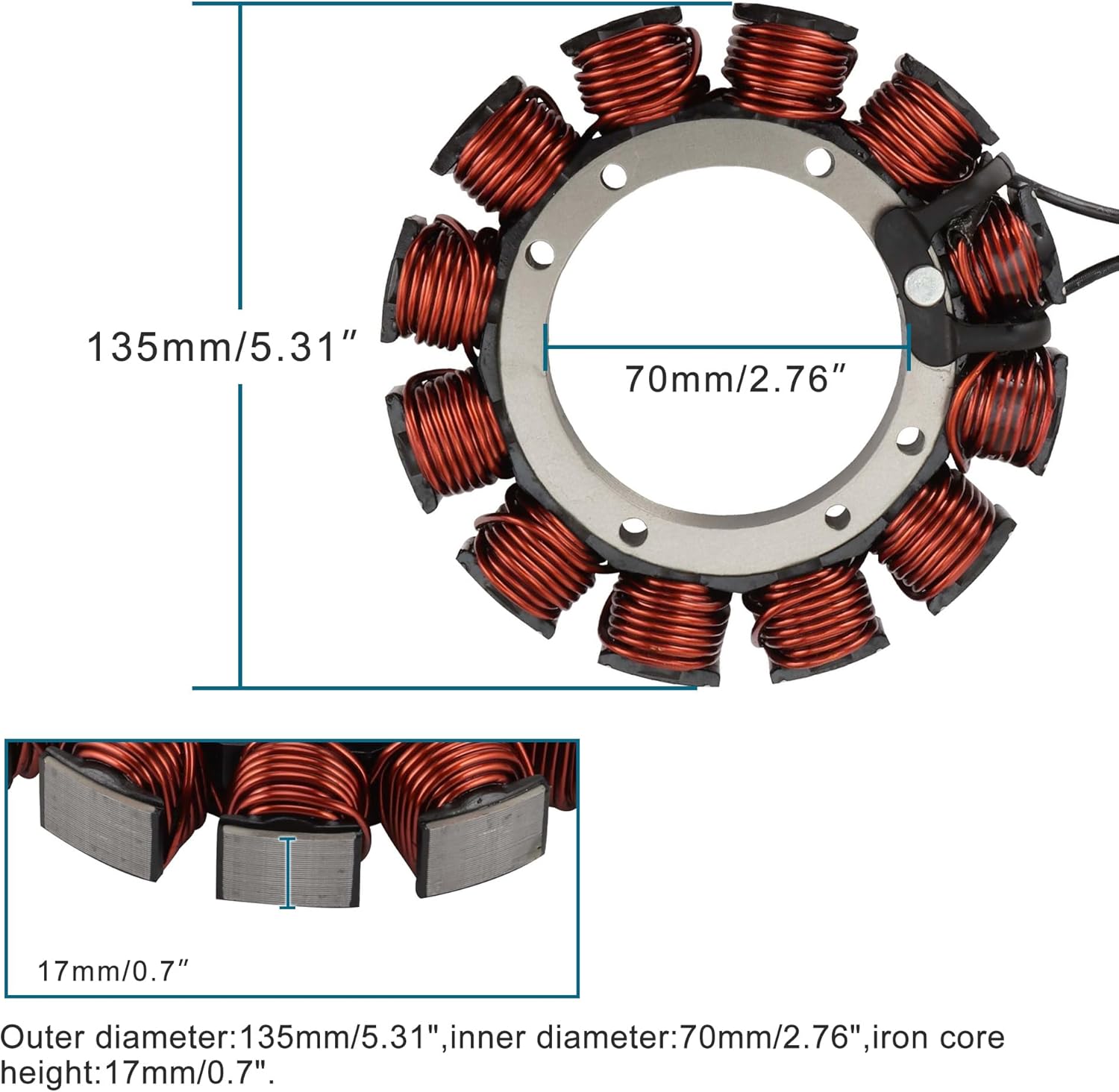

| Outer Diameter | 135 mm / 5.31 in |
| Inner Diameter | 70 mm / 2.76 in |
| Iron Core Height | 17 mm / 0.70 in |
| Application | Harley-Davidson Sportster Evolution V-Twin charging system |

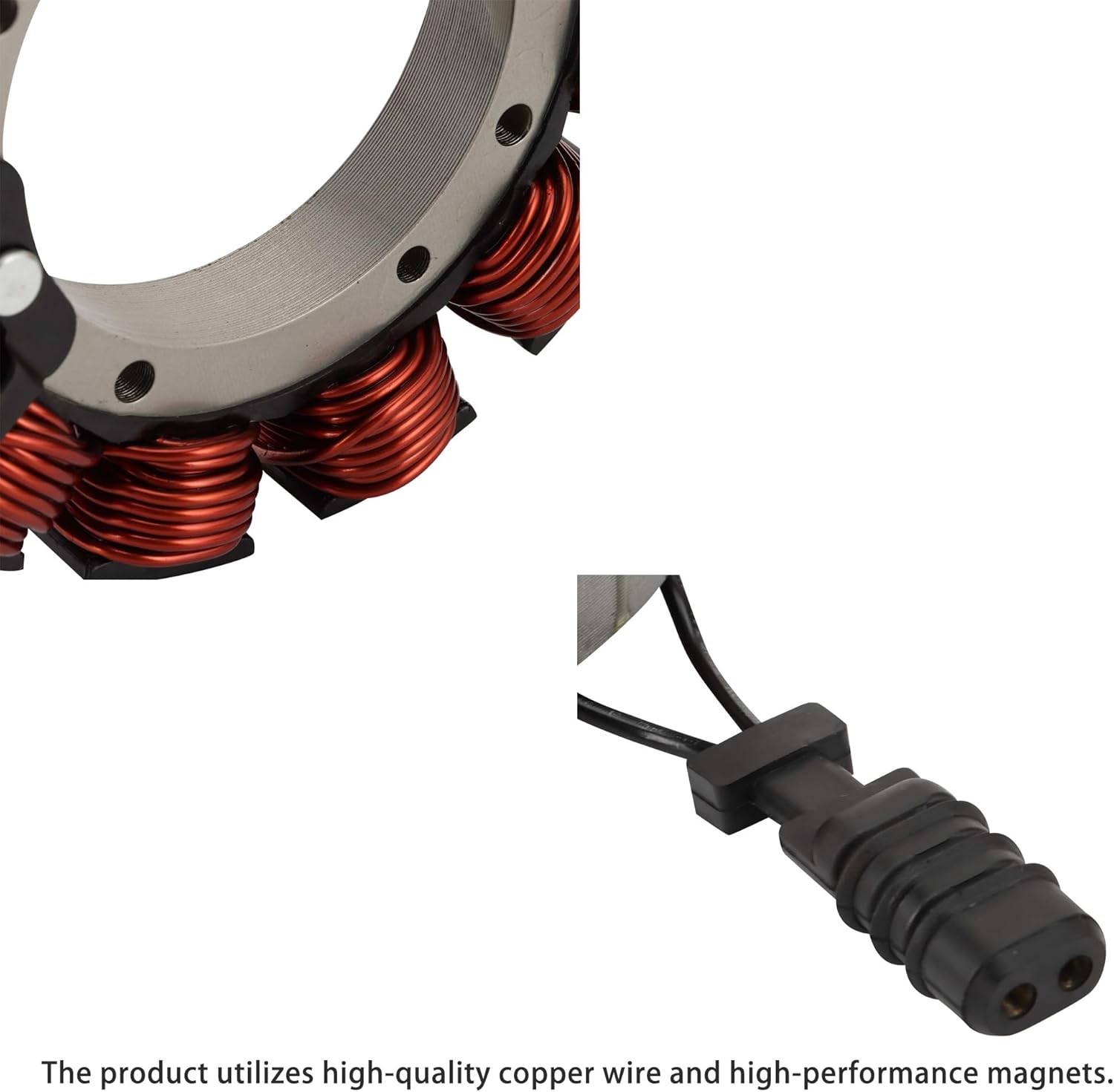

| Material | Copper windings with heat-resistant insulation |
| Installation | Professional installation recommended |
Key Features
- Replaces Harley-Davidson 29970-88 / 2997088 and aftermarket HD01-123 / HD01123
- Designed for selected Harley Sportster 883 and 1200 models from 1989–1999
- 32 Amp stator helps restore stable battery charging and electrical output
- Copper winding construction supports consistent generator performance
- Heat-resistant insulation helps improve durability under engine operating temperatures
- Suitable for replacing a worn, shorted, or failing original stator
