Starter Motor for Kawasaki Prairie 360 4X4 KVF360 2003–2008 | 21163-1328
Starter Motor for Kawasaki Prairie 360 4X4 KVF360 2003–2008 | 21163-1328
Verfügbarkeit für Abholungen konnte nicht geladen werden
Product Overview

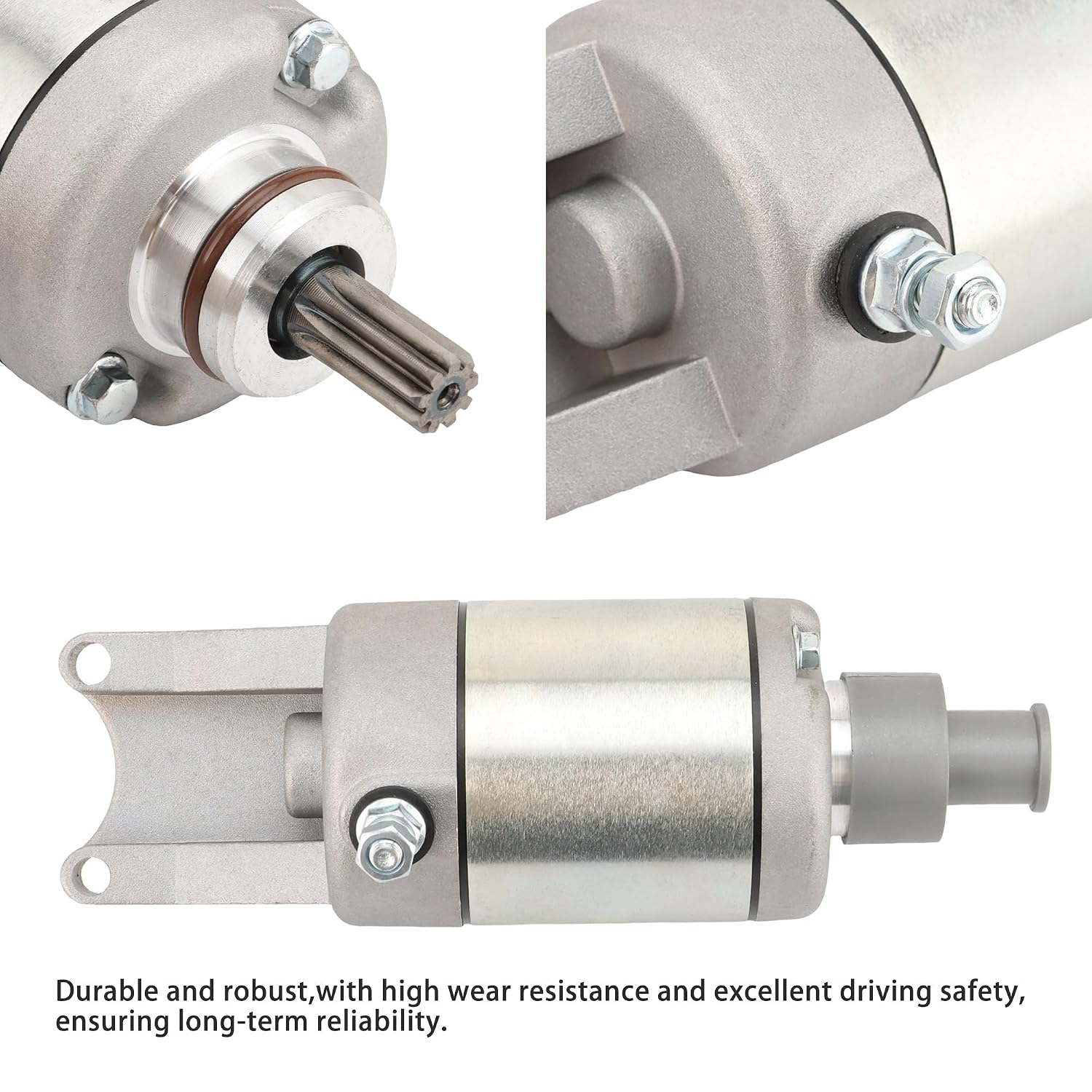

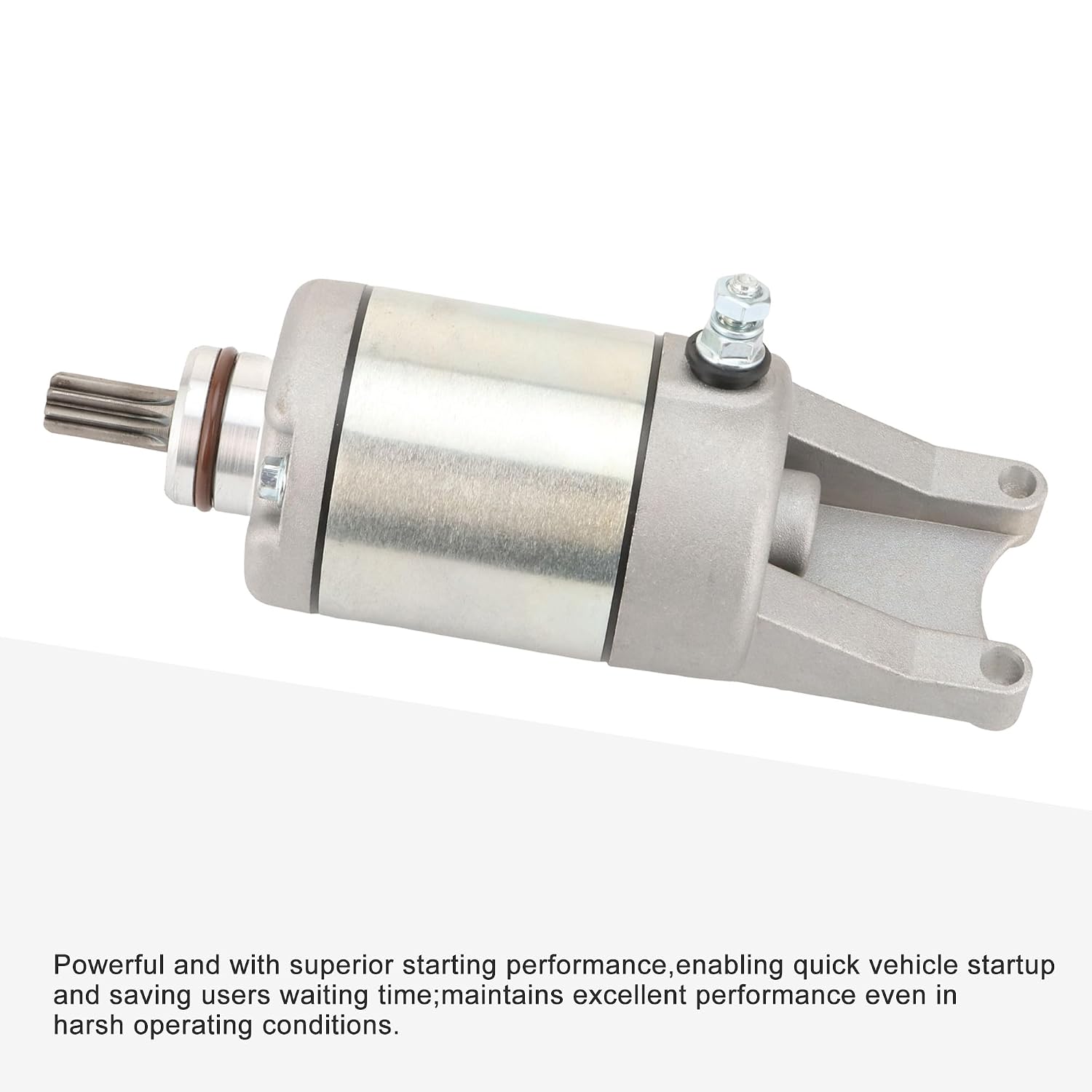

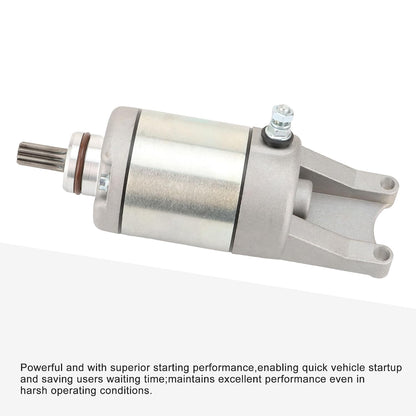

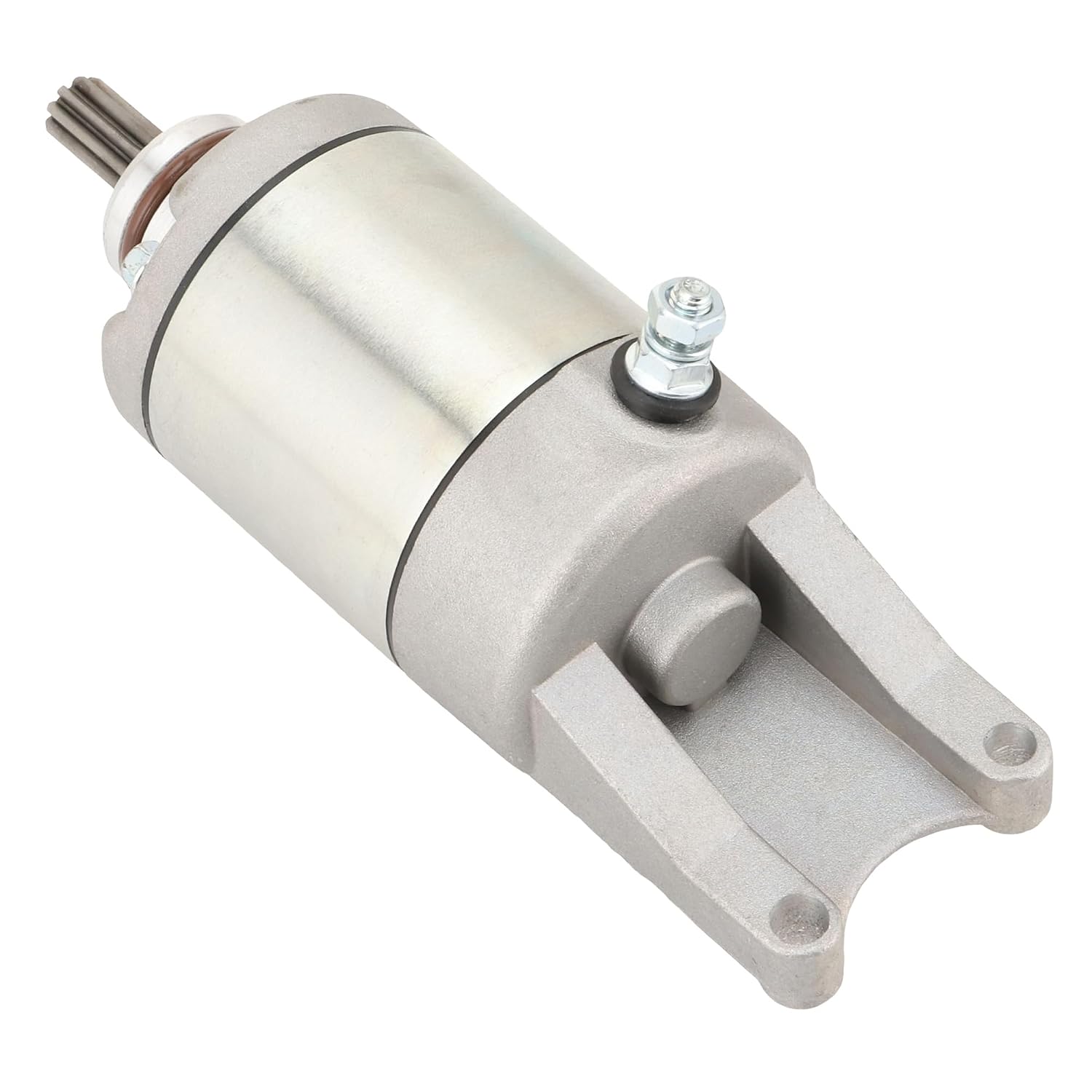

Restore dependable engine-starting performance with this 12V electric starter motor, designed for compatible 2003–2008 Kawasaki Prairie 360 4X4 ATVs.
Featuring a 9-tooth drive gear, counterclockwise rotation, carbon brushes, and 1.09 Nm rated torque, this starter motor helps provide smooth and consistent engine cranking when the original unit becomes weak, slow, intermittent, or unable to start the engine.
The durable metal housing and wear-resistant internal components are designed for demanding trail, farm, utility, and recreational riding conditions. Its direct-replacement configuration helps simplify installation when the OEM number, drive gear, mounting dimensions, terminal position, and housing shape match the original starter.
Product Compatibility
| Brand | Model | Model Code | Year Range | Configuration |
|---|---|---|---|---|
| Kawasaki | Prairie 360 4X4 | KVF360A | 2003–2008 | Standard 4X4 models |
| Kawasaki | Prairie 360 4X4 Advantage Classic | KVF360C | Selected 2003–2005 models | Verify OEM number |
| Kawasaki | Prairie 360 4X4 Hardwoods Green HD | KVF360C | Selected 2006–2008 models | Verify exact model code |
Kawasaki’s official parts diagrams list starter motor 21163-1328 for the 2003 and 2008 Prairie 360 4X4, including the 2008 Hardwoods Green HD model.
Some interchange catalogs also list this starter for certain Prairie 360 two-wheel-drive models. Because this product listing is focused on the 4X4 application, owners of KVF360B models should confirm the OEM number and physical dimensions before ordering.
OEM Cross-Reference Numbers
Kawasaki
- 21163-1328
- 211631328
Aftermarket Cross References
- Arrowhead: SMU0278
- J & N Electrical: 410-54082
- Lester: 18717
- Mitsuba: SM-14
- Tucker Rocky: 49-5177
- Tucker Rocky: 495177
The OEM and aftermarket cross-reference numbers above are commonly listed for the same Prairie 360 starter application.
Your original starter does not need to display every number listed above. However, at least one compatible OEM or interchange number should match the original unit or your ATV’s parts catalog.
Specifications
| Specification | Details |
| Product Type | Electric Starter Motor |
| Voltage | 12V |
| Drive Gear | 9 Teeth |
| Rotation | CCW / Counterclockwise |
| Brush Type | Carbon |
| Rated Torque | 1.09 Nm |
| Cycle Rating | 10,000 Cycles |

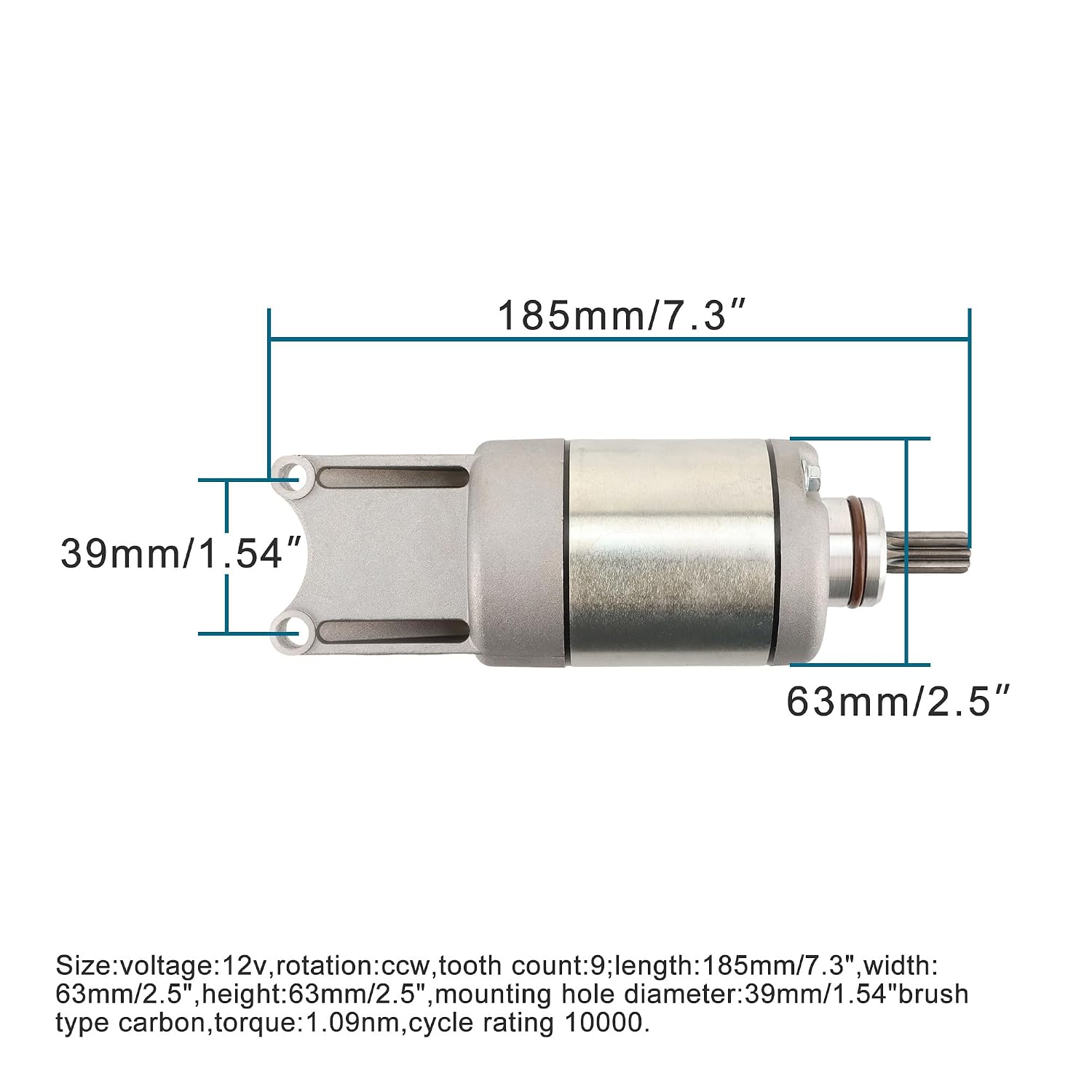

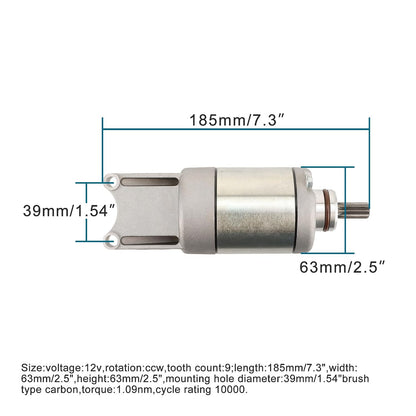

| Overall Length | 185 mm / 7.30 in |
| Overall Width | 63 mm / 2.50 in |
| Overall Height | 63 mm / 2.50 in |
| Mounting / Insertion Diameter | 39 mm / 1.54 in |
| Fitment Type | Direct Replacement |
| Vehicle Type | ATV |
| Housing Material | Metal |
| Condition | New |
| Package Quantity | 1 Starter Motor |
Rotation descriptions can vary depending on which end of the starter is viewed. Use the OEM number, tooth count, mounting dimensions, terminal position, housing design, and product photos together when confirming fitment.
Key Features
- Prairie 360 4X4 Fitment: Designed for compatible 2003–2008 Kawasaki Prairie 360 KVF360 4X4 ATV applications.
- 12V 9-Tooth Configuration: Features a 9-tooth drive gear and counterclockwise rotation for compatible OEM starting systems.
- Reliable Cranking Performance: Helps restore consistent startup when the original starter becomes weak, slow, intermittent, or damaged.
- Durable Carbon-Brush Design: Wear-resistant materials and carbon brushes support dependable operation in demanding ATV conditions.
- Direct-Replacement Construction: Matches the original-style mounting and terminal arrangement when all specifications are correct.
Teilen
Passform-FAQ
Passt dieses Teil zu meinem spezifischen Modell und Baujahr?
This starter motor is designed primarily for compatible 2003–2008 Kawasaki Prairie 360 4X4 models in the KVF360A and applicable KVF360C model families.
Applicable models may include standard 4X4, Advantage Classic, and Hardwoods Green HD versions. Your original starter should use OEM number 21163-1328 and match the listed 12V, 9-tooth configuration and physical dimensions.
Production year alone should not be used as the only fitment reference. Confirm the complete model code and original starter number.
Muss ich die OEM-Teilenummer verwenden?
Yes. Matching the OEM number is one of the most reliable ways to confirm compatibility.
This starter motor replaces:
Kawasaki 21163-1328
Kawasaki 211631328
Arrowhead SMU0278
J & N 410-54082
Lester 18717
Mitsuba SM-14
Your original starter does not need to display every number listed above. At least one compatible OEM or cross-reference number should match your original unit or the vehicle’s parts catalog.
Do not assume that another Kawasaki part number beginning with “21163” is interchangeable. The complete part number must match.
Für welche Modelle oder Situationen passt dieser Teil nicht?
This starter motor is not intended for:
2009 or later Prairie 360 models using OEM 21163-0047
Kawasaki Prairie 300, Prairie 400, Prairie 650, or Prairie 700 models
Brute Force models using a different OEM starter number
Applications requiring a different number of drive teeth
Starters with different overall dimensions
Models with a different mounting or insertion diameter
Applications with a different terminal position
ATVs with engine swaps or modified starting systems
Vehicles where the original starter has a different housing or drive-end shape
For Prairie 360 two-wheel-drive KVF360B models, order only after confirming that the original starter uses 21163-1328 and matches all listed dimensions.
Was sollte ich vor der Bestellung überprüfen?
Before ordering, confirm:
ATV make and model
Exact production year
Complete model code, such as KVF360A or KVF360C
2WD or 4X4 configuration
OEM or interchange part number
12V operating voltage
9-tooth drive gear
Counterclockwise rotation using the same viewing convention
185 mm / 7.30 in overall length
63 mm / 2.50 in overall width
63 mm / 2.50 in overall height
39 mm / 1.54 in mounting or insertion diameter
Electrical terminal position
Mounting-point locations
Starter housing and drive-end shape
Also test the battery, starter relay, fuse, cables, wiring, ground connections, starter gears, and one-way starter clutch. A fault elsewhere in the starting system can produce symptoms similar to a failed starter motor.
