Starter Motor for Suzuki KingQuad 700 750 2005–2009 | 31100-31G00
Starter Motor for Suzuki KingQuad 700 750 2005–2009 | 31100-31G00
Verfügbarkeit für Abholungen konnte nicht geladen werden
Product Overview
Restore reliable engine starting performance with this 12V electric starter motor, designed for compatible Suzuki KingQuad 700 and KingQuad 750 ATVs.
Featuring a 9-tooth drive gear, clockwise rotation, carbon brushes, and 3.5 Nm rated torque, this starter motor delivers the cranking power needed to start the engine quickly and consistently.
Its durable metal construction and wear-resistant internal components are designed to support dependable operation in demanding off-road, utility, farming, and recreational riding conditions. The direct-replacement configuration helps simplify installation when the OEM number, mounting dimensions, terminal position, and drive gear match the original starter.
Product Compatibility
Suzuki ATV Fitment
| Brand | Model | Model Code | Year Range | Configuration |
|---|---|---|---|---|
| Suzuki | KingQuad 700 | LT-A700X / LTA700X | 2005–2007 | 4X4 Automatic |
| Suzuki | KingQuad 750 AXi | LT-A750X / LTA750X | 2008–2009 | 4X4 Automatic |
| Suzuki | KingQuad 750 SE AXi | LT-A750X | 2008 | Special Edition |
| Suzuki | KingQuad 750 Limited AXi | LT-A750X | 2009 | Limited Edition |
The aftermarket application catalog for this starter lists the KingQuad 700 from 2005–2007 and the KingQuad 750 from 2008–2009.
Additional Cross-Reference Applications
| Brand | Model | Year Range | Fitment Notes |
| Arctic Cat | 700 EFI | 2006–2008 | Confirm OEM 3545-020 |
| Arctic Cat | 700 FIS | 2006–2008 | Confirm original starter configuration |
| Arctic Cat | 700 TRV | 2006–2008 | Match OEM number and physical dimensions |
Some cross-reference catalogs list the same starter for selected Arctic Cat 700 models using OEM number 3545-020. Confirm the OEM number and starter design before ordering.
OEM Cross-Reference Numbers
Suzuki
- 31100-31G00
- 3110031G00
- 31100-31G00-000
Arctic Cat
- 3545-020
Aftermarket Cross References
- Lester: 18810
- NICHE: 519-CSM2303O
Suzuki’s original parts catalog shows 31100-31G00 on the 2005 LT-A700X starter-motor assembly.
The original starter does not need to display every number listed above. However, at least one compatible OEM or cross-reference number should match your original unit or vehicle parts catalog.
Specifications
| Specification | Details |
| Product Type | Electric Starter Motor |
| Voltage | 12V |
| Drive Gear | 9 Teeth |
| Rotation | CW / Clockwise |
| Brush Type | Carbon |
| Rated Torque | 3.5 Nm |
| Cycle Rating | 10,000 Cycles |
| Mounting Diameter | 35.61 mm / 1.40 in |
| Fitment Type | Direct Replacement |
| Vehicle Type | ATV |
| Housing Material | Metal |
| Condition | New |
| Package Quantity | 1 Starter Motor |
The 9-tooth gear, clockwise rotation, carbon-brush design, 3.5 Nm torque rating, and 10,000-cycle rating correspond with the published specifications for the 31100-31G00 replacement starter.

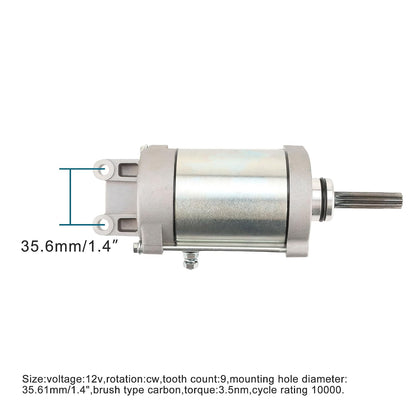

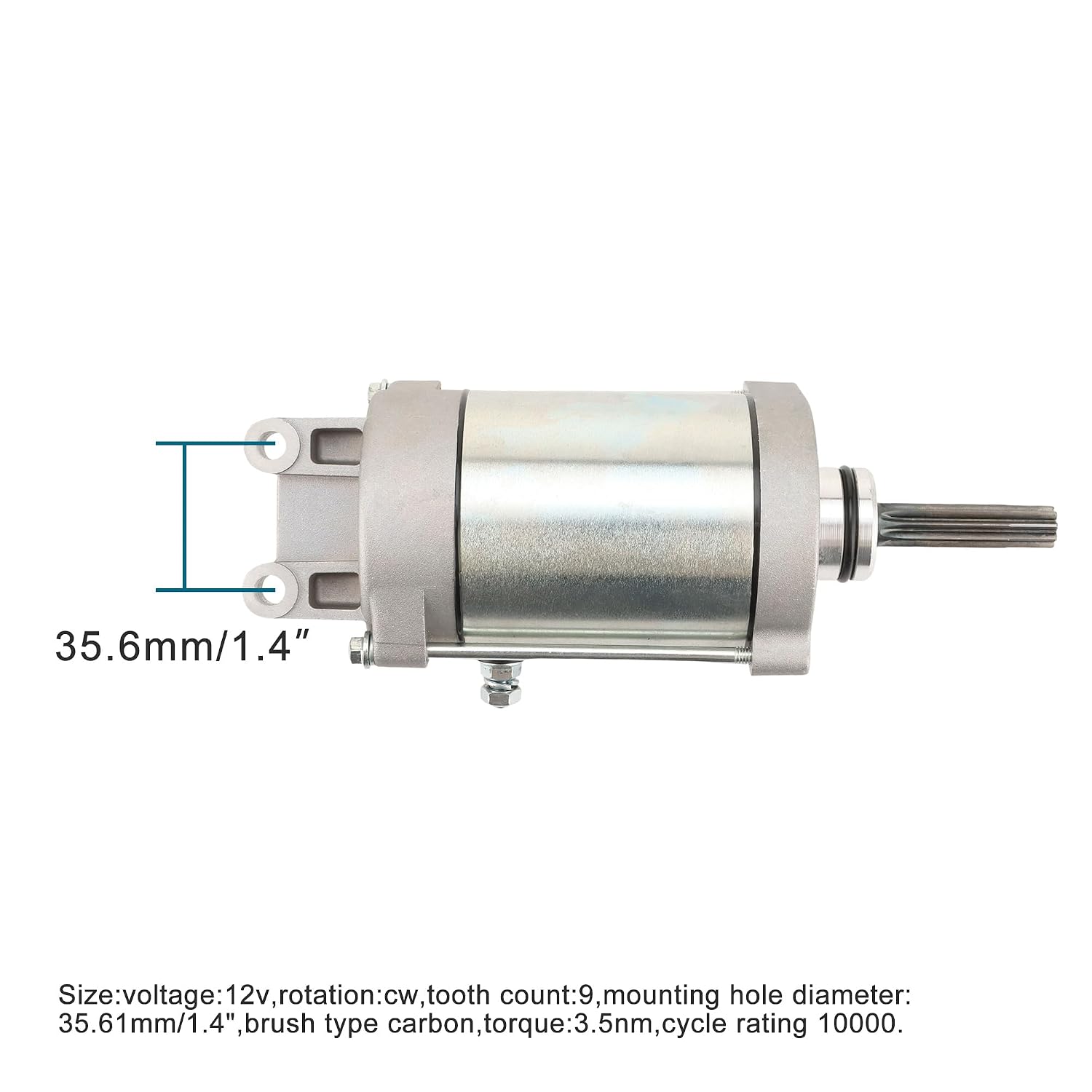

Because sellers may measure the 35.61 mm diameter at different points, compare the measurement location shown in the product images with your original starter.
Key Features
- Model-Specific Suzuki Fitment: Designed for compatible 2005–2007 KingQuad 700 and 2008–2009 KingQuad 750 ATV applications.
- 12V 9-Tooth Configuration: Built with a 9-tooth drive gear and clockwise rotation for compatible starting systems.
- Strong Cranking Performance: Rated at 3.5 Nm to help provide fast and consistent engine startup.
- Durable Carbon-Brush Design: Wear-resistant materials and carbon brushes support dependable long-term operation.
- Direct-Replacement Installation: Matches the original-style starter configuration when the OEM number and dimensions are correct.
Teilen
Passform-FAQ
Passt dieses Teil zu meinem spezifischen Modell und Baujahr?
This starter motor is designed for:
2005–2007 Suzuki KingQuad 700 LT-A700X
2008–2009 Suzuki KingQuad 750 LT-A750X
Selected 2008 KingQuad 750 SE and 2009 KingQuad 750 Limited models
Selected 2006–2008 Arctic Cat 700 models using OEM 3545-020
Your ATV should use a 12V starter with a 9-tooth drive gear and match OEM number 31100-31G00 or a confirmed cross-reference number.
Muss ich die OEM-Teilenummer verwenden?
Yes. Matching the OEM number is one of the most reliable ways to confirm fitment.
This starter is designed to replace:
Suzuki 31100-31G00
Suzuki 3110031G00
Suzuki 31100-31G00-000
Arctic Cat 3545-020
Your original starter does not need to show every number listed above. However, at least one compatible number should match the original starter or the vehicle’s official parts catalog.
Do not automatically assume that 31100-31G10 or 31100-31G11 is interchangeable unless you have compared the complete starter configuration.
Für welche Modelle oder Situationen passt dieser Teil nicht?
This starter motor is not confirmed for:
Suzuki KingQuad 700 models outside the 2005–2007 range
Suzuki KingQuad 750 models outside the 2008–2009 range
KingQuad 400, 450, 500, or other engine sizes
Models requiring OEM 31100-31G10 or 31100-31G11 without further verification
Applications with a different number of drive teeth
Starters with a different mounting diameter or terminal position
Models requiring counterclockwise rotation
ATVs with engine swaps or modified starting systems
Applications where the original starter has a different housing or drive-end shape
Do not assume that every Suzuki KingQuad 750 uses the same starter motor.
Was sollte ich vor der Bestellung überprüfen?
Before ordering, confirm:
ATV make and model
Exact production year
Complete model code, such as LT-A700X or LT-A750X
OEM or cross-reference part number
12V operating voltage
9-tooth drive gear
Clockwise rotation
35.61 mm / 1.40 in listed mounting diameter
Electrical terminal position
Mounting-hole positions
Housing and drive-end shape
Starter dimensions shown in the product images
Also test the battery, starter relay, fuse, cables, wiring, and ground connections. Electrical faults or a worn starter clutch can cause symptoms similar to a failed starter motor.
