GOOFIT
48V 1000W DC Brushed Motor Speed Controller for Electric Scooter E-Bike Go-Kart
48V 1000W DC Brushed Motor Speed Controller for Electric Scooter E-Bike Go-Kart
Couldn't load pickup availability
Product Overview
Restore smooth speed control and reliable power delivery with this 48V 1000W DC brushed motor speed controller, designed for compatible electric scooters, e-bikes, go-karts, tricycles, mini quads, and custom electric vehicle builds.
Built for 48V brushed DC motor systems, this controller helps manage throttle input, motor output, braking signal, and low-voltage battery protection. It is a practical replacement for failed or unstable controllers causing no throttle response, weak acceleration, intermittent power cut-off, poor speed control, or controller overheating.

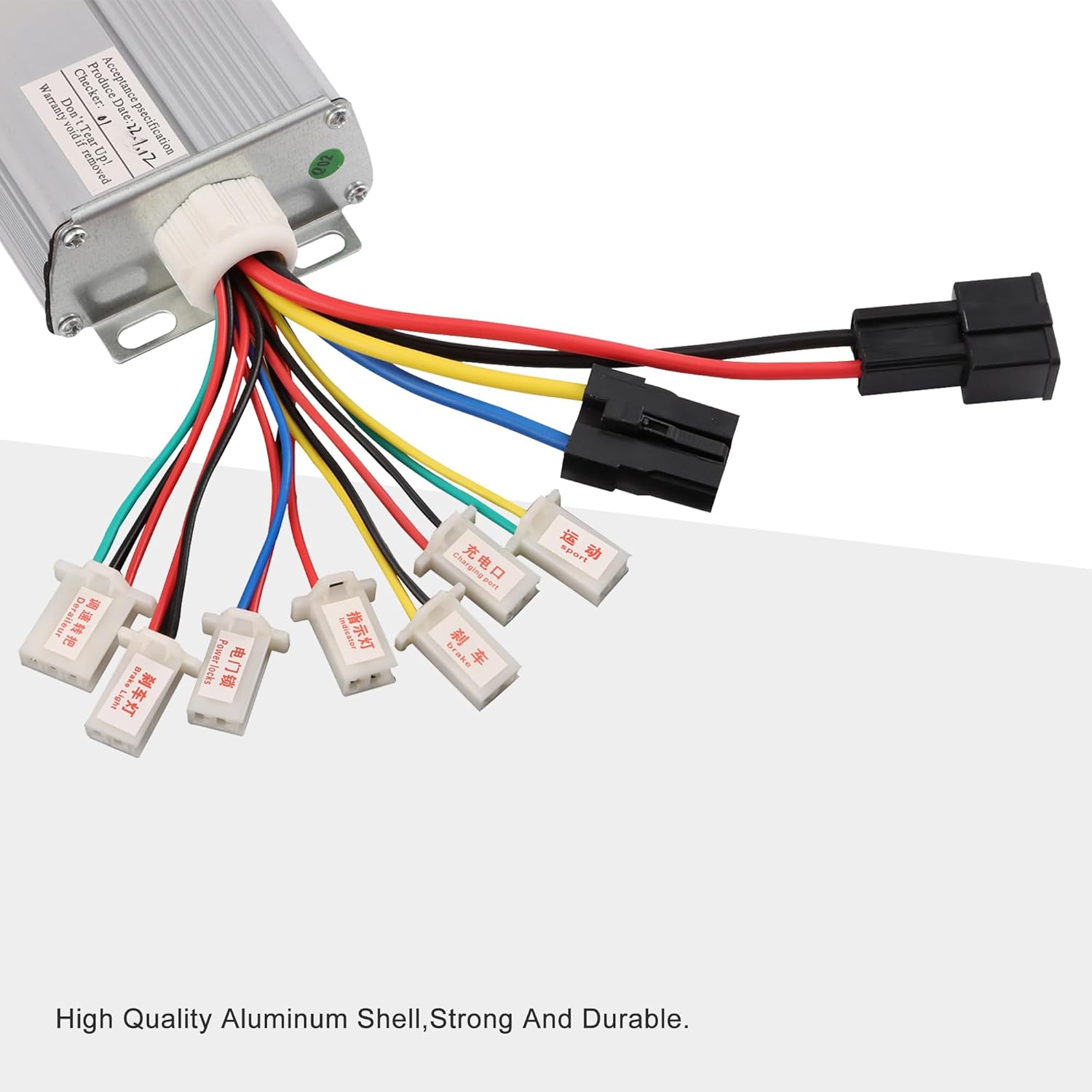

The grooved aluminum alloy housing helps dissipate heat during operation, while the multi-harness wiring layout supports common scooter and e-bike functions such as power input, motor output, throttle, brake, and auxiliary control connections.
Product Compatibility
| Component | Required Specification |
|---|---|
| Motor Type | DC Brushed Motor |
| Motor Wires | 2-Wire Brushed Motor |
| System Voltage | 48V |
| Rated Power | 1000W |
| Throttle Input | 1V–4V Hall-effect throttle |
| Battery Type | 48V battery system |
| Applications | Electric scooter, e-bike, go-kart, tricycle, mini quad, custom EV project |
Specifications
| Specification | Details |
|---|---|
| Part Type | DC Brushed Motor Speed Controller |
| Rated Voltage | 48V DC |
| Rated Power | 1000W |
| Motor Type | Brushed DC Motor |
| Motor Connection | 2-Wire Motor Output |
| Rated Current | 21A ± 1A |
| Peak / Max Current | Up to 32A, depending on load |
| Low-Voltage Protection | 42V ± 0.5V |
| Throttle Input | 1V–4V Hall-effect throttle |
| Housing Material | Grooved Aluminum Alloy |
| Connector Type | Multi-Harness |
| Protection Features | Low-voltage protection, over-current protection, heat dissipation housing |
| Applications | Electric scooter / e-bike / go-kart / tricycle / quad |
| Condition | 100% New Aftermarket |
| Installation | Wiring verification required |
Key Features
- 48V 1000W Brushed Motor Design – Built for compatible 48V DC brushed motor systems used in scooters, e-bikes, go-karts, and custom electric vehicles.
- Smooth Speed Control – Supports 1V–4V Hall-effect throttle input for responsive acceleration and speed adjustment.
- Low-Voltage Battery Protection – 42V ± 0.5V cutoff helps reduce the risk of over-discharging a 48V battery pack.

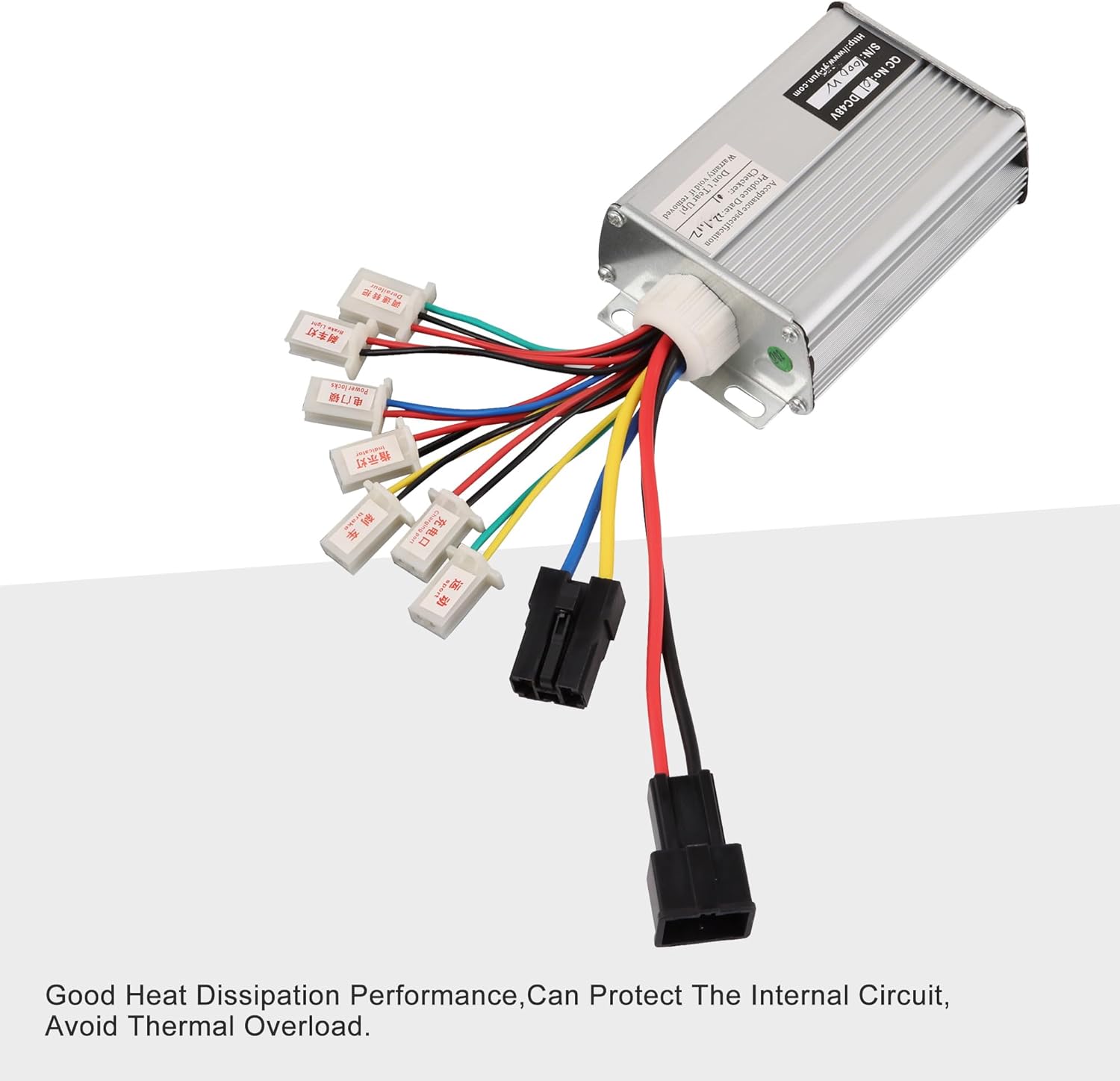

- Heat-Dissipating Aluminum Housing – Grooved alloy casing helps move heat away from the internal circuit board during higher-load operation.

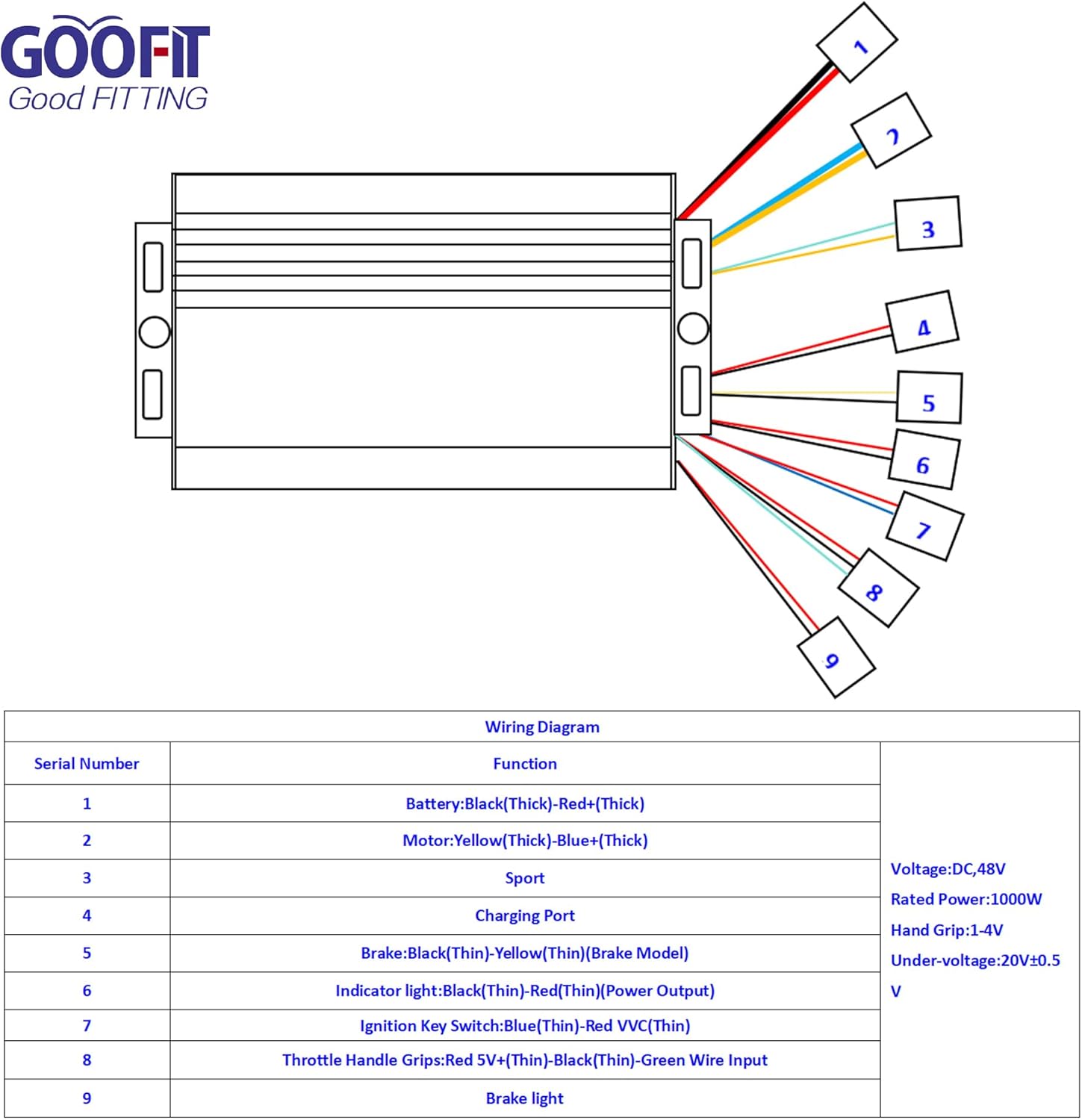

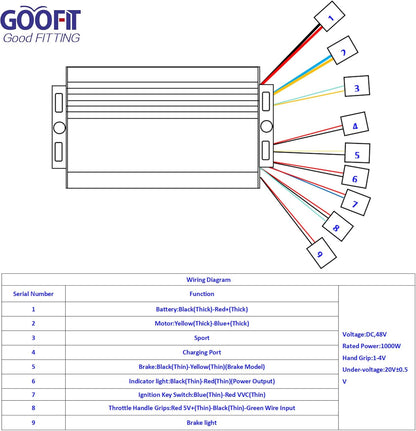

- Multi-Harness Wiring Layout – Supports common controller connections such as battery power, motor output, throttle, brake, and auxiliary control wiring.
- Universal Replacement Application – Suitable for compatible 48V 1000W brushed motor scooters, e-bikes, go-karts, tricycles, and DIY EV builds where specifications and connectors match.
Share
Fitment FAQ
Will this part fit my specific model and year?
This speed controller is intended for Electric Scooter, E-Bike & Go-Kart. Key physical/spec details from the product data include System Voltage: 48V, Low-Voltage Protection: 42V ± 0.5V (Standard Safeguard), 48V. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. If your original part has a stamped OEM or manufacturer number, match that number first before ordering. For this speed controller, also compare the voltage, wattage/current rating, motor type, connector set, throttle/brake inputs, and battery compatibility.
What models or situations does this part not fit?
Do not order this speed controller for machines outside the listed compatibility, or for units with different voltages, wattage/current ratings, motor types, connector sets, or battery systems. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the voltage, wattage/current rating, motor type, connector set, throttle/brake inputs, and battery compatibility. Recheck listed specs such as System Voltage: 48V, Low-Voltage Protection: 42V ± 0.5V (Standard Safeguard), 48V. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
