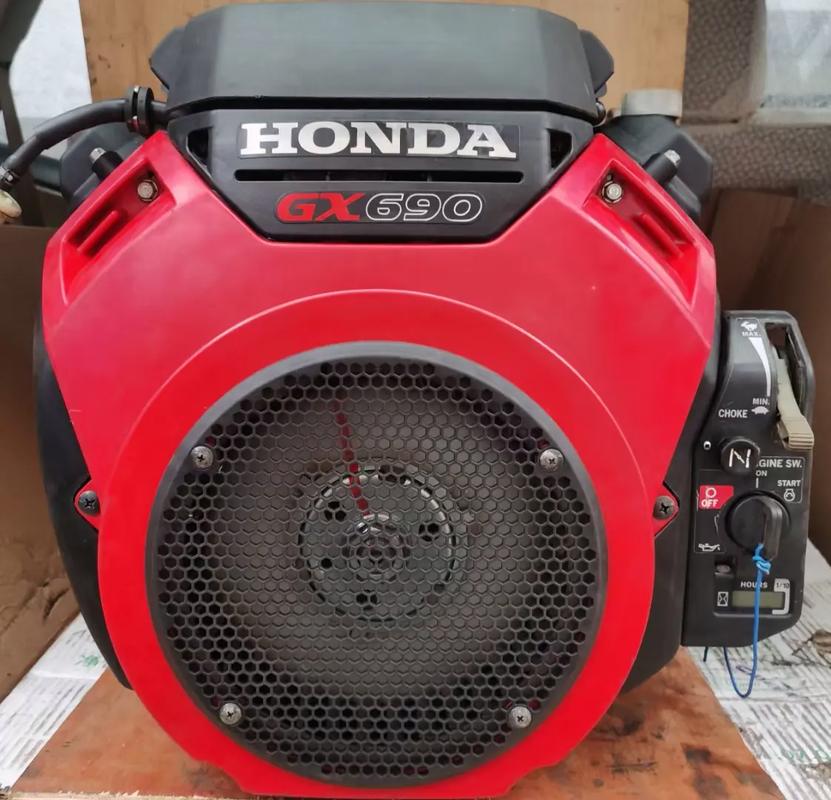

Reviving Your Honda GX V-Twin Engine: Why a Quality Magneto Stator Matters for GX630, GX660, and GX690 Owners

Hey folks, I’m Hank Thompson—been turning wrenches on small engines and powersports gear for damn near 30 years out of my shop in the Midwest. If you run commercial equipment or a serious home setup, you already know the Honda GX630, GX660, and GX690 V-Twin engines are absolute tanks. They power pressure washers, stump grinders, air compressors, and big commercial mowers day in and day out. But when the charging system starts acting up, everything grinds to a halt: weak spark, sluggish throttle response, a battery that won’t stay charged, and that annoying fuel-cut solenoid refusing to cooperate.

In my experience, nine times out of ten the culprit is a tired magneto stator. The OEM part (31630-Z6L-003) is solid when it’s new, but after a few thousand hours of heavy use the windings heat-cycle, the insulation breaks down, and output drops. That’s exactly why I keep a premium 17-amp magneto stator replacement in stock for customers who need their equipment back in the field fast.

What Makes This Magneto Stator the Right Fix for Your Honda GX Engine

This isn’t some cheap generic coil. It’s engineered as a direct bolt-on upgrade for the Honda GX series (GX630, GX630R, GX630RH, GX660, GX660R, GX660RH, GX690, GX690H, GX690R, GX690RH) and the vertical-shaft GXV counterparts (GXV630, GXV660, GXV690).

Here’s what sets it apart:

• True 17-amp output – Plenty of juice to keep the digital CDI happy, run the fuel-cut solenoid without hesitation, and maintain a healthy battery charge even during all-day commercial runs.
• High-conductivity copper windings wound on heavy-duty laminations with full copper-clad steel leads. Heat dissipation is excellent thanks to the thick aluminum backing plate, so the stator runs cooler and delivers a more stable spark under load.
• Factory-style connectors and bolt pattern – No cutting, no splicing, no “close enough” fitment headaches. Pull the old one, bolt this in, and you’re back up and running in under an hour in most cases.

I’ve installed dozens of these on customer machines, and the difference is immediate: quicker starts, smoother idle, and that crisp throttle response you expect from a Honda V-Twin. The commercial-grade construction holds up to the heat and vibration that kill lesser stators, which is exactly what you want when your livelihood depends on the equipment.

Common Signs Your Honda GX Magneto Stator Needs Replacing

If you’re googling “Honda GX630 charging problems” or “GX690 stator replacement,” here are the classic symptoms I see every week:

• Battery won’t hold a charge even with the engine running
• Lights dim or flicker at higher RPMs
• Hard starting or intermittent misfires, especially when hot
• Fuel-cut solenoid clicking but not engaging reliably
• Error codes or reduced power on machines with electronic controls

Don’t wait until you’re stranded on a job site. Replacing the magneto stator early saves you far more headaches (and money) than trying to nurse a failing one along.

Easy Installation Tips from a Guy Who’s Done It Hundreds of Times

1. Disconnect the battery negative cable first—safety first.
2. Remove the flywheel cover and carefully extract the old stator (watch the wiring harness).
3. Clean the mounting surface on the engine case so the new aluminum plate sits flat and transfers heat properly.
4. Bolt the new 17-amp magneto stator in place using the factory torque specs (usually 9–12 Nm—check your service manual).
5. Reconnect the plug, reinstall the flywheel, and give the engine a quick test run.

That’s it. No special tools beyond a basic socket set and a torque wrench. If you’re comfortable doing your own valve adjustments or carb work on these engines, this job is well within your skill set.

Ready to Get Your Honda GX Engine Running Strong Again?

Whether you’re hunting for a “replacement magneto stator for Honda GX660 engine,” need a “17-amp stator for GX690 pressure washer,” or simply want the most reliable match for OEM 31630-Z6L-003, this is the part I trust in my own shop and recommend to every customer who walks through the door.

You can grab the exact unit here: Magneto Stator for Honda GX630 GX660 GX690 Engines | OEM 31630-Z6L-003

It ships fast, comes with the confidence of a direct-fit, high-output design, and carries the kind of real-world durability I’ve come to expect after three decades fixing these engines for a living.

Got questions about compatibility with your specific model or want tips on related maintenance (flywheel magnets, voltage regulator, etc.)? Drop a comment below or shoot me a message—I’m happy to help. Keep those Hondas running strong out there.

— Hank Thompson
