Magneto Stator for Honda GX630 GX660 GX690 Engines | OEM 31630-Z6L-003

Magneto Stator for Honda GX630 GX660 GX690 Engines | OEM 31630-Z6L-003

$47.99
$47.99
Sale Sold out
Shipping calculated at checkout.

Product Overview

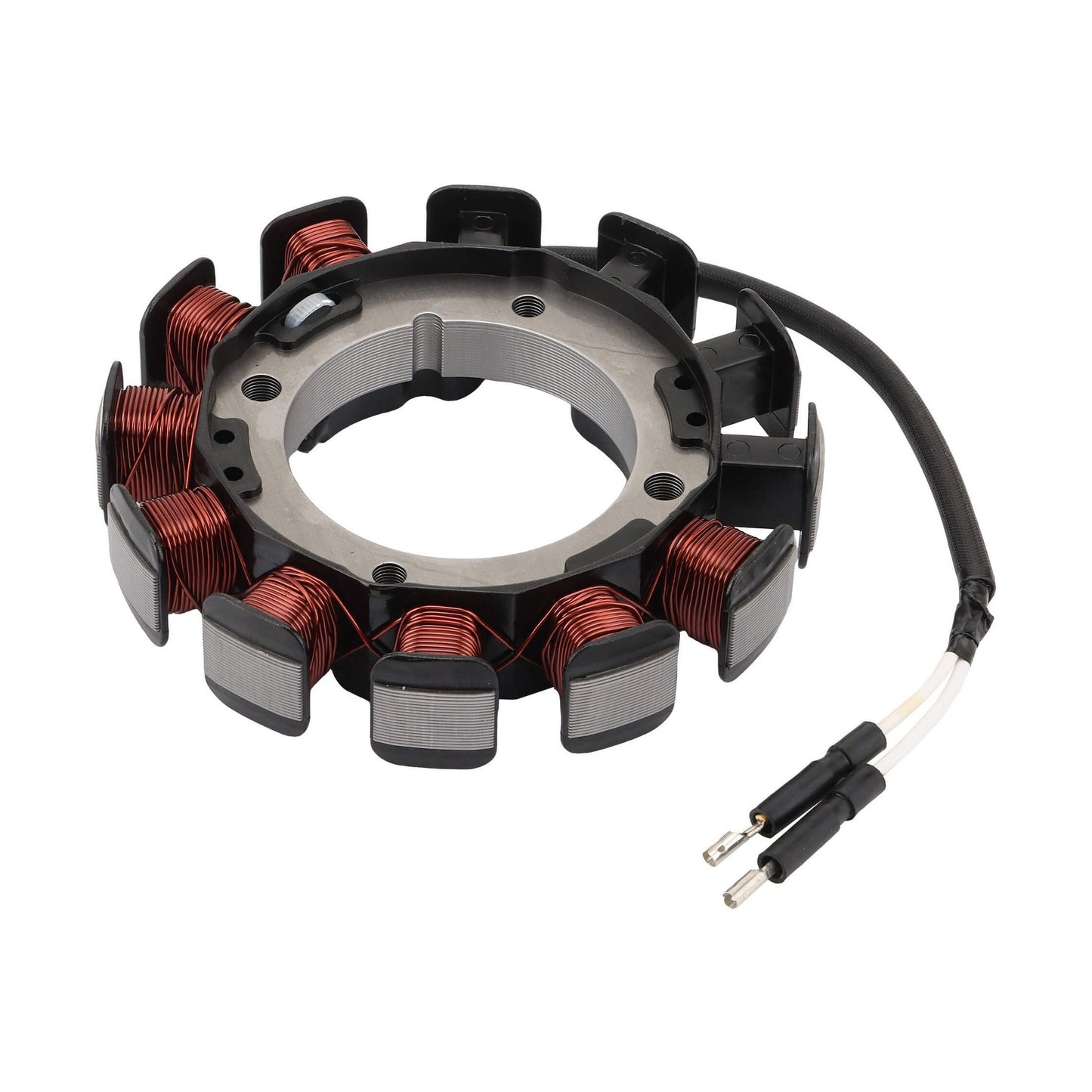

Restore reliable charging performance to your Honda GX V-Twin engine with this high-output 17 Amp magneto stator. Designed for commercial-grade applications, it delivers stable electrical output for ignition, fuel systems, and battery charging—ensuring consistent performance in demanding environments.

Built with high-quality copper windings and a heavy-duty aluminum base, this stator is engineered for long operating hours in pressure washers, generators, and industrial equipment.

Product Compatibility

Brand Engine Series Models Applications
Honda GX630 GX630 / GX630R / GX630RH Commercial equipment
Honda GX660 GX660 / GX660R / GX660RH Generators / pumps
Honda GX690 GX690 / GX690H / GX690RH Industrial machines
Honda GXV630 Vertical shaft version Lawn & turf equipment
Honda GXV660 Vertical shaft version Commercial mowers
Honda GXV690 Vertical shaft version Heavy-duty machinery
  • Compatible with Honda GX and GXV V-Twin engines only
  • Not suitable for motorcycle applications

Specifications

Specification Details
OEM Reference 31630-Z6L-003
Output Capacity 17 Amp

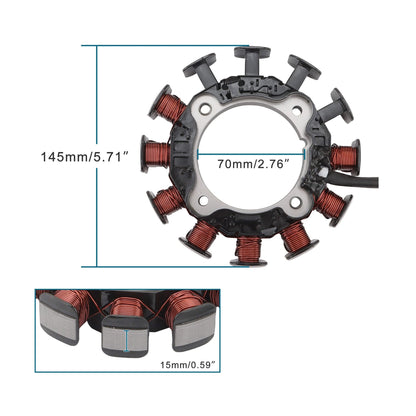

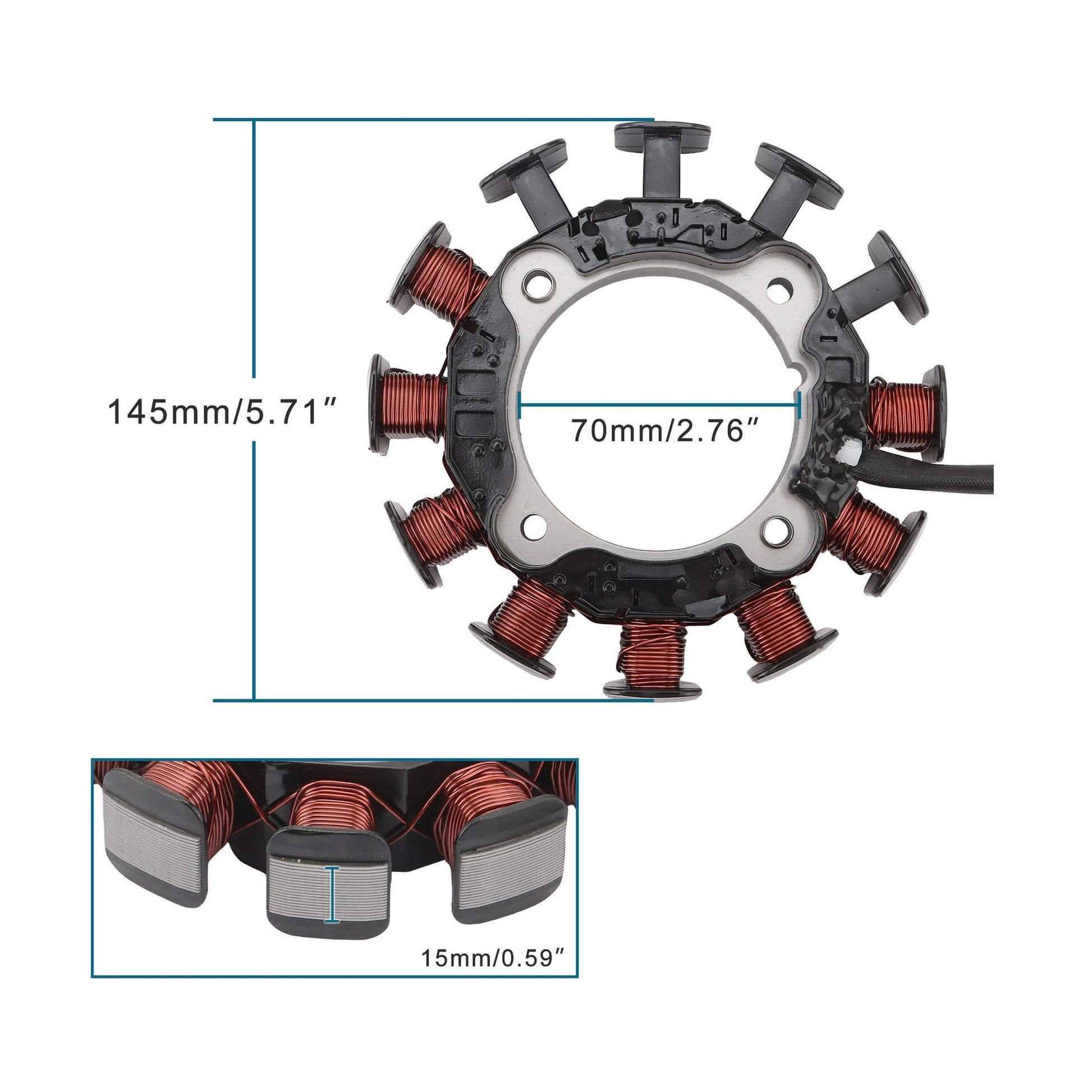

Outer Diameter 145 mm (5.71")
Inner Diameter 70 mm (2.76")
Thickness 15 mm (0.59")

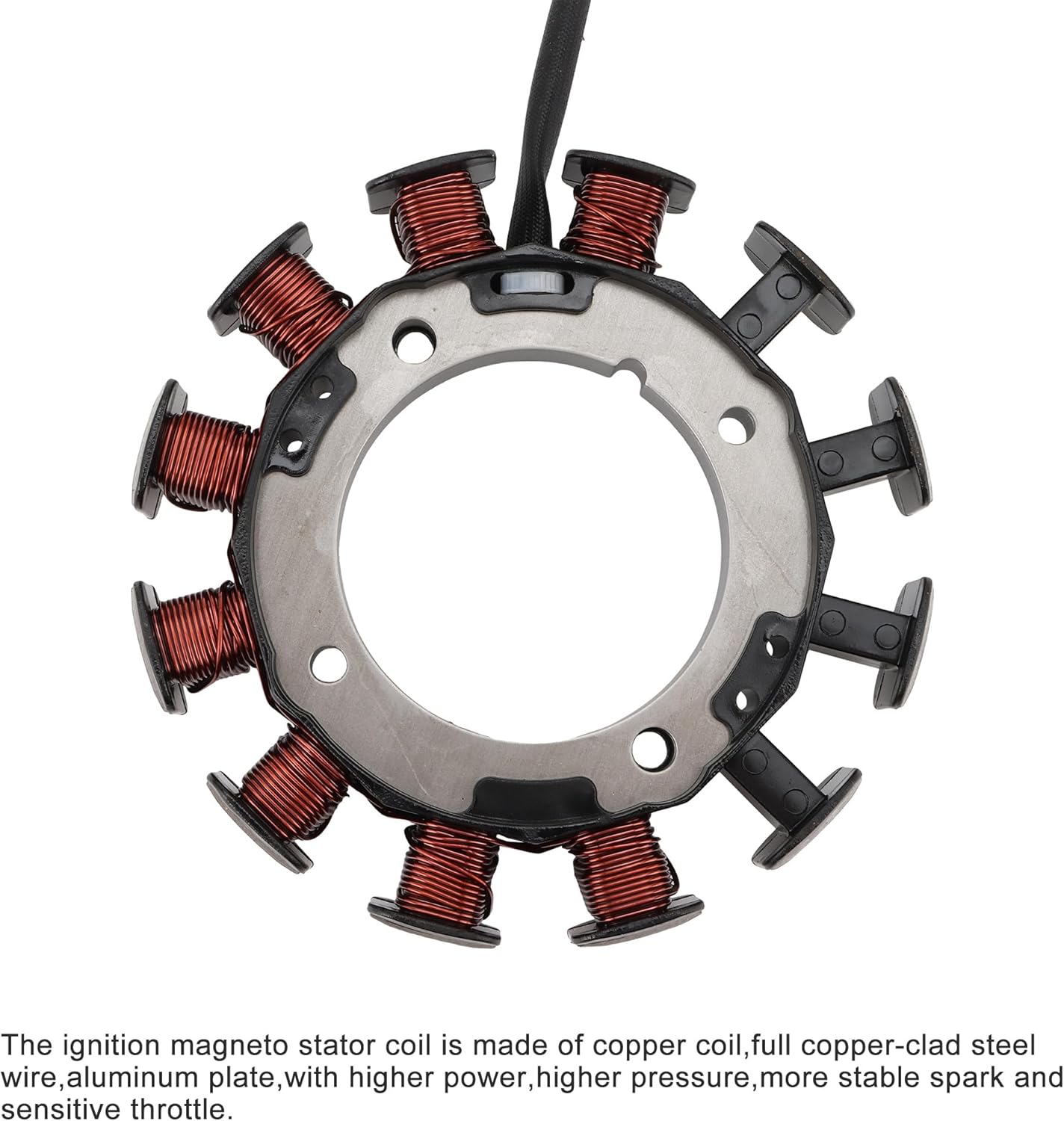

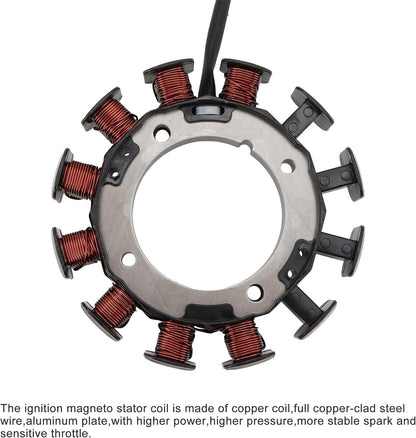

Material Copper windings + steel core
Base Plate Heavy-duty aluminum

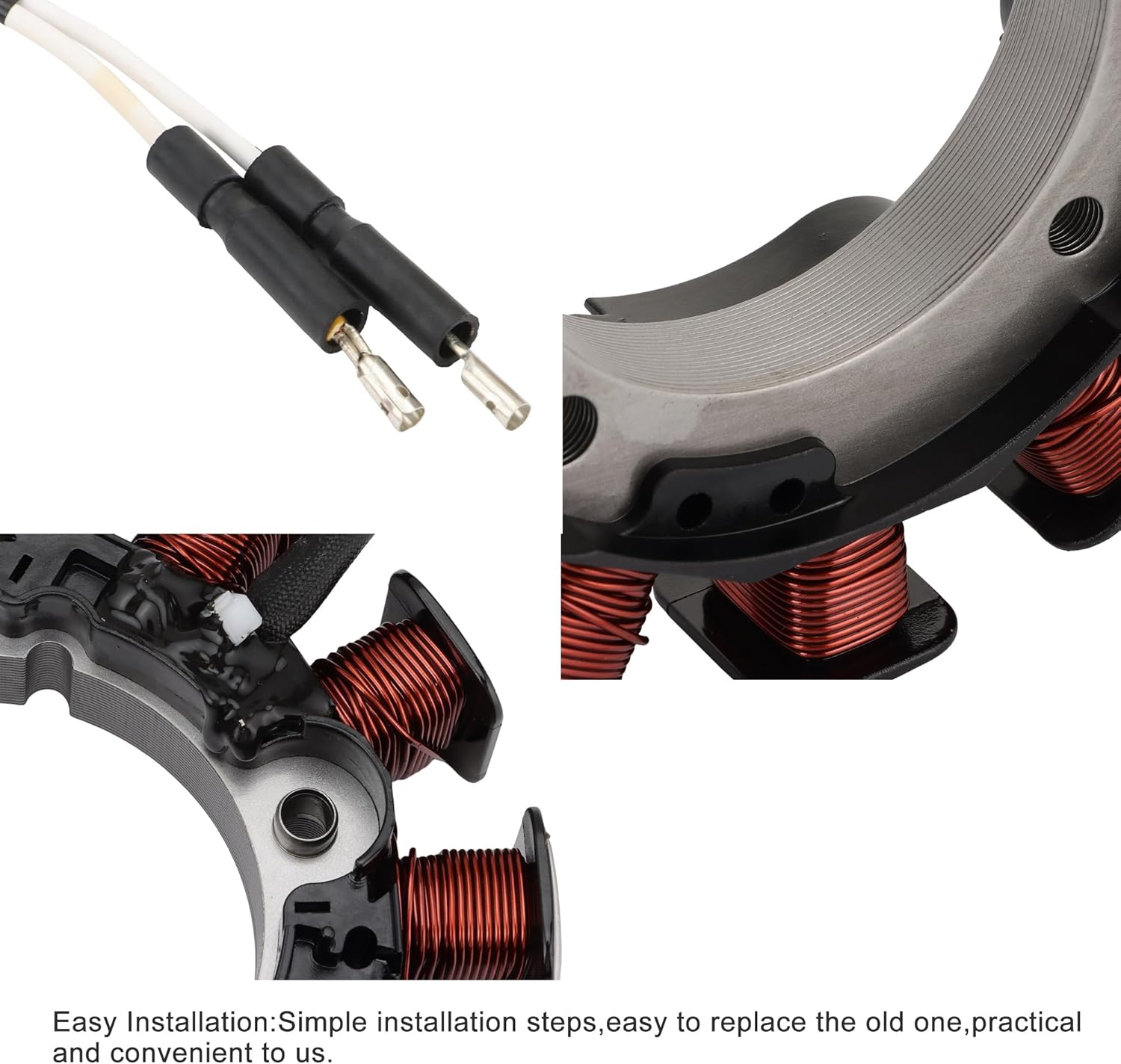

Installation Type Direct bolt-on replacement

Key Features

  • 17 Amp high-output design for commercial engines
  • Stable charging for fuel systems and battery operation
  • Built for generators, pumps, and industrial equipment
  • Heat-resistant copper windings for long runtime durability
  • Direct OEM-fit installation with no modifications required
View full details

Fitment FAQ

Will this part fit my specific model and year?

This magneto stator is intended for Engine Series; Applications; Honda; GX630; GX630 / GX630R / GX630RH; Commercial equipment. It is best matched to original part number(s) 31630-Z6L-003. Key physical/spec details from the product data include Outer Diameter: 145 mm (5.71"), Inner Diameter: 70 mm (2.76"), Thickness: 15 mm (0.59"). Use the compatibility table and product photos together before ordering.

Do I need to match the OEM part number?

Yes. Match your original part number to 31630-Z6L-003 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Honda GX630/GX660/GX690/GX630R models because similar model names can use different parts by year or trim.

What models or situations does this part not fit?

Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 31630-Z6L-003, treat the fitment as unconfirmed. Do not rely only on the model name or engine size.

What should I check before ordering?

Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 31630-Z6L-003. Recheck listed specs such as Outer Diameter: 145 mm (5.71"), Inner Diameter: 70 mm (2.76"), Thickness: 15 mm (0.59"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
