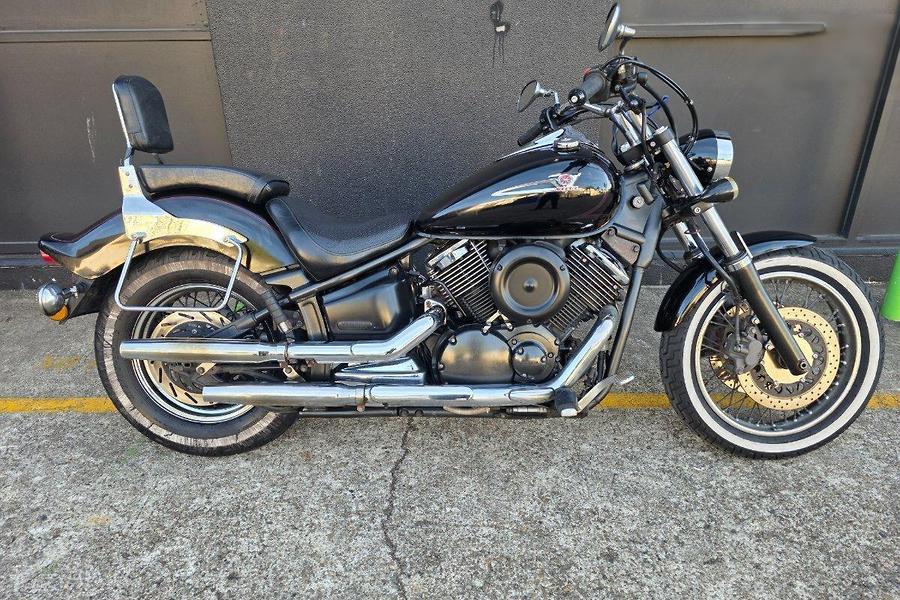

Solving Yamaha V-Star 1100 Charging System Failures: Guide to Stators and Rectifiers
As a mechanic who has spent the better part of the last 15 years up to my elbows in grease, diagnosing and wrenching on big V-twins, I’ve seen my fair share of electrical gremlins. If there is one motorcycle that rolls into my shop with predictable regularity for charging issues, it’s the Yamaha V-Star 1100.
Don't get me wrong—the XVS1100 is a fantastic, bulletproof cruiser. I love them. But those big, air-cooled engines generate a massive amount of heat, especially when you are idling in summer traffic or loaded down for a cross-country haul. Over time, that heat takes a severe toll on your motorcycle’s charging system.
If you are dealing with a dead battery, dimming headlights, or worse, the smell of boiled battery acid, you aren't alone. Today, I want to walk you through the most common Yamaha V-Star 1100 charging system failures, why they happen, and how you can permanently fix them in your own garage.
The Root of the Problem: Heat and the V-Twin Charging System
Your motorcycle relies on two primary components to keep the battery charged and your accessories running: the magneto stator and the voltage regulator rectifier.
The stator sits inside the engine case and generates alternating current (AC) as the engine spins. The regulator rectifier takes that erratic AC power, converts it into direct current (DC), and regulates the voltage to a steady 12-14.4 volts to charge your battery safely.
Because the stator is bathed in hot engine oil and the rectifier has to bleed off excess voltage as heat, both components are constantly fighting thermal breakdown. When they fail, you either lose power entirely, or you overcharge and fry your electrical system. Let's break down how to tackle both issues.
1. Taming the Voltage: The Regulator Rectifier
If your battery is swelling, leaking acid, or you notice your headlight bulbs keep blowing out, your voltage regulator rectifier is likely failing to bleed off excess voltage. This is a dangerous situation that can fry your expensive ignition components.
When replacing this part on heavy cruisers like the V-Star 1100 or the Road Star 1600, you need an upgrade, not just a standard replacement. The factory units often struggle with heat dissipation.
I always recommend installing a unit with superior thermal management, like the Voltage Regulator Rectifier for Yamaha V-Star 1100 XVS1100 & XVS1600 Road Star. What makes this specific GOOFIT 6-pin unit stand out in my shop is the extended-fin aluminum heat sink. Those longer cooling fins drastically increase the surface area, allowing the heavy heat loads generated by these 1100cc and 1600cc bikes to dissipate evenly. It actively prevents the internal circuitry from cooking during long summer rides, ensuring your battery receives a stable, safe current.
2. The Heart of the System: Replacing the Magneto Stator
If your battery simply isn't charging, and you’ve verified the battery itself is good, your stator is likely burnt out. The copper windings get so hot over years of riding that the protective insulation melts away, causing the system to short out against the engine case.
When buying a replacement stator, you must pay strict attention to your model year, as Yamaha made changes to the OEM fitment.
For Early Generation V-Stars (2000–2003)
If you are riding an early model Custom or Classic, you need a stator designed for the specific electrical output of those years. Upgrading to the Magneto Stator for Yamaha V-Star 1100 XVS1100 XVS1100A (2000-2003) is a smart move. Built with high-conductivity copper windings and a heat-resistant 18-pole design, it's engineered specifically to resist the thermal burnout that plagues the aging factory units. It’s a direct plug-and-play fit, which makes the weekend job in the garage much smoother.
For Later Generation V-Stars & Drag Stars (2003–2008)
If you own a later model V-Star Custom, Classic, Silverado, or the XVS1100 Drag Star, Yamaha updated the OEM part (5KS-81410 series). You'll need the Magneto Stator for Yamaha XVS1100 Drag Star & V-Star 1100 (2003-2008). This aftermarket replacement perfectly matches the factory dimensions for a no-modification installation. More importantly, its reinforced lamination and premium copper windings can handle engine temperatures up to 200°C, drastically improving electrical efficiency and long-term reliability.
A Mechanic's Tip for Installation
Before you button everything back up, here is a golden rule from my shop: Check your connections. A perfectly good stator and rectifier will fail if the plastic connectors connecting them are corroded or melted. High resistance at the plug generates localized heat, which causes a domino effect of electrical failure. When you install your new GOOFIT electrical components, clean your chassis grounds, inspect the harness plugs, and apply a dab of dielectric grease to the pins to keep moisture out.
Replacing the stator and rectifier on your Yamaha V-Star 1100 isn't just about getting the bike running today; it’s about bulletproofing it for the thousands of miles ahead. Equip your cruiser with components built to handle the heat, maintain your battery, and keep the rubber side down out there on the highway.
