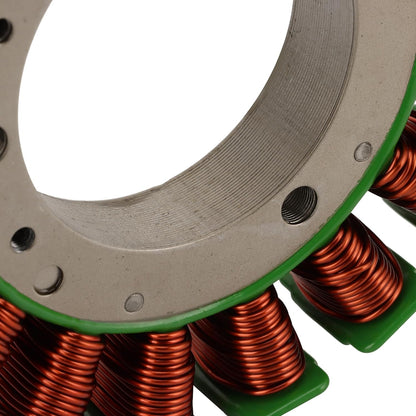

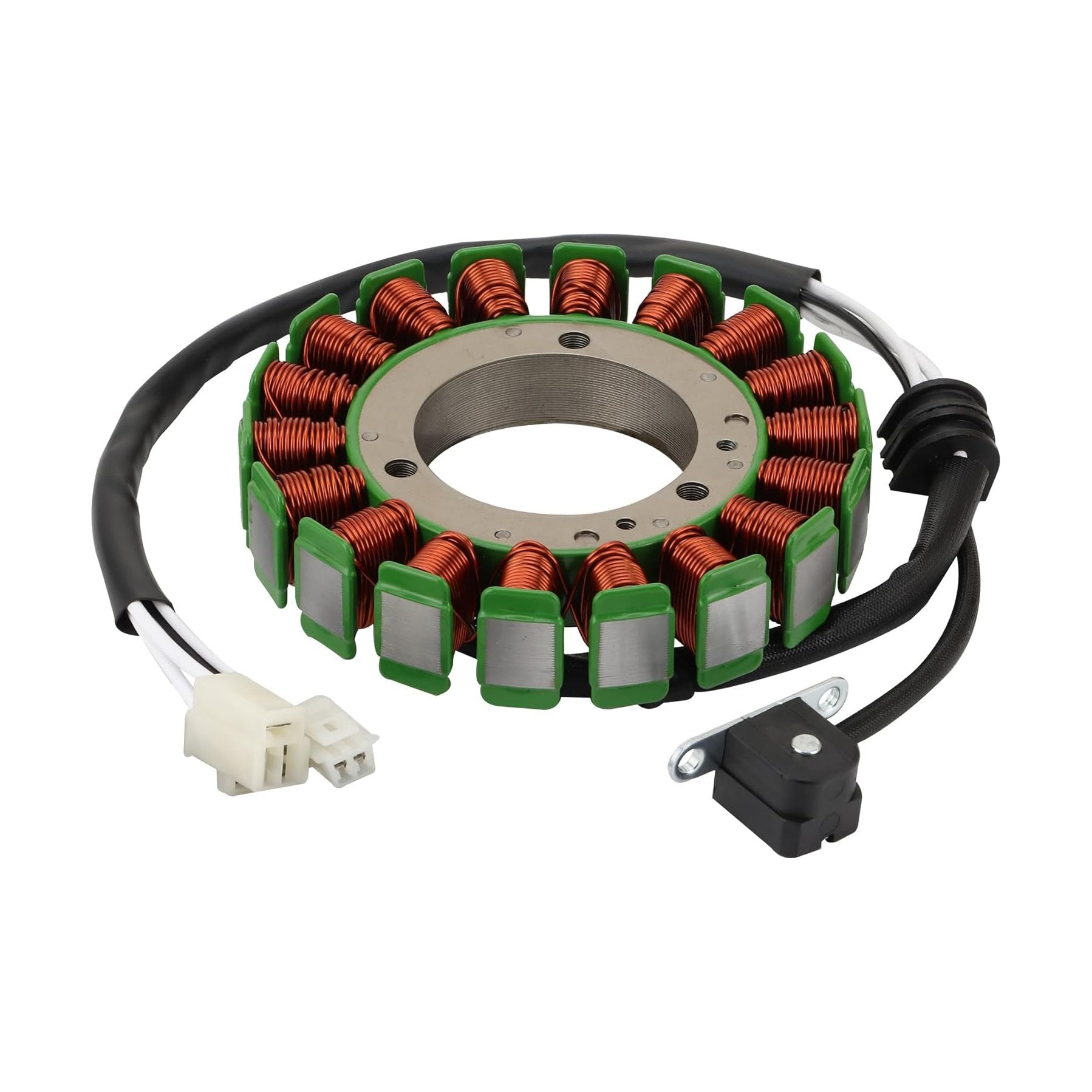

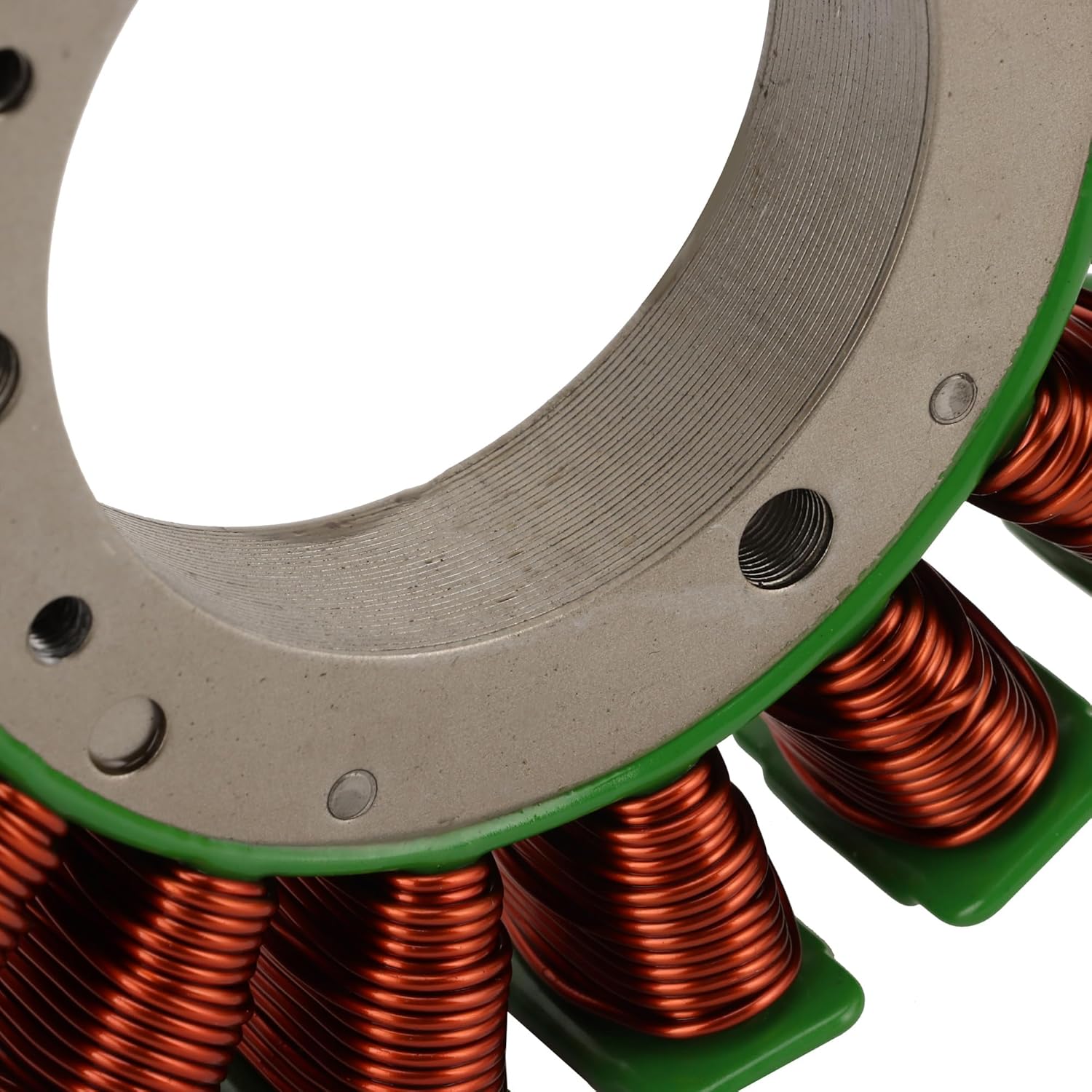

Magneto Stator for Yamaha XVS1100 Drag Star & V-Star 1100 (2003-2008)
Magneto Stator for Yamaha XVS1100 Drag Star & V-Star 1100 (2003-2008)
Couldn't load pickup availability
Product Overview
Restore stable charging performance to your Yamaha XVS1100 Drag Star and V-Star 1100. This high-performance aftermarket magneto stator is designed to replace OEM 5KS-81410 series units, delivering consistent voltage output for reliable ignition and battery charging.
Built for long-distance cruising and high-heat V-twin operation, it features premium copper windings and heat-resistant insulation to resist thermal breakdown. The precision-engineered structure ensures OEM-level fitment with a direct plug-and-play installation, helping eliminate charging failures and voltage instability common in aging stators.
Product Compatibility
| Make | Model | Years | OEM Reference |
|---|---|---|---|
| Yamaha | XVS1100 Drag Star | 2003, 2005–2008 | 5KS-81410-00 / 01 / 02 |
| Yamaha | XVS1100A Drag Star Classic | 2003–2008 | 5KS-81410-00 / 01 / 02 |
| Yamaha | XVS1100 V-Star Custom | 2003–2008 | 5KS-81410-00 / 01 / 02 |
| Yamaha | XVS1100 V-Star Classic | 2003–2008 | 5KS-81410-00 / 01 / 02 |
| Yamaha | XVS1100 V-Star Silverado | 2003–2008 | 5KS-81410-00 / 01 / 02 |
Specifications
| Item | Details |
|---|---|
| OEM Reference | 5KS-81410-00 / 01 / 02 |

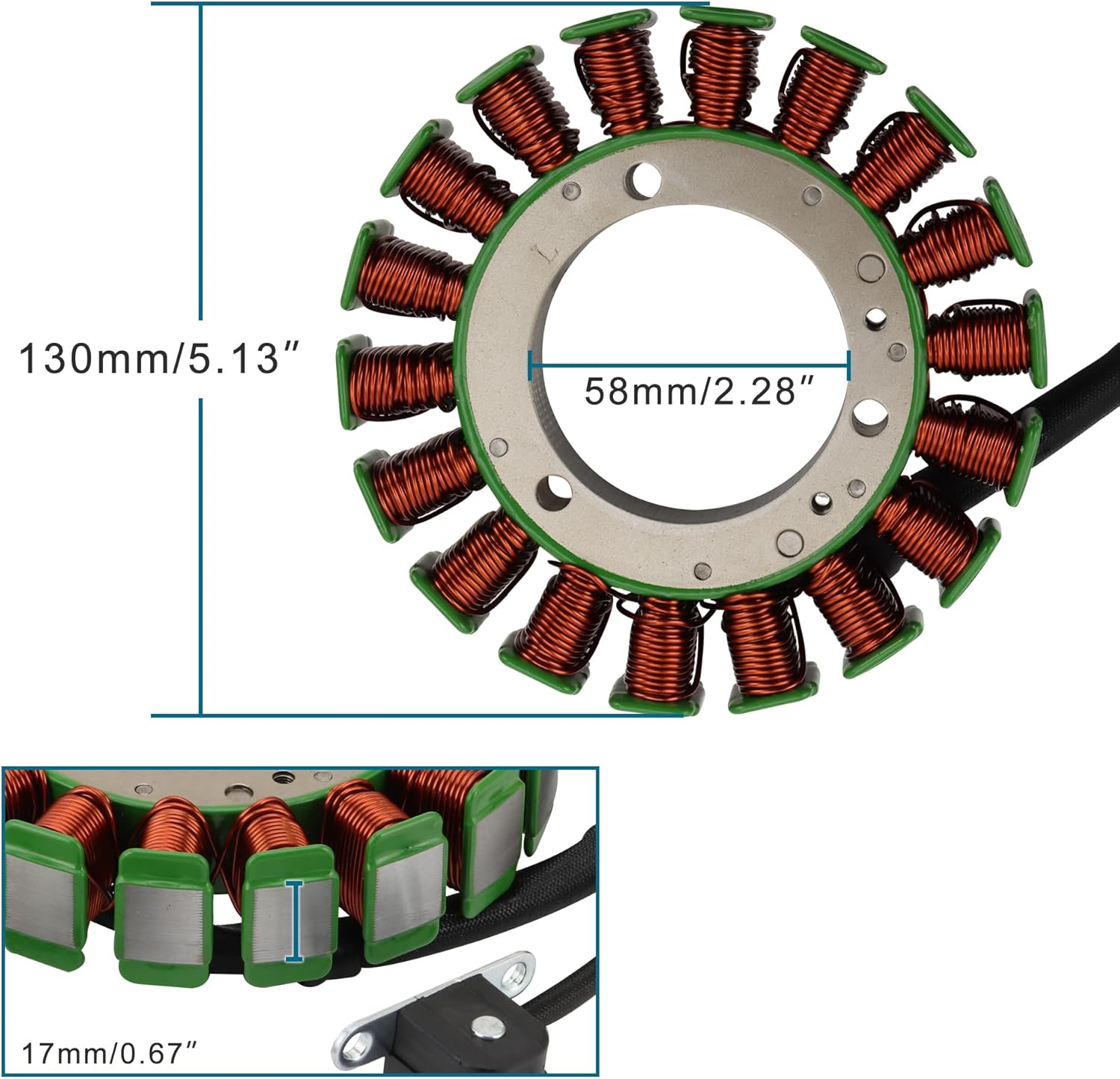

| Outer Diameter | 130mm (5.11") |
| Inner Diameter | 58mm (2.29") |
| Thickness | 17mm (0.67") |
| Material | High-grade copper windings + heat-resistant lamination |
| Temperature Resistance | Up to 200°C |
| Installation Type | Direct plug-and-play replacement |
| Function | AC power generation for charging system |
Key Features
- Stable Charging Output – Maintains consistent voltage for ignition and battery support
- V-Twin Heat Resistance – Designed to withstand high thermal load in 1100cc engines
- OEM Direct Fit – Matches factory dimensions for fast, no-modification installation
- Improved Electrical Efficiency – High-purity copper windings reduce energy loss
- Long Service Life Design – Reinforced insulation reduces risk of burnout and short circuit
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Years; OEM Reference; Yamaha; XVS1100 Drag Star; 2003, 2005–2008; 5KS-81410-00 / 01 / 02. It is best matched to original part number(s) 5KS-81410, 2003-2008, 5KS-81410-00. Key physical/spec details from the product data include Outer Diameter: 130mm (5.11"), Inner Diameter: 58mm (2.29"), Thickness: 17mm (0.67"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?

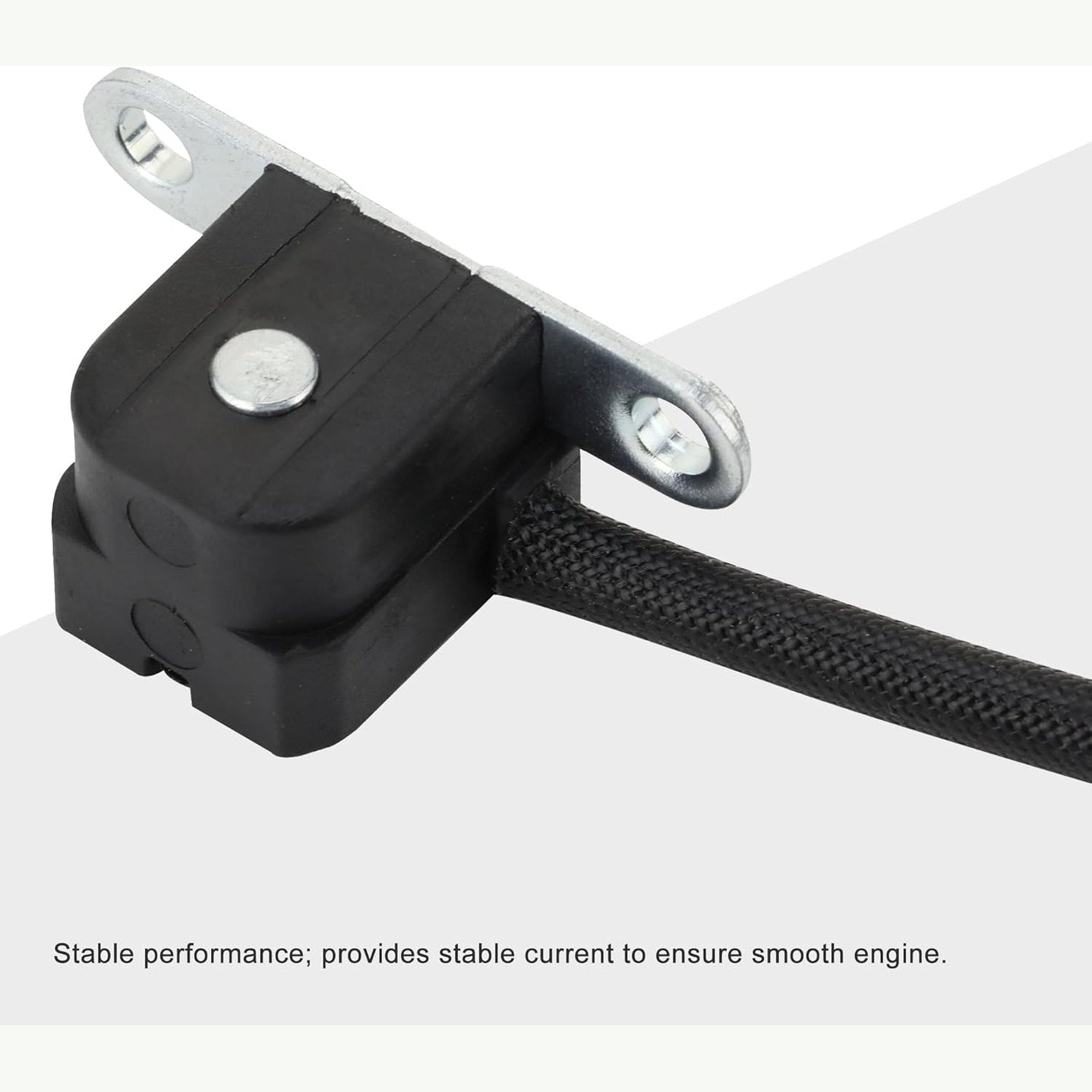

Yes. Match your original part number to 5KS-81410, 2003-2008, 5KS-81410-00 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Yamaha XVS1100/Drag Star/V-Star models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 5KS-81410, 2003-2008, 5KS-81410-00, treat the fitment as unconfirmed. Model years outside 2003–2008, 2005–2008, 2003, 2008, 2005 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 5KS-81410, 2003-2008, 5KS-81410-00. Recheck listed specs such as Outer Diameter: 130mm (5.11"), Inner Diameter: 58mm (2.29"), Thickness: 17mm (0.67"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
