7/8" 22mm Handlebar Mirror Mount Clamps M10x1.25 – 2 Pack
7/8" 22mm Handlebar Mirror Mount Clamps M10x1.25 – 2 Pack
No se pudo cargar la disponibilidad de retiro
Product Overview
Add or relocate rearview mirrors on a compatible motorcycle, ATV, quad, dirt bike, pit bike, pocket bike, or scooter with this pair of 7/8-inch (22 mm) handlebar mirror mount clamps.
Designed to clamp directly onto a standard 22 mm handlebar, each adapter provides an M10 x 1.25 threaded mirror mounting hole, making it useful for vehicles that do not have an existing mirror mount or where an additional mounting position is needed.
The split-clamp design allows installation around the handlebar without replacing the complete control perch. It is a practical solution for compatible aftermarket or OEM-style mirrors when the handlebar diameter, mirror thread diameter, thread pitch, and thread direction all match.
Product Compatibility
| Application | Required Specification | Fitment Notes |
|---|---|---|
| Motorcycle | 7/8" / 22 mm handlebar | Mirror must use compatible M10 x 1.25 thread |
| ATV / 4 Wheeler | 7/8" / 22 mm handlebar | Verify available clamp space |
| Quad | 7/8" / 22 mm handlebar | Confirm mirror thread |
| Dirt Bike | 7/8" / 22 mm handlebar | Check control and lever clearance |
| Pit Bike | 7/8" / 22 mm handlebar | Dimension-based fitment |
| Pocket Bike | 7/8" / 22 mm handlebar | Verify actual bar diameter |
| Scooter | 7/8" / 22 mm exposed handlebar | Confirm mounting area and thread |
| Suzuki Motorcycle / ATV | Selected Models | Only when handlebar and mirror thread specifications match |
Clamp-on mirror mounts of this type are commonly designed for 7/8-inch / 22 mm handlebars, and M10 x 1.25 is a commonly available motorcycle mirror thread specification.
This product should therefore be sold as a dimension-based universal accessory, rather than as a part that fits every Suzuki vehicle.

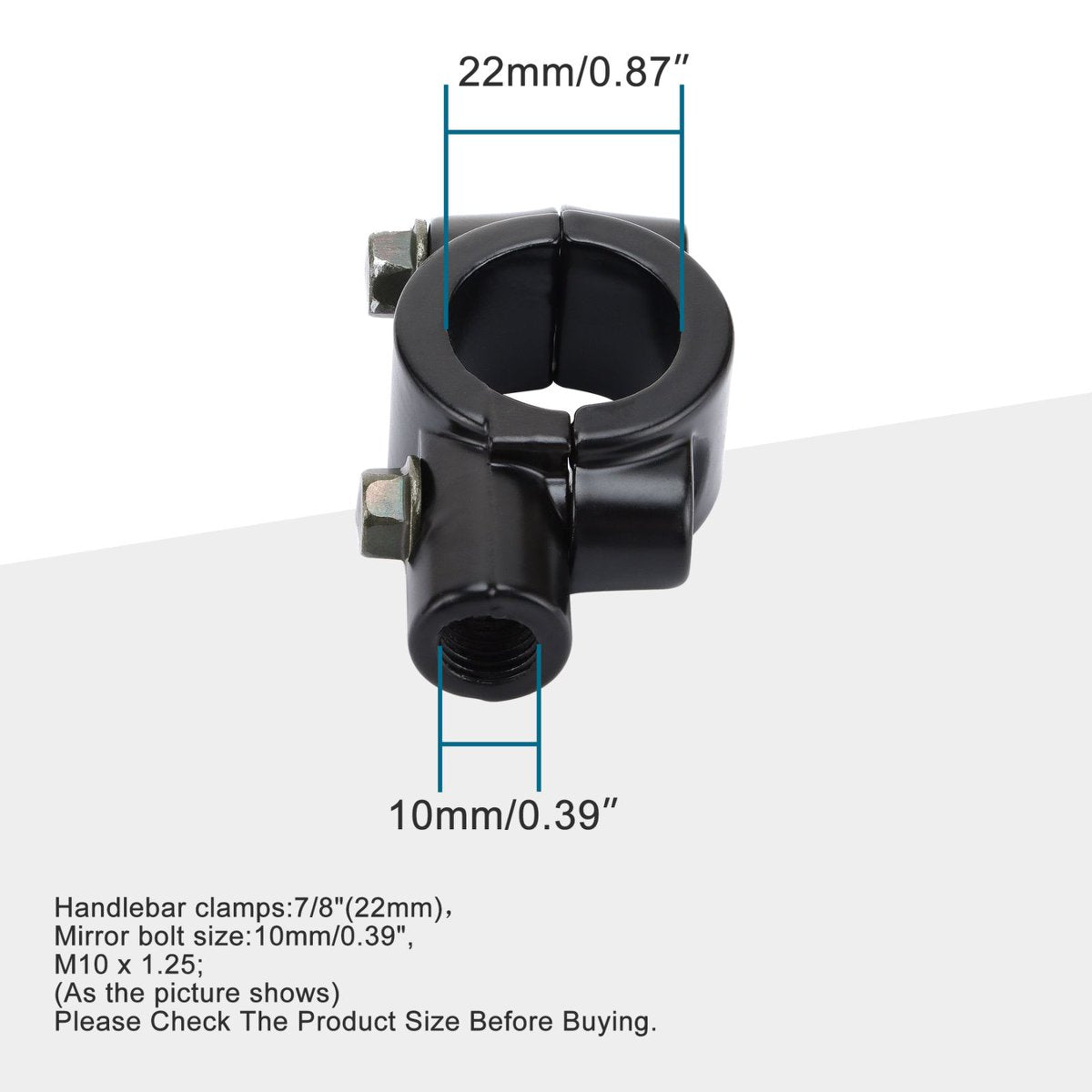

Specifications
| Specification | Details |
| Product Type | Handlebar Mirror Mount Clamp |
| Alternative Names | Mirror Mount Adapter / Mirror Holder Clamp / Mirror Bracket |
| Handlebar Diameter | 7/8 in / 22 mm |
| Mirror Thread Diameter | 10 mm |
| Mirror Thread Pitch | 1.25 mm |
| Thread Specification | M10 x 1.25 |
| Mounting Type | Clamp-On |
| Application | Rearview Mirror Mounting |
| Vehicle Type | Motorcycle / ATV / Quad / Dirt Bike / Scooter |
| Condition | New |
| Package Quantity | 2 Mirror Mount Clamps |
Important Thread Direction Note
M10 x 1.25 describes the diameter and thread pitch, but it does not by itself identify the thread direction.
Motorcycle mirrors may use:
- M10 x 1.25 right-hand thread
- M10 x 1.25 left-hand / reverse thread
- M8 x 1.25
- Other manufacturer-specific arrangements
M10 x 1.25 right-hand mirrors are commonly sold for compatible Honda, Kawasaki, and Suzuki applications.
However, reverse-thread M10 x 1.25 mounts also exist for other motorcycle applications.
Confirm the thread direction of this SKU from the actual product before publishing. If it uses standard right-hand threads, add:
Mirror Thread: M10 x 1.25 Right-Hand
Do not advertise compatibility with reverse-thread mirrors unless specifically verified.
Key Features
- Fits 7/8" Handlebars: Designed to clamp around compatible standard 22 mm motorcycle and ATV handlebars.
- M10 x 1.25 Mirror Mount: Provides a threaded mounting point for mirrors with the matching diameter, pitch, and thread direction.
- Clamp-On Installation: Adds a mirror mounting location without requiring replacement of the complete brake or clutch perch.
- Versatile Application: Suitable for compatible motorcycles, ATVs, quads, dirt bikes, pit bikes, and scooters.
- 2-Piece Set: Includes two mirror mount clamps for left/right or dual mounting applications when both sides have sufficient clearance.
Compartir
Preguntas frecuentes sobre compatibilidad
¿Esta pieza es compatible con mi modelo y año específicos?
This mirror mount clamp is designed for compatible vehicles with:
7/8" / 22 mm handlebars
Sufficient straight handlebar mounting space
Mirrors using M10 x 1.25 threads
The correct mirror thread direction
It can be used on selected motorcycles, ATVs, quads, dirt bikes, pit bikes, and scooters when all of these specifications match.
Do not rely on vehicle brand alone to confirm compatibility.
¿Necesito que coincida el número de pieza OEM?
No.
This is a universal clamp-on accessory rather than an OEM-specific replacement part.
Instead, confirm:
22 mm / 7/8" handlebar diameter
M10 mirror thread
1.25 mm thread pitch
Correct thread direction
Available mounting space
These measurements are more important than an OEM number.
¿Qué modelos o situaciones no son compatibles con esta pieza?
This mirror mount clamp is not confirmed for:
1-inch / 25.4 mm handlebars
28.6 mm oversized handlebars at the mounting location
Handlebars smaller than 22 mm
M8 mirror stems
M10 x 1.5 mirrors
Reverse-thread mirrors if this SKU uses standard right-hand threads
Enclosed scooter handlebars without exposed mounting space
Tapered sections of handlebars that are not 22 mm
Locations where brake, clutch, throttle, switch, cable, or reservoir clearance is insufficient
It should not be treated as a universal fit for every Suzuki motorcycle or ATV.
¿Qué debo verificar antes de hacer un pedido?
Before ordering, confirm:
Handlebar diameter is 22 mm / 7/8 in
Mirror stem diameter is 10 mm
Mirror thread pitch is 1.25 mm
Thread specification is M10 x 1.25
Mirror uses the same thread direction as the adapter
Sufficient straight handlebar area is available
Clamp will not interfere with brake or clutch controls
Throttle movement remains unobstructed
Cables and wiring have adequate clearance
Product photos match the mounting style you need
If your mirror is marked only “10 mm,” measure or verify the thread pitch before ordering because not every 10 mm mirror uses M10 x 1.25.
