22mm Handlebar Switch with Key Ignition for 50cc–125cc ATV Scooter
22mm Handlebar Switch with Key Ignition for 50cc–125cc ATV Scooter
Couldn't load pickup availability
Product Overview

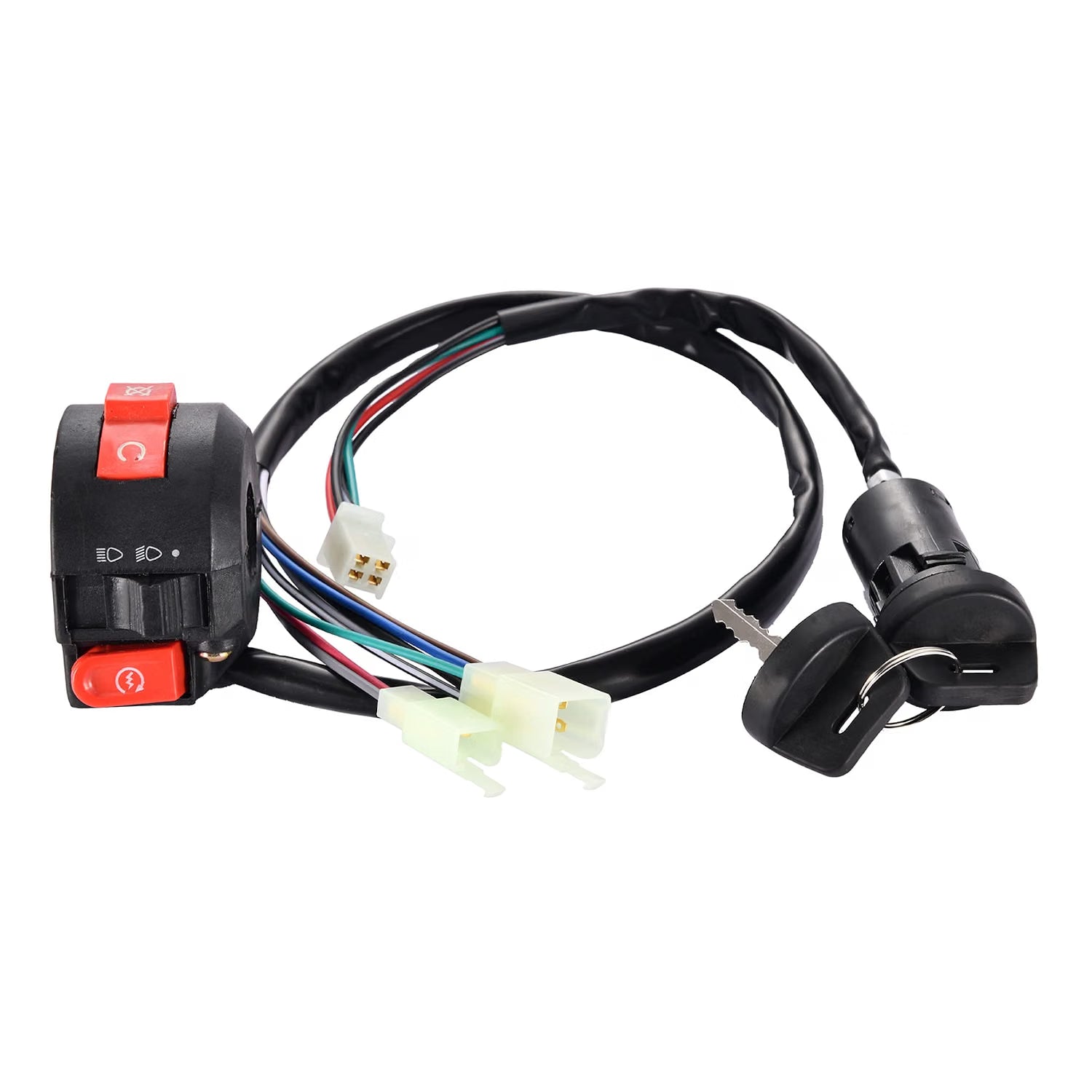

Replacement handlebar control switch and key ignition switch set for selected 50cc, 70cc, 90cc, 110cc, and 125cc ATVs, scooters, and quads using a compatible wiring configuration.

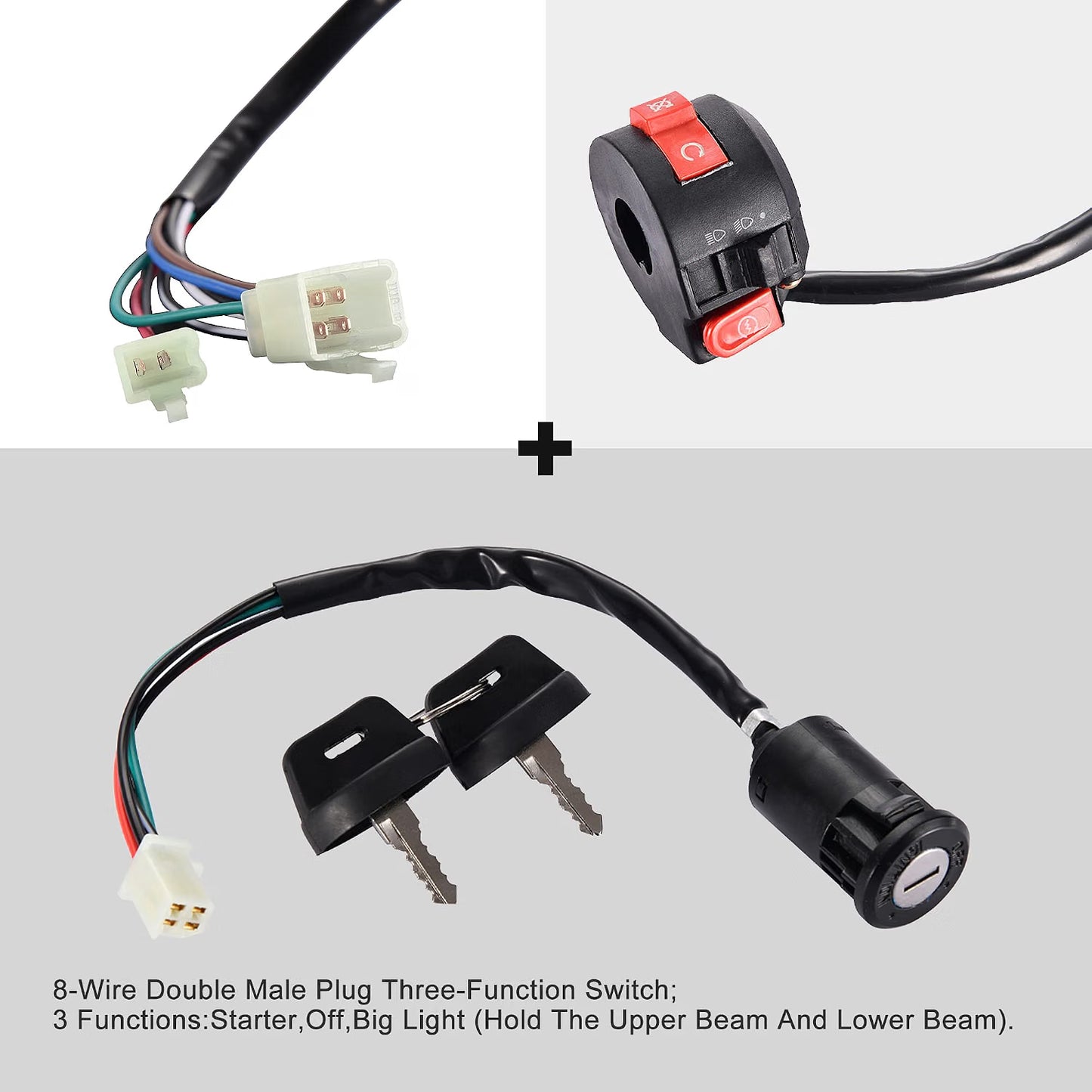

The handlebar switch mounts to a standard 7/8 in / 22mm handlebar and uses an 8-wire double male plug. It provides controls for electric start, engine stop, and headlight high/low beam.

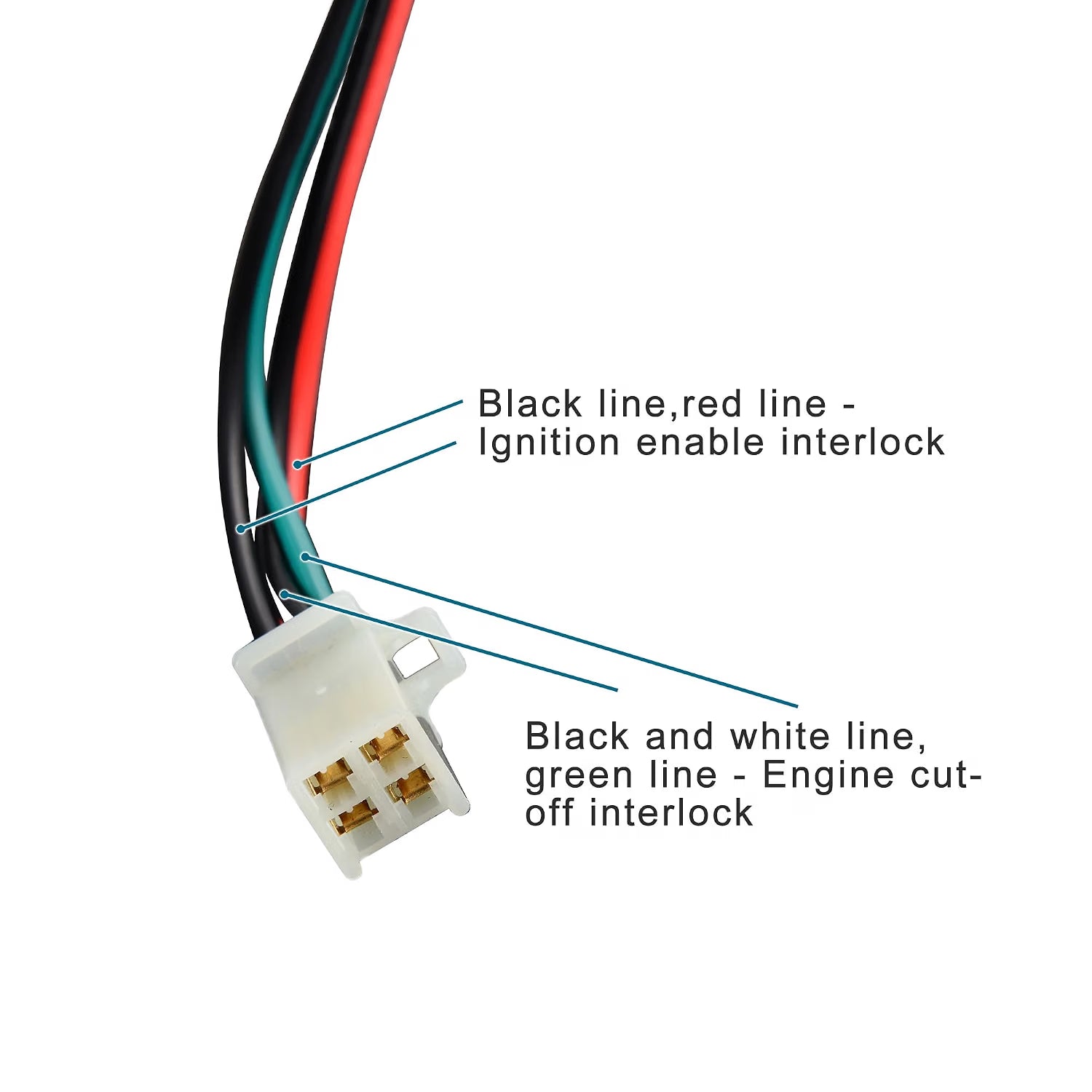

The included key ignition switch uses a 4-wire female connector and comes with a protective cap.
Before ordering, compare the handlebar diameter, wire count, connector type, pin layout, switch functions, and original wiring with this replacement set.
Product Compatibility
| Vehicle Type | Listed Engine Size | Fitment Notes |
|---|---|---|
| ATV | 50cc–125cc | Verify 22mm handlebar and wiring |
| Quad / 4-Wheeler | 50cc–125cc | Compare connector and pin layout |
| Scooter | 50cc–125cc | Selected compatible applications |
Common listed engine sizes include:
50cc / 70cc / 90cc / 110cc / 125cc
Engine displacement alone does not confirm compatibility. This switch set must match the vehicle's wiring and connector configuration.
Specifications
| Specification | Details |
|---|---|
| Product Type | Handlebar Control Switch + Key Ignition Switch |

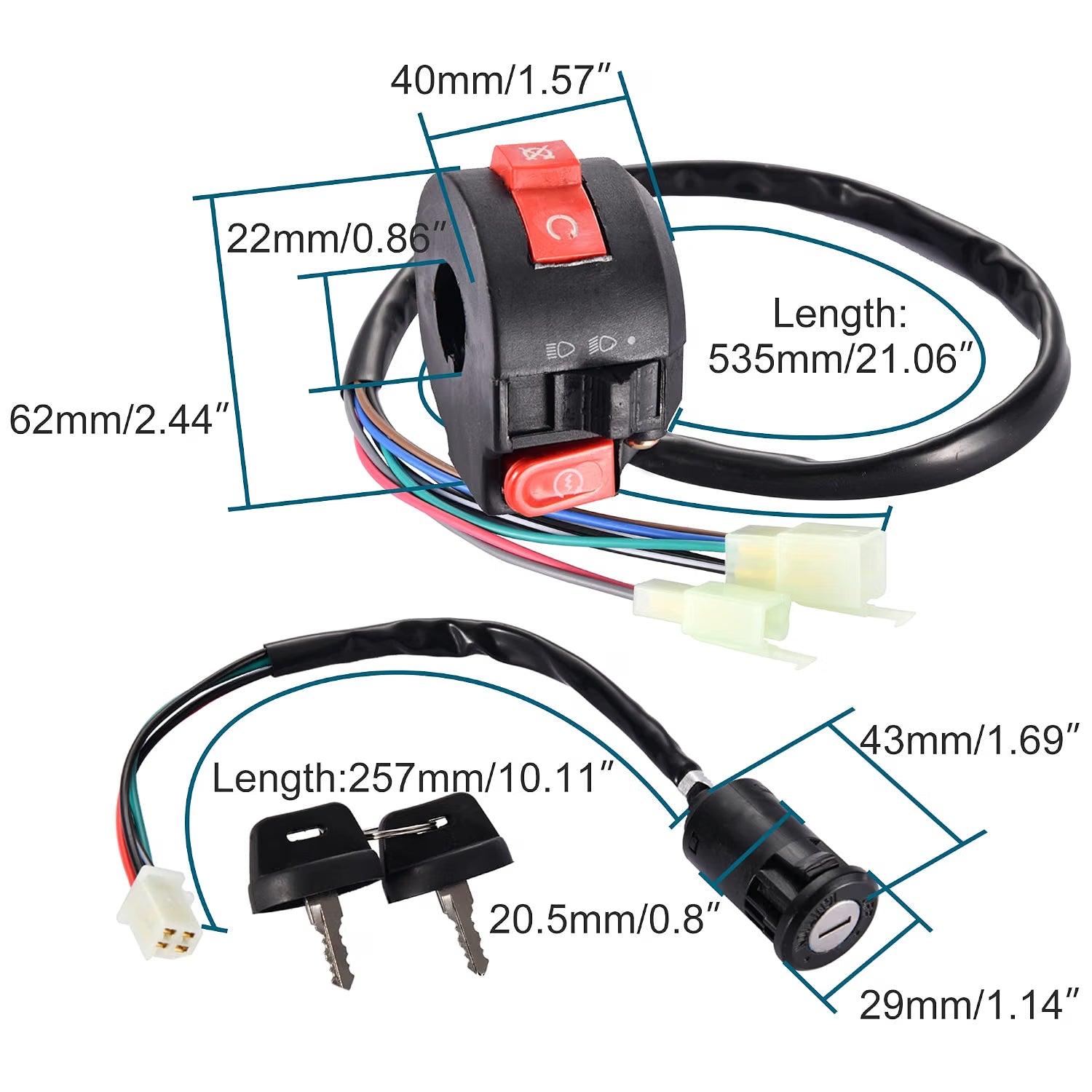

| Handlebar Mount Diameter | 7/8 in / 22 mm |
| Handlebar Switch Wiring | 8-Wire |
| Handlebar Connector | Double Male Plug |
| Switch Functions | Starter / Engine Off / Headlight High-Low |
| Key Ignition Wiring | 4-Wire |
| Key Ignition Connector | Female Plug |
| Key Switch Protection | Protective Cap |
| Listed Engine Range | 50cc / 70cc / 90cc / 110cc / 125cc |
| Application | ATV / Quad / Scooter |
| Material | Plastic / Metal Components |
| Condition | New |
Key Features
- 7/8" / 22mm Handlebar Mount: Designed for compatible standard-size ATV and scooter handlebars.
- 3 Control Functions: Integrates electric starter, engine stop, and headlight high/low beam controls.
- 8-Wire Handlebar Switch: Uses a double male plug for compatible vehicle wiring harnesses.
- 4-Wire Key Ignition: Includes a separate key-operated ignition switch with female connector.
- Complete Control Set: Practical replacement for a matching damaged or worn handlebar and ignition-switch assembly.
Share
Fitment FAQ
Will this part fit my specific model and year?
This switch set is designed for selected 50cc, 70cc, 90cc, 110cc, and 125cc ATVs, scooters, and quads.
Fitment depends primarily on the 22mm handlebar diameter, wire count, connector shape, pin layout, and switch functions, not engine displacement alone.
Do I need to match the OEM part number?
No OEM part number is provided for this generic replacement switch set.
Instead, compare:
7/8" / 22mm handlebar diameter
8-wire handlebar switch
Double male connector
Connector shape and pin layout
Starter / stop / headlight functions
4-wire key ignition switch
Female key-switch connector
The replacement wiring configuration should match the original vehicle.
What models or situations does this part not fit?
Do not assume compatibility with:
Every 50cc–125cc ATV or scooter
Vehicles using handlebars other than 22mm at the mounting point
Handlebar switches with a different wire count
Different connector shapes or pin layouts
Vehicles without compatible electric-start/headlight circuits
Key switches using a different number of wires
Wiring harnesses with different electrical functions despite similar connectors
A connector that physically plugs in does not necessarily have the correct pinout.
What should I check before ordering?
Confirm:
7/8" / 22mm handlebar diameter
8-wire handlebar switch
Double male plug
Connector shape
Pin count and pin positions
Starter button function
Engine stop / kill function
Headlight high/low function
4-wire key ignition
Female key-switch connector
Original switch appearance and dimensions
Compare the product images with your existing switches before purchase.
