28mm PWK Carburetor Red for 125cc–200cc Dirt Bike ATV Quad
28mm PWK Carburetor Red for 125cc–200cc Dirt Bike ATV Quad
Couldn't load pickup availability
Product Overview
Restore smoother fuel delivery and sharper throttle feel with this 28mm red PWK flat-slide carburetor, designed for select 125cc–200cc dirt bikes, pit bikes, ATVs, quads, and performance scooters.
The 28mm size is a practical choice for smaller displacement engines where quick response matters more than maximum top-end airflow. With proper tuning, it can help reduce hesitation, unstable idle, and poor acceleration caused by worn or mismatched carburetors.

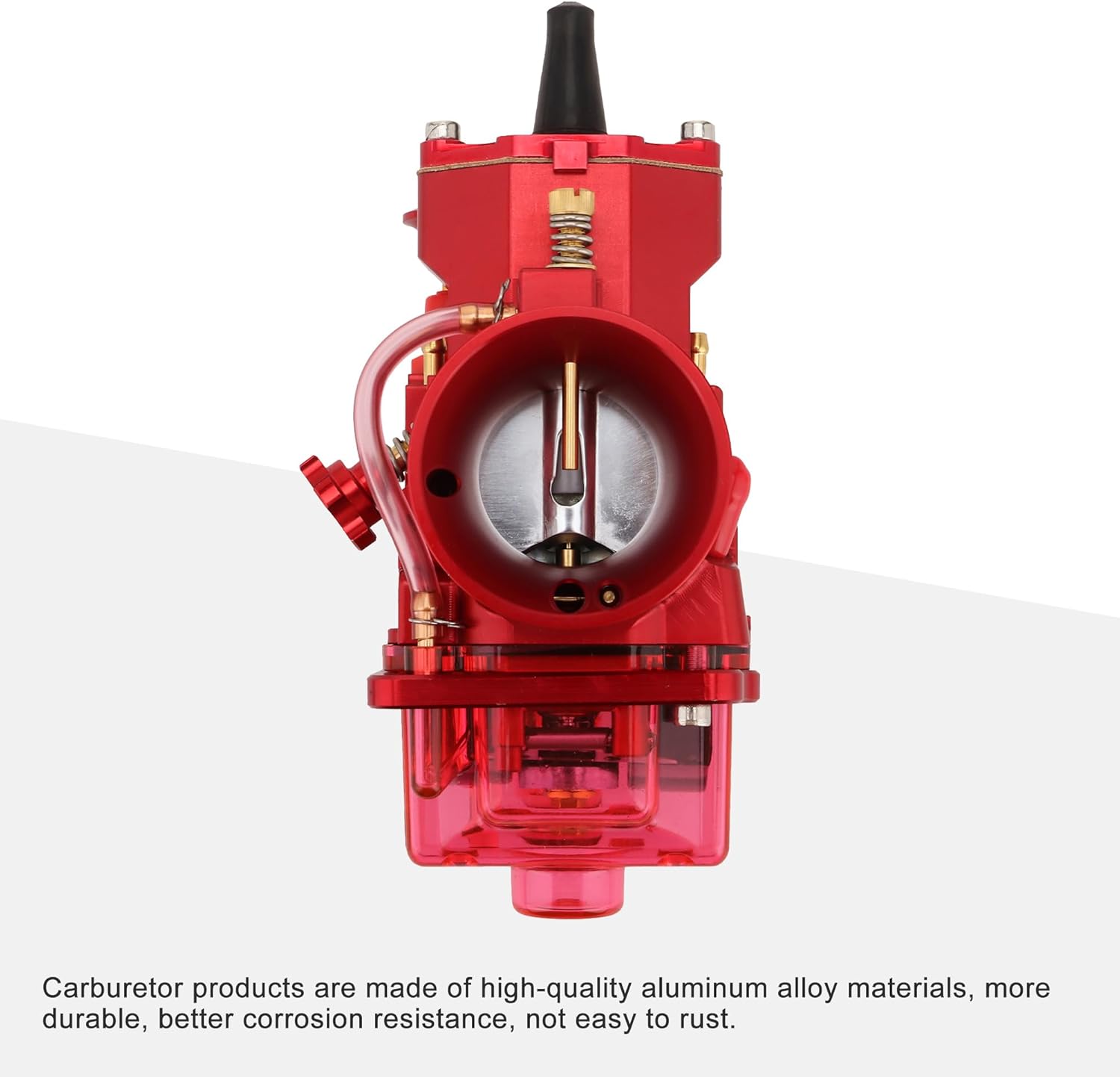

The red anodized aluminum body gives the carburetor a performance look while helping protect the surface from wear and corrosion.
Product Compatibility
| Application | Recommended Use |
|---|---|
| Engine Range | 125cc–200cc |
| Vehicle Types | Dirt bikes, pit bikes, ATVs, quads, scooters |
| Engine Type | Select 2-stroke and 4-stroke engines |
| Use Case | Replacement, tuning, or performance upgrade |
Specifications
| Specification | Details |
|---|---|
| Part Type | PWK Flat-Slide Carburetor |

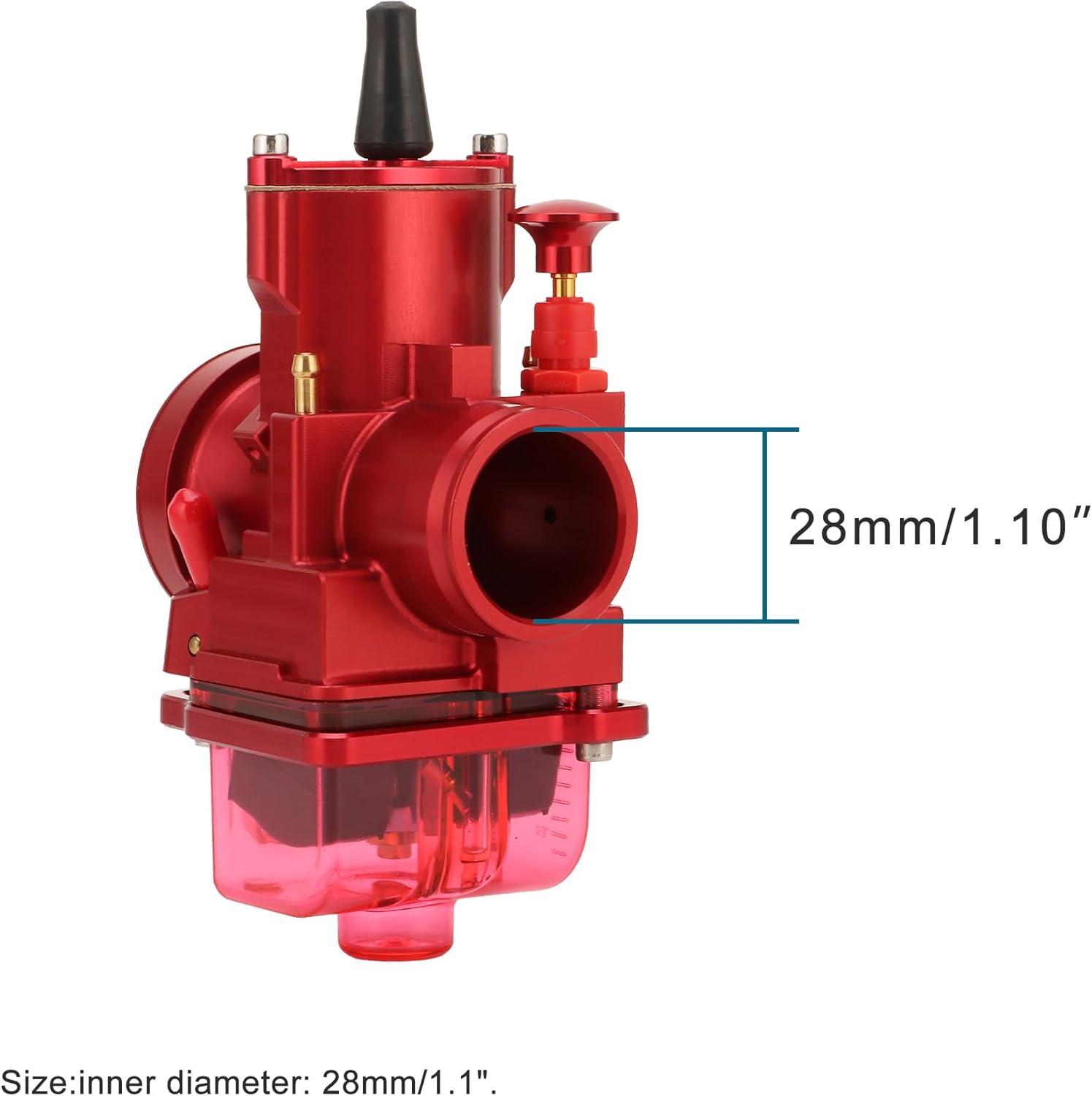

| Carb Size | 28mm |
| Color | Red |
| Material | Aluminum Alloy |
| Finish | Anodized red finish |
| Recommended Engine Range | 125cc–200cc |
| Condition | 100% New Aftermarket |
Key Features
- Compact 28mm Size – Better suited for smaller displacement engines
- Improved Throttle Response – Flat-slide design supports quicker airflow changes
- Red Anodized Body – Custom appearance with added surface protection

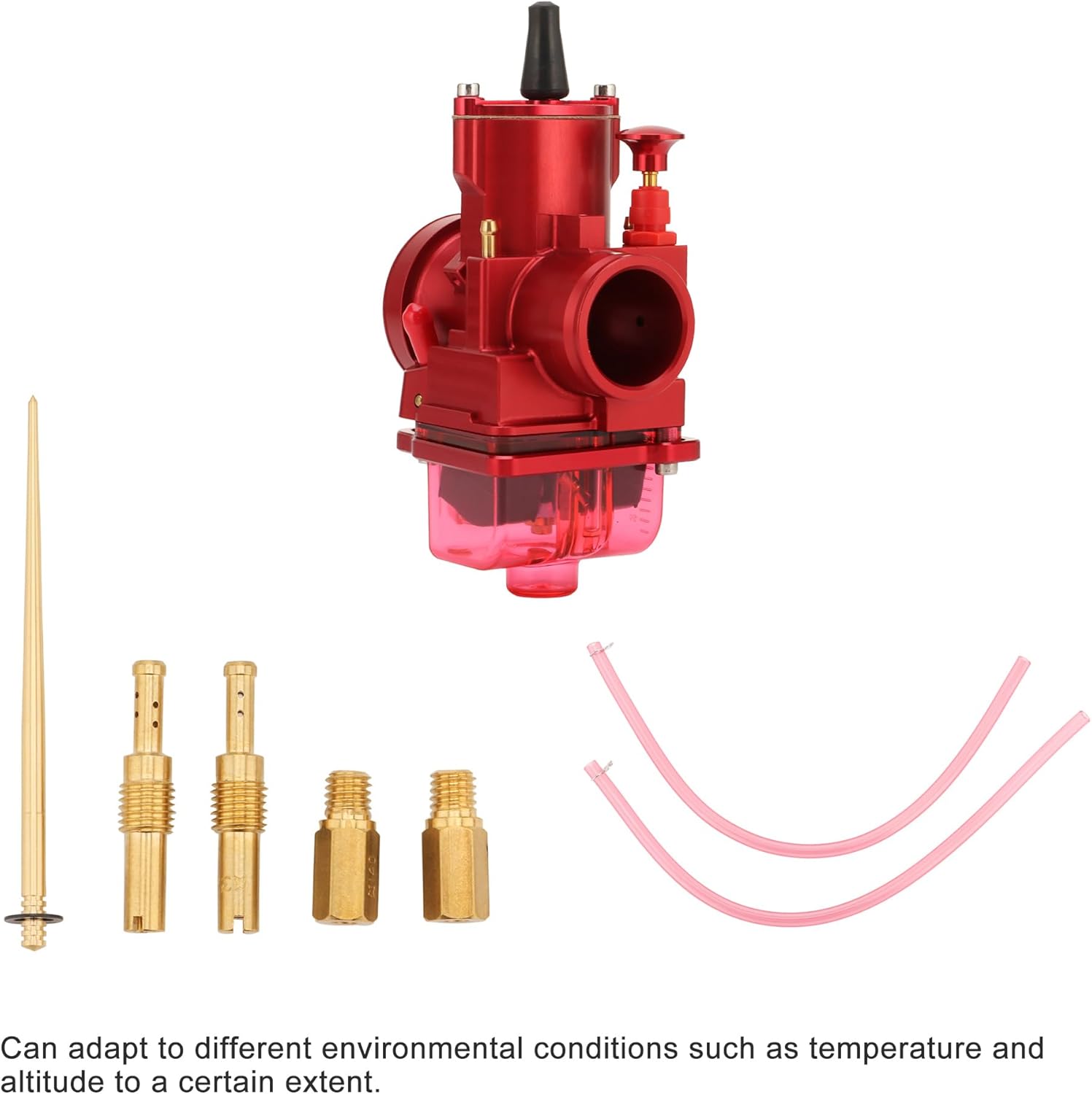

- Performance Tuning Friendly – Suitable for jetting adjustments and custom builds
- Universal Fitment – Requires size and cable compatibility verification
Share
Fitment FAQ
Will this part fit my specific model and year?
This 28mm PWK carburetor is commonly used on 125cc–200cc dirt bikes, pit bikes, ATVs, quads, and small performance scooters. It is best suited for smaller displacement engines where quick throttle response and low-to-mid range control are important.
Do I need to match the OEM part number?
There is no single OEM number for this universal carburetor. Please check your original carburetor dimensions and compare them with the product photos before ordering. If the intake, outlet, or cable connection is different, modification may be required.
What models or situations does this part not fit?
This carburetor may not fit engines outside the recommended size range, fuel-injected models, engines using a different throttle cable design, or vehicles that require factory emissions, vacuum, or electric choke connections not present on this carburetor.
What should I check before ordering?
Before ordering this 28mm red PWK carburetor, confirm your engine displacement, intake manifold size, air filter boot size, throttle cable end type, choke setup, and available clearance around the carburetor. Jetting may need adjustment after installation.
