30mm PWK Carburetor Red for 150cc–250cc Dirt Bike ATV Quad
30mm PWK Carburetor Red for 150cc–250cc Dirt Bike ATV Quad
Couldn't load pickup availability
Product Overview
Improve throttle feel and fuel delivery with this 30mm red PWK flat-slide carburetor, designed for select 150cc–250cc dirt bikes, pit bikes, ATVs, quads, and performance scooters.
The 30mm bore is suitable for riders who want a stronger airflow upgrade while keeping good response across the low and mid-range. With correct installation and jetting, it can help address bogging, hard starting, unstable idle, and weak throttle response caused by a worn or poorly matched carburetor.

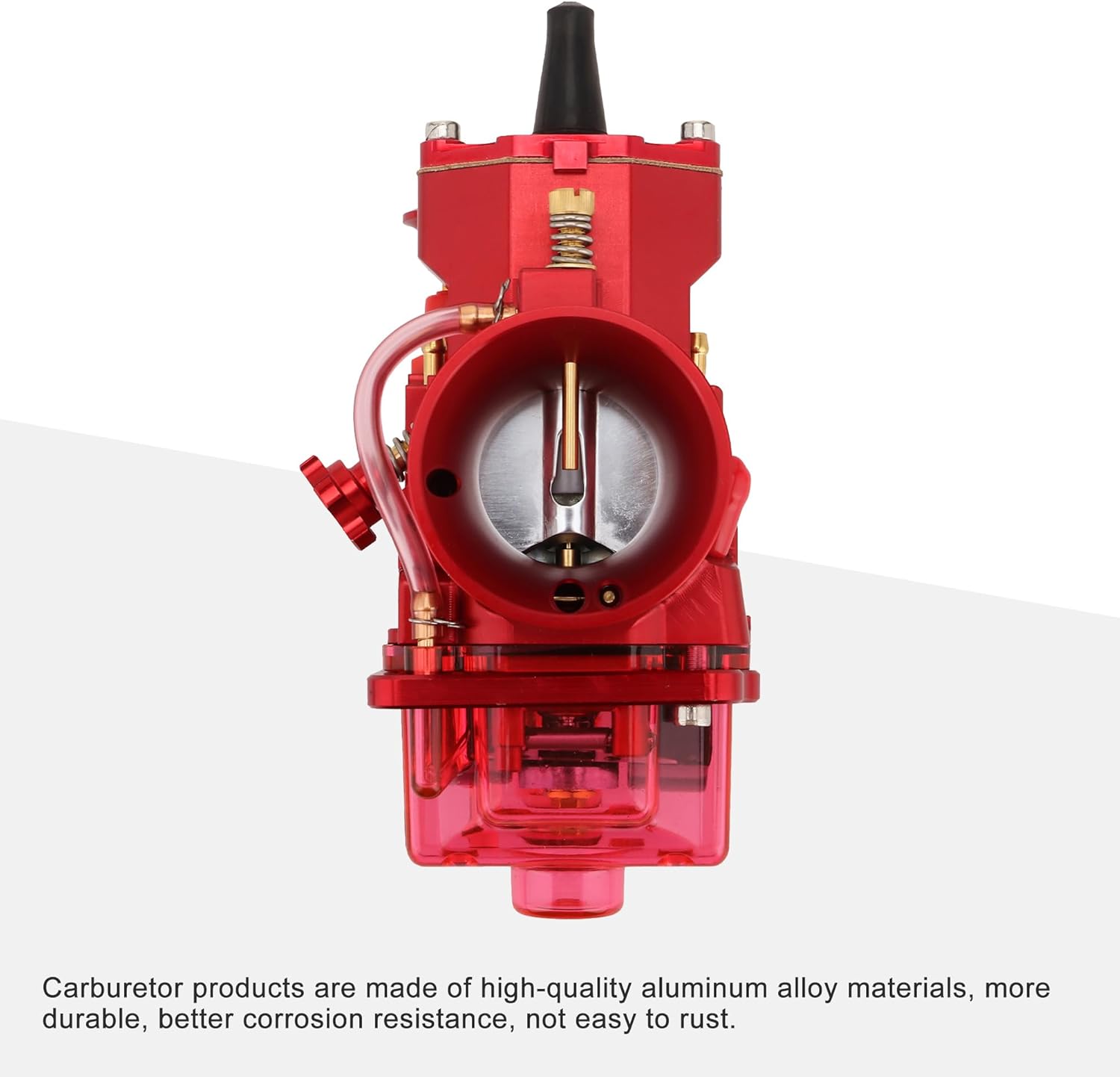

The red anodized aluminum alloy body gives your build a clean performance look while supporting long-term durability.
Product Compatibility
| Application | Recommended Use |
|---|---|
| Engine Range | 150cc–250cc |
| Vehicle Types | Dirt bikes, pit bikes, racing motorcycles, ATVs, quads |
| Carb Style | PWK flat-slide |
| Fitment Type | Universal, size-dependent |
Specifications
| Specification | Details |
|---|---|
| Part Type | PWK Carburetor |

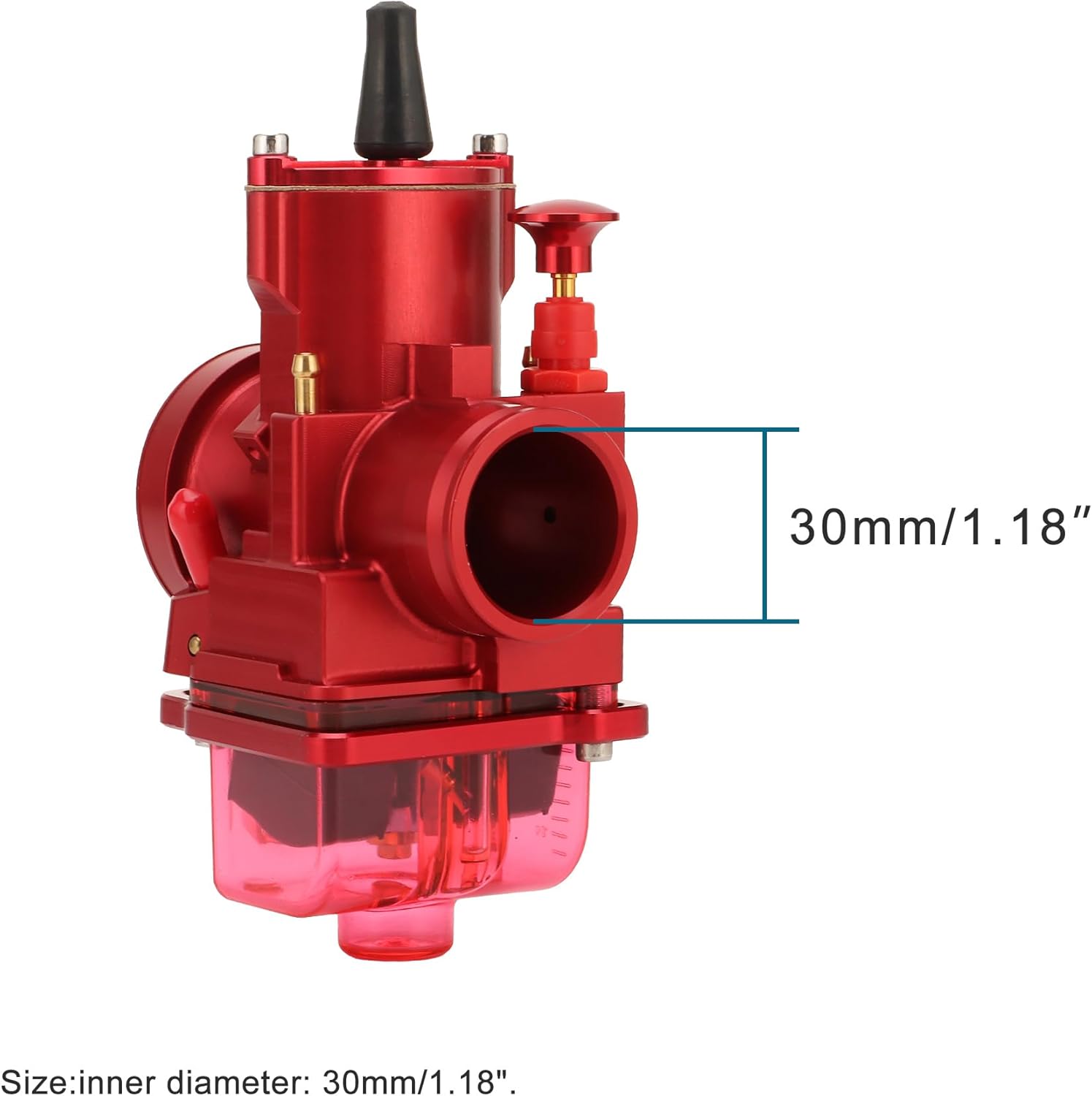

| Carb Size | 30mm |
| Color | Red |
| Material | Aluminum Alloy |
| Finish | Red anodized finish |
| Design | Flat-slide |
| Condition | 100% New Aftermarket |
Key Features
- 30mm PWK Carburetor – Good match for many 150cc–250cc builds
- Snappier Throttle Response – Flat-slide design helps reduce airflow delay
- Red Anodized Finish – Adds color and surface protection
- Tuning Friendly Platform – Suitable for jetting and performance adjustment
- Universal Use – Check intake size, outlet size, and cable setup before purchase
Share
Fitment FAQ
Will this part fit my specific model and year?
This 30mm PWK carburetor is commonly used on 150cc–250cc dirt bikes, ATVs, quads, pit bikes, and performance scooters. It is designed for universal applications where the carburetor size, cable setup, and intake connection match.
Do I need to match the OEM part number?
This is a universal aftermarket carburetor, so OEM number matching may not apply. Please use physical comparison first: carb size, intake diameter, air filter side diameter, cable position, choke type, and fuel inlet angle.
What models or situations does this part not fit?
This carburetor may not fit engines with fuel injection, special electronic controls, factory vacuum systems, or stock airboxes that require a different carburetor shape or boot diameter. It may also be too large for some stock 125cc engines.
What should I check before ordering?
Before ordering this 30mm red PWK carburetor, measure the intake and outlet sides of your original carburetor and confirm throttle cable, choke, and fuel line compatibility. Proper jetting and adjustment may be needed after installation.
