36V 500W DC Brushed Motor Speed Controller for Electric Scooter, E-Bike & Tricycle

36V 500W DC Brushed Motor Speed Controller for Electric Scooter, E-Bike & Tricycle

$16.99
$16.99
Sale Sold out
Shipping calculated at checkout.

Product Overview

Upgrade your electric vehicle's performance with this 36V 500W Brushed Speed Motor Controller. This powerful governor is the central processing unit for your 36-volt system, managing energy flow to provide smooth, consistent acceleration. Encased in a rugged aluminum heat-sink shell, it is specifically designed to handle higher wattage demands while protecting your sensitive internal electronics from overheating. Whether you are refurbishing a vintage electric moped or building a high-torque tricycle, this controller offers the reliability and precision needed for a superior ride.

Product Compatibility

Component Specification
Motor Type DC Brushed Motors (2-wire)
Voltage 36V
Wattage 500W
Throttle Signal 1V – 4V (Hall Effect Throttles)

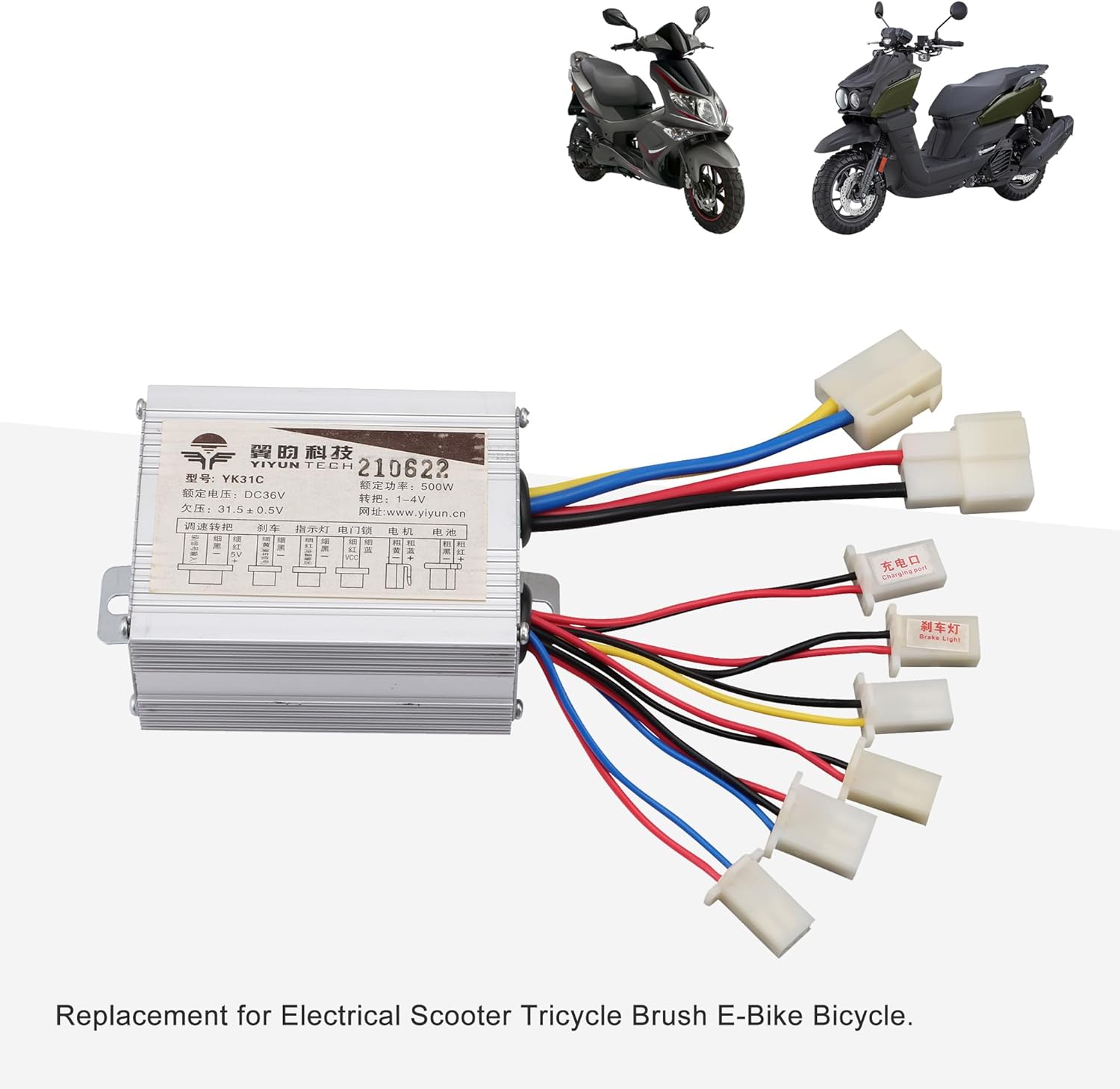

Applications High-Power Electric Scooters, E-Bikes, Tricycles, Go-Karts

Specifications

Feature Details
Input Voltage DC 36V
Rated Power 500 Watts
Under-Voltage Protection 31.5V Β± 0.5V

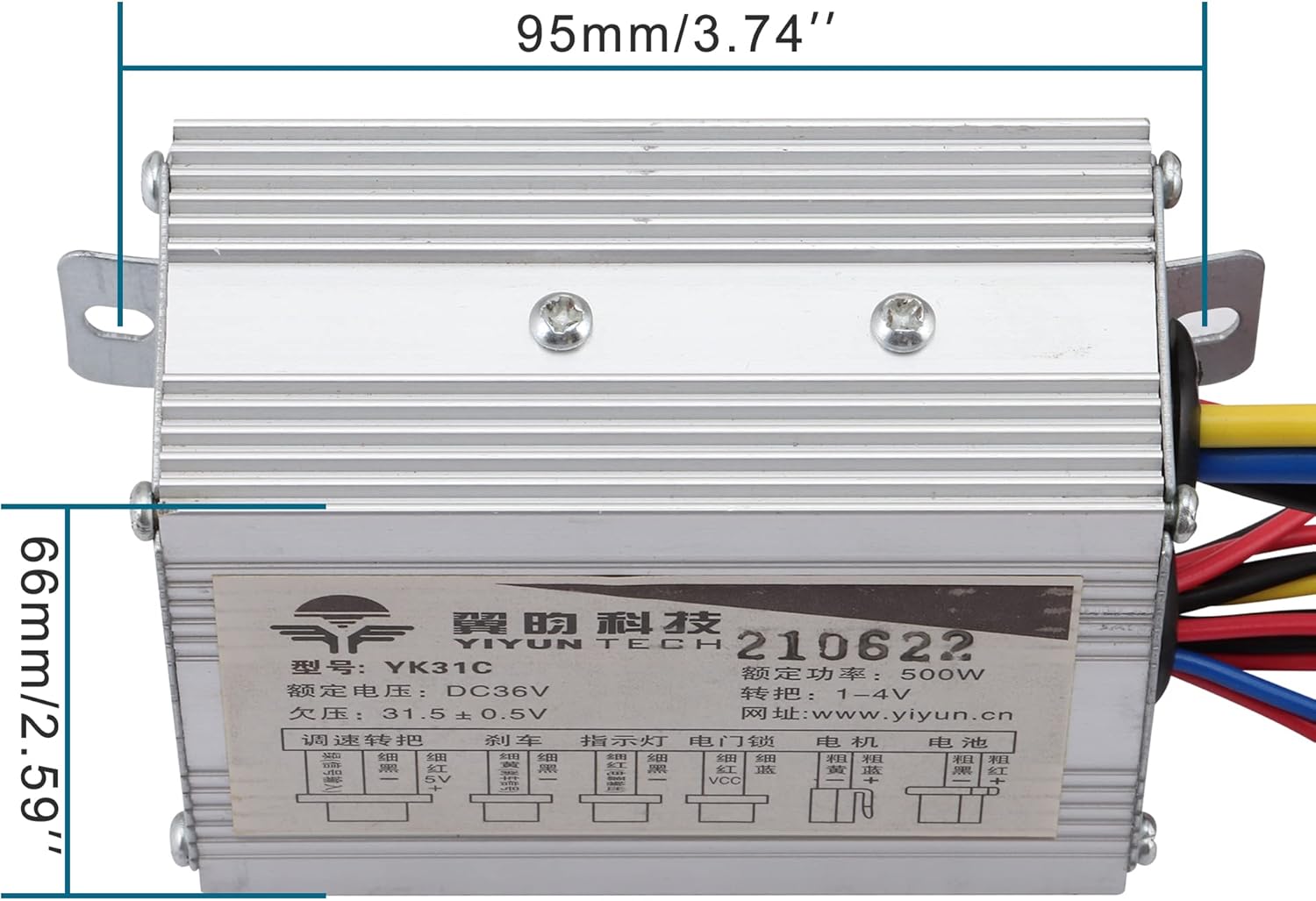

Casing Material High-Grade Heat-Dissipating Aluminum
Control Signal 1-4V Speed Governor

Key Features

  • High-Wattage Management: Capable of handling 500W of power, making it ideal for heavier vehicles or those requiring more torque for hill climbing and higher top speeds.
  • Intelligent Under-Voltage Protection: Features a safety cutoff at 31.5V (Β± 0.5V) to protect your 36V battery bank from over-discharging, which significantly extends the overall lifespan of your cells.

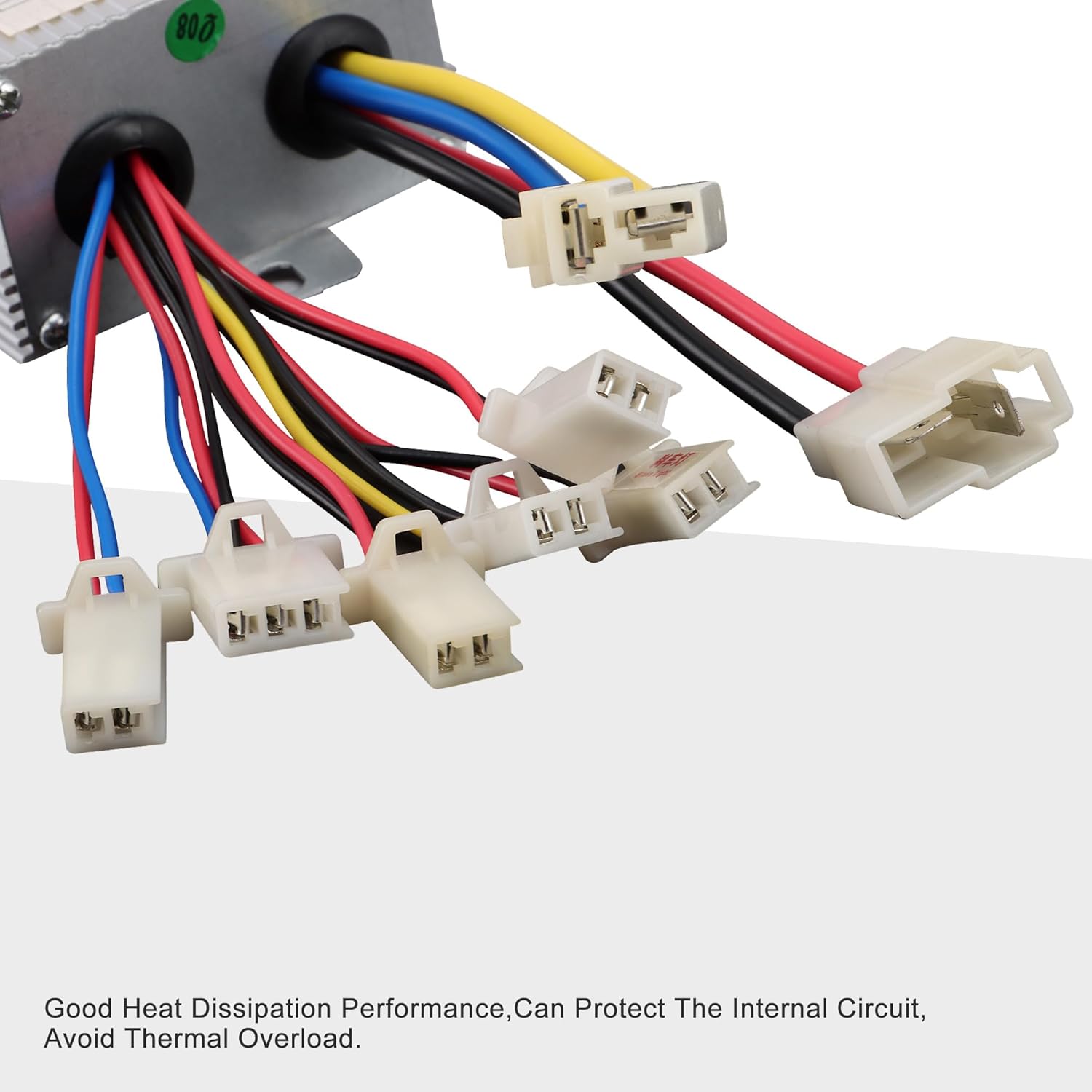

  • Enhanced Heat Dissipation: The durable aluminum housing is designed with a finned surface area to maximize cooling, protecting the internal circuitry from thermal overload during long, high-speed runs.
  • Sensitive & Steady Control: Provides a refined interface for braking and speed adjustments, ensuring that direction changes and stops are handled smoothly without sudden power surges.

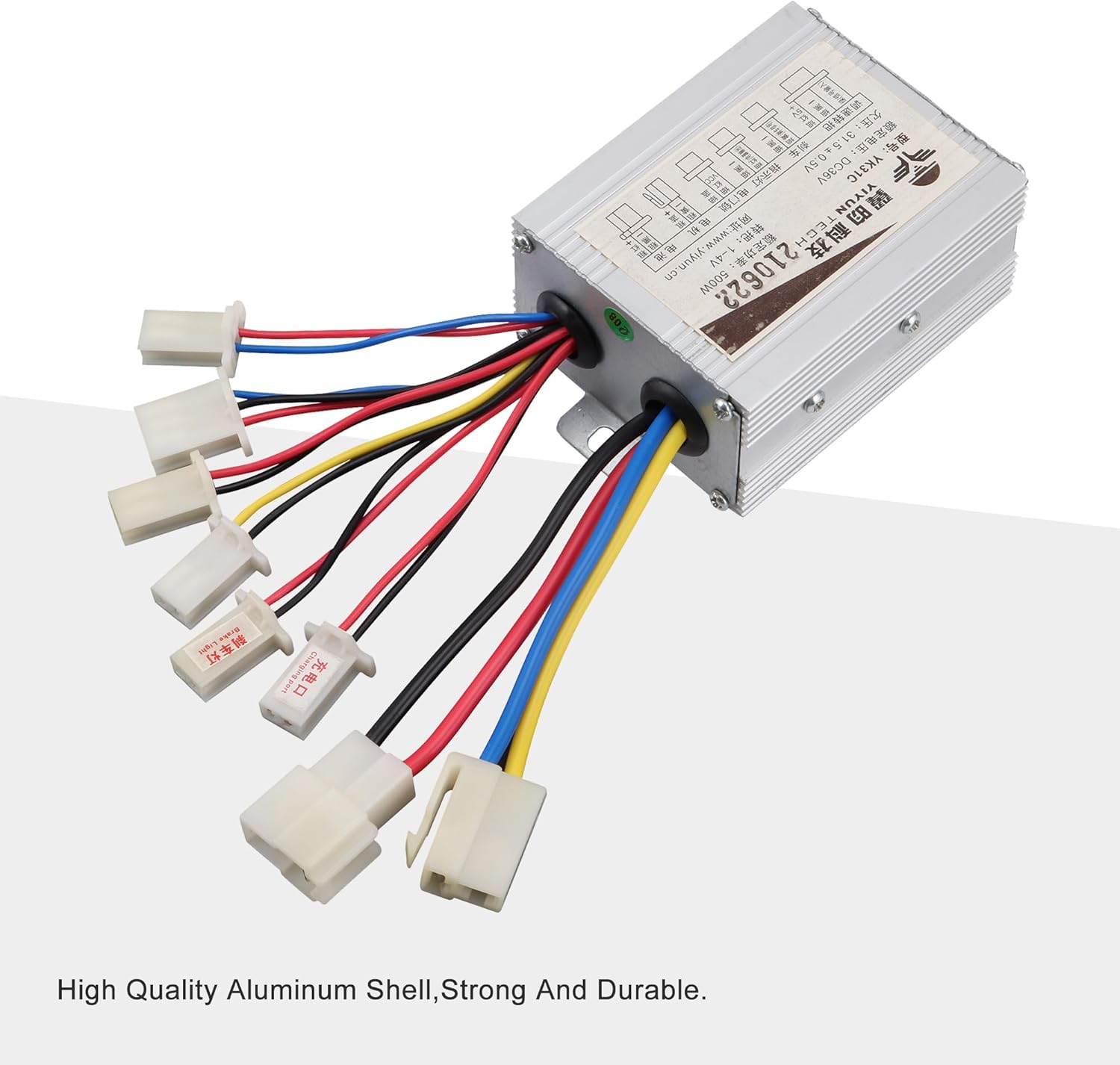

  • Rugged Construction: Built to withstand the vibrations and environmental stresses of outdoor use, the strong aluminum shell keeps the "brain" of your vehicle safe from impacts and debris.
View full details

Fitment FAQ

Will this part fit my specific model and year?

This speed controller is intended for Electric Scooter, E-Bike & Tricycle. Key physical/spec details from the product data include Voltage: 36V, Input Voltage: DC 36V, Under-Voltage Protection: 31.5V Β± 0.5V. Use the compatibility table and product photos together before ordering.

Do I need to match the OEM part number?

Yes. If your original part has a stamped OEM or manufacturer number, match that number first before ordering. For this speed controller, also compare the voltage, wattage/current rating, motor type, connector set, throttle/brake inputs, and battery compatibility.

What models or situations does this part not fit?

Do not order this speed controller for machines outside the listed compatibility, or for units with different voltages, wattage/current ratings, motor types, connector sets, or battery systems. Do not rely only on the model name or engine size.

What should I check before ordering?

Before ordering, compare your original part with the photos and check the voltage, wattage/current rating, motor type, connector set, throttle/brake inputs, and battery compatibility. Recheck listed specs such as Voltage: 36V, Input Voltage: DC 36V, Under-Voltage Protection: 31.5V Β± 0.5V. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
