4-Pin 2-Function Handlebar Switch for 22mm / 7/8" Motorcycle ATV Scooter
4-Pin 2-Function Handlebar Switch for 22mm / 7/8" Motorcycle ATV Scooter
Couldn't load pickup availability
Product Overview

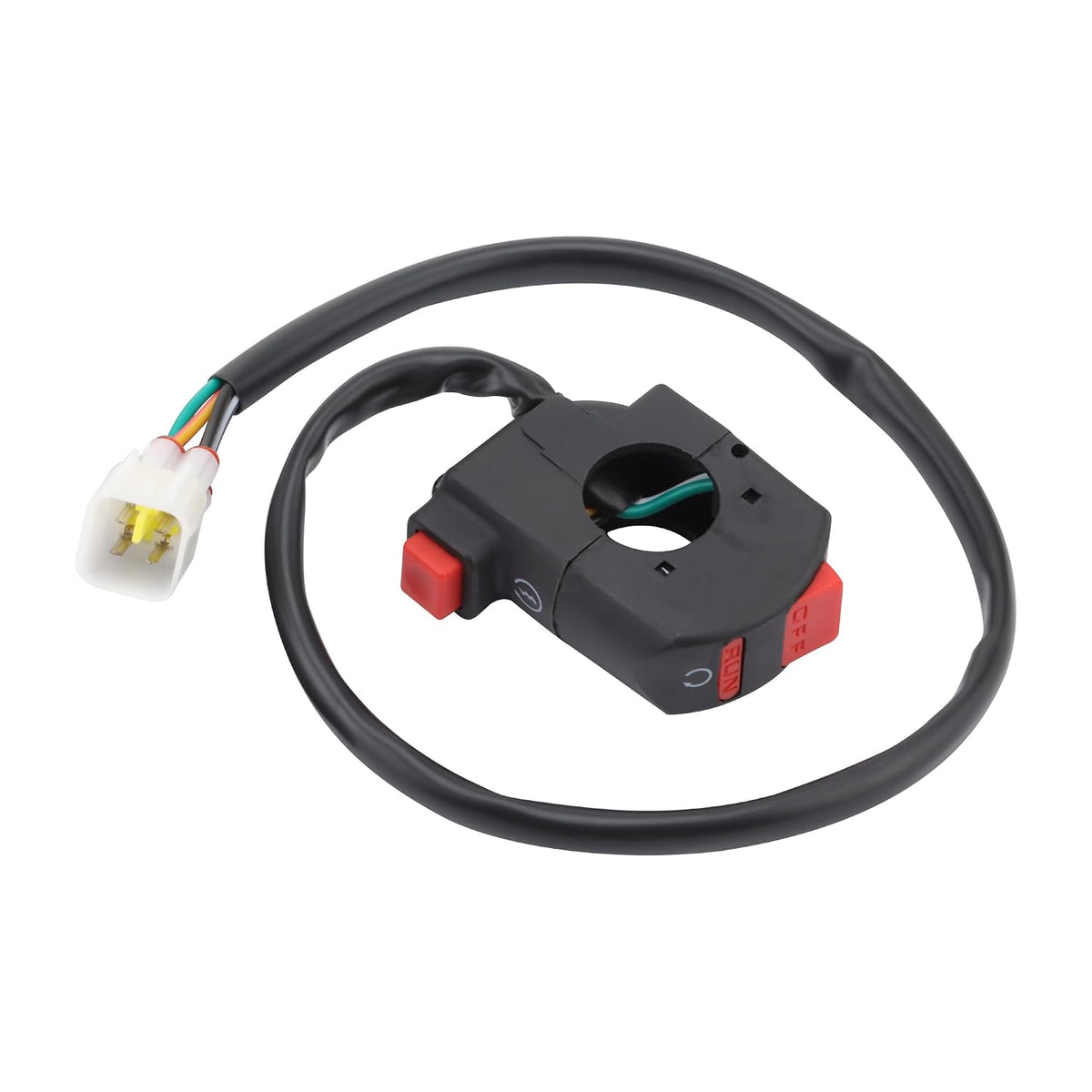

Universal-style 2-function handlebar switch assembly for compatible motorcycles, ATVs, scooters, electric bikes, and snowmobiles using a standard 7/8" (22mm) handlebar.
This switch features an ON/OFF control plus a secondary push button, a 4-pin male plug, and approximately 450mm (17.71") wire length.
Depending on the vehicle wiring and connector pinout, the secondary button may be used for functions such as engine stop, horn, or another compatible control circuit. Always compare the original switch and wiring before installation.
Designed as a universal replacement, fitment should be confirmed by handlebar diameter, connector type, pinout, wire length, voltage, and required switch functions rather than vehicle model alone.
Product Compatibility
| Application | Fitment Requirement |
|---|---|
| Motorcycle | 22mm / 7/8" handlebar + compatible 4-pin wiring |
| ATV / Quad | 22mm / 7/8" handlebar + compatible 4-pin wiring |
| Scooter / Moped | 22mm / 7/8" handlebar + compatible 4-pin wiring |
| Electric Bike | Compatible 12V control circuit |
| Snowmobile | Compatible handlebar and electrical configuration |
Specifications
| Specification | Details |
|---|---|
| Product Type | 2-Function Handlebar Switch |
| Handlebar Diameter | 22 mm / 7/8 in |
| Operating Voltage | 12V |
| Listed Current Rating | 5A |
| Connector | 4-Pin Male Plug |
| Wire Length | Approx. 450 mm / 17.71 in |
| Primary Function | ON/OFF |
| Secondary Function | Push Button / Application Dependent |
| Switch Style | Handlebar-Mounted |
| Connector Feature | Protected / Waterproof-Style Plug |
| Applications | Motorcycle / ATV / Scooter / E-Bike / Snowmobile |
| Fitment Type | Universal / Specification-Based |
| Condition | New |
Key Features
- 22mm / 7/8" Handlebar Mount: Designed for compatible standard powersports handlebars.

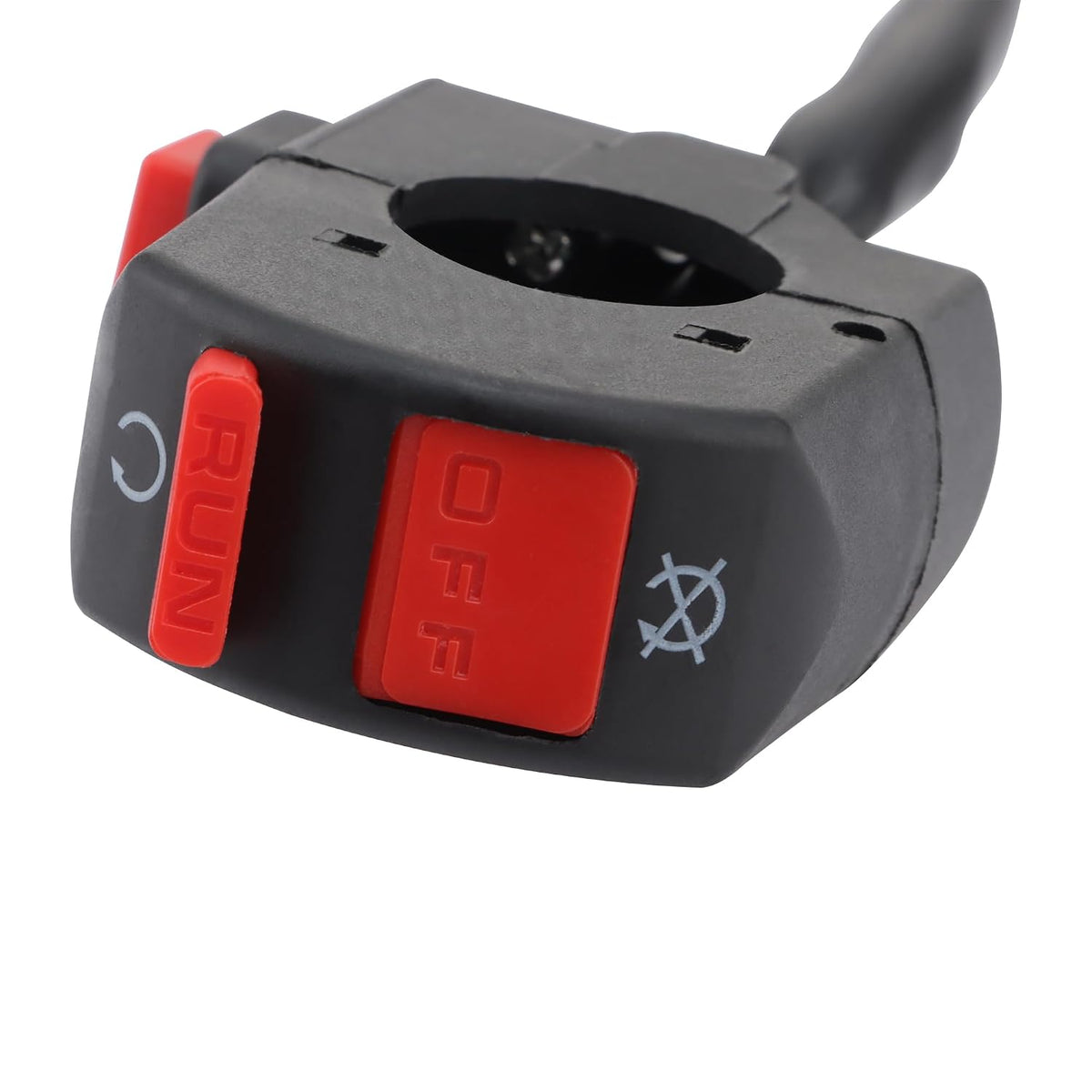

- Two-Function Design: Includes an ON/OFF control and a secondary push button.

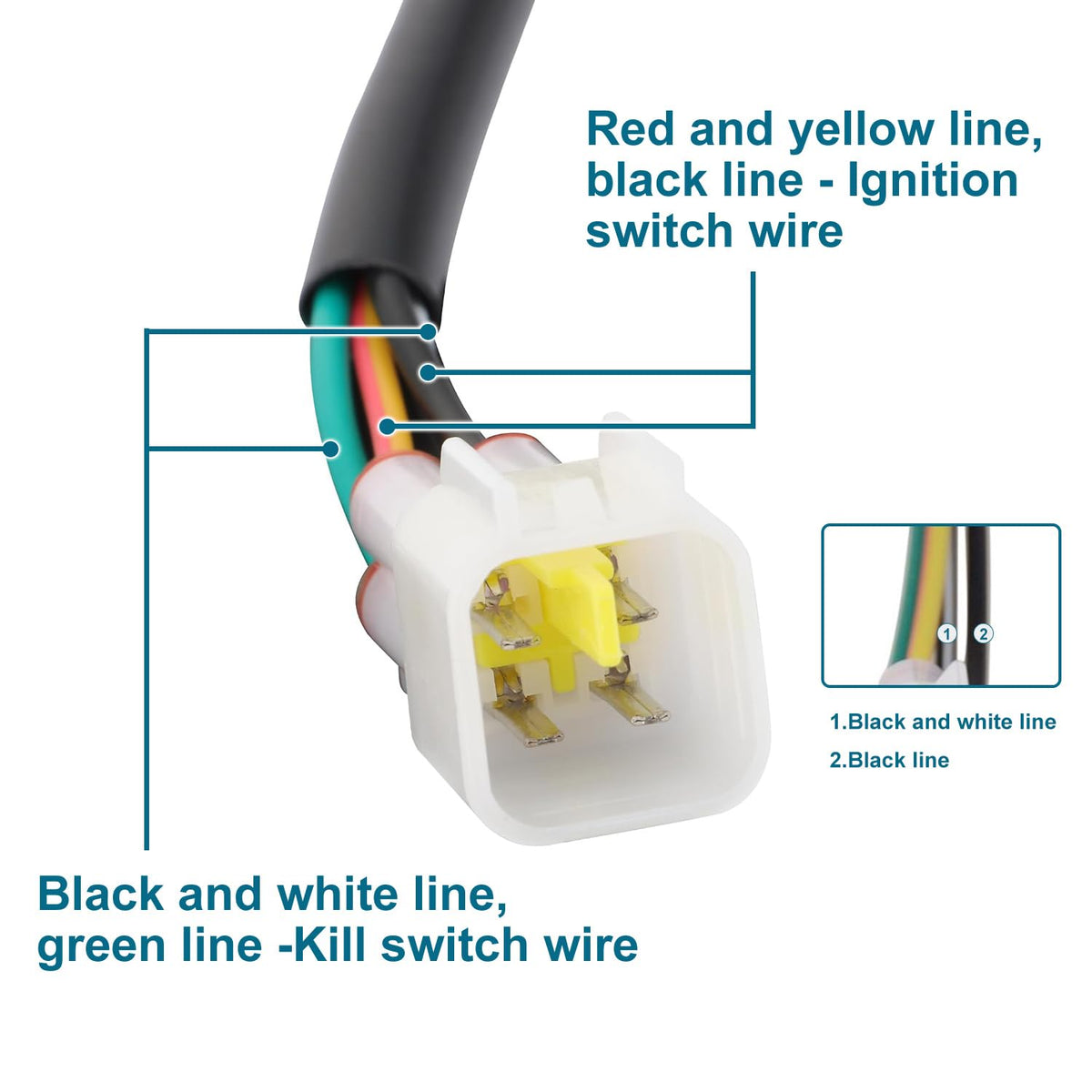

- 4-Pin Male Connector: Provides an important reference for electrical fitment.
- 450mm Wiring Lead: Approx. 17.71 inches of cable for compatible installations.
- 12V Application: Designed for compatible 12V motorcycle, ATV, scooter, and related electrical systems.
