6-Pin DC CDI Box for GY6 50cc–250cc Scooter ATV Go Kart
6-Pin DC CDI Box for GY6 50cc–250cc Scooter ATV Go Kart
Couldn't load pickup availability
Product Overview

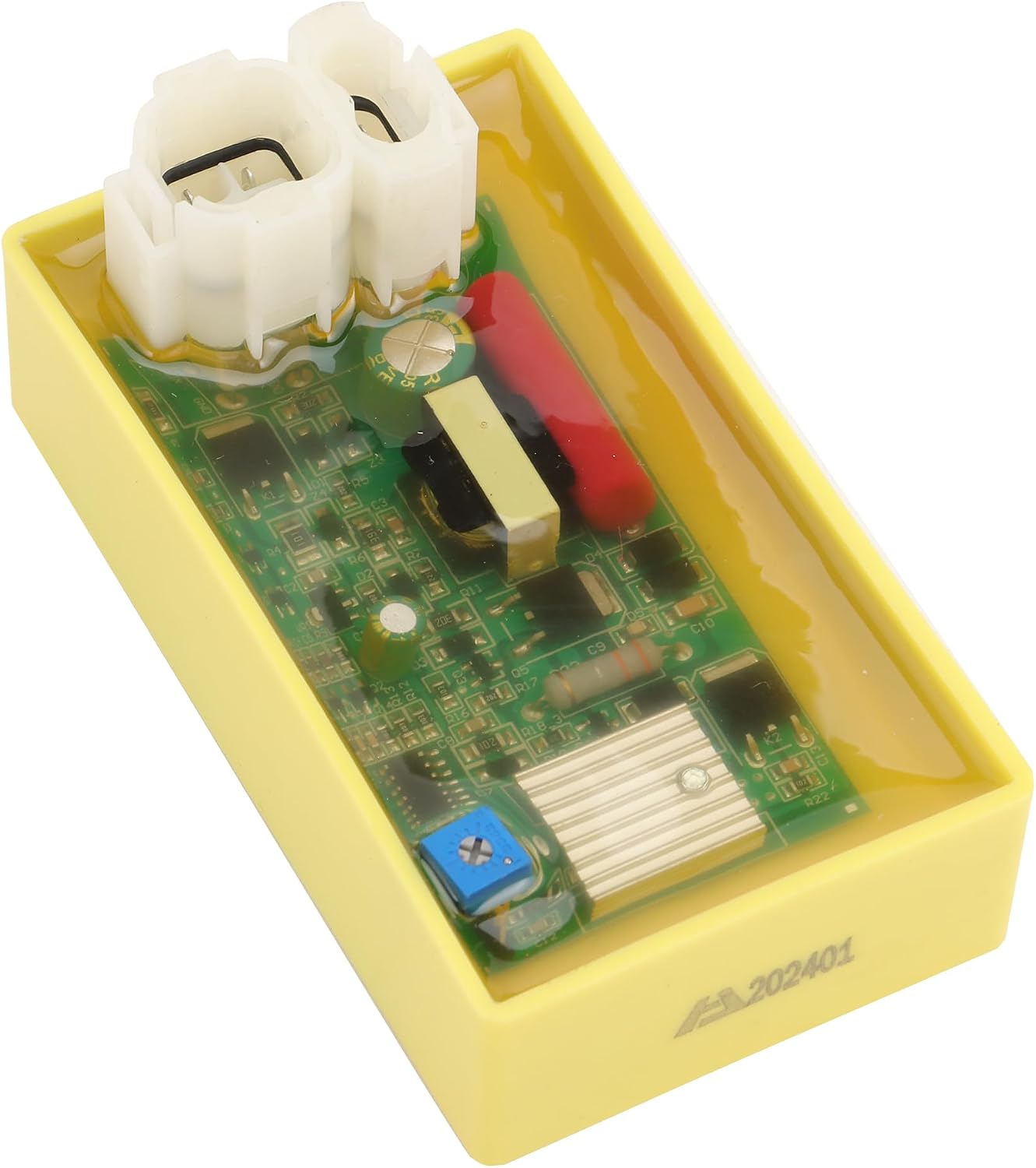

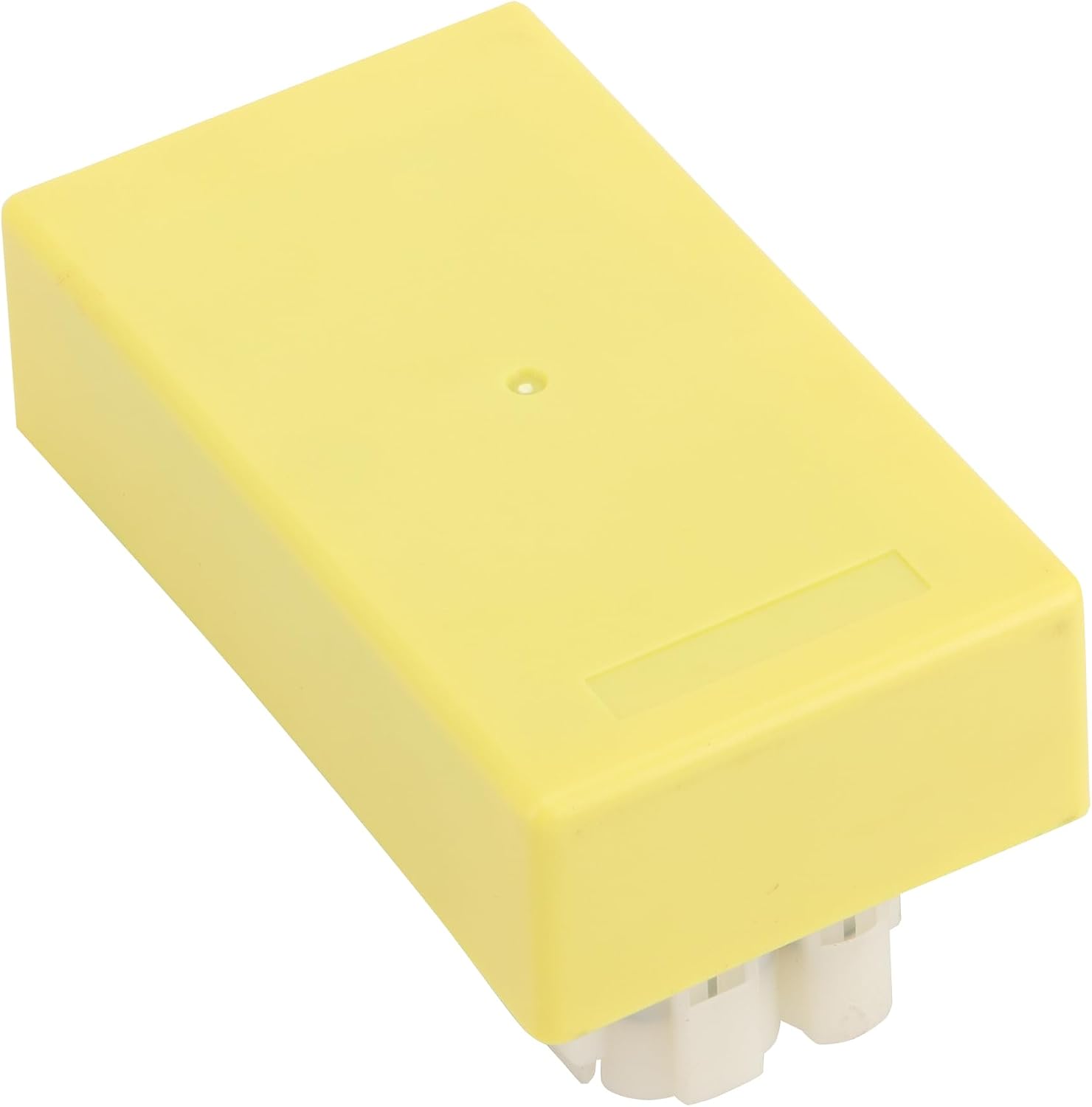

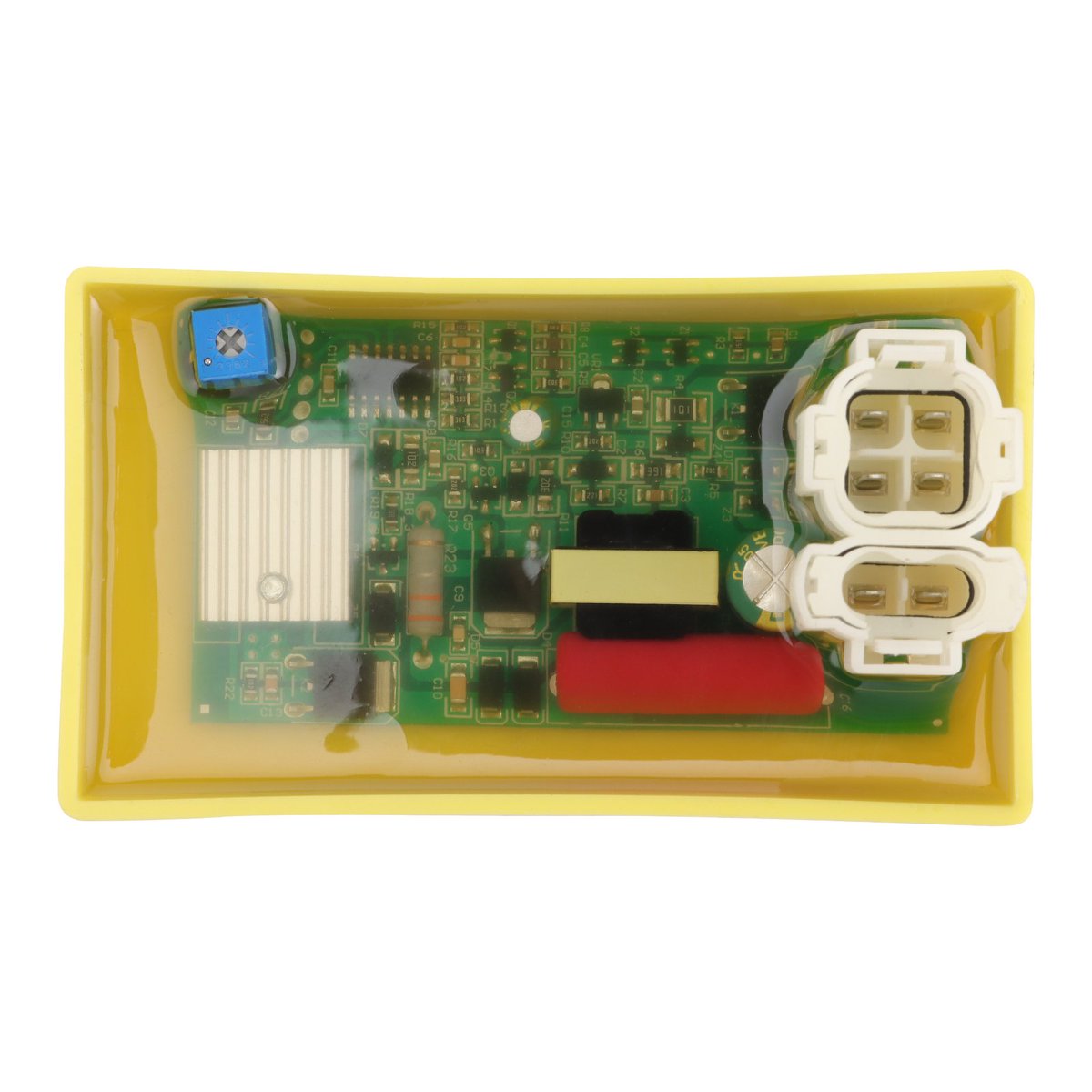

Replacement 6-pin DC CDI ignition module for compatible GY6-style engines used in scooters, ATVs, go-karts, mopeds, quads, dune buggies, and pit bikes.

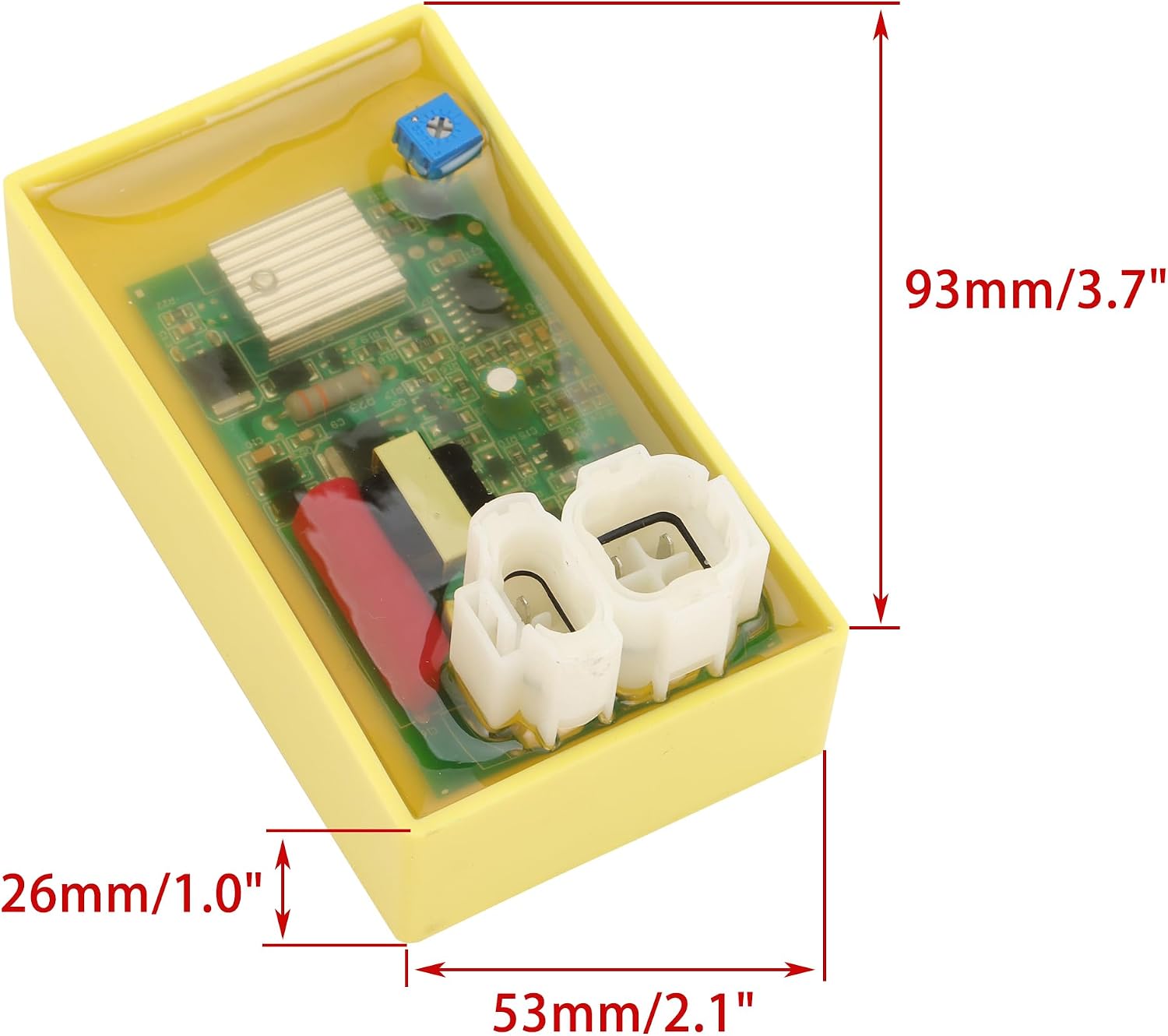

This CDI features a 4+2 pin connector configuration and measures approximately 93 × 53 × 26mm.
Before ordering, confirm that your vehicle uses a DC-powered CDI system and compare the connector shape, pin layout, dimensions, and original CDI with this replacement.
Product Compatibility
| Engine / Application | Fitment Notes |
|---|---|
| GY6 50cc | Matching DC CDI system required |
| GY6 90cc / 110cc | Verify connector and pinout |
| GY6 125cc / 150cc | Common application; verify DC system |
| GY6 200cc / 250cc | Do not rely on displacement alone |
| Scooter / Moped | Matching 4+2 pin DC CDI required |
| ATV / Quad | Verify engine and ignition system |
| Go Kart / Dune Buggy | Verify original CDI |
| Pit / Dirt Bike | Matching ignition system required |
| Hammerhead Kart | Verify original CDI before ordering |
| SYM Symphony 125 | Verify connector and DC ignition system |
Specifications
| Specification | Details |
|---|---|
| Product Type | CDI Ignition Module |
| CDI Type | DC CDI |
| Connector | 6-Pin / 4+2 Pin |
| Length | 93 mm / 3.66 in |
| Width | 53 mm / 2.09 in |
| Height | 26 mm / 1.02 in |
| Engine Type | GY6-Style / Compatible Engines |
| Listed Engine Range | 50cc–250cc |
| Condition | New |
| Package Quantity | 1 CDI Box |
Key Features
- DC CDI Configuration: Designed for compatible battery-powered CDI ignition systems.

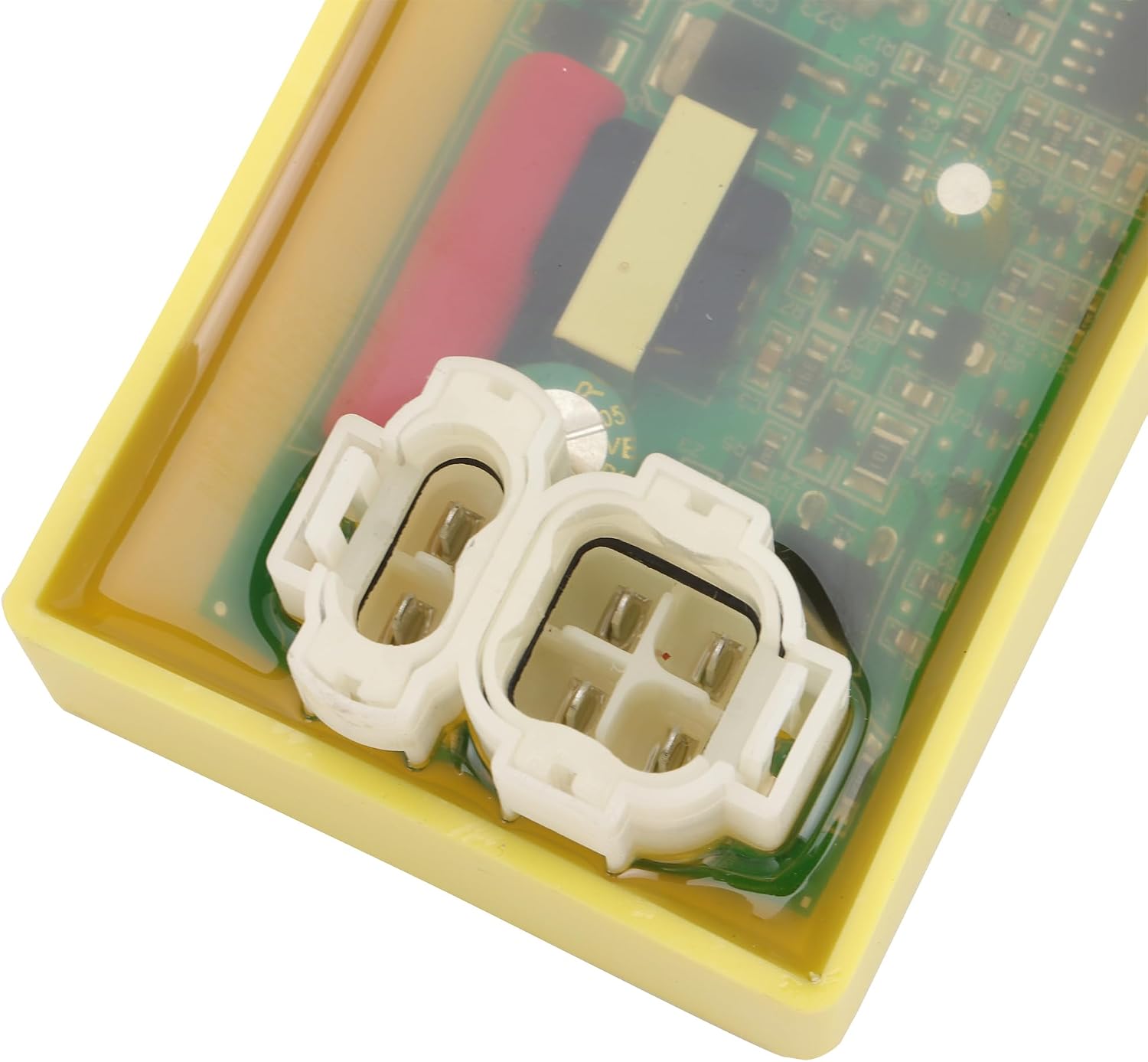

- 4+2 Pin Connector: Uses a 6-pin split connector arrangement.
- GY6 Applications: Suitable for selected GY6-style scooter, ATV, and go-kart engines.
- 93 × 53 × 26mm Size: Provides an additional reference for comparison with the original module.
- Replacement Ignition Module: Suitable for replacing a faulty compatible CDI box.
Share
Fitment FAQ
Will this part fit my specific model and year?
This CDI is designed for selected GY6-style engines and other compatible applications using a 6-pin / 4+2 pin DC CDI system.
Engine displacement alone does not confirm compatibility.
Do I need to match the OEM part number?
No OEM number is provided for this product. Instead, compare:
DC CDI type
4+2 pin configuration
Connector shape
Pin layout
93 × 53 × 26mm dimensions
Original CDI appearance
What models or situations does this part not fit?
This CDI is not suitable for:
AC CDI ignition systems
Vehicles with a different pin layout
Different connector configurations
Engines requiring a model-specific ignition module
Applications where the original CDI differs significantly in wiring or dimensions
What should I check before ordering?
Confirm the AC/DC type, connector shape, 4+2 pin layout, wiring configuration, physical dimensions, and original CDI appearance.
Do not determine fitment from engine displacement or “GY6” alone.
