7/8" 22mm Handlebar Mirror Mount Clamps for 8mm Mirrors – 2 Pack

Product Overview

Add or relocate rearview mirrors on a compatible motorcycle, ATV, quad, dirt bike, pit bike, pocket bike, or scooter with this pair of 7/8-inch (22 mm) handlebar mirror mount clamps.

Each clamp mounts directly around a standard 22 mm handlebar and provides an 8 mm threaded mirror mounting point, making it useful when the vehicle does not have a factory mirror mount or when an additional mirror position is needed.

Made from CNC-machined aluminum alloy with an anodized surface, these adapters provide a compact mounting solution for compatible aftermarket or OEM-style mirrors.

Fitment is determined primarily by handlebar diameter, mirror thread size, thread pitch, thread direction, and available mounting space rather than engine displacement.

Product Compatibility

Universal mirror clamps of this type are commonly designed for standard 7/8-inch / 22 mm handlebars and an 8 mm mirror mounting thread. Comparable products specify M8 x 1.25 right-hand threading.

About the 50cc–250cc Description

The original listing describes applications from:

• 50cc
• 70cc
• 90cc
• 110cc
• 125cc
• 150cc
• 200cc
• 250cc

These displacement ranges may describe common ATV, scooter, pit-bike, and dirt-bike applications, but engine displacement does not determine mirror-clamp fitment.

A 50cc scooter and a 250cc dirt bike can use completely different handlebars and mirror threads.

Use the dimensions below as the primary fitment criteria.

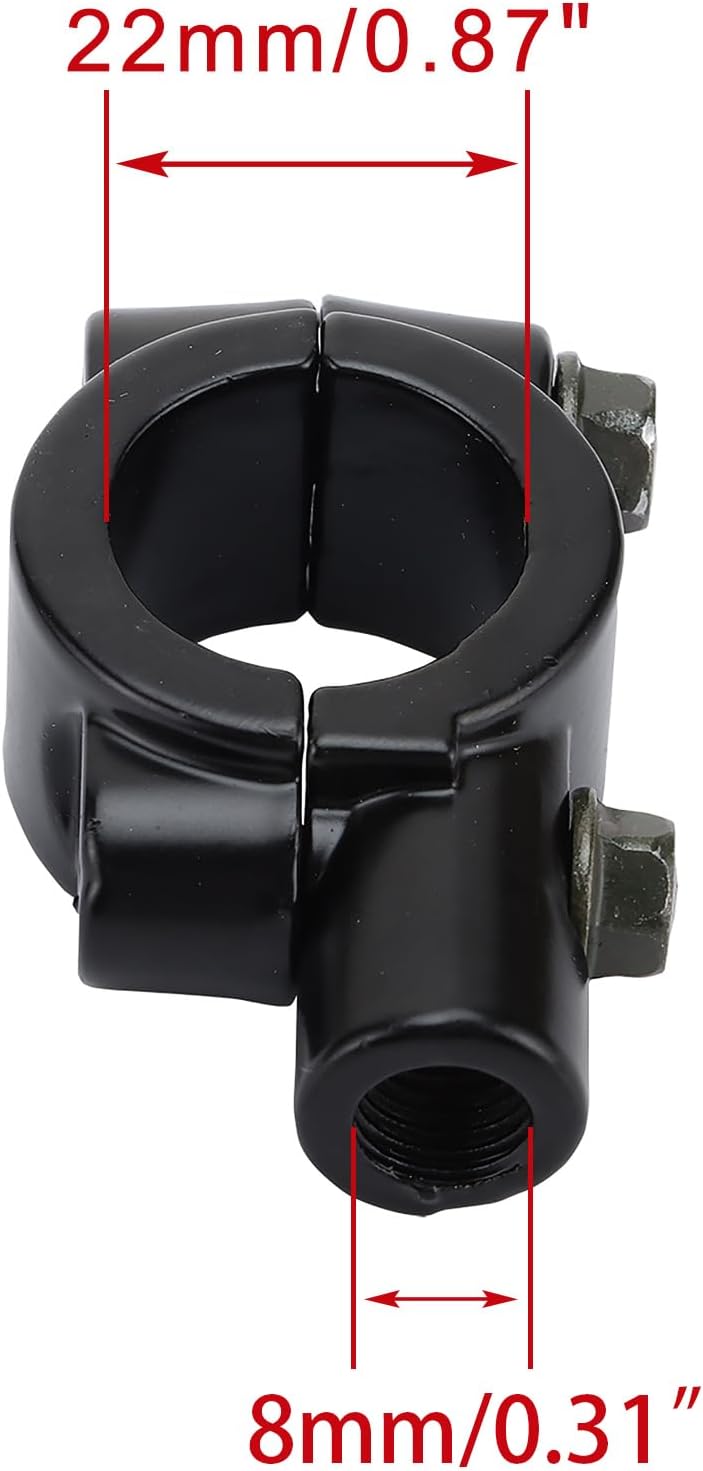

Specifications

* Verify the actual thread pitch before publishing M8 x 1.25 as a confirmed specification. Comparable 22mm/8mm mirror clamps commonly use M8 x 1.25 right-hand threads.

Why Is the Hole About 7mm If This Is an 8mm Mount?

The 8 mm specification refers to the nominal diameter of the matching M8 mirror thread.

The opening measured inside a threaded hole can be smaller than the nominal thread diameter because the internal threads extend inward.

Therefore, an approximately 7 mm measured inner opening does not necessarily mean this is an M7 mirror mount.

For fitment, verify the actual mirror stem by thread specification rather than measuring only the smallest internal opening of the adapter.

Important Thread Note

8 mm motorcycle mirror threads are commonly available as M8 x 1.25, particularly on scooters and smaller motorcycles.

However, before publishing the final specification, confirm:

• Thread diameter
• Thread pitch
• Right-hand or left-hand thread direction

Comparable versions of this particular 22mm clamp design are sold as M8 x 1.25 right-hand thread and specifically warn that they do not fit reverse-thread mirrors.

If your actual SKU is confirmed to use standard clockwise threads, list it as:

Mirror Thread: M8 x 1.25 Right-Hand

Key Features

• Fits 7/8" Handlebars: Designed to clamp onto compatible standard 22 mm motorcycle, ATV, dirt-bike, and scooter handlebars.
• 8mm Mirror Mount: Provides an additional mounting position for mirrors using the matching 8 mm thread specification.
• CNC Aluminum Alloy Construction: Lightweight metal construction with anodized surface treatment for everyday powersports use.
• Clamp-On Installation: Adds a mirror mounting position without replacing the complete brake or clutch lever perch.

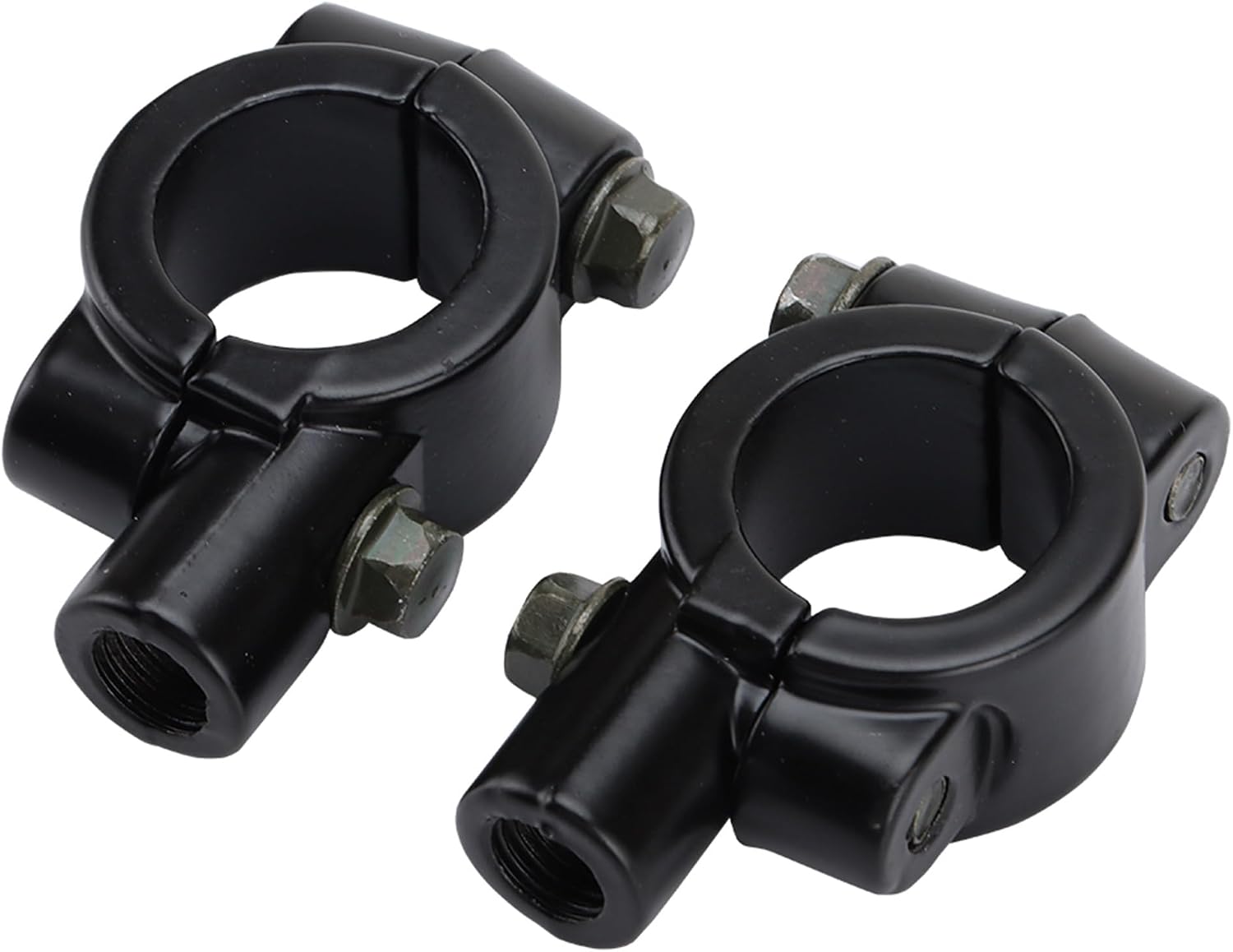

• 2-Piece Set: Includes two clamps for compatible left/right mirror installations or other accessory mounting positions.
