GOOFIT
70mm Tie Rod Assembly for 50cc-250cc ATV Four Wheeler Quad
70mm Tie Rod Assembly for 50cc-250cc ATV Four Wheeler Quad
Couldn't load pickup availability
Product Overview

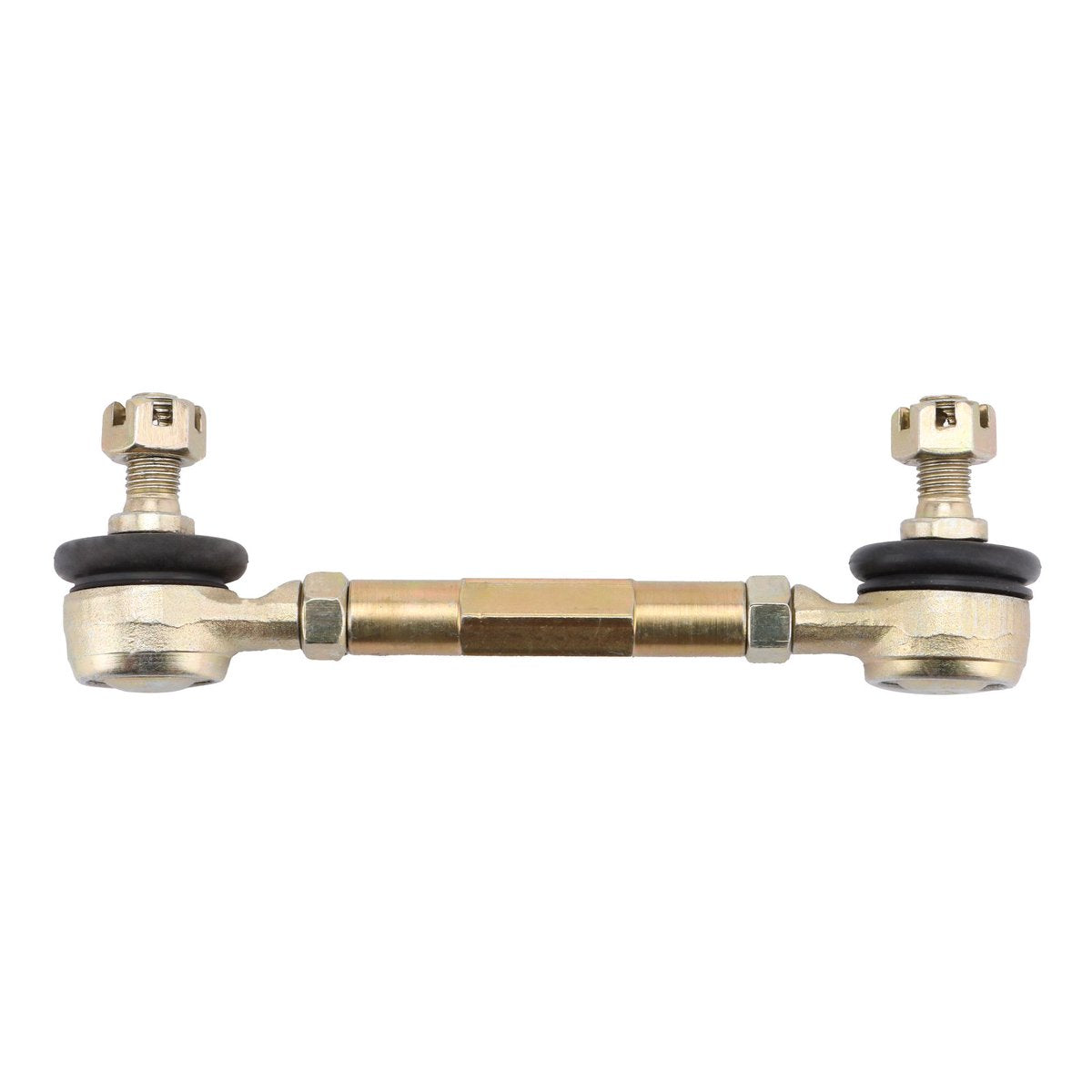

This 70mm tie rod assembly is designed as a replacement steering linkage part for selected 50cc, 70cc, 90cc, 110cc, 125cc, 150cc, 200cc, and 250cc ATVs, four-wheelers, and quads.
The tie rod assembly helps connect the steering system to the wheel hub or steering knuckle, supporting proper steering control and wheel alignment. A worn, loose, bent, or damaged tie rod may cause poor steering response, uneven tire wear, unstable handling, or difficulty keeping the vehicle aligned.

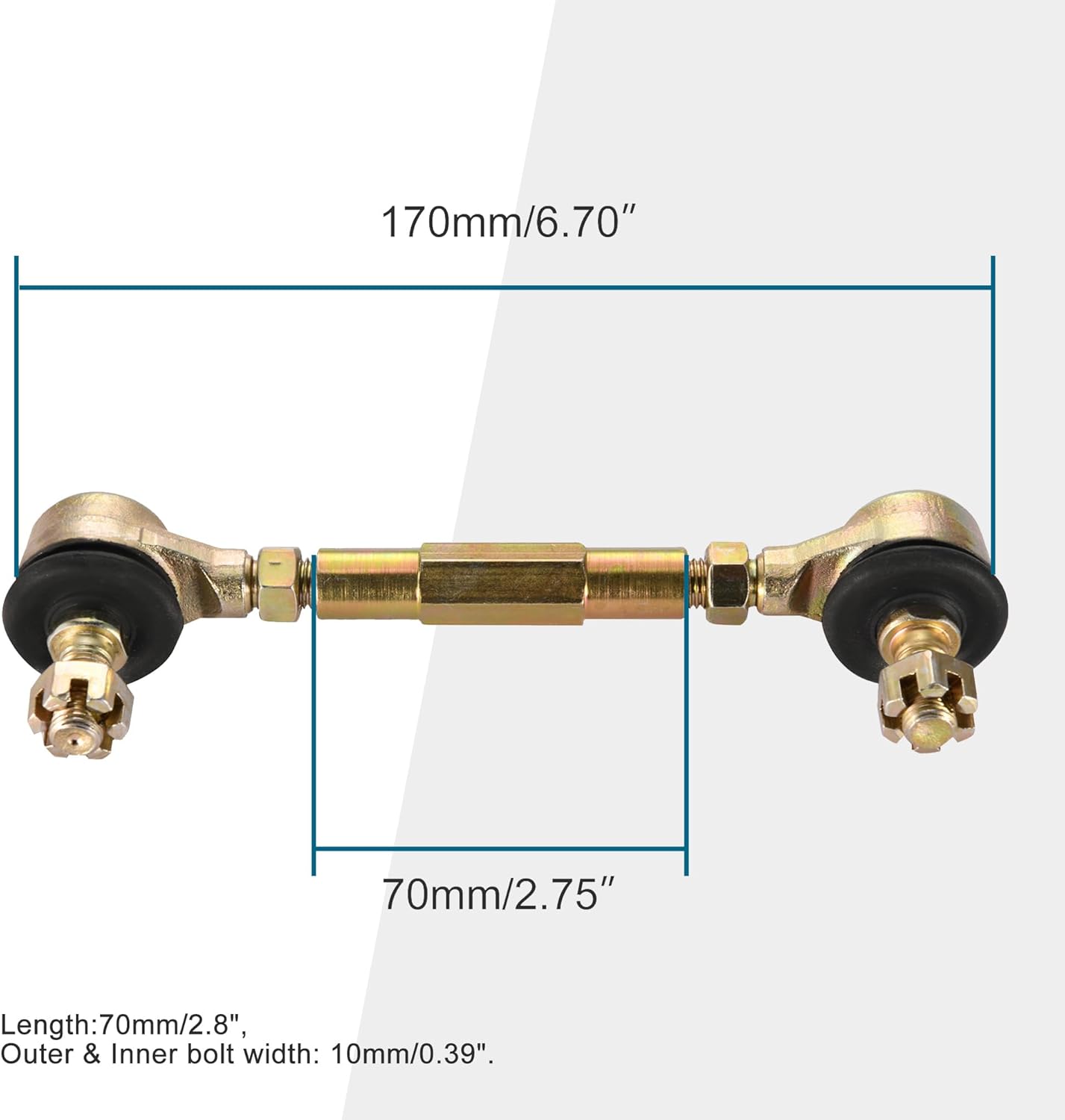

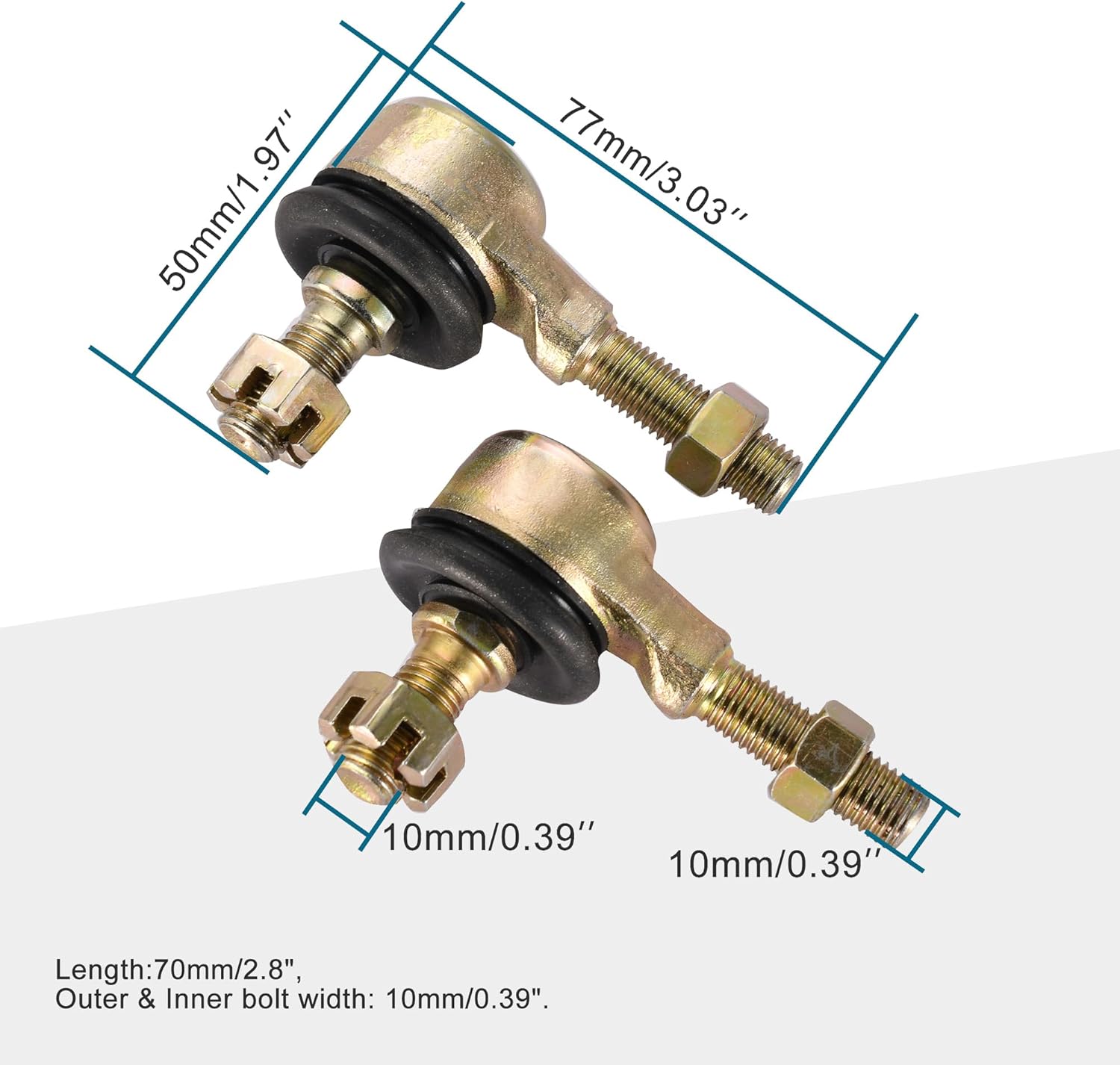

This replacement tie rod assembly is listed with a 10mm / 0.39" installation screw diameter and a 170mm / 6.69" tie rod assembly length. Please compare the thread size, overall length, ball joint shape, mounting direction, and product photos with your original part before ordering.
Product Compatibility
| Compatible Vehicle / Engine | Application |
|---|---|
| 50cc ATV / Quad | Tie rod assembly replacement |
| 70cc / 90cc ATV | Steering linkage replacement when size matches |
| 110cc / 125cc ATV | Compatible tie rod assembly application |
| 150cc ATV / Four Wheeler | Replacement when mounting size matches |
| 200cc / 250cc ATV / Quad | Compatible steering linkage part |
| ATV / Four Wheeler / Quad | Fits selected models when length and screw diameter match |
⚠️ This is a size-specific steering part. Please confirm the installation screw diameter, tie rod length, thread type, and ball joint shape before purchase.
Specifications
| Item | Details |
| Product Type | Tie Rod Assembly |
| Installation Screw Diameter | 10mm / 0.39" |
| Tie Rod Assembly Length | 170mm / 6.69" |
| Listed Size Reference | 70mm |
| Compatible Engine Sizes | 50cc / 70cc / 90cc / 110cc / 125cc / 150cc / 200cc / 250cc |
| Compatible Vehicles | ATV / Four Wheeler / Quad |
| Application | Steering linkage and wheel alignment replacement |
| Condition | 100% Brand New |
Key Features
- Tie rod assembly for selected 50cc-250cc ATV, four-wheeler, and quad models
- 10mm installation screw diameter and 170mm assembly length for fitment verification
- Helps restore steering linkage stability and wheel alignment control
- Suitable for replacing loose, bent, worn, or damaged tie rod assemblies
- Ball stud and housing design support steering adjustment when properly installed
Share
Fitment FAQ
Will this part fit my specific model and year?
This tie rod assembly may fit selected 50cc, 70cc, 90cc, 110cc, 125cc, 150cc, 200cc, and 250cc ATVs, four-wheelers, and quads. Fitment depends on the installation screw diameter, overall length, thread type, ball joint shape, and steering linkage design rather than engine size alone.
Do I need to match the OEM part number?
Matching the OEM part number is helpful, but for this tie rod assembly, the most important details are the 10mm / 0.39" installation screw diameter, 170mm / 6.69" tie rod assembly length, thread style, and ball joint shape.
What models or situations does this part not fit?
This part may not fit vehicles with a different tie rod length, different screw diameter, different thread pitch, different ball joint style, different steering knuckle design, or model-specific steering linkage assembly.
What should I check before ordering?
Before ordering, check your original tie rod assembly length, installation screw diameter, thread type, ball joint shape, mounting direction, steering linkage layout, and product photos. Make sure your original part matches the listed size and shape before purchase.
