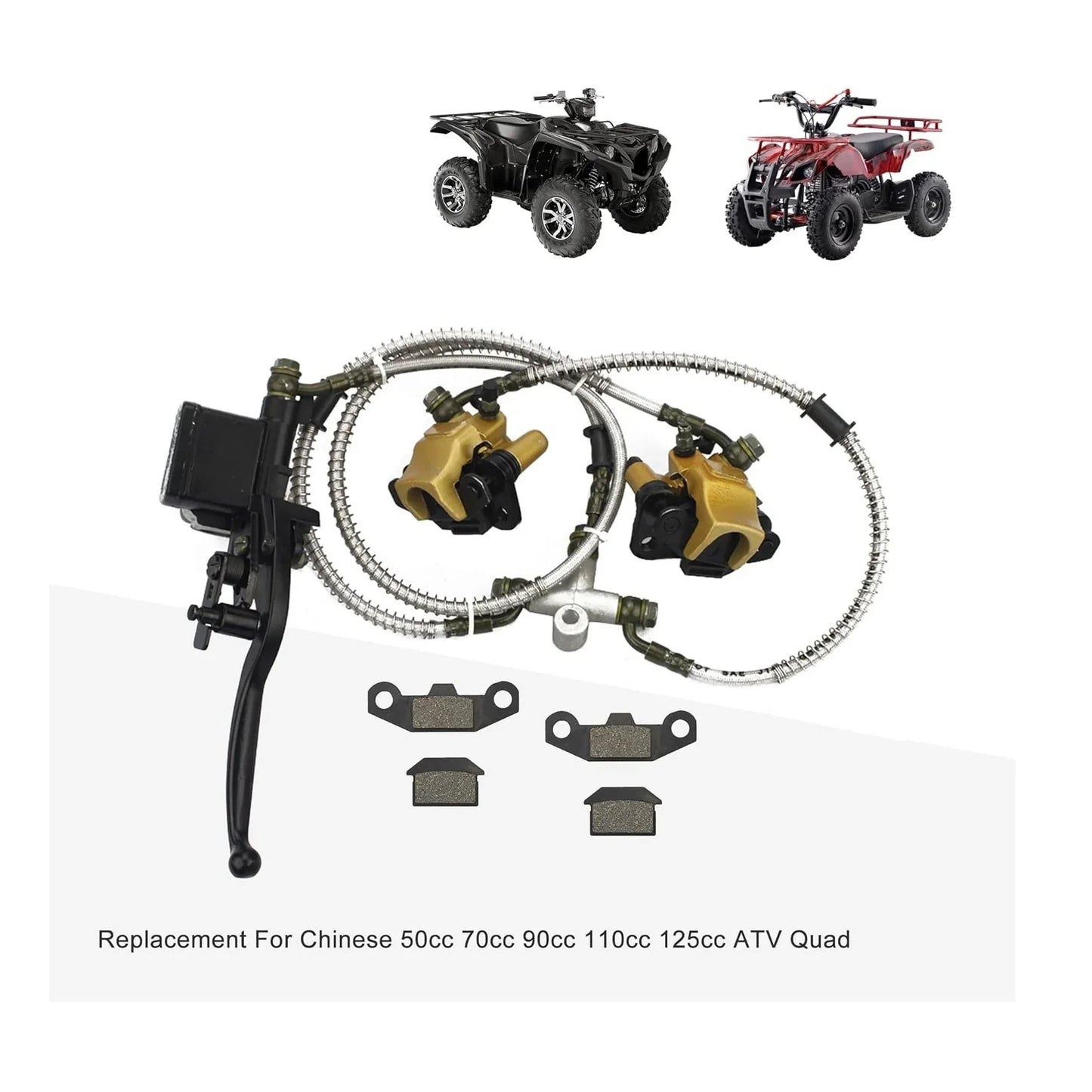

Front Dual Hydraulic Brake Assembly with 650mm Main Hose & Extra Pads for 50cc-125cc ATV Quad
Front Dual Hydraulic Brake Assembly with 650mm Main Hose & Extra Pads for 50cc-125cc ATV Quad
4.5 / 5.0
(2) 2 total reviews
Couldn't load pickup availability
Product Overview
Restore balanced stopping power to your quad with this Front Dual Hydraulic Brake Assembly. This "Y-split" system is engineered to provide simultaneous braking to both front wheels, ensuring your ATV stops straight and true. Specifically designed for Chinese-manufactured 50cc to 125cc ATVs, this complete kit includes the master cylinder, reinforced hydraulic lines, and two calipers. As a bonus, we’ve included an additional set of brake pads to keep your maintenance kit ready for the next service.
Product Compatibility
| Vehicle Type | Displacement Range | Common Brands |
| Chinese ATVs / Quads | 50cc, 70cc, 90cc, 110cc, 125cc | TaoTao, Coolster, Roketa, Kazuma |
| Sport & Utility Models | Small to Mid-Size Frames | SSR, BSM, NST, JCL, Apollo |
| Handlebar Fitment | 22mm (7/8") | Standard universal mounting clamp |
Specifications
| Feature | Details |
| Main Tube Length | 650mm (25.59") |
| Branch Tube Length | 450mm (17.72") |
| Caliper Pad Mounting Spacing | 53mm (Center-to-Center) |
| Handlebar Mounting Diameter | 22mm (7/8") |
| System Configuration | Single Master Cylinder to Dual Front Calipers |
| Package Includes | Complete Assembly + Extra Brake Pad Set |
Key Features
- Synchronized Dual Braking: The 1-to-2 hydraulic line configuration ensures that pressure is distributed evenly to both front calipers, eliminating the risk of the vehicle pulling to one side during hard stops.
- Complete Replacement Kit: This assembly is a total solution, featuring the master cylinder with a 6.5" lever, pre-filled hydraulic hoses, and calipers with pads pre-installed.
- Extended Reach for Wide Stance: With a 25.59" main line and 17.72" branch lines, this system provides plenty of slack for wide A-arms and high-travel suspension without snagging.
- Bonus Maintenance Value: Includes a spare set of high-friction brake pads, ensuring you have replacements on hand to maintain peak safety and performance.
- Rapid "Bolt-On" Installation: Designed for perfect adaptability with standard Chinese ATV frames. Since the system is pre-filled and pre-bled, installation is simple, practical, and requires no messy fluid handling.
Share
Fitment FAQ
Will this part fit my specific model and year?
This front dual hydraulic brake assembly is designed for many small Chinese 50cc, 70cc, 90cc, 110cc, and 125cc ATV / quad models using a dual front caliper setup. It is commonly used on TaoTao, Coolster, Roketa, Kazuma, SSR, BSM, NST, JCL, Apollo, and similar small to mid-size quad frames with a 22 mm / 7/8 inch handlebar clamp.
Do I need to match the OEM part number?
Yes. Many Chinese ATV brake systems do not use consistent OEM numbers, so physical comparison is the best fitment method. Confirm the system configuration: single master cylinder to two front calipers, 650 mm main hose, 450 mm branch hoses, 22 mm handlebar mount, and 53 mm center-to-center caliper pad mounting spacing.
What models or situations does this part not fit?
This assembly may not fit rear brake systems, dirt bikes, larger ATVs, hydraulic systems with different caliper mounts, machines with different hose lengths, non-22 mm handlebars, different banjo angles, or front hubs that require another caliper shape. It should not be ordered based only on engine size.
What should I check before ordering?
Before ordering, measure your handlebar diameter, main hose length, branch hose length, caliper mounting spacing, brake pad shape, line routing, and caliper orientation. Compare the master cylinder, lever, hose split, calipers, and included pads with your existing front brake assembly.
These are awesome, a must upgrade.
Quality is good, and will work great on small atv or kart with dual rear brakes. Comes complete and ready to use. Brake lines are a bit short but can be extended with hard lines or simply replaced with longer lines.
