Front Hydraulic Brake Assembly with 1100mm Hose for 50cc-125cc Dirt Pit Bike
Front Hydraulic Brake Assembly with 1100mm Hose for 50cc-125cc Dirt Pit Bike
4.71 / 5.0
(7) 7 total reviews
Couldn't load pickup availability
Product Overview

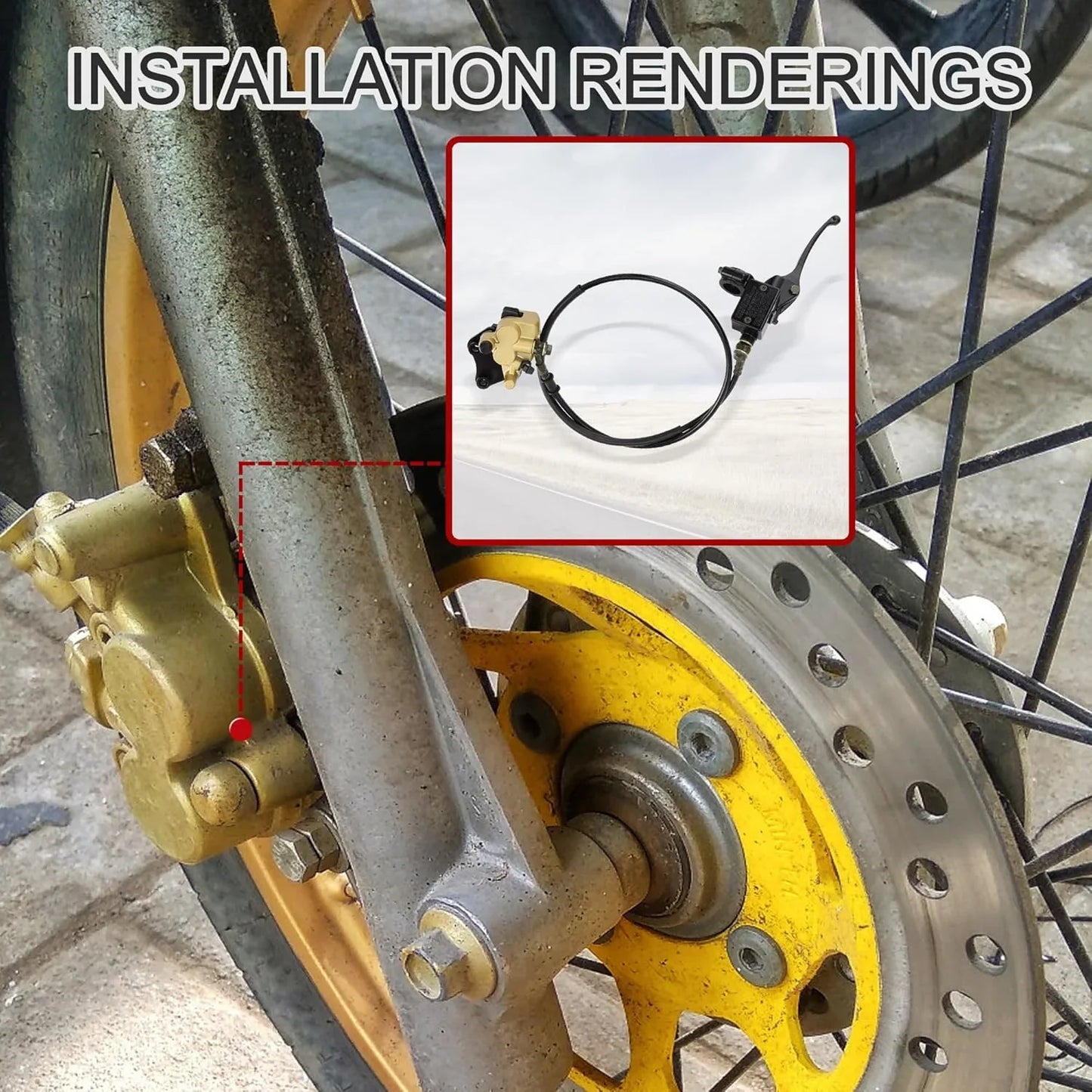

Get your bike back on the track with this Full Front Hydraulic Brake Set. This all-in-one assembly is the perfect solution for a complete braking system overhaul, including the master cylinder, 43" hydraulic line, and caliper. Designed specifically for small-displacement pit bikes, it offers a pre-bled, ready-to-install design that ensures immediate stopping power. Whether you receive the classic or updated style, both are engineered to provide the same high-performance reliability.
Product Compatibility
| Vehicle Type | Displacement Range | Common Brands |
| Pit Bikes / Dirt Bikes | 50cc, 70cc, 90cc, 110cc, 125cc | TaoTao, SSR, Coolster, Sunl, Apollo |
| Shock Fitment | 33mm Diameter | Designed for 33mm front forks |
| Caliper Mount | 45.16mm Spacing | Center-to-center bottom pump pitch |
Specifications
| Feature | Details |
| Tubing Length | 1100mm (43.3") |
| Caliper Mount Pitch | 45.16mm |
| Shock Absorption Fit | 33mm Diameter |
| Included Components | Caliper, Master Cylinder, Hose, Pads, Brake Handle |
Key Features
- All-In-One Solution: This set comes fully loaded with the master cylinder, hydraulic hose, and a caliper with fresh pads already installed, saving you the hassle of sourcing individual components.
- Extended 1100mm Reach: The 43-inch reinforced hydraulic line provides ample length for most 50cc–125cc pit bike frames, allowing for smooth routing along the front fork.
- Universal Pit Bike Fitment: Optimized for the most popular Chinese dirt bike brands like SSR and TaoTao, fitting standard 33mm front forks and 45.16mm caliper mounts.
- Pre-Bled Performance: Designed for a "plug-and-play" experience; the system is pre-filled with fluid to provide a firm, responsive lever feel right out of the box.
- Proven Durability: Even with minor stylistic variations between batches, both "old" and "new" styles are built to the same rigorous performance standards for long-lasting trail use.
Share
Fitment FAQ
Will this part fit my specific model and year?
This brake assembly is intended for Vehicle Type; Displacement Range; Common Brands; Pit Bikes / Dirt Bikes; 50cc, 70cc, 90cc, 110cc, 125cc; TaoTao, SSR, Coolster, Sunl, Apollo; Shock Fitment. Key physical/spec details from the product data include 33mm Diameter, 45.16mm Spacing, Tubing Length: 1100mm (43.3"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. If your original part has a stamped OEM or manufacturer number, match that number first before ordering. For this brake assembly, also compare the caliper bolt spacing, brake hose length, master-cylinder bore, lever side, banjo fitting angle, drum/hub dimensions, and handlebar diameter. This is especially important for TaoTao/SSR models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this brake assembly for machines outside the listed compatibility, or for units with different caliper spacing, hose routing, lever/master-cylinder setup, drum/hub dimensions, or handlebar diameter. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the caliper bolt spacing, brake hose length, master-cylinder bore, lever side, banjo fitting angle, drum/hub dimensions, and handlebar diameter. Recheck listed specs such as 33mm Diameter, 45.16mm Spacing, Tubing Length: 1100mm (43.3"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
Bolted right on and got the kids riding in 10 min tops.
Awesome product
As described
I have an SS125 that someone put a 70cc engine in. Forks were damaged, I bought new forks on Amazon, and a new front wheel, switched my disc over, used this kit, had to do a little grinding but she works great now. Make sure you remove the plastic block in the caliper and the brake handle after recieving. Didnt even have to bleed them. Working great so far.
It looks like a well made product. But it really did not fit my Vento Zip scooter with 12" wheels. I am keeping it for a spare as it will probably fit on my scooter with 10" wheels.
