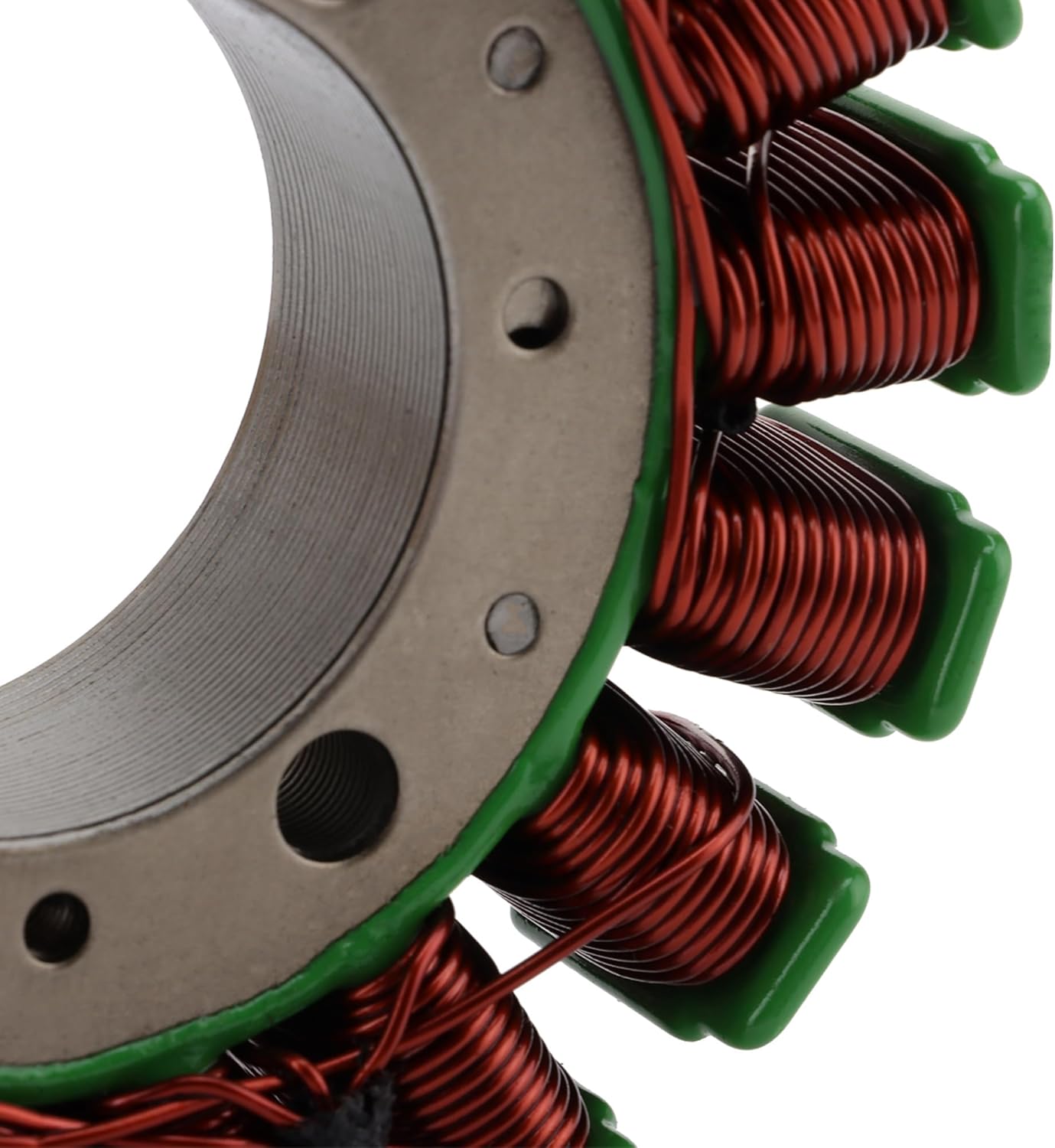

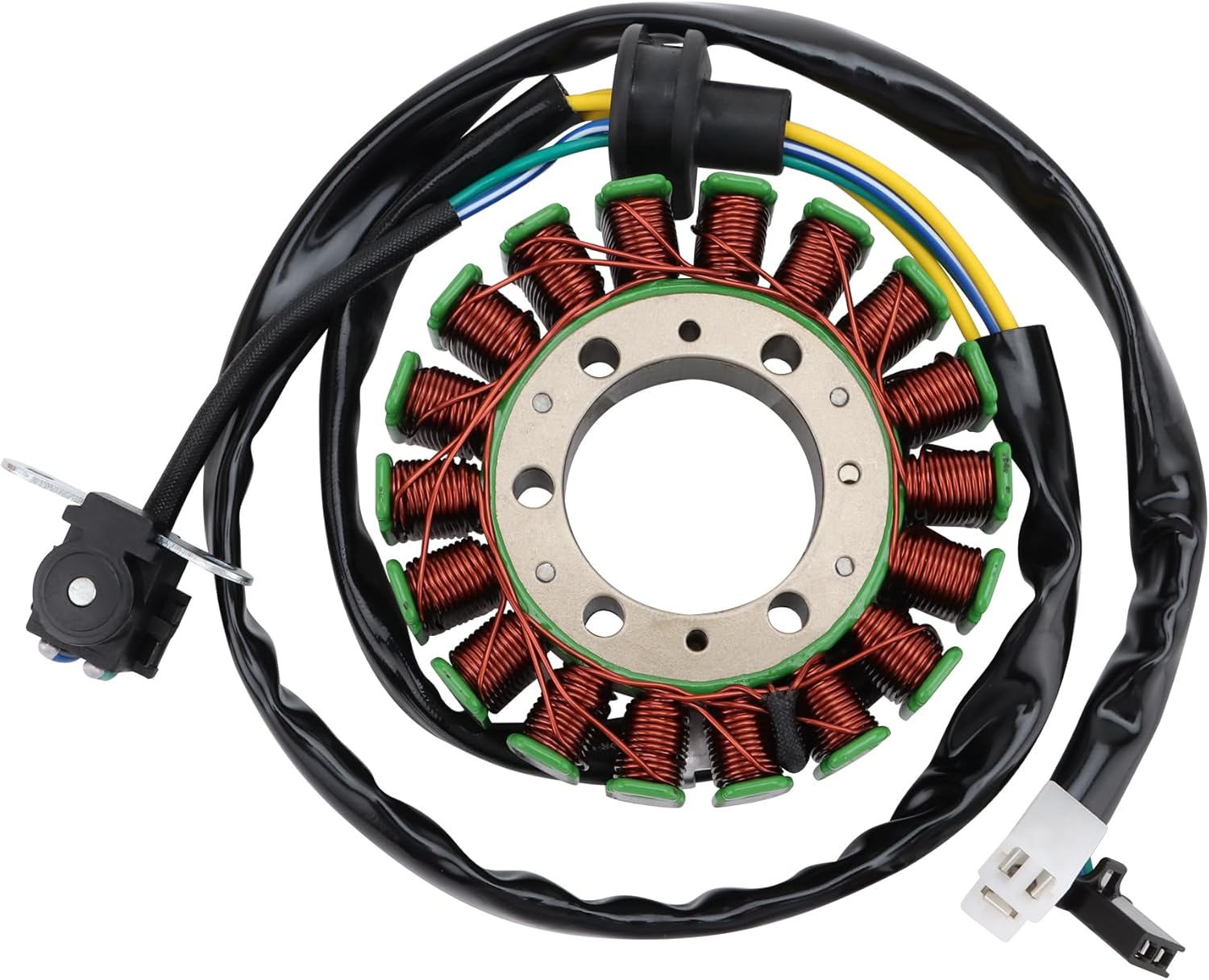

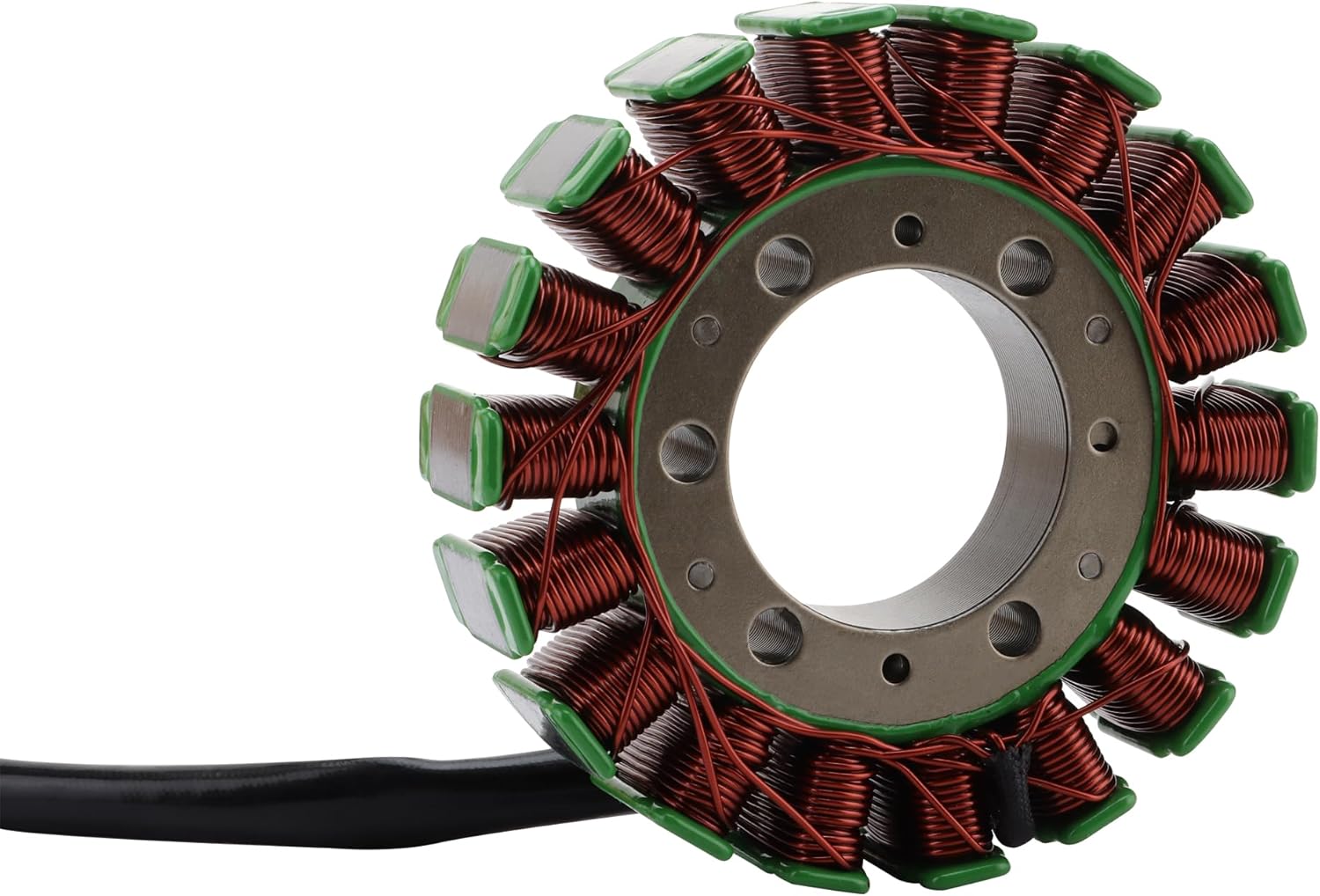

GOOFIT 18 Coil Stator for Suzuki VZ800 Marauder 1997-2004 32101-48E00
GOOFIT 18 Coil Stator for Suzuki VZ800 Marauder 1997-2004 32101-48E00
Couldn't load pickup availability
Product Overview
Restore strong ignition performance and stable charging with this 18-coil magneto stator. Designed for Suzuki VZ800 Marauder, it delivers reliable power output, high durability, and consistent engine operation over long-term use.
Product Compatibility
| Brand | Model | Year Range | OEM Reference |
|---|---|---|---|
| Suzuki | VZ800 Marauder | 1997–2004 | 32101-48E00 |
Specifications
| Specification | Details |
|---|---|
| Product Type | Magneto Stator Coil |
| Coil Count | 18 Coil |

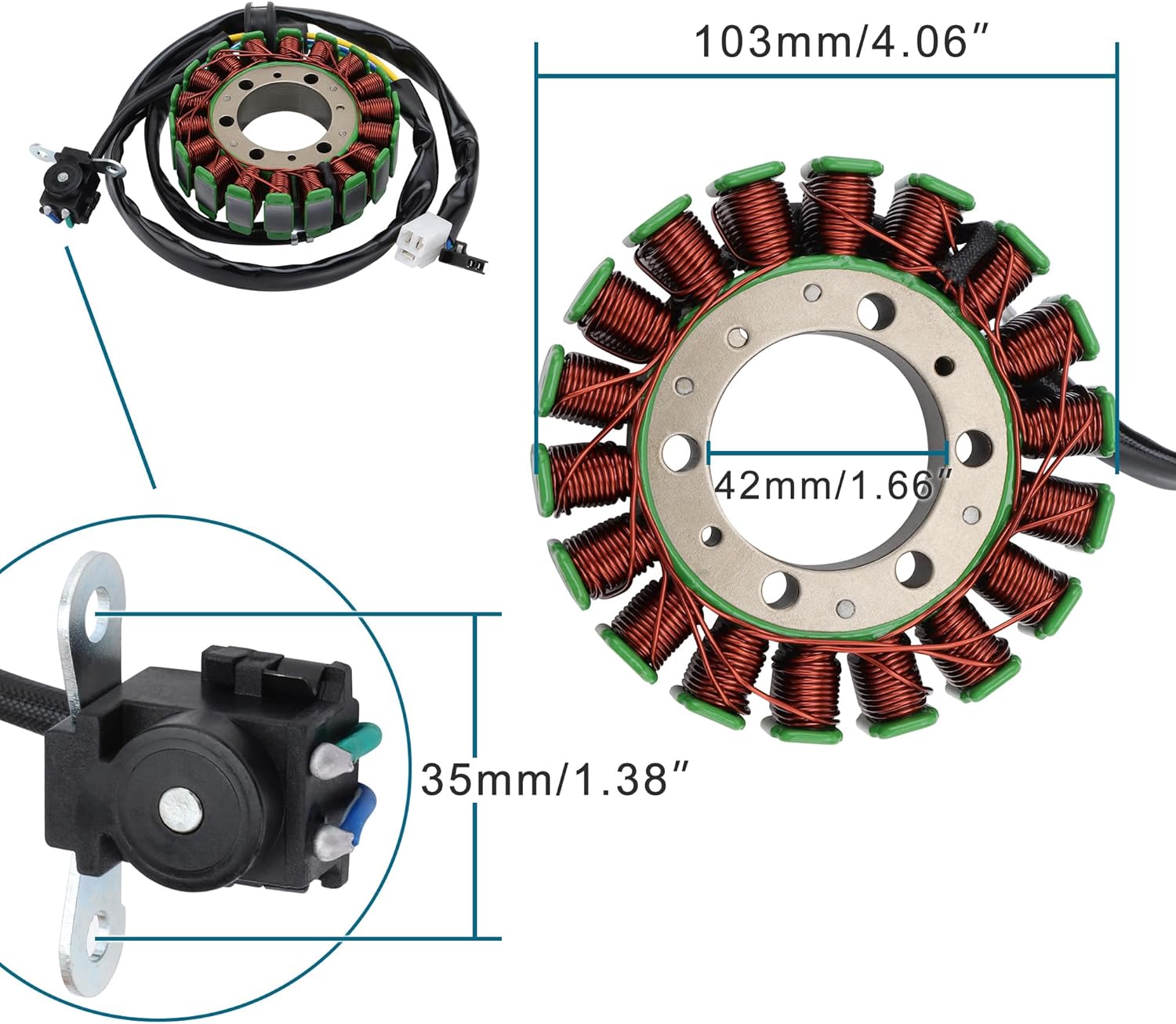

| Outer Diameter | 103 mm |
| Inner Diameter | 42 mm |
| Material | Copper Windings |
| Condition | New |
| Installation | Direct Replacement |
Key Features
- 18-coil design for stable and efficient power output
- High-grade materials for heat resistance and durability
- OEM-matched fit for precise compatibility
- Plug-and-play installation for easy replacement
- Long service life with reliable performance
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for OEM Reference; Suzuki; VZ800 Marauder; 1997–2004; 32101-48E00. It is best matched to original part number(s) 1997-2004, 32101-48E00. Key physical/spec details from the product data include Outer Diameter: 103 mm, Inner Diameter: 42 mm, 103 mm. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 1997-2004, 32101-48E00 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Suzuki VZ800 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 1997-2004, 32101-48E00, treat the fitment as unconfirmed. Model years outside 1997–2004, 1997, 2004 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 1997-2004, 32101-48E00. Recheck listed specs such as Outer Diameter: 103 mm, Inner Diameter: 42 mm, 103 mm. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
