Product Overview

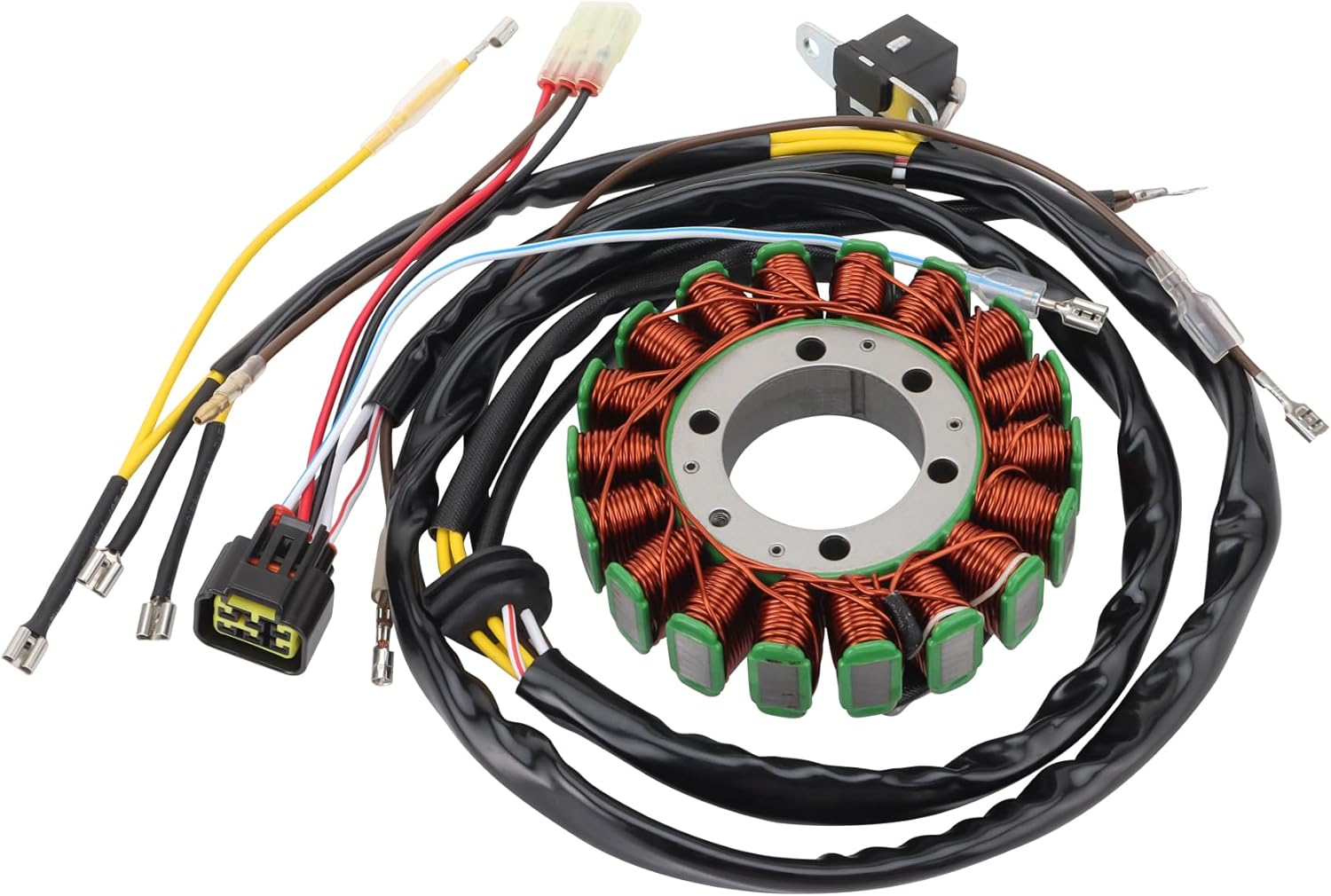

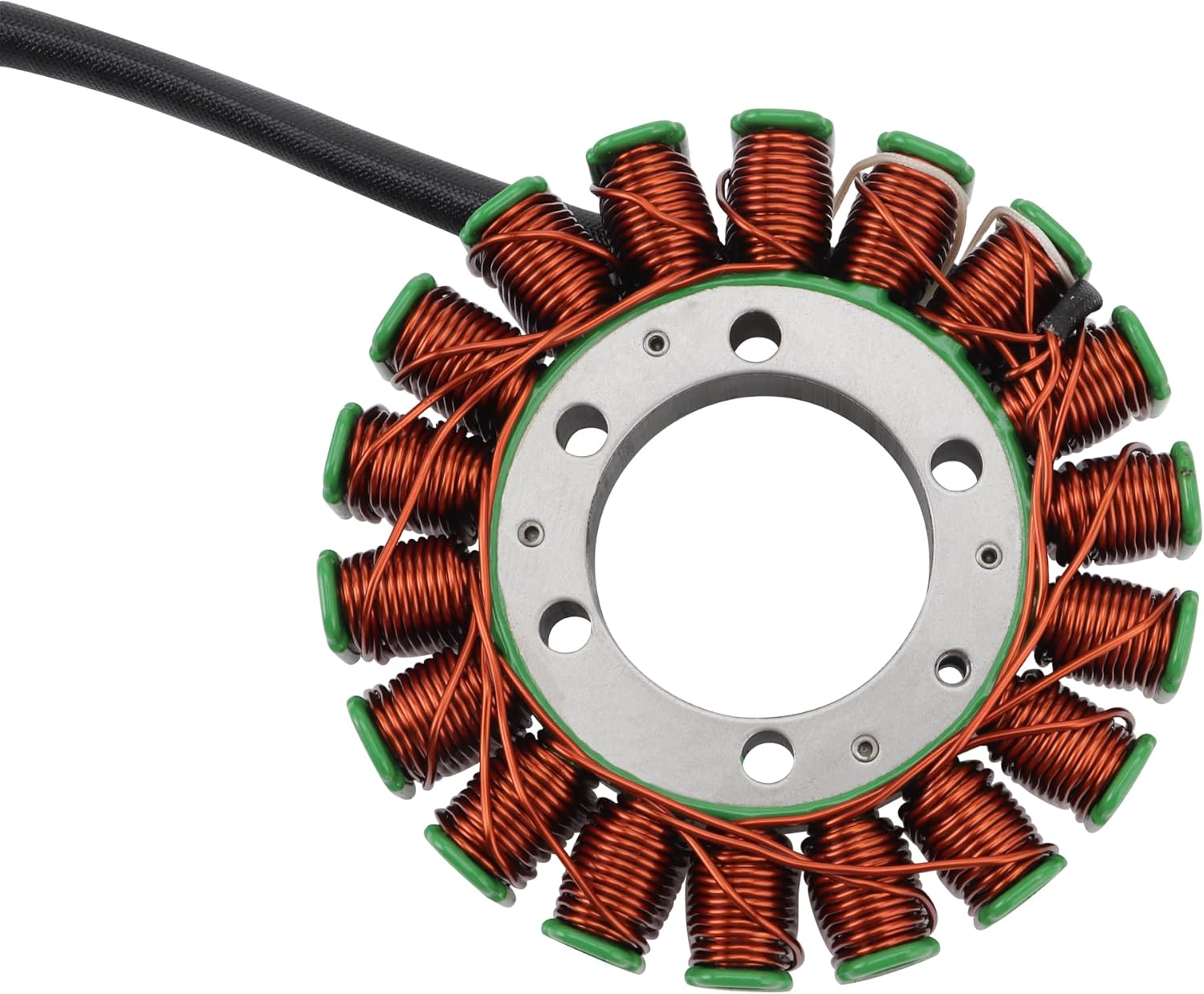

Replace a weak, burned, or failed stator with this 18-pole magneto stator coil, designed for select Polaris ATP 500, Sportsman 400 / 450 / 500, Ranger 400 / 425 / 500, Scrambler 500, and Hawkeye 400 ATV / UTV applications.
The stator is an important part of the ATV / UTV charging and ignition system. It helps generate electrical power while the engine is running, supporting the battery, ignition system, lights, sensors, and related electrical components. If your Polaris ATV or UTV has weak charging, repeated battery drain, dim lights, hard starting, unstable electrical output, or stator-related failure, replacing the stator may help restore normal electrical performance.

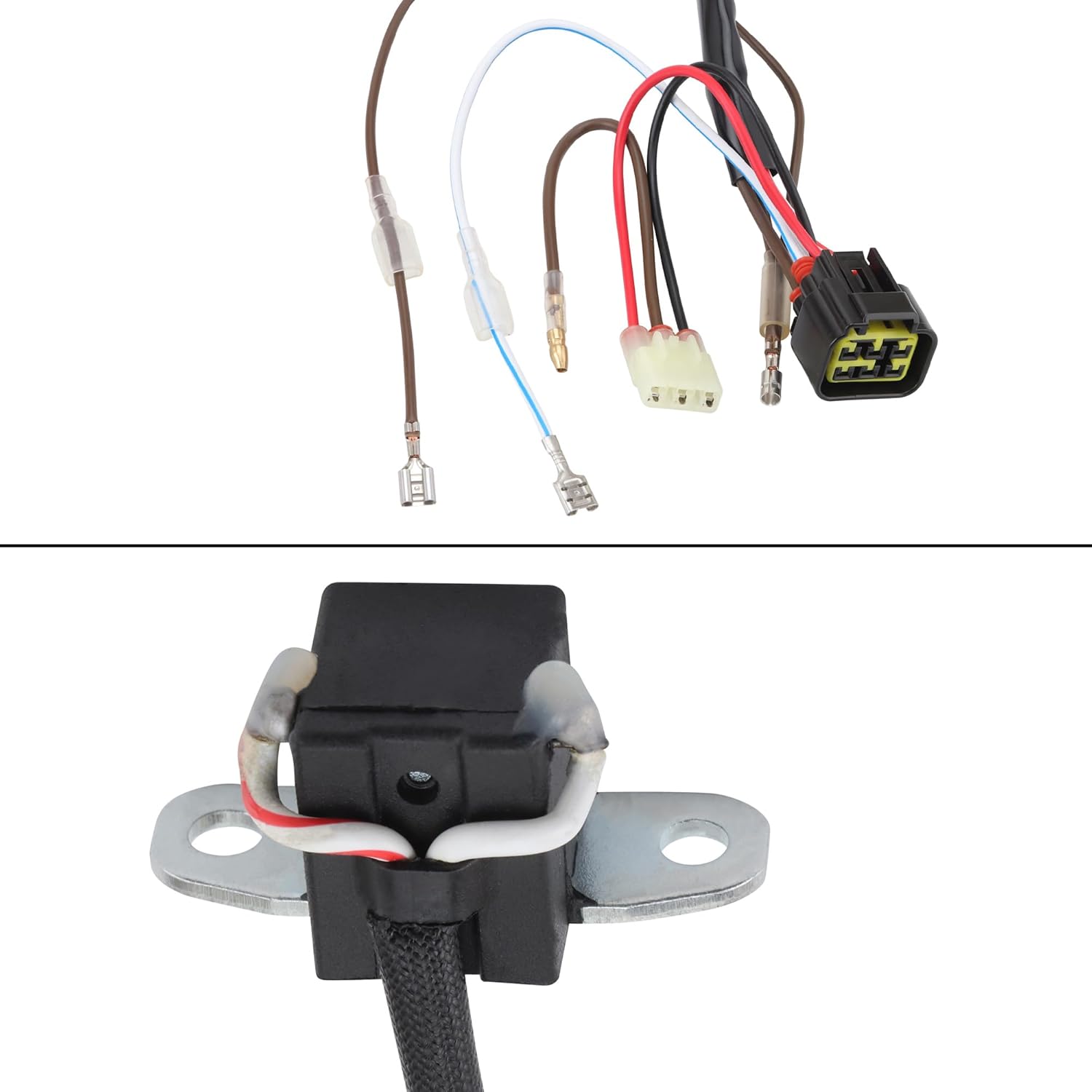

This replacement stator features an 18-pole coil design with a 42mm inner diameter and 104mm outer diameter. Please compare your original stator’s OEM number, coil count, wire count, plug layout, pickup / pulsar coil position, mounting hole pattern, and dimensions before ordering.
Product Compatibility
| Make | Model / Platform | Year Range | OEM / Reference Number | Fitment Notes |
|---|---|---|---|---|
| Polaris | ATP 500 | Select 2004–2005 applications | 3089546 / 3089249 / 3089965 / verify original | Confirm original stator before ordering; 2004 models may vary |
| Polaris | Sportsman 400 | Select 2004–2005 applications | 3089546 / 3089249 / 3089965 | Fits matching stator version only |
| Polaris | Sportsman 450 | Select 2006–2007 applications | 3089546 / 3089249 / 3089965 | Verify plug layout, wire count, and dimensions |
| Polaris | Sportsman 500 / Sportsman 500 HO | Select 2004–2013 applications | 3089546 / 3089249 / 3089965 | Common platform fitment; match by OEM and original stator |
| Polaris | Sportsman 500 Touring / Forest | Select 2012–2013 applications | 3089546 / 3089249 / 3089965 | Possible related fitment; confirm original part |
| Polaris | Ranger 400 | Select 2010–2014 applications | 3089546 / 3089249 / 3089965 | Common Ranger fitment; verify connector and size |
| Polaris | Ranger 425 / Ranger 500 | Select 2004 and related applications | 3089546 / 3089249 / 3089965 | Match by original stator, not model name alone |
| Polaris | Scrambler 500 | Select 2004–2012 applications | 3089546 / 3089249 / 3089965 | Fits matching 18-pole stator version only |
| Polaris | Hawkeye 400 / Hawkeye 400 HO | Select 2006–2014 applications | 3089546 / 3089249 / 3089965 | Verify stator size, plug layout, and pickup coil position |
Important Fitment Note:
This part is not selected by engine size or model name alone. Polaris ATP 500, Sportsman, Ranger, Scrambler, and Hawkeye models may use different stators depending on year, engine version, carb / EFI setup, market, and wiring harness. Please confirm your original stator matches the 18-pole layout, 42mm inner diameter, 104mm outer diameter, plug layout, wire count, grommet shape, and pickup / pulsar coil position before ordering.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Stator Coil |
| Coil Count | 18 Poles |
| Inner Diameter | 42mm |
| Outer Diameter | 104mm |
| Electrical Type | ATV / UTV Charging & Ignition System Stator |
| Wire Count | Not provided; compare with original stator |
| Plug / Pin Count | Not provided; compare with original stator |
| Possible OEM References | 3089546 / 3089249 / 3089965 / 3089403 / 3089579 |
| Application | ATV / UTV Charging System |
| Compatible Brand | Polaris |
| Fitment Type | Replacement, match by OEM number, size, and connector layout |
Note:
Some aftermarket listings for this Polaris platform describe a similar stator with 42mm inner diameter, 108mm outer diameter, 19mm thickness, 11 wires, 6 plugs, and 9 pins. Your supplied product data lists 42mm inner diameter and 104mm outer diameter, but does not include wire count, plug count, pin count, or harness length. Please compare the actual product photos and original stator before purchase.
Key Features
- Designed for select Polaris ATP 500, Sportsman, Ranger, Scrambler, and Hawkeye ATV / UTV applications
- 18-pole stator helps support stable charging and ignition system output
- Helps address weak charging, repeated battery drain, dim lights, hard starting, unstable voltage, or stator failure
- Suitable for matching Polaris 400cc / 425cc / 500cc ATV and UTV charging systems
- Built for reliable performance and long service life
- Designed for easier installation when the original stator size and connector layout match
- Direct replacement style, but original OEM number, wire count, plug layout, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 3089546 | Common Polaris stator reference for matching Sportsman / Ranger / Scrambler / ATP platform applications |
| 3089249 | Common Polaris stator reference on related aftermarket listings |
| 3089965 | Common Polaris stator reference on related aftermarket listings |
| 3089403 | Possible related Polaris stator reference; verify before purchase |
| 3089579 | Possible related Polaris stator reference; verify before purchase |
| 3087168 | Possible different Polaris ATP 500 / earlier platform reference; verify carefully before purchase |
Please use the OEM/reference number together with physical dimensions and connector layout for fitment confirmation. If your original stator has a different outer diameter, inner diameter, wire count, plug style, pickup coil position, grommet shape, or harness length, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Engine; Arctic Cat; ATP 500; 500cc; 2004–2014. Key physical/spec details from the product data include Outer Diameter: 104mm, Inner Diameter: 42mm, 500cc. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. If your original part has a stamped OEM or manufacturer number, match that number first before ordering. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Arctic Cat models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. Model years outside 2004–2014, 2004, 2014 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Recheck listed specs such as Outer Diameter: 104mm, Inner Diameter: 42mm, 500cc. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
