GOOFIT 6 Pole 5 Wire AC Stator 3 Pin for GY6 125cc 150cc Scooter ATV Go Kart Magneto
GOOFIT 6 Pole 5 Wire AC Stator 3 Pin for GY6 125cc 150cc Scooter ATV Go Kart Magneto
Couldn't load pickup availability
Product Overview

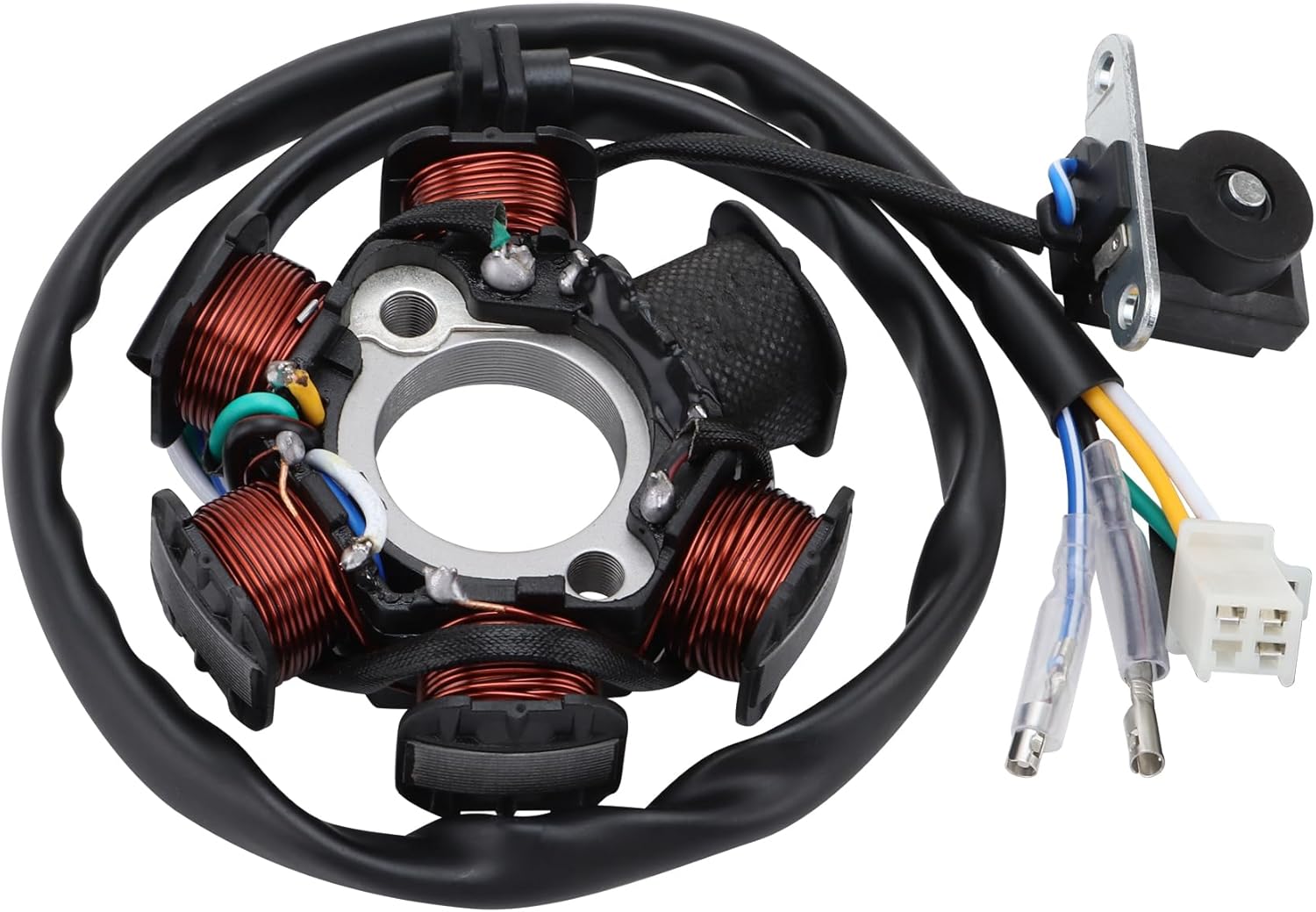

Ensure reliable ignition and charging performance with this 6-pole 5-wire AC magneto stator. Designed with a 3-pin square interface, it provides stable power output and is widely compatible with GY6 engines used in scooters, ATVs, and go-karts.
Product Compatibility
| Engine Type | Displacement | Vehicle Type |
|---|---|---|
| GY6 | 50cc–150cc | Scooter / ATV / Go Kart / Buggy |
| GY6 | 70cc–125cc | Quad / Pocket Bike |
Note: Compatible with half-wave stator systems. Please verify plug type (3-pin square) and dimensions before purchase.
Specifications
| Specification | Details |
|---|---|
| Product Type | Magneto Stator Coil |
| Poles | 6 Pole |
| Wire Count | 5 Wires |
| Interface Type | 3-Pin Square Plug |

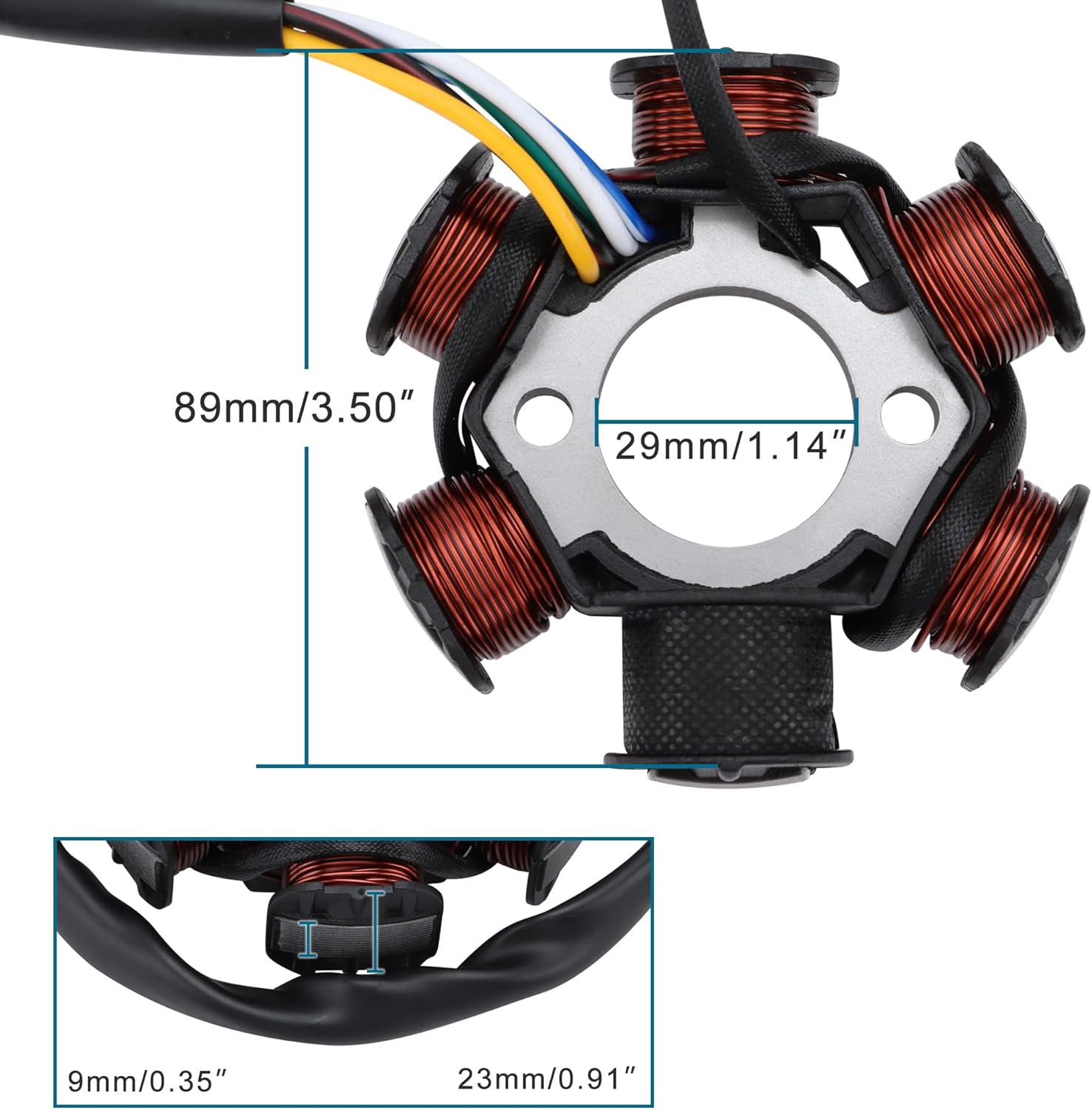

| Inner Diameter | 29 mm |
| Mounting Hole Pitch | 41 mm |
| Material | Metal + ABS |
| Condition | New |
| Installation | Direct Replacement |
Key Features
- 6-pole design for stable ignition and charging
- 5-wire AC system with 3-pin square interface
- Wide compatibility with GY6 engines (50cc–150cc)
- Durable construction with anti-corrosion properties
- Easy installation with direct fit design
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Engine Type; Displacement; Vehicle Type; GY6; 50cc–150cc; Scooter / ATV / Go Kart / Buggy. Key physical/spec details from the product data include Note: Compatible with half-wave stator systems. Please verify plug type (3-pin square) and dimensions before purchase., 3-Pin Square Plug, Inner Diameter: 29 mm. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. If your original part has a stamped OEM or manufacturer number, match that number first before ordering. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for GY6 GY6 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Recheck listed specs such as Note: Compatible with half-wave stator systems. Please verify plug type (3-pin square) and dimensions before purchase., 3-Pin Square Plug, Inner Diameter: 29 mm. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
