GOOFIT 8 Coil 6 Wire Stator for CG 125cc-250cc ATV Dirt Bike Go Kart Magneto E05010034
GOOFIT 8 Coil 6 Wire Stator for CG 125cc-250cc ATV Dirt Bike Go Kart Magneto E05010034
Couldn't load pickup availability
Product Overview
Upgrade your engine’s ignition and charging system with this 8-coil 6-wire magneto stator. Designed for CG-based engines and various off-road vehicles, it provides stable power output, reliable ignition, and durable performance in demanding conditions.
Product Compatibility
| Engine Type | Model / Code | Displacement | Vehicle Type |
|---|---|---|---|
| CG Engine | CG125 / CG150 / CG200 / CG250 | 125cc–250cc | Dirt Bike / Pit Bike / Trail Bike |
| Universal | 125Z / 150SZ / DM150 / RC125 / FT150 | 125cc–250cc | ATV / Quad / Go Kart / Buggy |
OEM Reference: E05010034
Note: Please verify dimensions, wiring configuration (6-wire), and mounting specs before purchase.
Specifications
| Specification | Details |
|---|---|
| Product Type | Magneto Stator Coil |
| Coil Count | 8 Coil |
| Wire Count | 6 Wires |

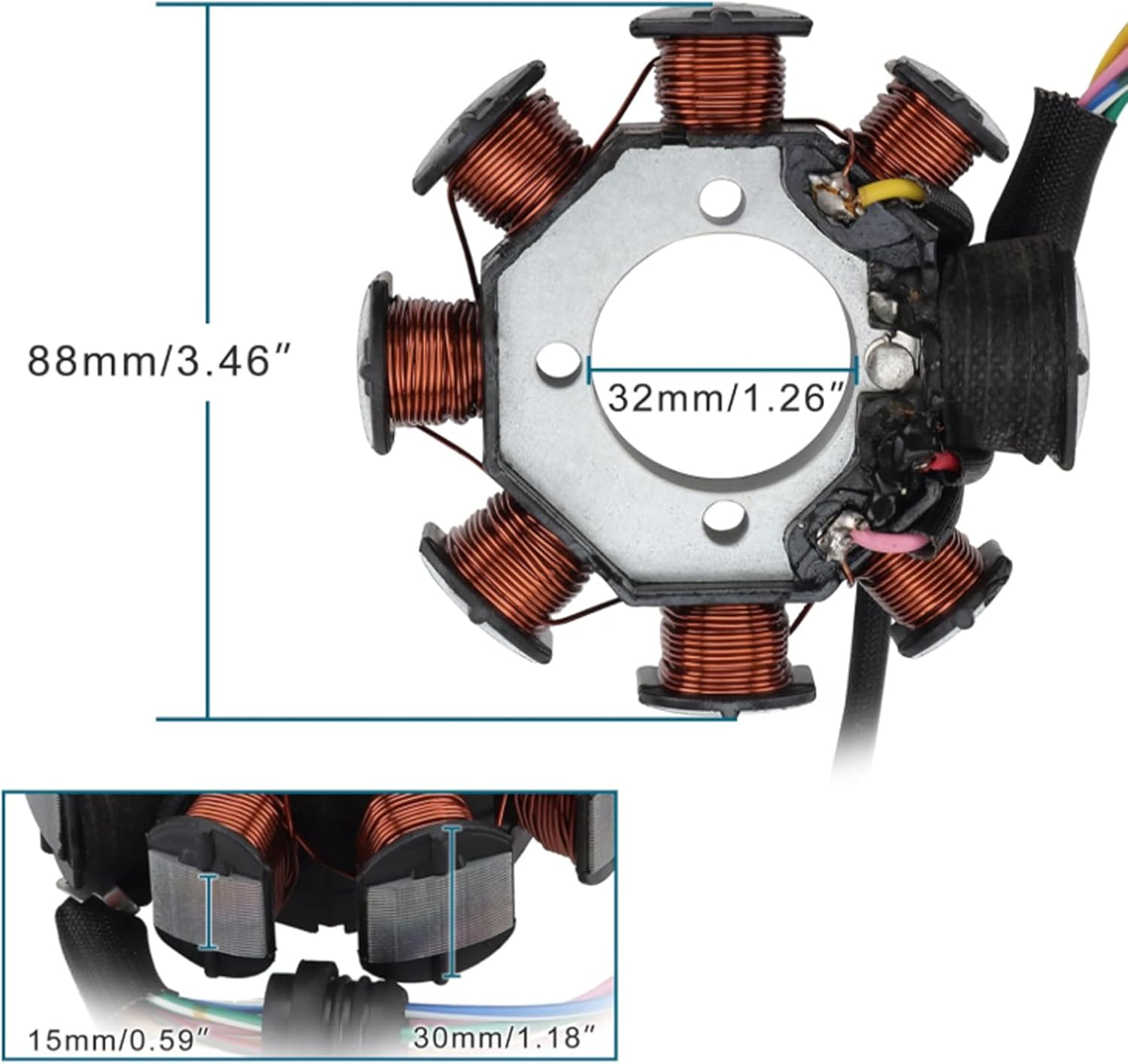

| Inner Diameter | 32 mm |
| Outer Diameter | 88 mm |
| Core Height | 15 mm |
| Total Thickness | 29 mm |
| Mounting Hole Distance | 35 mm |
| Trigger Hole Distance | 29 mm |
| Trigger Hole Diameter | 5 mm |
| Material | Copper + Metal Core |
| Condition | New |
| Installation | Direct Replacement |
Key Features
- 8-coil design for stable ignition and charging output
- 6-wire configuration for wide compatibility
- Durable copper windings with corrosion resistance
- OEM-matched design (E05010034) for reliable fit
- Plug-and-play installation for easy replacement
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Engine Type; Model / Code; Displacement; Vehicle Type; CG Engine; CG125 / CG150 / CG200 / CG250; 125cc–250cc. Key physical/spec details from the product data include Inner Diameter: 32 mm, Outer Diameter: 88 mm, Core Height: 15 mm. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. If your original part has a stamped OEM or manufacturer number, match that number first before ordering. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for CG125/CG150/CG200/CG250 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Recheck listed specs such as Inner Diameter: 32 mm, Outer Diameter: 88 mm, Core Height: 15 mm. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
