GOOFIT 8 Coil Stator Magneto for CRF250R 2004–2009 CRF450R 2005–2008
GOOFIT 8 Coil Stator Magneto for CRF250R 2004–2009 CRF450R 2005–2008
Couldn't load pickup availability

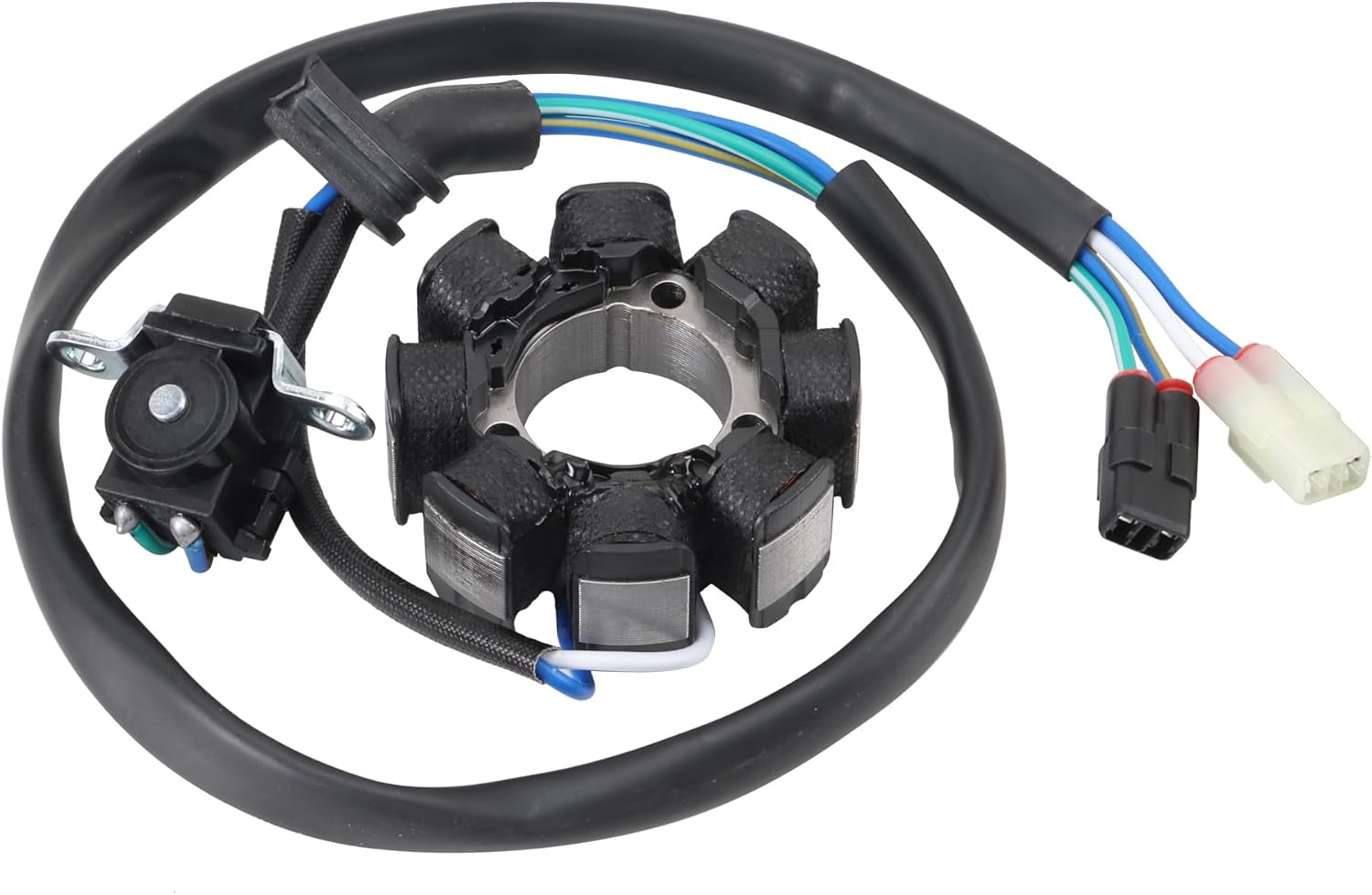

Product Overview
Restore strong ignition performance and stable electrical output with this GOOFIT 8-coil stator magneto. Designed for Honda CRF motocross bikes, it delivers consistent spark, improved throttle response, and reliable engine starts. Built with high-quality copper windings and durable materials, this stator is an ideal replacement for worn or failing ignition components.

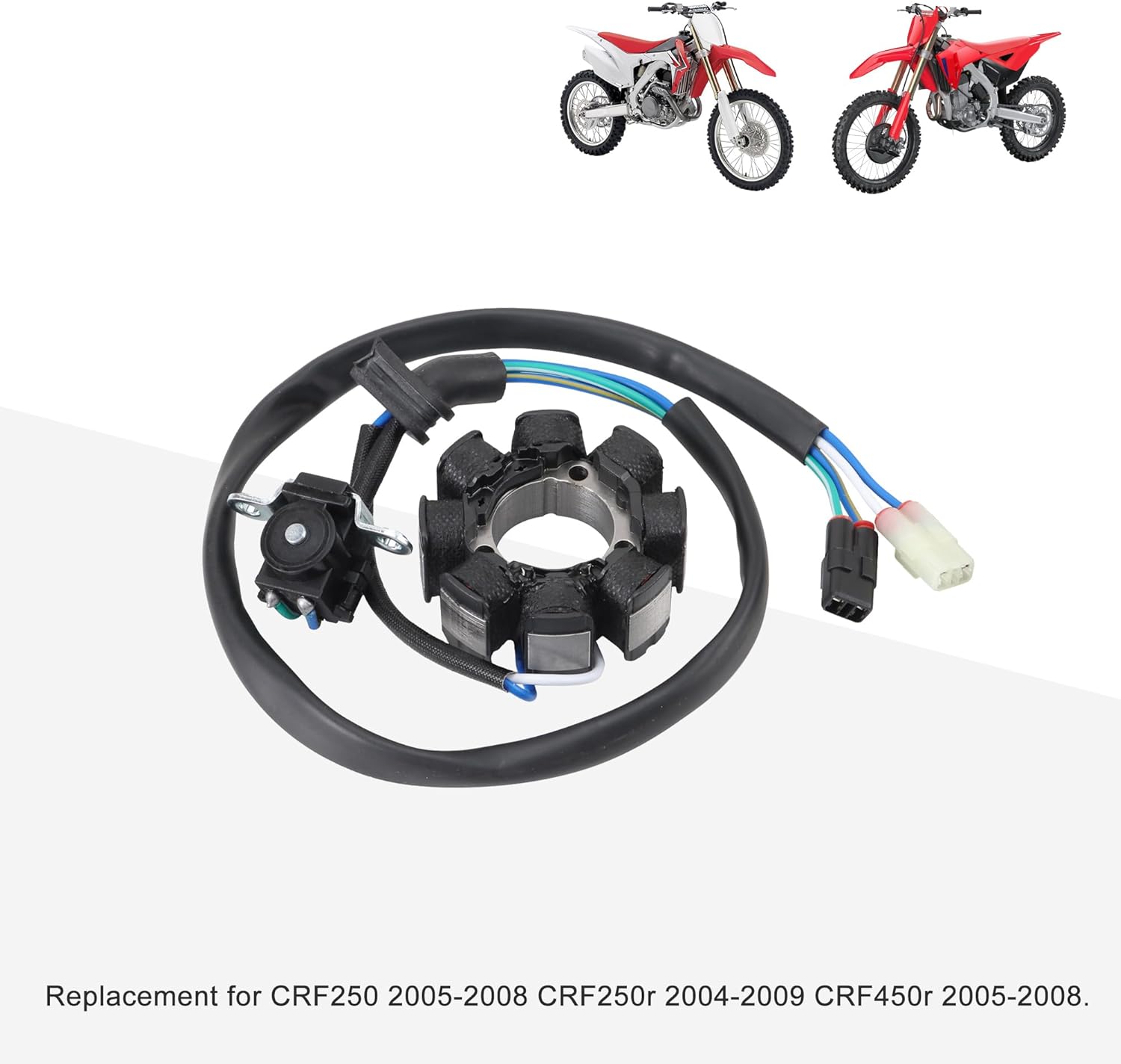

Product Compatibility
| Brand | Model | Engine | Year Range |
|---|---|---|---|
| Honda | CRF250R | 250cc | 2004–2009 |
| Honda | CRF450R | 450cc | 2005–2008 |
| Honda | CRF250 | 250cc | 2005–2008 |
Specifications
| Item | Details |
|---|---|
| Product Type | Magneto Stator |
| Coil Type | 8 Coil |

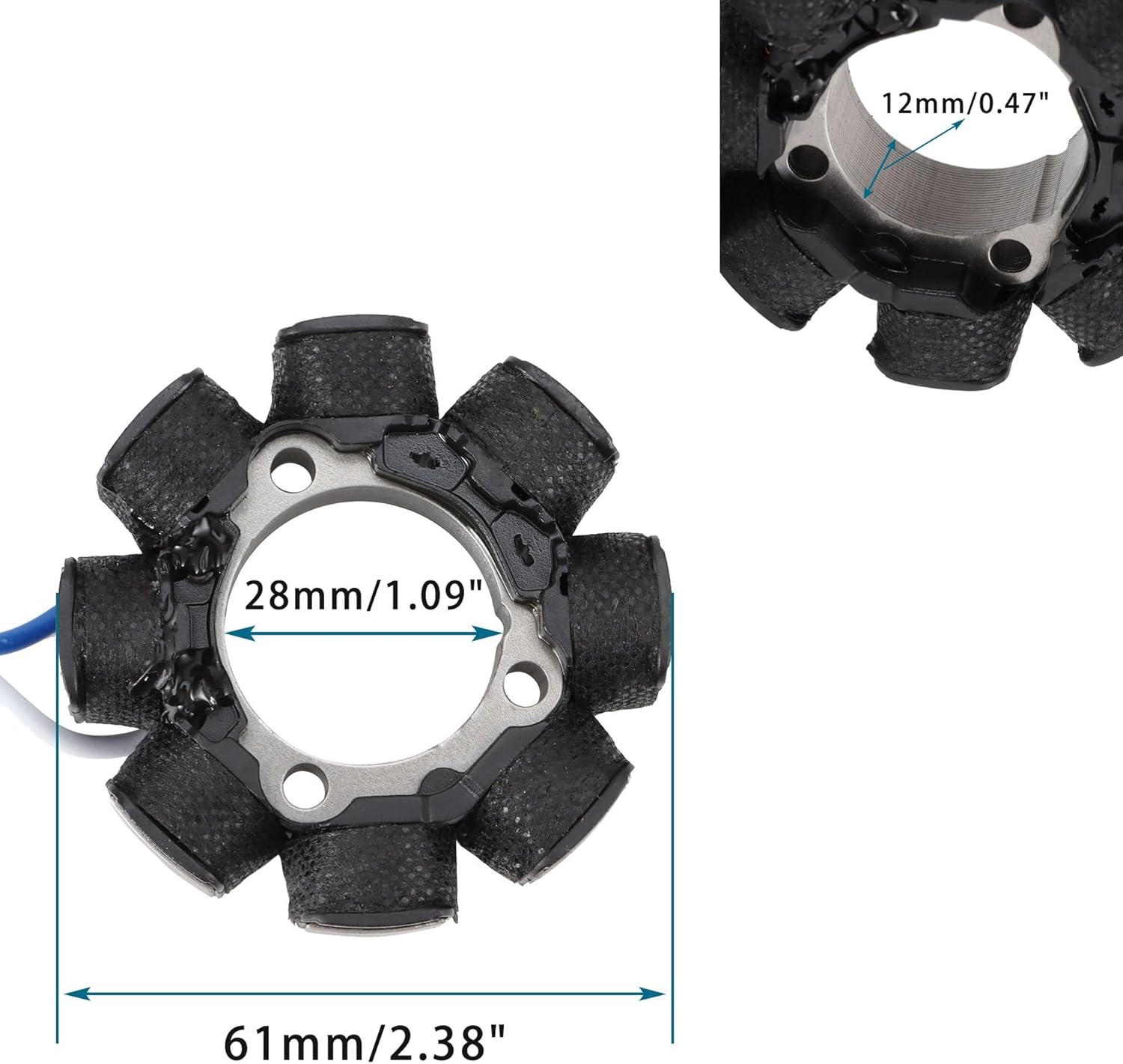

| Outer Diameter | 61mm |
| Inner Diameter | 28mm |
| Thickness | 12mm |

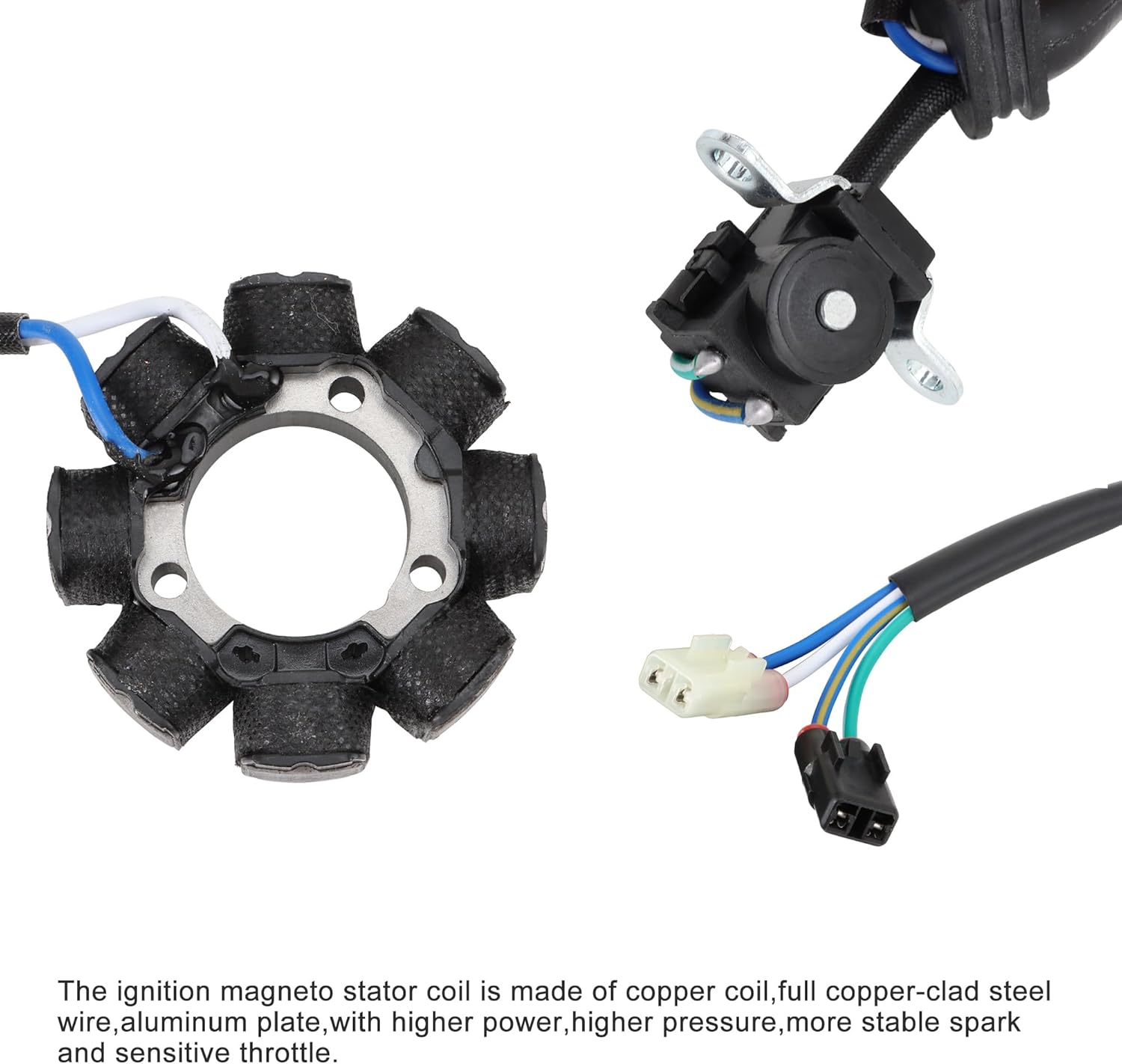

| Material | Copper Windings + Aluminum Plate |
| Function | Ignition System |
| Installation | Direct Replacement |
Key Features
- 8-coil design for stable and efficient ignition output
- High-quality copper windings for stronger spark performance
- Improves throttle response and engine starting
- Durable construction for long service life
- Direct replacement for quick and easy installation
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Engine; Honda; CRF250R; 250cc; 2004–2009; CRF450R. Key physical/spec details from the product data include Outer Diameter: 61mm, Inner Diameter: 28mm, Thickness: 12mm. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. If your original part has a stamped OEM or manufacturer number, match that number first before ordering. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Honda CRF250R/CRF450R models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. Model years outside 2004–2009, 2005–2008, 2004, 2009, 2005 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Recheck listed specs such as Outer Diameter: 61mm, Inner Diameter: 28mm, Thickness: 12mm. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
