Magneto Stator for Ducati Monster, Multistrada, SS 600-1100 & S4R
Magneto Stator for Ducati Monster, Multistrada, SS 600-1100 & S4R
Couldn't load pickup availability

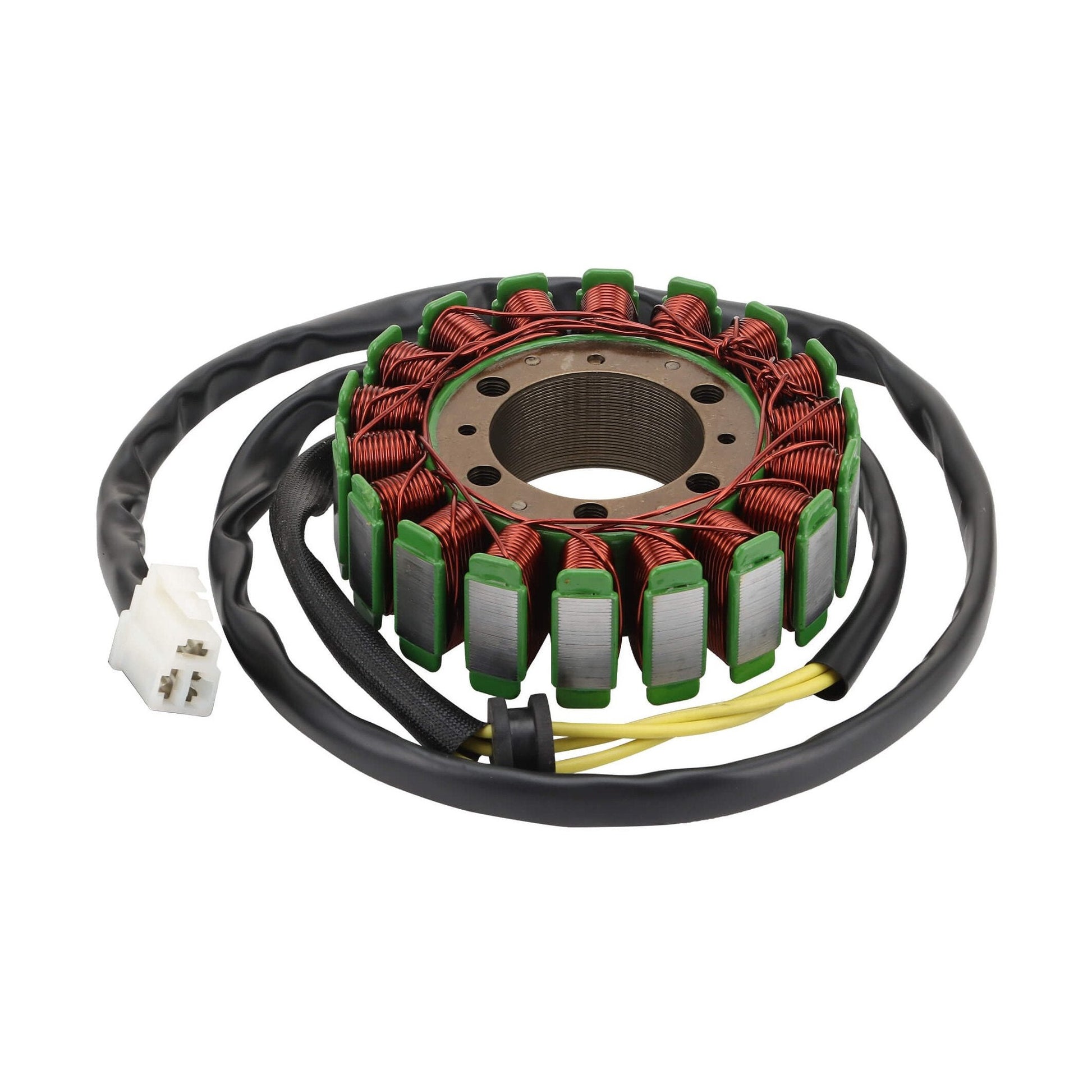

Heavy-Duty Magneto Stator for Ducati 600cc – 1100cc Series
Ensure your Ducati delivers peak electrical performance. This premium aftermarket Magneto Stator is a precision-engineered replacement for a wide range of Ducati L-Twin engines. Designed to match original factory specifications, it provides the stable electrical output required for consistent ignition and reliable battery charging across the entire RPM range.

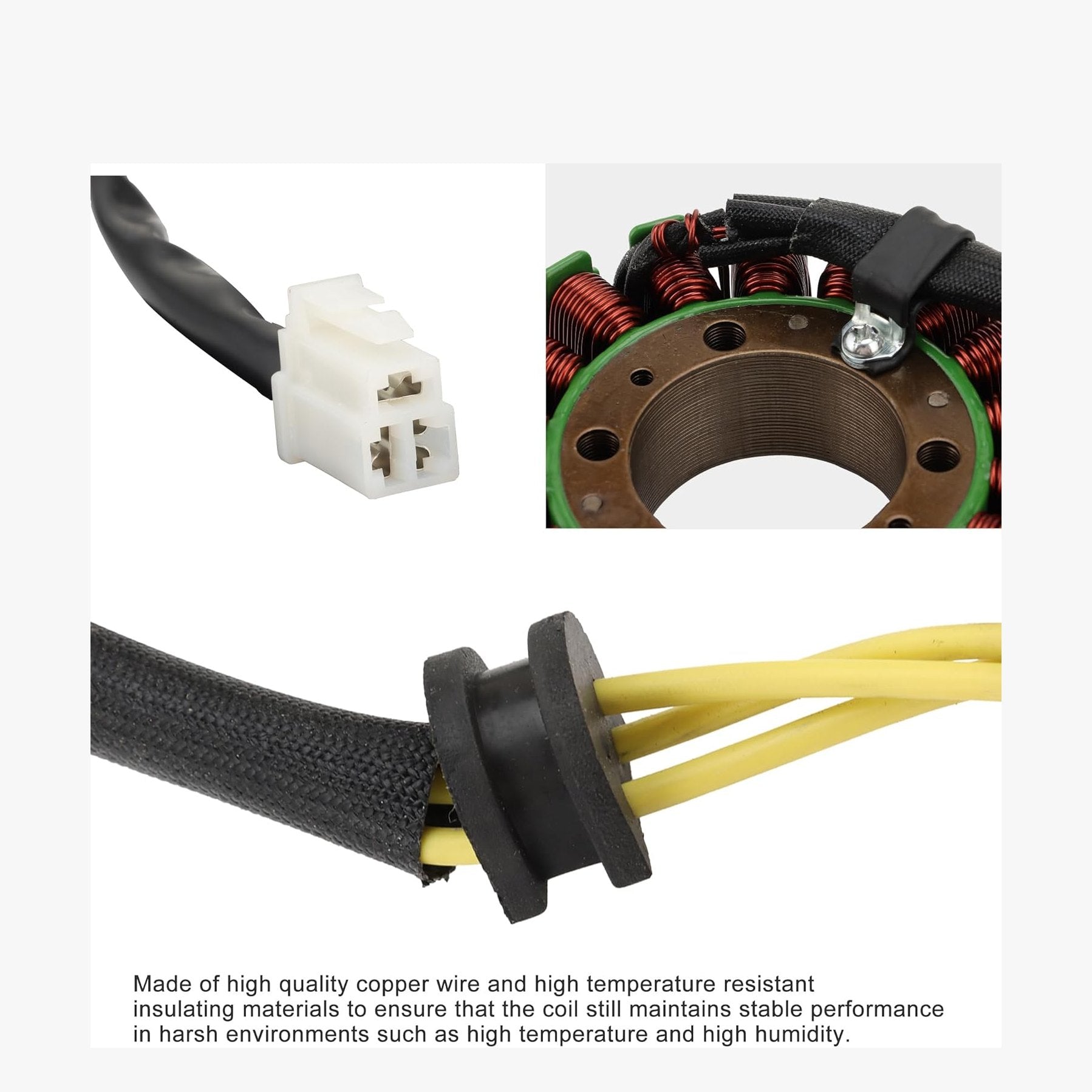

Constructed with high-temperature resistant copper wire and premium insulating materials, this stator is built to survive the intense heat soak typical of air-cooled and liquid-cooled Ducati engines. Its direct plug-and-play design matches the OEM dimensions and connectors exactly, allowing for a hassle-free installation that gets you back on the road faster.
Product Compatibility
- Ducati Monster: 600, 620, 695, 696, 750, 796, 800, 900, 1000, 1100, S4R, S4RS
- Ducati Multistrada: 620, 1000, 1100
- Ducati SuperSport (SS): 600, 750, 800, 900, 1000
- Ducati Hypermotard: 796, 1100
- Fits Many Others: Compatible with various SportClassic and ST models (Verify dimensions before ordering).
Key Technical Specifications:
- Outer Diameter: 104mm (4.09")
- Inner Diameter: 42mm (1.65")
- Thickness: 22mm (0.86")
- Material: High-purity copper windings and heavy-duty metal lamination
- Design: 18-coil configuration for optimal power generation
Why Choose This Stator?
- Superior Thermal Stability: Engineered to resist the thermal breakdown and "stator burnout" often seen in high-performance Italian engines.
- Stable Power Output: Precision windings ensure your battery stays topped up and your fuel injection/electronics receive a consistent 12V current.
- Easy Installation: Matches factory mounting points and wiring configurations exactly—no modifications or splicing required.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Ducati Monster: 600, 620, 695, 696, 750, 796, 800, 900, 1000, 1100, S4R, S4RS; Ducati Multistrada: 620, 1000, 1100; Ducati SuperSport (SS): 600, 750, 800, 900, 1000; Ducati Hypermotard: 796, 1100; Fits Many Others: Compatible with various SportClassic and ST models (Verify dimensions before ordering).. It is best matched to original part number(s) 600-1100. Key physical/spec details from the product data include Outer Diameter: 104mm (4.09"), Inner Diameter: 42mm (1.65"), Thickness: 22mm (0.86"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 600-1100 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Ducati models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 600-1100, treat the fitment as unconfirmed. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 600-1100. Recheck listed specs such as Outer Diameter: 104mm (4.09"), Inner Diameter: 42mm (1.65"), Thickness: 22mm (0.86"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
