GOOFIT 18 Coil 5 Wire Stator for Honda CBF125 GLR125 2015-2018 Magneto Generator
GOOFIT 18 Coil 5 Wire Stator for Honda CBF125 GLR125 2015-2018 Magneto Generator
Couldn't load pickup availability

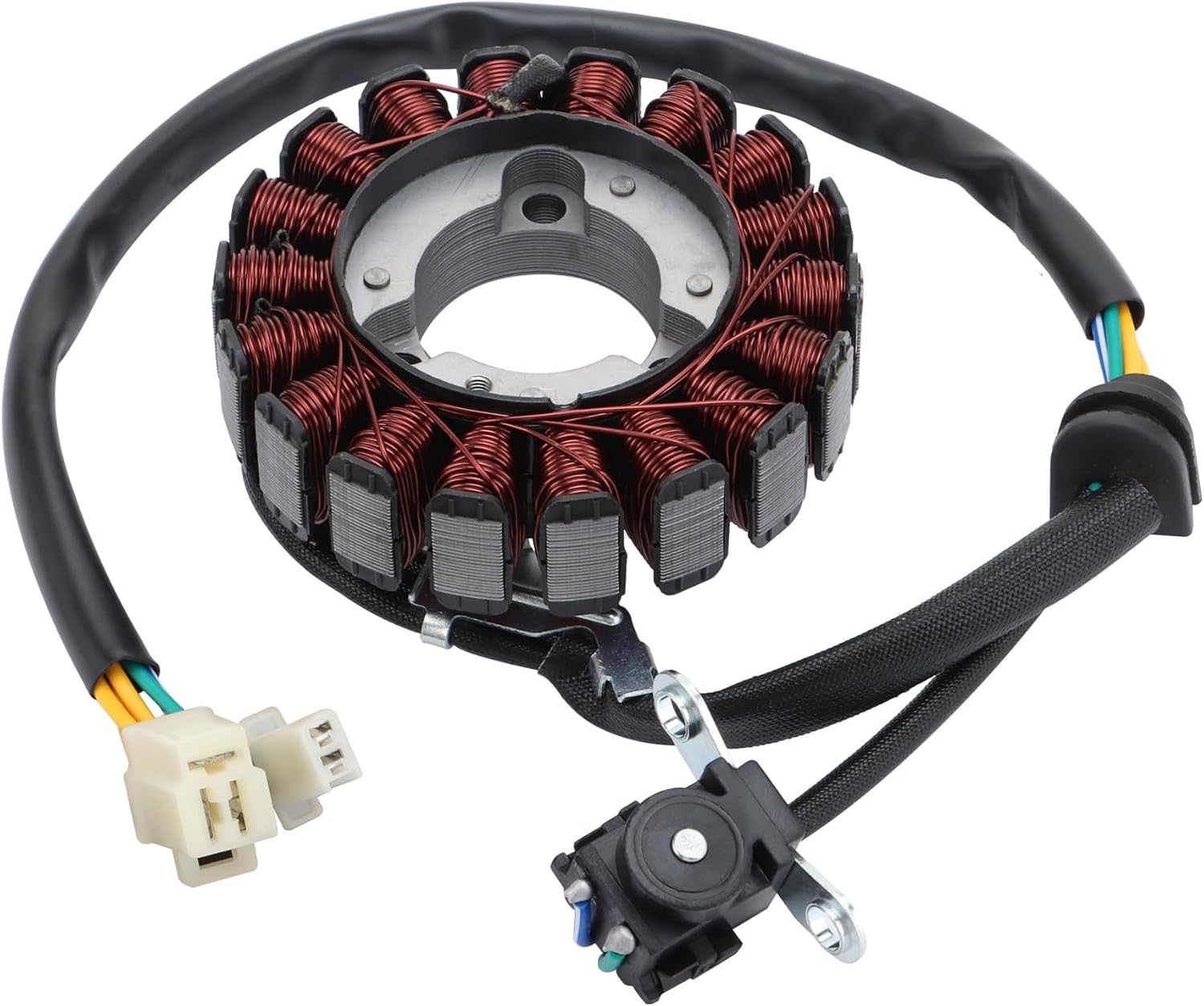

Product Overview
Restore stable ignition and charging performance with this 18-coil 5-wire magneto stator. Designed for Honda CBF125 and GLR125, it delivers reliable power output, improved durability, and consistent engine operation.
Product Compatibility
| Brand | Model | Year Range |
|---|---|---|
| Honda | CBF125 | 2015–2018 |
| Honda | GLR125 | 2015–2018 |
Specifications
| Specification | Details |
|---|---|
| Product Type | Magneto Stator Coil |
| Coil Count | 18 Coil |
| Wire Count | 5 Wires |
| Outer Diameter | 93 mm |

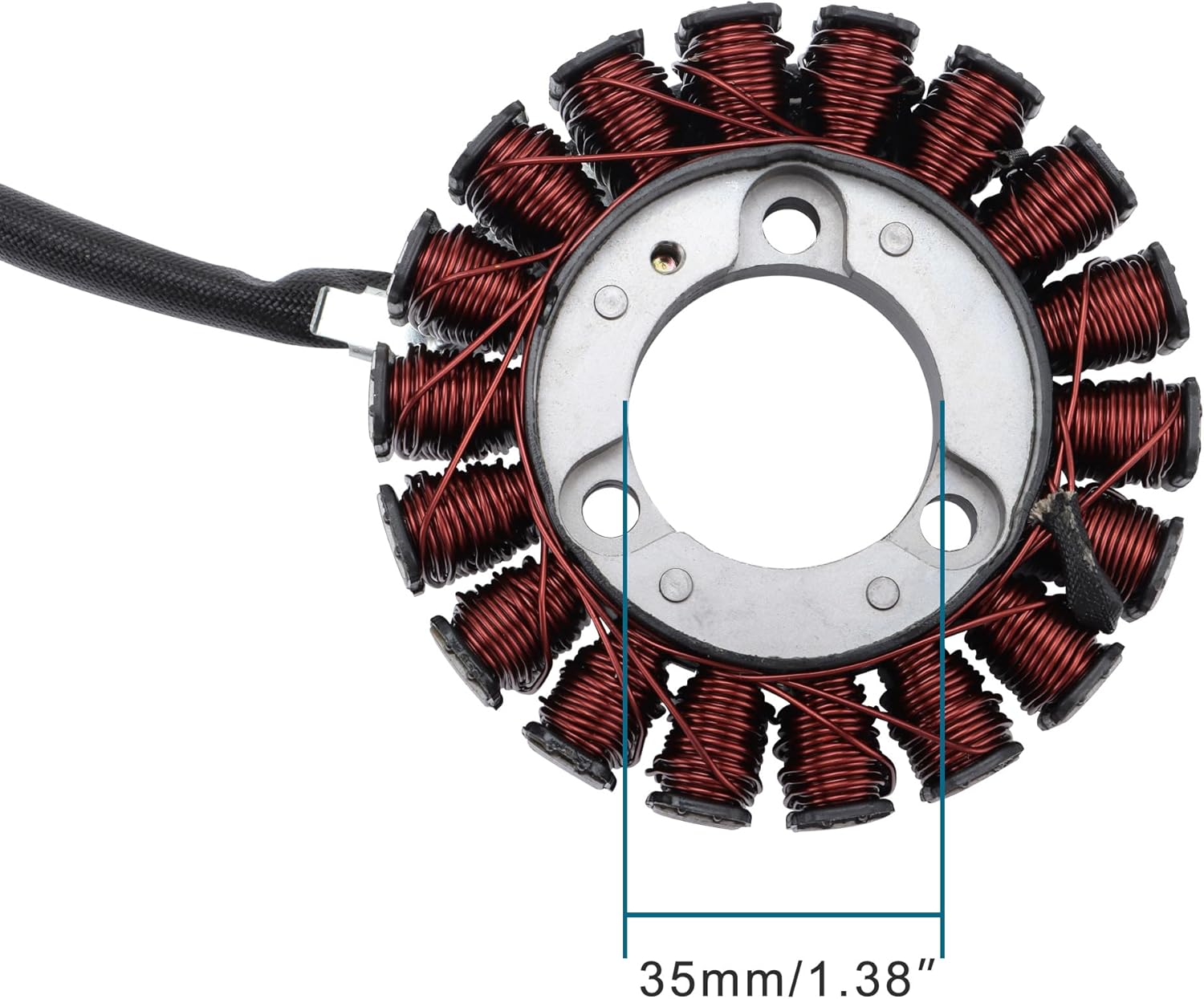

| Inner Diameter | 35 mm |
| Core Thickness | 16 mm |
| Total Thickness | 24 mm |
| Material | Copper + Metal Core |
| Condition | New |
| Installation | Direct Replacement |
Key Features
- 18-coil design for stable and efficient power output
- 5-wire configuration for reliable electrical performance
- Durable materials with anti-rust and corrosion resistance
- Precision fit for easy installation
- Plug-and-play design for quick replacement
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Honda; CBF125; 2015–2018; GLR125. It is best matched to original part number(s) 2015-2018. Key physical/spec details from the product data include Outer Diameter: 93 mm, Inner Diameter: 35 mm, Core Thickness: 16 mm. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 2015-2018 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Honda CBF125/GLR125 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 2015-2018, treat the fitment as unconfirmed. Model years outside 2015–2018, 2015, 2018 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 2015-2018. Recheck listed specs such as Outer Diameter: 93 mm, Inner Diameter: 35 mm, Core Thickness: 16 mm. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
