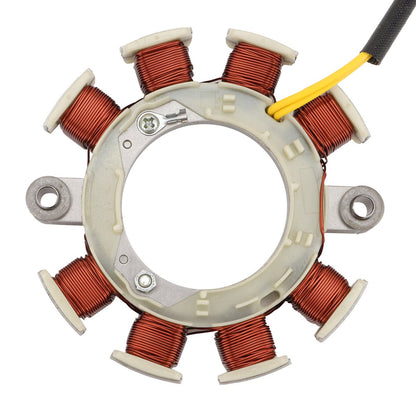

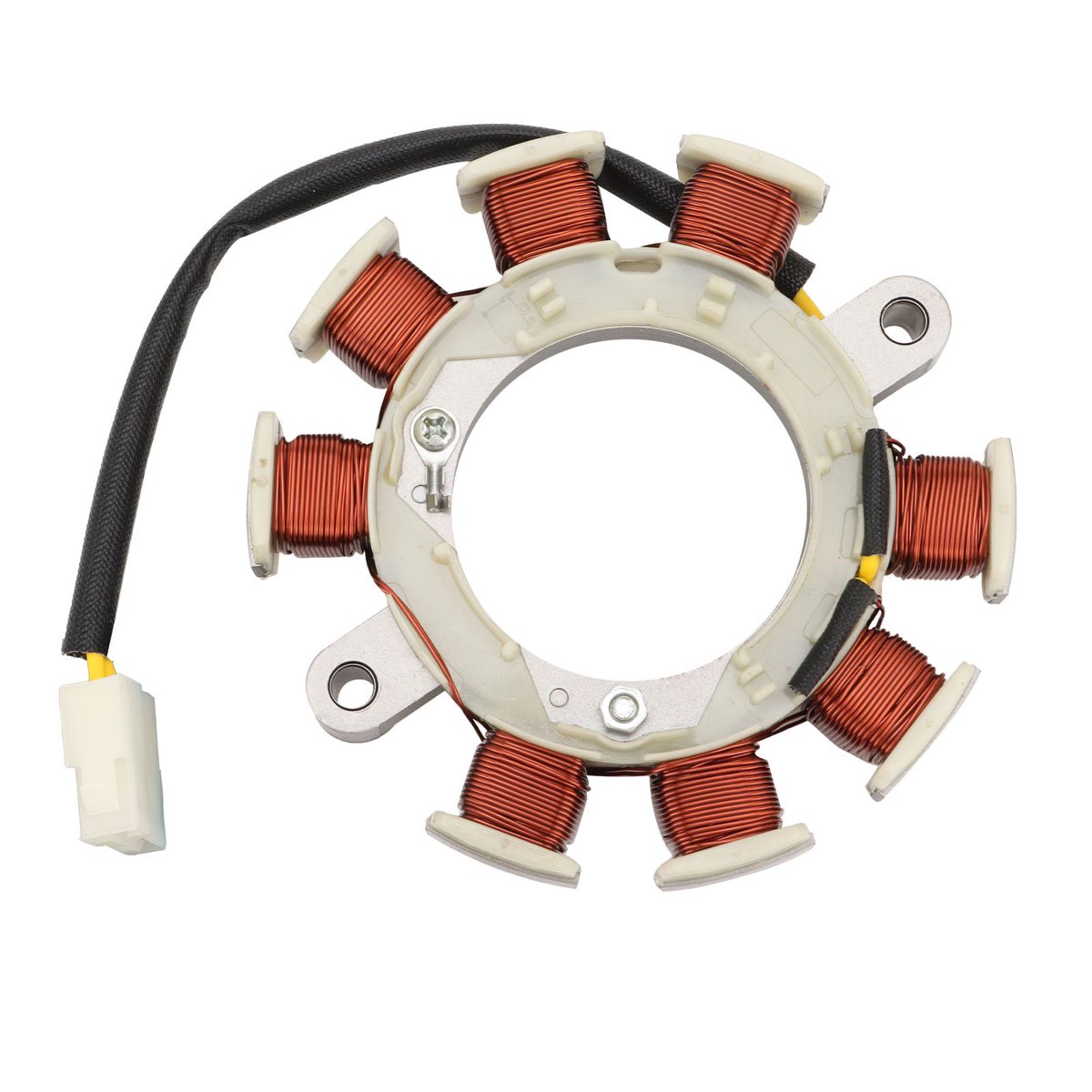

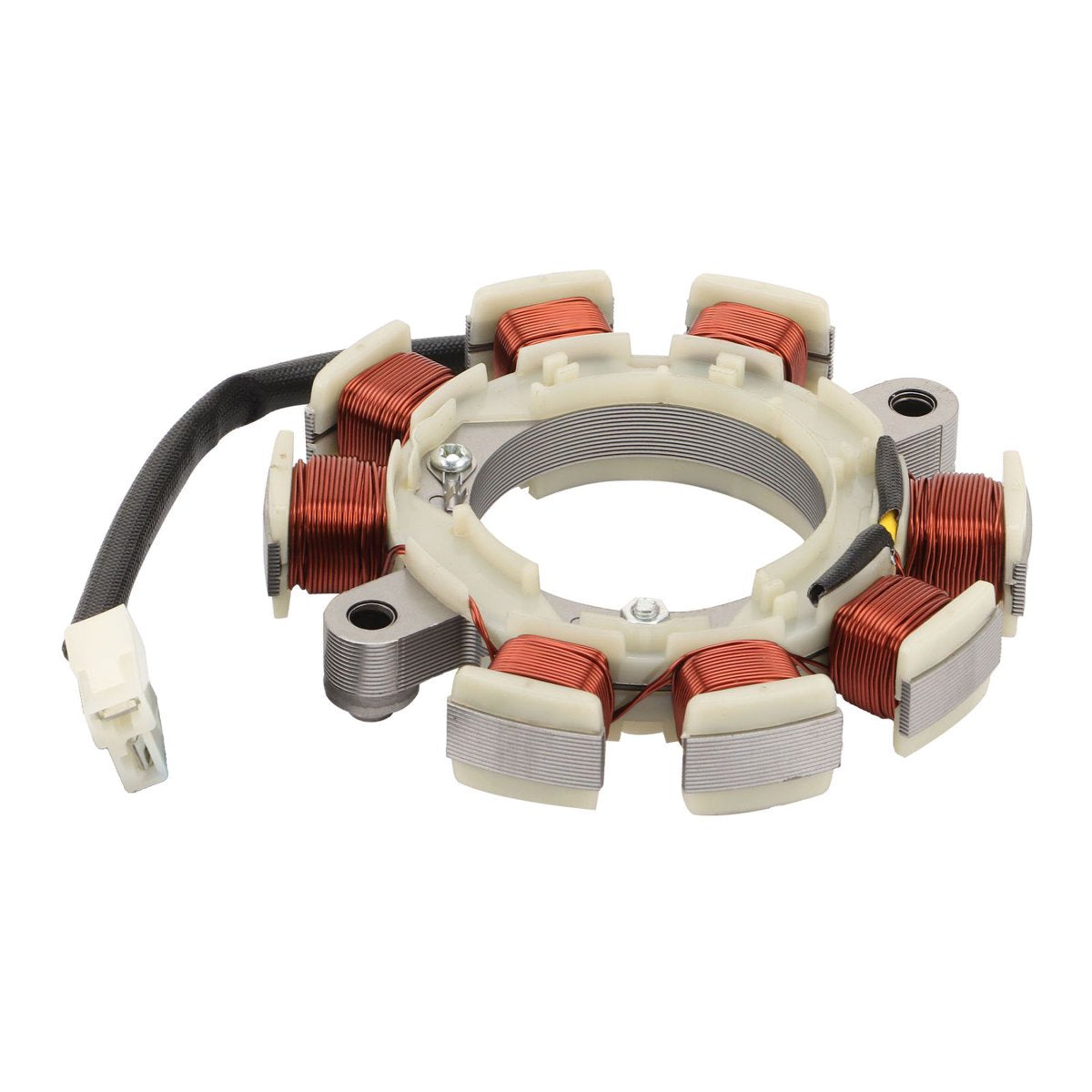

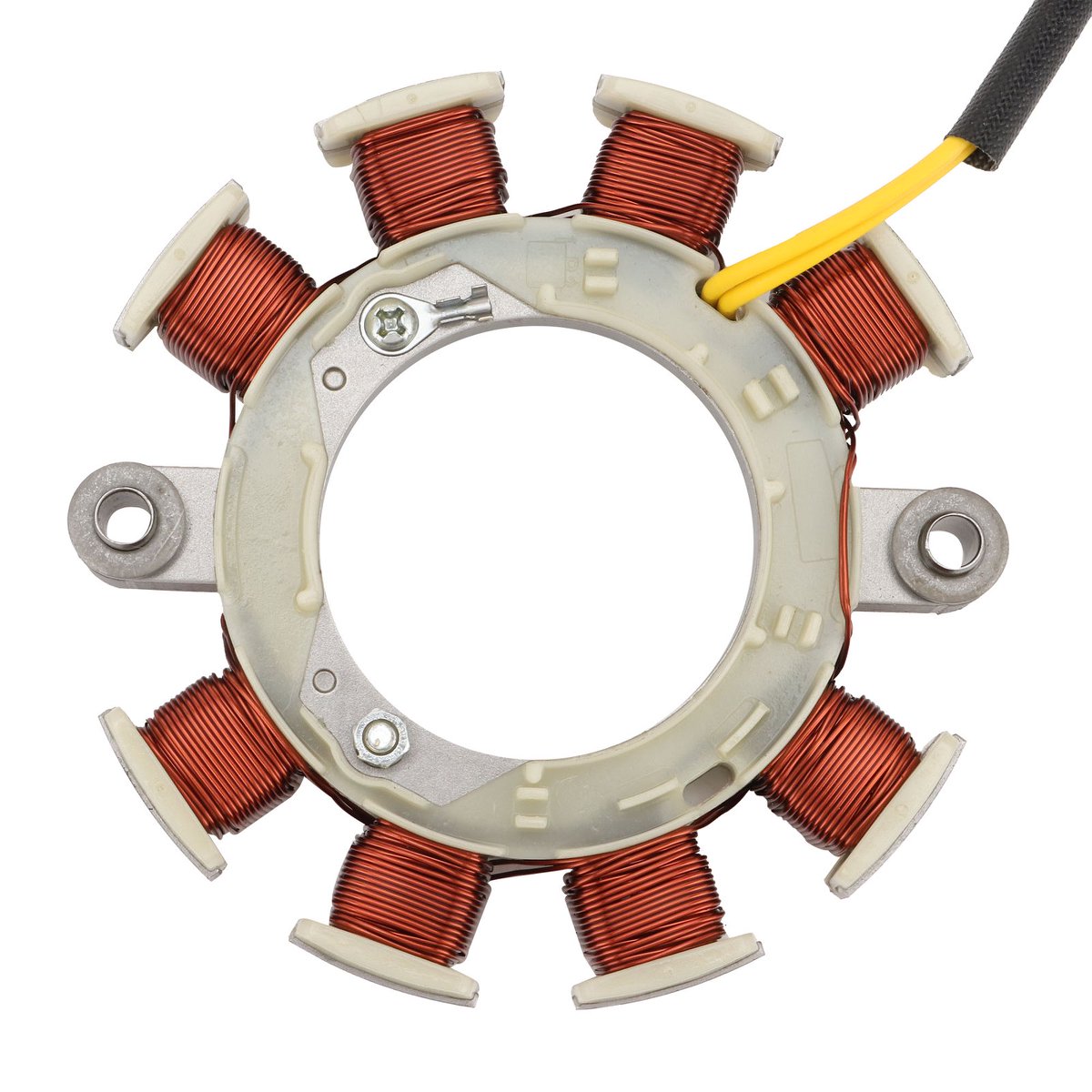

GX160 GX200 GX210 212cc 230cc 8-Coil 2-Wire Charging Stator
GX160 GX200 GX210 212cc 230cc 8-Coil 2-Wire Charging Stator
Couldn't load pickup availability
Product Overview
Replace a weak, damaged, or failed charging coil with this 8-coil 2-wire magneto stator, designed for select GX160, GX200, GX210, 212cc, and 230cc 4-stroke small engines.
This charging stator helps generate electrical power while the engine is running, supporting lighting, battery charging, and other low-voltage electrical accessories when used with a compatible flywheel and charging system. It is commonly used on small gasoline engines found in generators, pressure washers, water pumps, go karts, mini bikes, and other utility equipment.
Built with a metal lamination core and copper windings, this replacement stator is designed for stable electrical output, heat resistance, and long service life. Please compare your original charging coil’s wire count, mounting hole distance, inner diameter, outer diameter, flywheel clearance, and overall shape before ordering.
Product Compatibility
| Engine / Equipment Type | Common Application | Fitment Notes |
|---|---|---|
| GX160-6 | Small 4-stroke gasoline engine | Fits only versions using the matching 8-coil 2-wire stator |
| GX200 / GX210 | Generator, pump, pressure washer, utility engine | Confirm flywheel magnet type and stator mounting position |
| 212cc Engine | Mini bike, go kart, generator, utility equipment | Common GX200-style clone platform; compare original stator before ordering |
| 230cc Engine | Go kart, mini bike, utility equipment | Fits only if the charging system and flywheel match this stator |
| 4-Stroke Small Engine | Generator, water pump, pressure washer, kart, mini bike | Universal-style fitment; must match by size and wiring |
Important Fitment Note:
This part is not selected by engine displacement alone. GX-style engines may use different flywheels, charging coils, ignition coils, wiring systems, and output ratings. Please confirm your original charging stator matches the 8-coil / 2-wire layout, DC type, 121mm outer diameter, 56mm inner diameter, 104mm mounting hole distance, and overall shape before ordering.

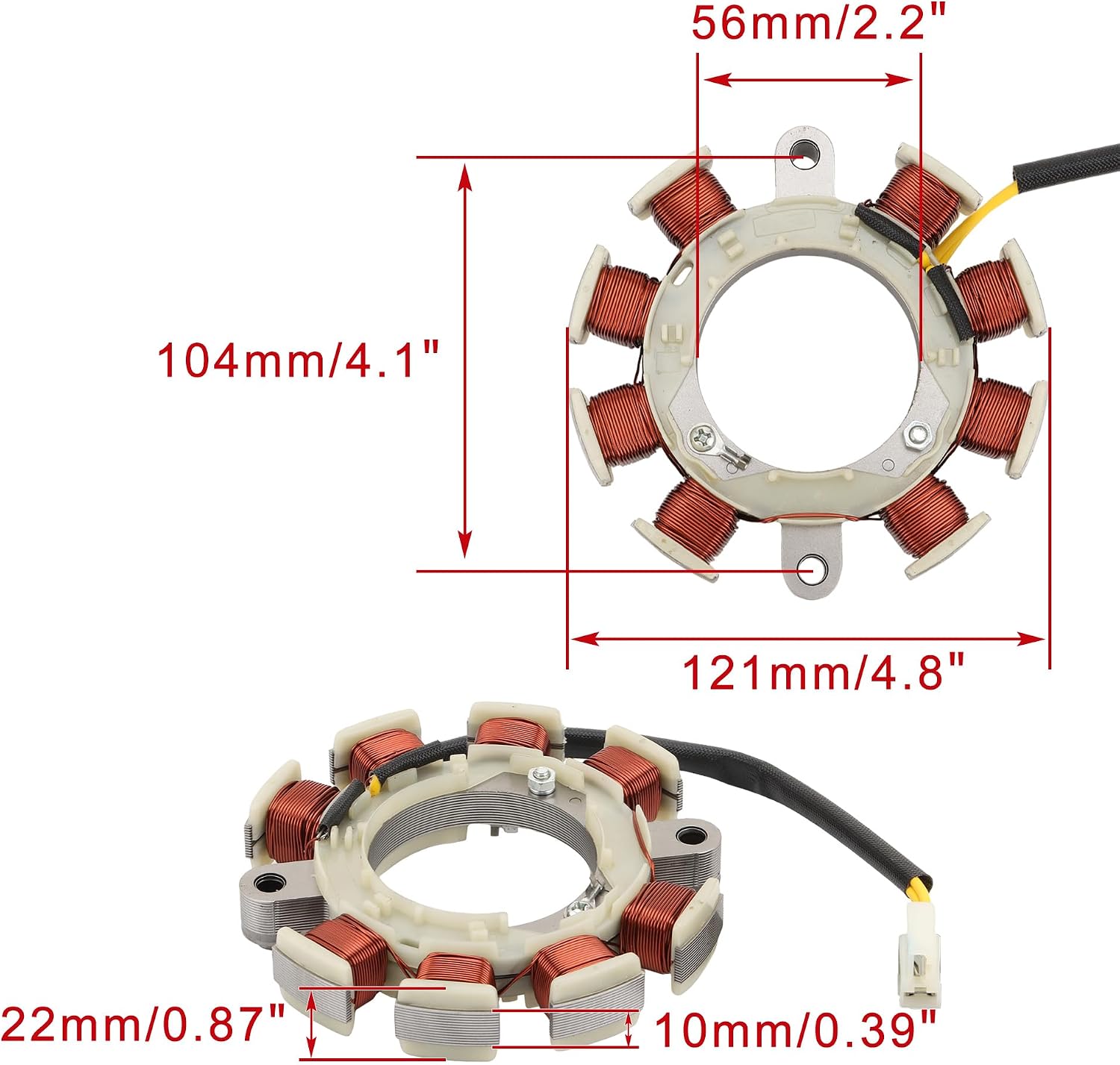

Specifications
| Specification | Details |
| Product Type | Charging Coil Stator / Magneto Stator |
| Coil Count | 8 Coils / 8 Poles |
| Wire Count | 2 Wire |
| Electrical Type | DC |
| Inner Diameter | 56mm / 2.2" |
| Outer Diameter | 121mm / 4.8" |
| Iron Core Height | 10mm / 0.39" |
| Mounting Hole Distance | 104mm / 4.1" |
| Thickness | 22mm / 0.87" |
| Compatible Engine Type | GX160-6 / GX200 / GX210 / 212cc / 230cc 4-Stroke Engine |
| Application | Small Engine Charging / Lighting System |
| Fitment Type | Universal GX-Style, Match by Size and Wiring |
Key Features
- Designed for select GX160, GX200, GX210, 212cc, and 230cc 4-stroke small engines
- 8-coil 2-wire DC stator supports charging and lighting output
- Suitable for matching generators, water pumps, pressure washers, go karts, mini bikes, and utility equipment
- Helps replace weak, burned, or damaged charging stator coils
- Copper winding supports stable conductivity and heat resistance
- Metal lamination core helps resist rust, corrosion, and deformation
- Direct replacement style, but original stator size, flywheel type, and wiring must be checked before installation
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select GX160-6, GX200, GX210, 212cc, and 230cc 4-stroke small engines using a matching 8-coil 2-wire DC charging stator. Fitment cannot be confirmed by engine size alone. Please compare your original stator’s wire count, inner diameter, outer diameter, mounting hole distance, thickness, flywheel clearance, and connector layout before ordering.
Do I need to match the OEM part number?
An OEM part number is not provided for this exact product. Some related GX160 / GX200 charging systems use references such as 31630-ZH8-W01 or 31630-ZE2-861, but these may not match this 8-coil 2-wire stator. The safest method is to match the physical size, coil count, wire count, mounting hole distance, and flywheel compatibility.
What models or situations does this part not fit?
This part does not fit engines using a different stator diameter, different wire count, different mounting hole spacing, different flywheel magnet layout, or a different AC/DC charging system. It is also not a replacement for the ignition coil, starter motor, regulator rectifier, flywheel, or complete electric-start conversion kit.
What should I check before ordering?
Before ordering, please check your engine model, original stator coil count, wire count, inner diameter, outer diameter, iron core height, mounting hole distance, stator thickness, flywheel magnet layout, connector type, and charging system design. For best fitment, compare the product photos and specifications with your original part before purchase.
