Recoil Starter for GX240 GX270 173F 177F 8HP 9HP | 28400-ZE2-W01ZA
Recoil Starter for GX240 GX270 173F 177F 8HP 9HP | 28400-ZE2-W01ZA
Couldn't load pickup availability
Product Overview

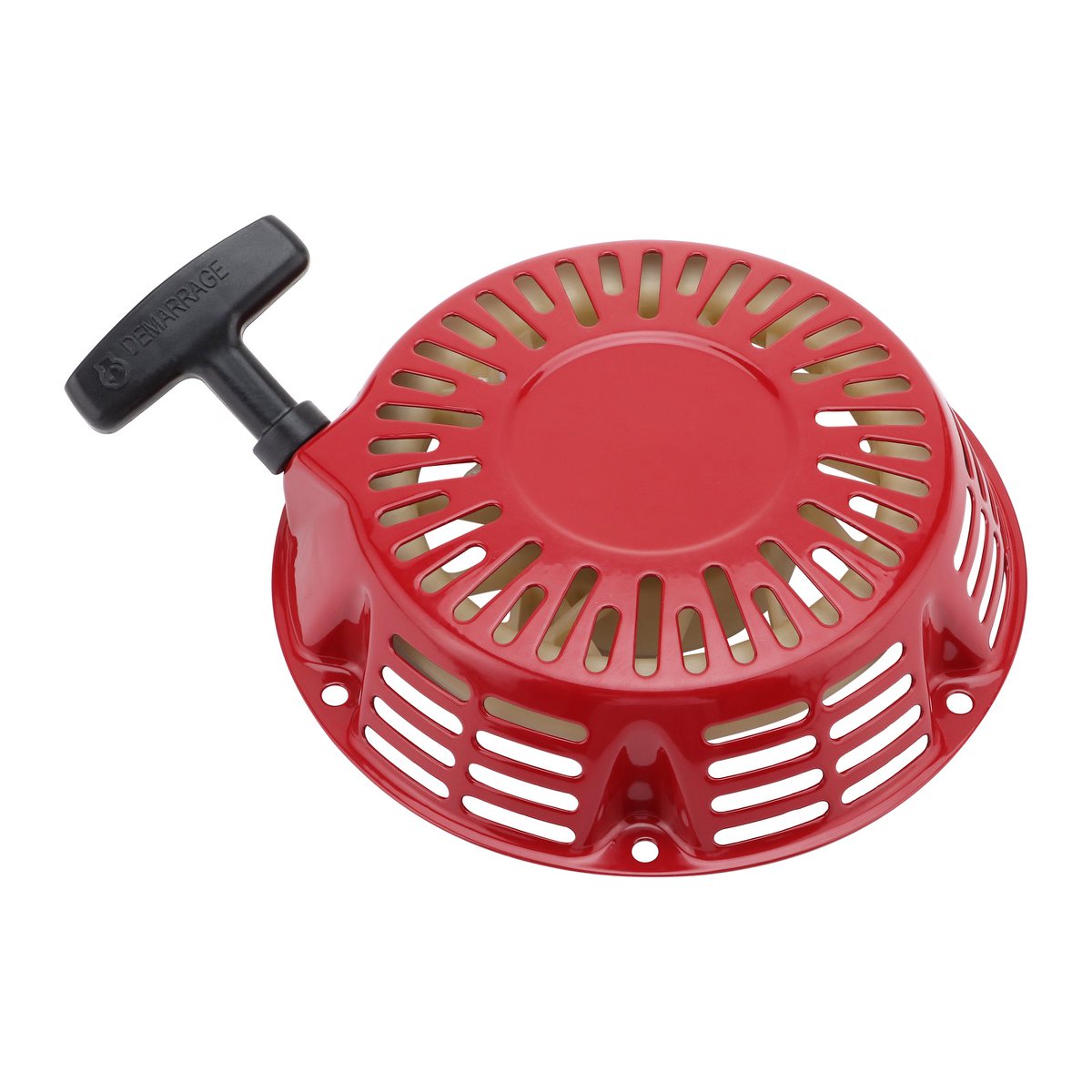

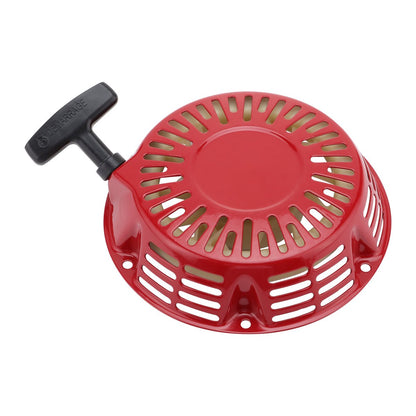

Replacement recoil pull starter assembly for selected GX240, GX270, 173F, and 177F gasoline engines used in lawn and garden equipment, generators, water pumps, pressure washers, and other small-engine applications.
Designed to replace compatible Honda-style recoil starters including 28400-ZE2-W01ZA, 28400-ZE2-W01ZB, and 28400-ZE2-W01ZN, this red starter assembly features an approximately 180mm installation-hole diameter, 90mm adjacent mounting-hole spacing, and 52mm center opening.
It is commonly listed for 173F 8HP-class and 177F 9HP-class engines, as well as compatible GX240 and GX270 applications.
Before ordering, compare the OEM number, mounting pattern, hole spacing, center opening, starter engagement mechanism, and housing shape with your original recoil starter.
Product Compatibility
| Engine / Application | Listed Fitment |
|---|---|
| GX240 | Selected 8HP-Class Applications |
| GX270 | Selected 9HP-Class Applications |
| 173F | Selected 8HP-Class Engines |
| 177F | Selected 9HP-Class Engines |
| Generator | Compatible GX240 / GX270 / 173F / 177F Engine |
| Water Pump | Compatible Engine Applications |
| Pressure Washer | Compatible Engine Applications |
| Lawn / Garden Equipment | Compatible Engine Applications |
Important: GX240, GX270, 173F, and 177F engines can use different recoil starter versions depending on the exact engine type and equipment configuration. Verify the original starter before ordering.
OEM Cross-Reference Numbers
Honda References
- 28400-ZE2-W01ZA
- 28400-ZE2-W01ZB
- 28400-ZE2-W01ZN
Aftermarket Cross-References
- Oregon 31-049
- Rotary 10469
- Rotary 26-10469
- Stens 150-711
Always use the physical starter configuration as an additional fitment check.
Specifications
| Specification | Details |
|---|---|
| Product Type | Recoil Pull Starter Assembly |
| Listed Engines | GX240 / GX270 / 173F / 177F |
| Engine Class | 8HP / 9HP |
| Installation Hole Diameter | Approx. 180 mm / 7.09 in |
| Adjacent Mounting Hole Distance | Approx. 90 mm / 3.54 in |
| Center Opening Diameter | Approx. 52 mm / 2.05 in |
| Color | Red |
| Starting Type | Manual Recoil / Pull Start |
| Replacement Type | Aftermarket |
| Condition | New |
Key Features
- GX240 / GX270 Fitment: Designed for compatible Honda-style GX240 and GX270 recoil starter applications.
- 173F / 177F Applications: Also listed for selected 8HP and 9HP Chinese-style engine configurations.
- OEM Cross-Reference Support: Replaces compatible 28400-ZE2-W01ZA / W01ZB / W01ZN starter assemblies.
- Key Fitment Dimensions: Approx. 180mm installation diameter, 90mm adjacent hole spacing, and 52mm center opening.
- Complete Pull-Start Assembly: Suitable for replacing a worn, damaged, or non-retracting compatible recoil starter.
Share
Fitment FAQ
Will this part fit my specific model and year?
This starter is listed for selected GX240, GX270, 173F, and 177F engine applications.
For the strongest fitment confirmation, compare your original recoil starter with the OEM reference, housing shape, mounting pattern, 180mm installation diameter, 90mm adjacent hole spacing, and 52mm center opening.
Do I need to match the OEM part number?
Matching the original number is recommended when available.
Listed cross-references include:
28400-ZE2-W01ZA
28400-ZE2-W01ZB
28400-ZE2-W01ZN
Oregon 31-049
Rotary 10469 / 26-10469
Stens 150-711
Even when the number matches, compare the starter shape and engagement mechanism before installation.
What models or situations does this part not fit?
Do not assume this starter fits:
Every GX240 or GX270 engine version
Every 173F or 177F clone engine
Engines with different mounting-hole patterns
Starters with different center openings
Applications using a different recoil cup or pawl design
Engines with different housing dimensions
Similar-looking recoil starters are not always interchangeable.
What should I check before ordering?
Confirm:
GX240 / GX270 / 173F / 177F engine
Original OEM or replacement number
Approx. 180mm / 7.09" installation-hole diameter
Approx. 90mm / 3.54" adjacent mounting-hole spacing
Approx. 52mm / 2.05" center opening
Housing shape
Mounting-hole pattern
Starter pawl / ratchet configuration
Pull-rope exit position

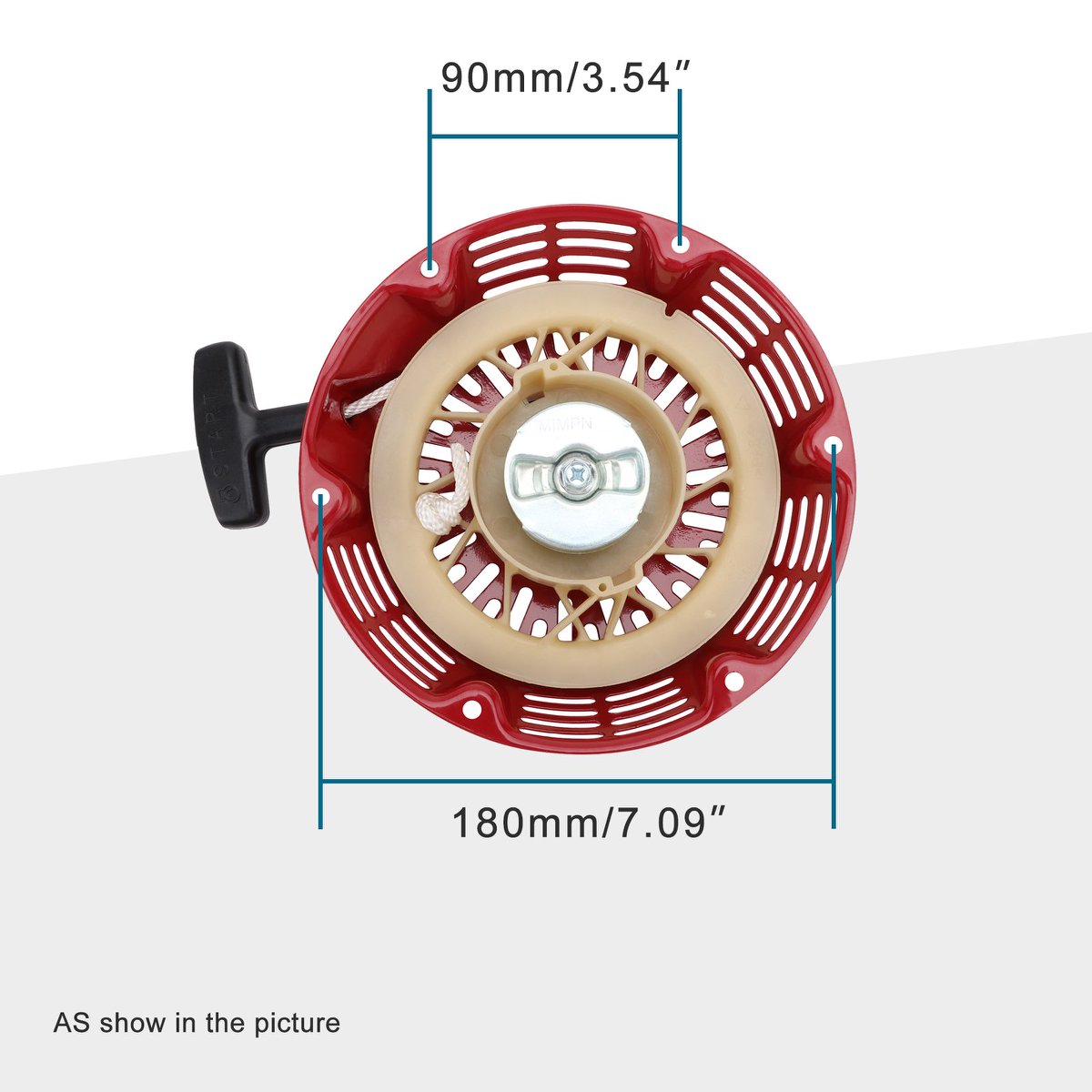

Compare the product dimension image directly with your original starter before purchase.
