Harley Sportster 883 1200 Stator 2007–2018 | 29997-07A
Harley Sportster 883 1200 Stator 2007–2018 | 29997-07A
Couldn't load pickup availability
Product Overview

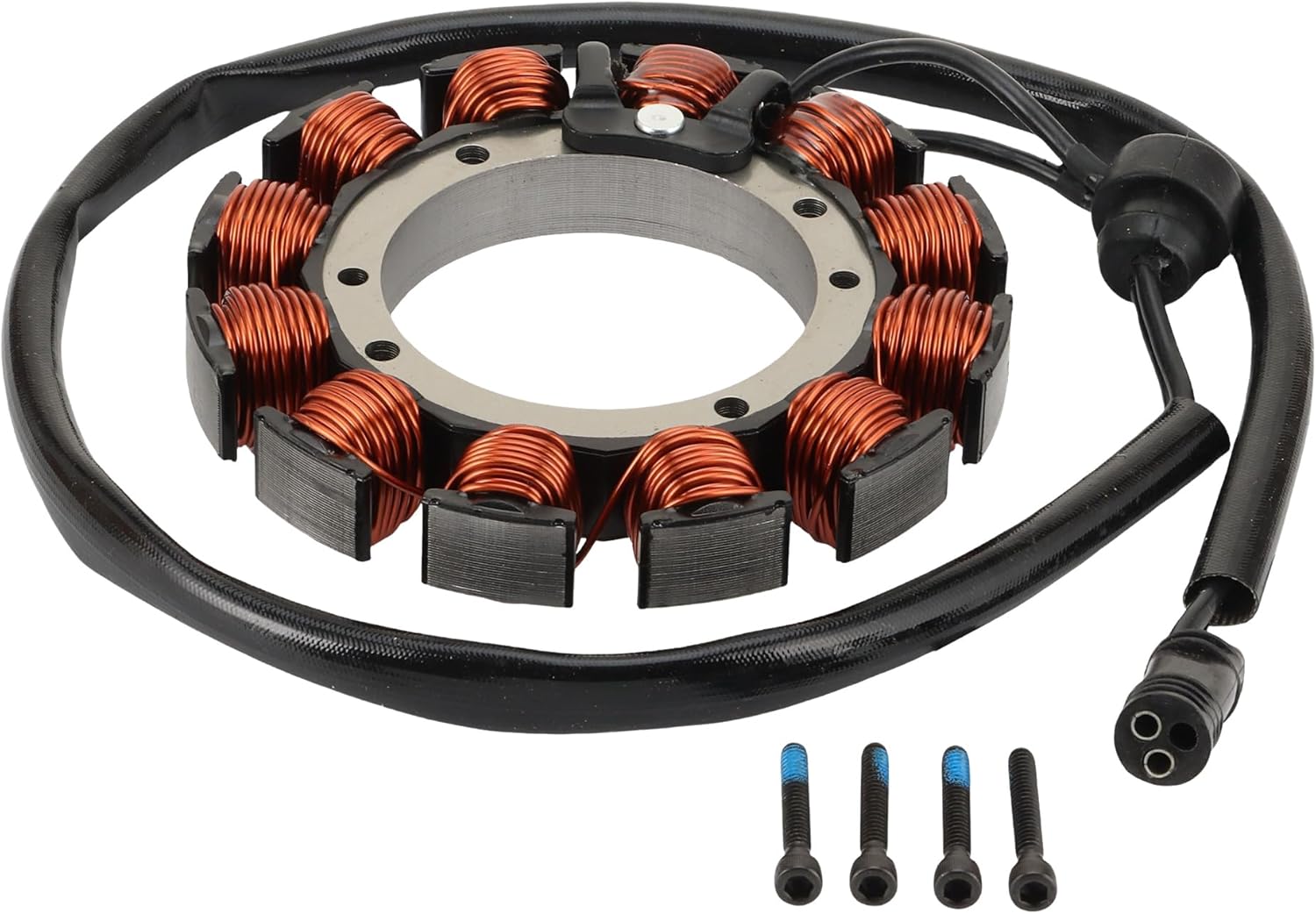

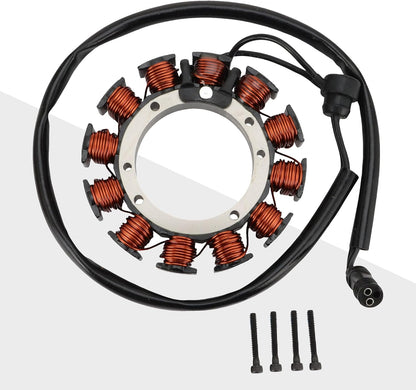

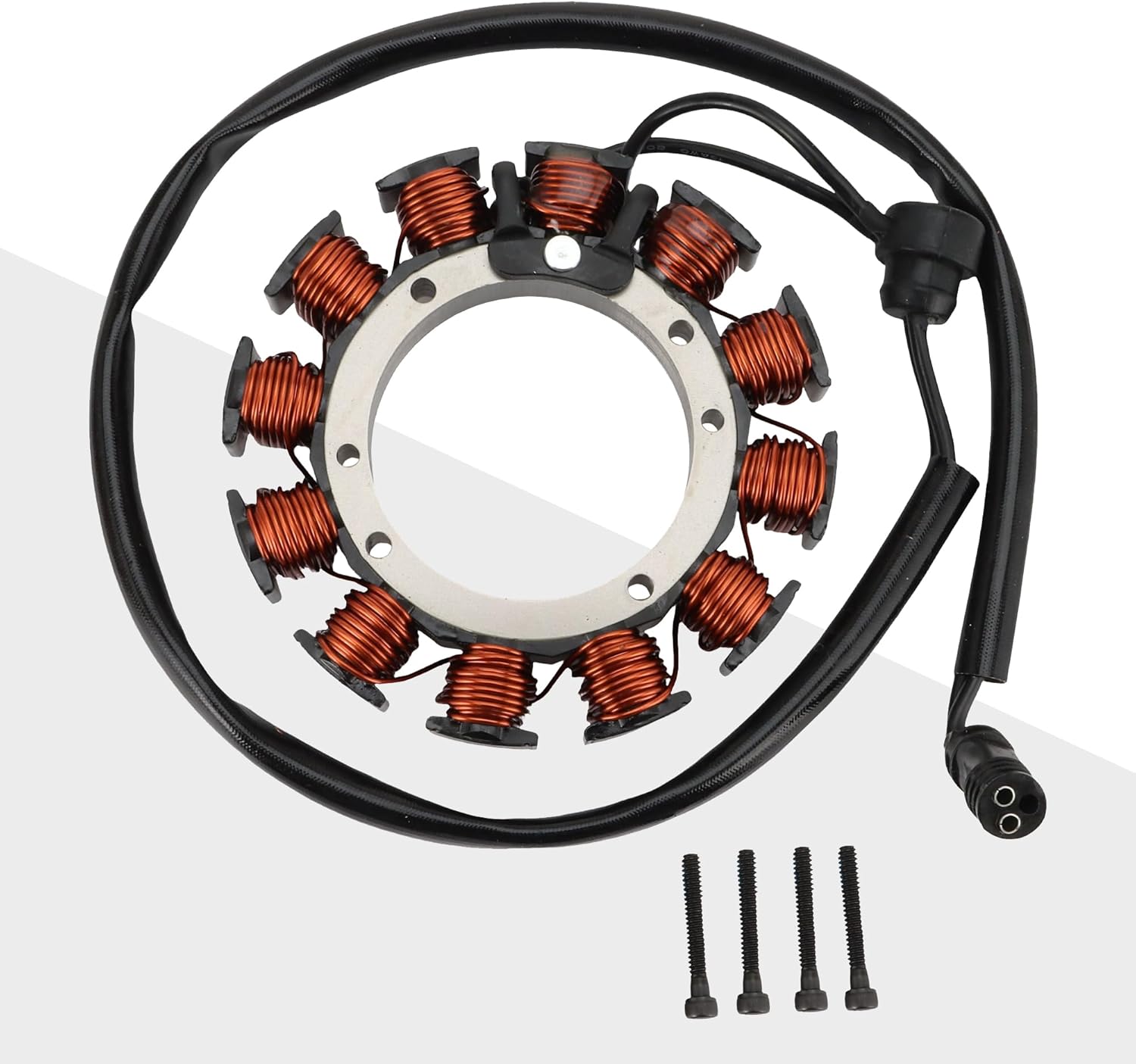

Restore reliable charging performance to your Harley-Davidson Sportster with this replacement 12-pole magneto stator coil.
Designed to replace Harley-Davidson OEM 29997-07A and related stator number 29997-07, this stator helps provide stable electrical output for the charging system. It is a practical replacement for common charging-related issues such as weak battery charging, low voltage output, intermittent electrical failure, charging system instability, or a failing alternator stator.
Product Compatibility
| Brand | Model | Sub-Model / Notes | Year Range | OEM Reference |
|---|---|---|---|---|
| Harley-Davidson | Sportster 883 | XL883 / EFI models | 2007–2018 | 29997-07A, 29997-07 |
| Harley-Davidson | Sportster 883 Low | XL883L / EFI Low | 2007–2010 | 29997-07A, 29997-07 |
| Harley-Davidson | Iron 883 | XL883N | 2009–2018 | 29997-07A, 29997-07 |
| Harley-Davidson | Sportster 1200 Custom | XL1200C / EFI Custom | 2007–2018 | 29997-07A, 29997-07 |
| Harley-Davidson | Sportster 1200 Low | XL1200L | 2007–2011 | 29997-07A, 29997-07 |
| Harley-Davidson | Nightster | XL1200N | 2007–2012 | 29997-07A, 29997-07 |
| Harley-Davidson | Roadster | XL1200R / XL1200CX | 2007–2008 / selected later Roadster applications | 29997-07A, 29997-07 |
| Harley-Davidson | Forty-Eight | XL1200X | 2010–2018 | 29997-07A, 29997-07 |
| Harley-Davidson | Seventy-Two | XL1200V | 2012–2016 | 29997-07A, 29997-07 |
| Harley-Davidson | XR1200 / XR1200X | Sportster performance model | 2009–2012 | 29997-07A, 29997-07 |
OEM Cross Reference
| OEM / Interchange Number | Brand / Reference | Notes |
|---|---|---|
| 29997-07A | Harley-Davidson | Main Sportster stator replacement number |
| 2999707A | Harley-Davidson format | Same number without dash |
| 29997-07 | Harley-Davidson | Earlier / related stator reference |
| 2999707 | Harley-Davidson format | Same number without dash |
| 29900067 | Harley-Davidson / aftermarket reference | Listed by some aftermarket suppliers as related replacement number |
Specifications
| Specification | Details |
|---|---|
| Product Type | Magneto Stator Coil / Alternator Stator |
| Replacement OEM Numbers | 29997-07A, 29997-07 |
| Output Type | 32 Amp charging system, verify with original part |
| Pole Configuration | 12-pole stator |

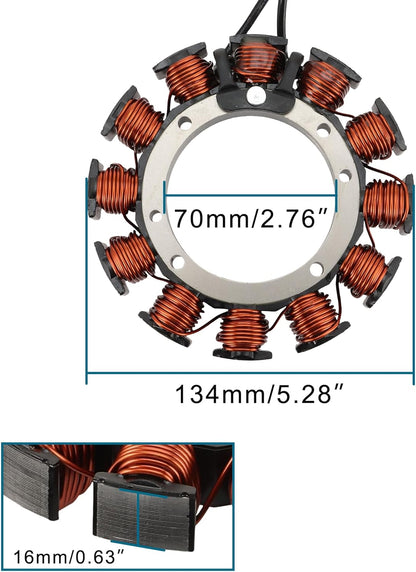

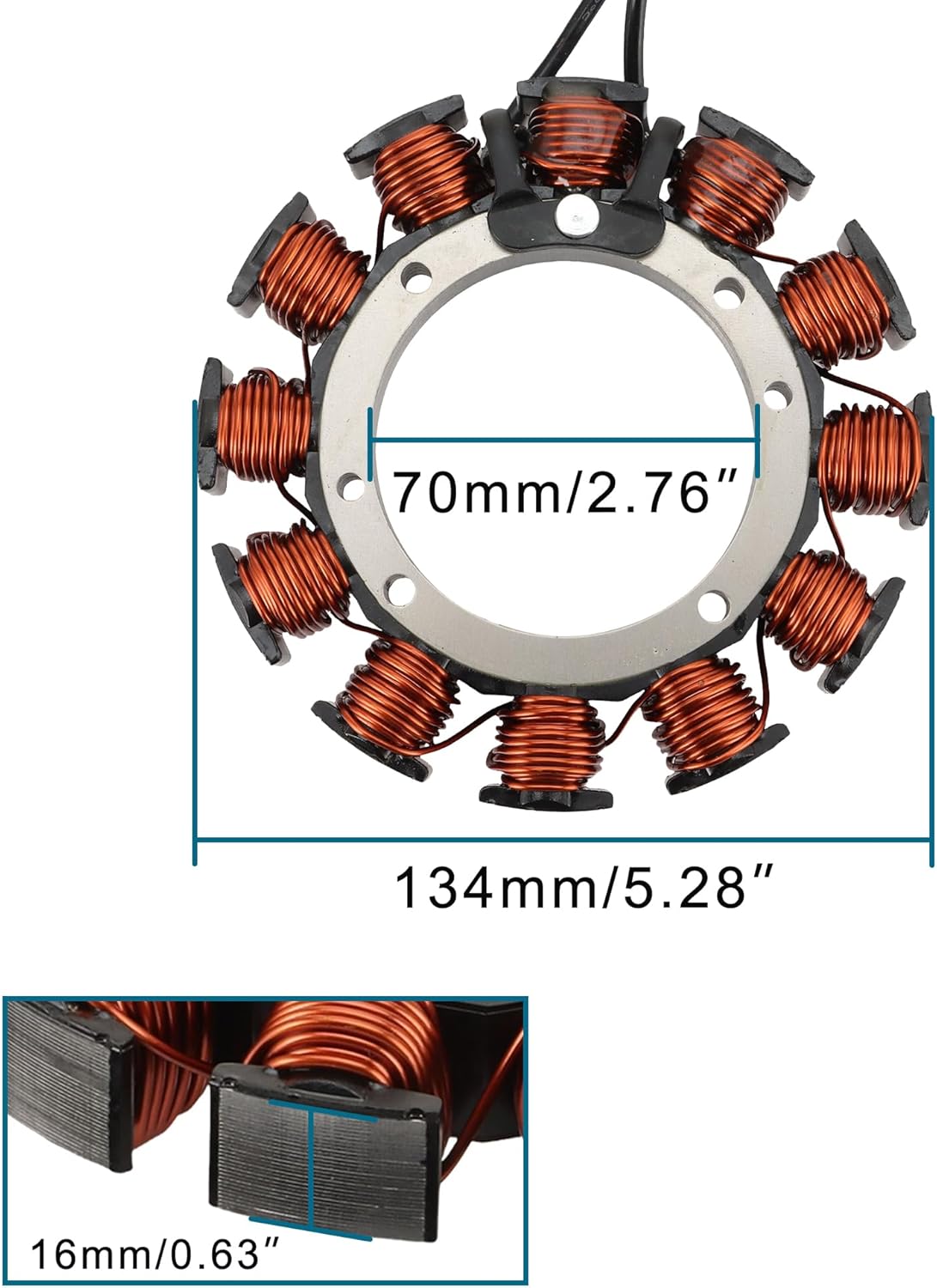

| Outer Diameter | 134 mm / 5.28 in |
| Inner Diameter | 70 mm / 2.76 in |
| Iron Core Height | 16 mm / 0.63 in |
| Application | Harley-Davidson Sportster 883 / 1200 charging system |
| Material | Copper windings with heat-resistant insulation |
| Installation | Professional installation recommended |
Key Features
- Replaces Harley-Davidson Sportster stator numbers 29997-07A and 29997-07
- Designed for selected Sportster 883 and Sportster 1200 models from 2007–2018
- 12-pole stator design supports stable charging-system output
- Helps restore battery charging, lighting power, and electrical system stability
- Copper winding construction supports consistent generator performance
- Heat-resistant insulation helps improve durability during long rides and high-temperature operation
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for OEM Reference; Harley-Davidson; Sportster 883; XL883 / EFI models; 2007–2018; 29997-07A, 29997-07. It is best matched to original part number(s) 29997-07A, 29997-07, 2999707. Key physical/spec details from the product data include Outer Diameter: 134 mm / 5.28 in, Inner Diameter: 70 mm / 2.76 in, Iron Core Height: 16 mm / 0.63 in. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 29997-07A, 29997-07, 2999707 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Harley XL883 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 29997-07A, 29997-07, 2999707, treat the fitment as unconfirmed. Model years outside 2007–2018, 2007–2010, 2009–2018, 2007–2011, 2007–2012 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?

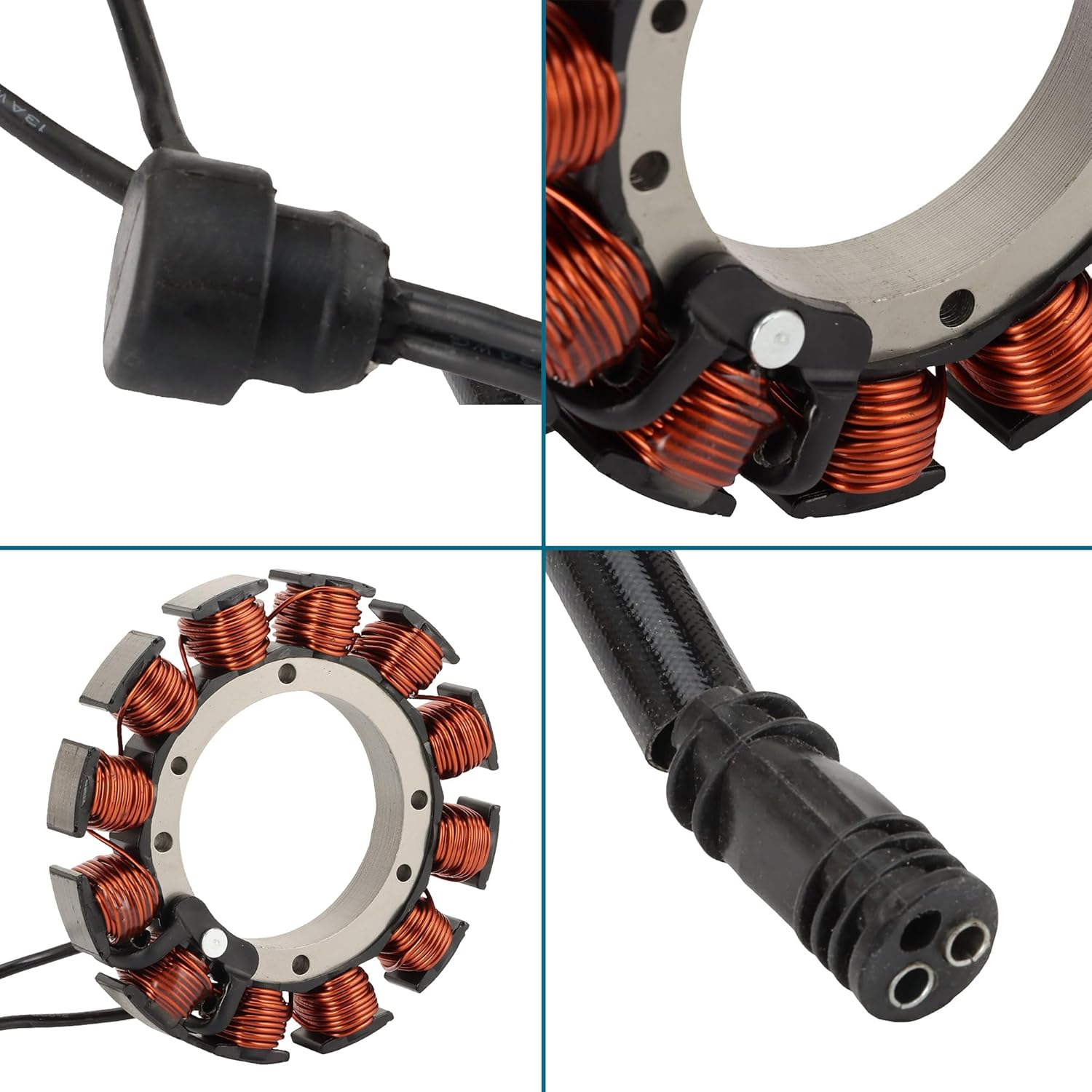

Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 29997-07A, 29997-07, 2999707. Recheck listed specs such as Outer Diameter: 134 mm / 5.28 in, Inner Diameter: 70 mm / 2.76 in, Iron Core Height: 16 mm / 0.63 in. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
