Harley Sportster XL883 XL1200 Magneto Stator | 29967-89C
Harley Sportster XL883 XL1200 Magneto Stator | 29967-89C
Couldn't load pickup availability
Product Overview

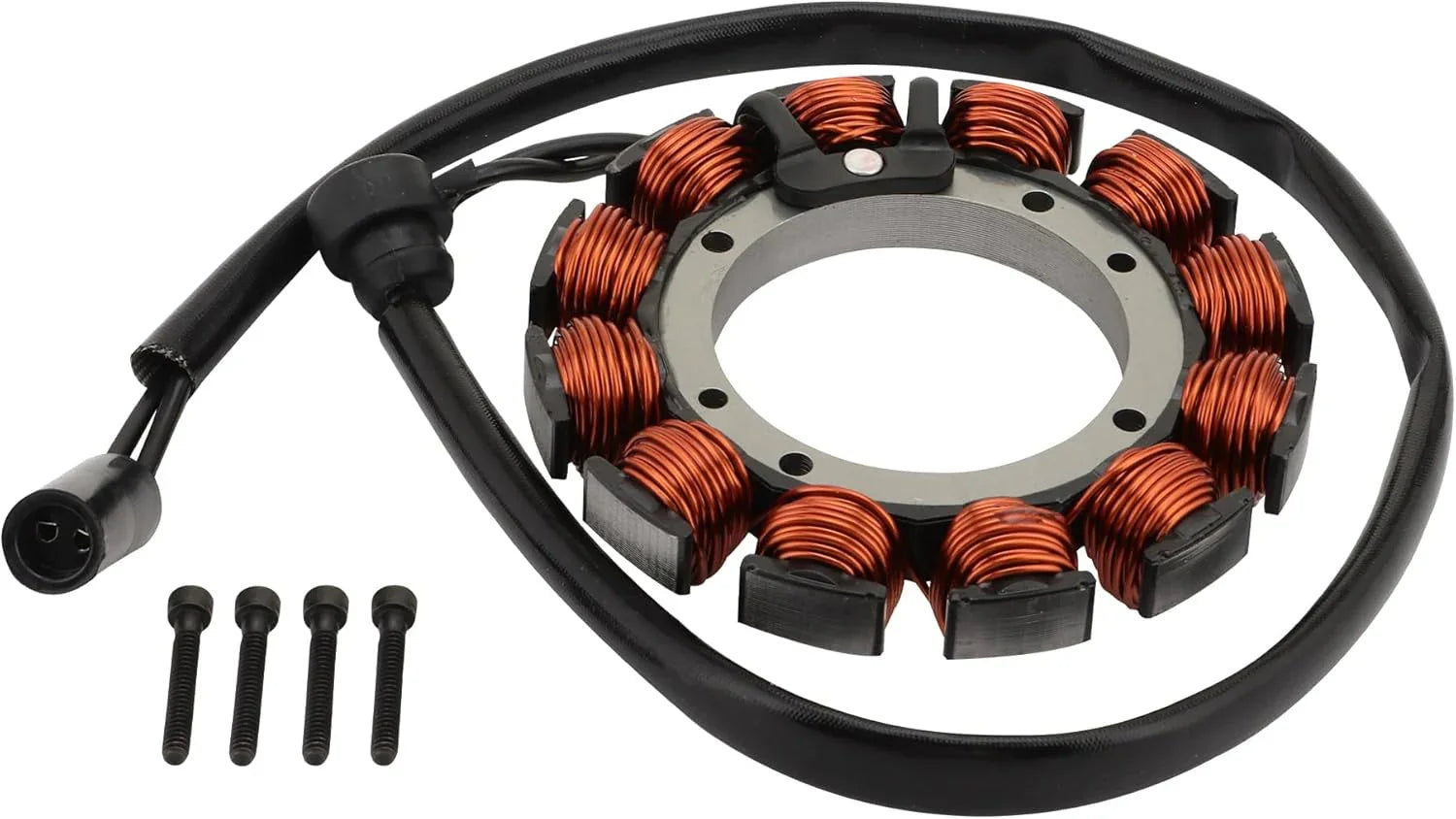

Restore reliable charging performance with this motorcycle magneto stator coil, designed for selected Harley-Davidson Sportster XL883 and XL1200 models.
Built to replace 29967-89C, this stator helps maintain stable electrical output, efficient battery charging, and dependable motorcycle electrical-system performance. It is a practical replacement for a worn, burned, or failing original stator.

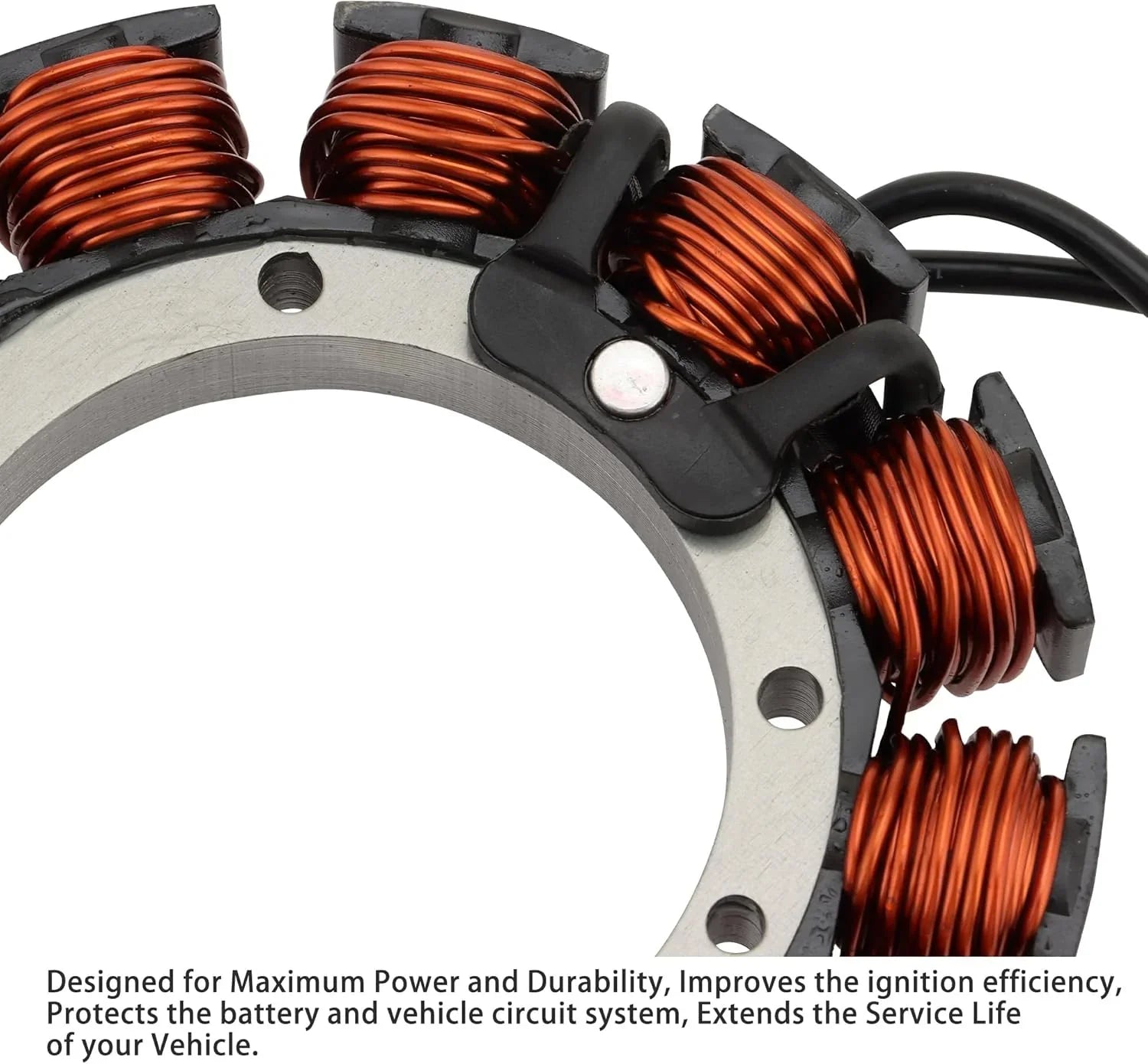

Crafted with high-grade copper windings and durable lamination materials, this stator delivers stable power output and helps support longer battery life under normal riding conditions.
Product Compatibility
| Brand | Model | Engine / HP / CC | Year Range | Notes |
|---|---|---|---|---|
| Harley-Davidson | Sportster XL883 | 883cc | 1991–2006 | Verify OEM number, connector style, and stator dimensions before purchase |
| Harley-Davidson | Sportster XL883C | 883cc | Please verify | Match by OEM number and original stator appearance |
| Harley-Davidson | Sportster XL1200 | 1200cc | 1991–2006 | Verify OEM number, connector style, and stator dimensions before purchase |
| Harley-Davidson | Sportster XL1200C | 1200cc | Please verify | Match by OEM number and original stator appearance |
| Harley-Davidson | Sportster XL1200S | 1200cc | Please verify | Match by OEM number and original stator appearance |
| Harley-Davidson | Sportster XL1200R | 1200cc | Please verify | Match by OEM number and original stator appearance |
OEM Cross Reference:
29967-89C
Related Cross References:
29967-89, 29967-89A, 29967-89B
Specifications
| Specification | Details |
|---|---|
| Part Type | Motorcycle Magneto Stator Coil |
| Stator Type | 17 Amp Single Phase Stator |

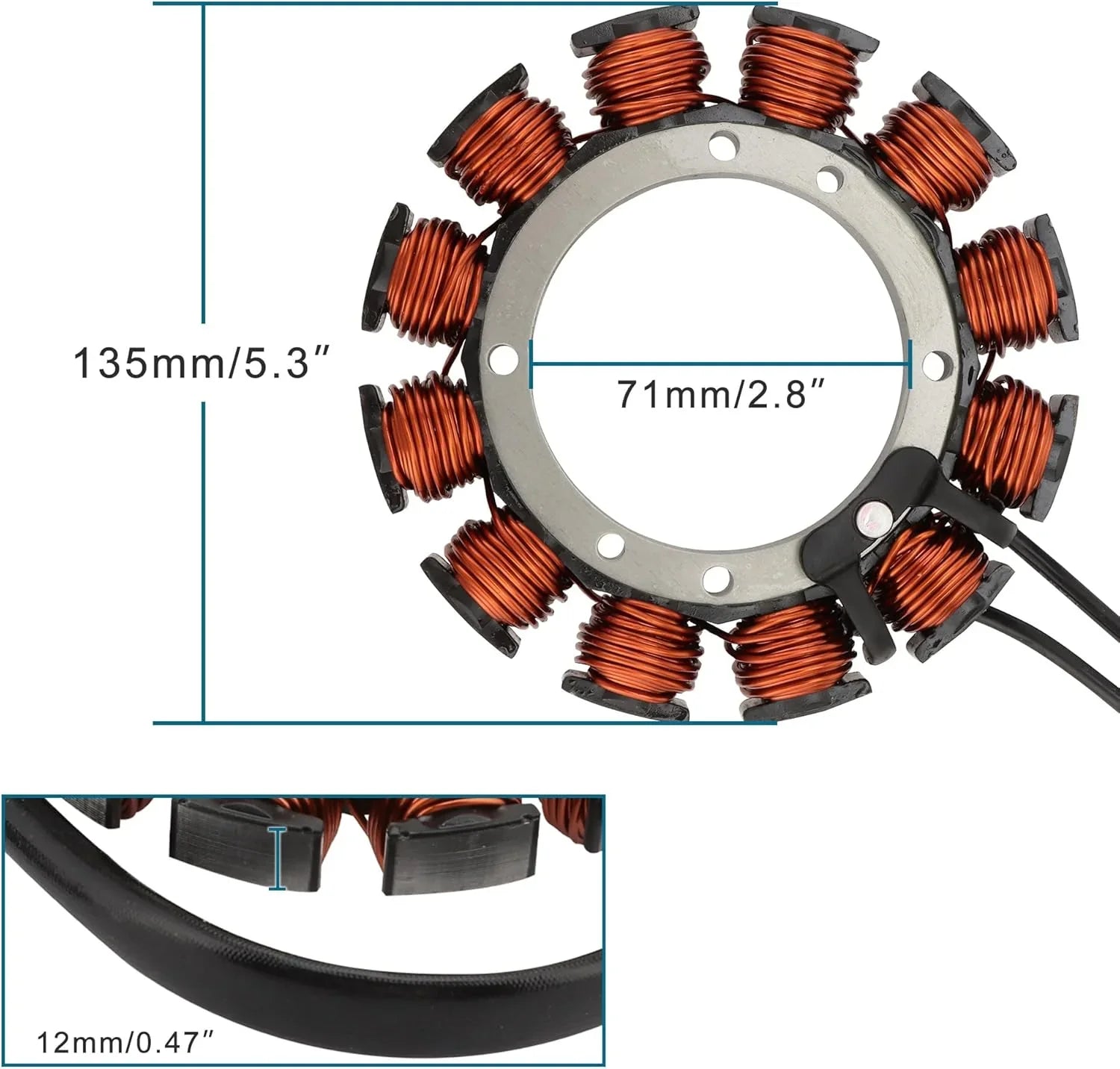

| Outer Diameter | 135 mm / 5.31" |
| Inner Diameter | 71 mm / 2.8" |
| Iron Core Height | 12 mm / 0.47" |
| OEM Replacement | 29967-89C |
| Material | Copper windings / High-grade lamination materials |
| Function | Charging system power generation |
| Installation | Direct replacement on correctly matched applications |
| Fitment Method | Match by OEM number, stator size, connector style, and original part layout |
| Condition | 100% New Aftermarket |
Key Features
- Sportster XL883 / XL1200 Fitment – Designed for selected Harley-Davidson Sportster 883cc and 1200cc models
- OEM-Style Replacement – Built to replace stator reference 29967-89C
- Stable Charging Output – Helps maintain battery charging and electrical-system performance
- Copper Winding Construction – Supports efficient power generation and reliable operation
- Durable Lamination Materials – Built for heat resistance and long service life
- Direct Replacement Style – Designed for easy installation when dimensions and connector match
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Engine / HP / CC. Listed year information includes 1991–2006, 1991, 2006. It is best matched to original part number(s) 29967-89C, 29967-89, 29967-89A, 29967-89B. Key physical/spec details from the product data include Outer Diameter: 135 mm / 5.31", Inner Diameter: 71 mm / 2.8", Iron Core Height: 12 mm / 0.47". Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 29967-89C, 29967-89, 29967-89A, 29967-89B before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Harley XL883/XL1200 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 29967-89C, 29967-89, 29967-89A, 29967-89B, treat the fitment as unconfirmed. Model years outside 1991–2006, 1991, 2006 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 29967-89C, 29967-89, 29967-89A, 29967-89B. Recheck listed specs such as Outer Diameter: 135 mm / 5.31", Inner Diameter: 71 mm / 2.8", Iron Core Height: 12 mm / 0.47". If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
