2008–2015 Honda CBF125 12-Coil 4-Wire Stator 31120-KWF-941
2008–2015 Honda CBF125 12-Coil 4-Wire Stator 31120-KWF-941
Couldn't load pickup availability
Product Overview

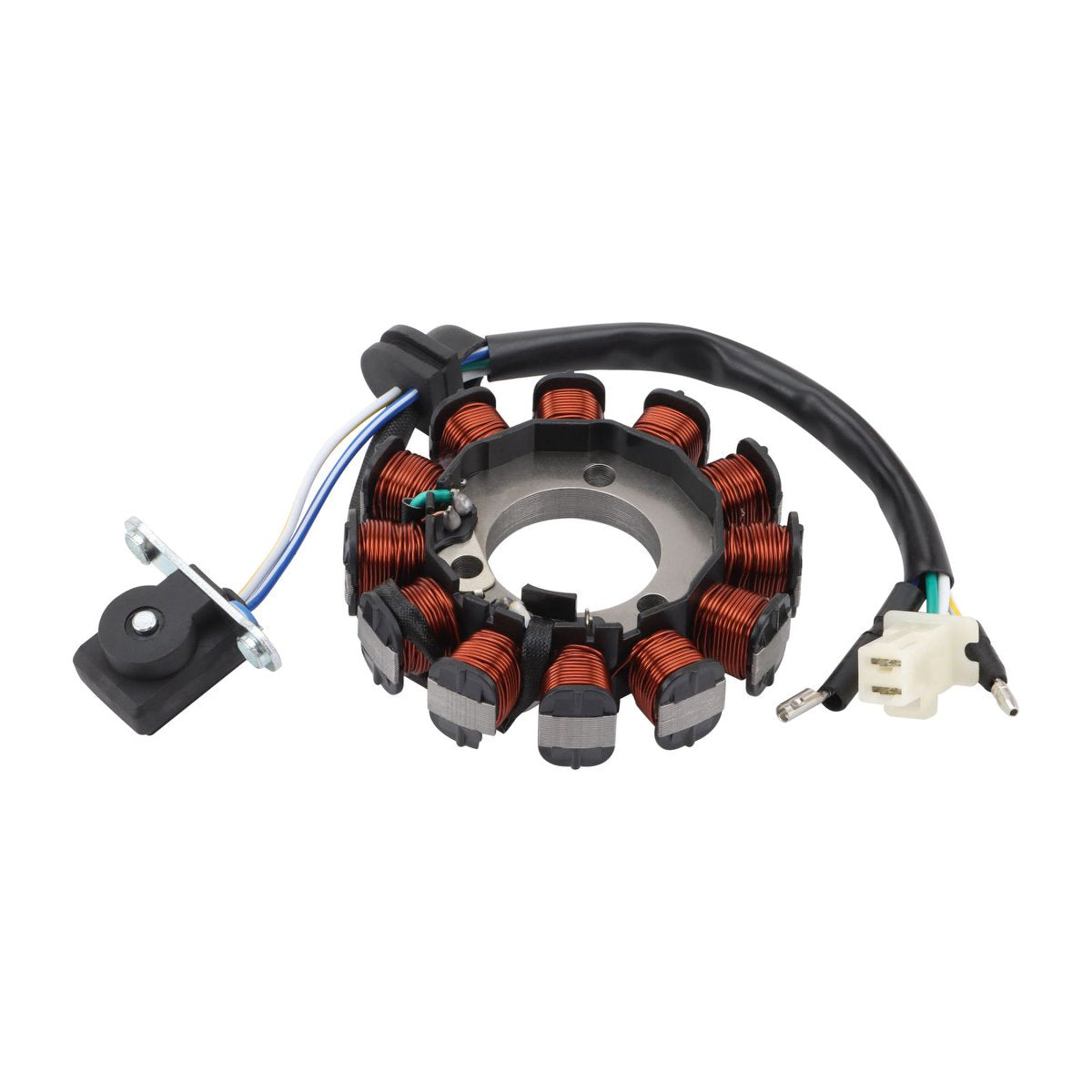

Replace a weak, burned, or failed stator with this 12-coil 4-wire magneto stator, designed for select 2008–2015 Honda CBF125 / CBF 125 motorcycles using OEM reference number 31120-KWF-941.
The stator is an important part of the motorcycle charging and ignition system. It helps generate electrical power while the engine is running, supporting the battery, ignition system, lights, and related electrical components. If your Honda CBF125 has weak charging, low battery voltage, dim lights, hard starting, unstable electrical output, or stator-related failure, replacing the stator may help restore normal electrical performance.

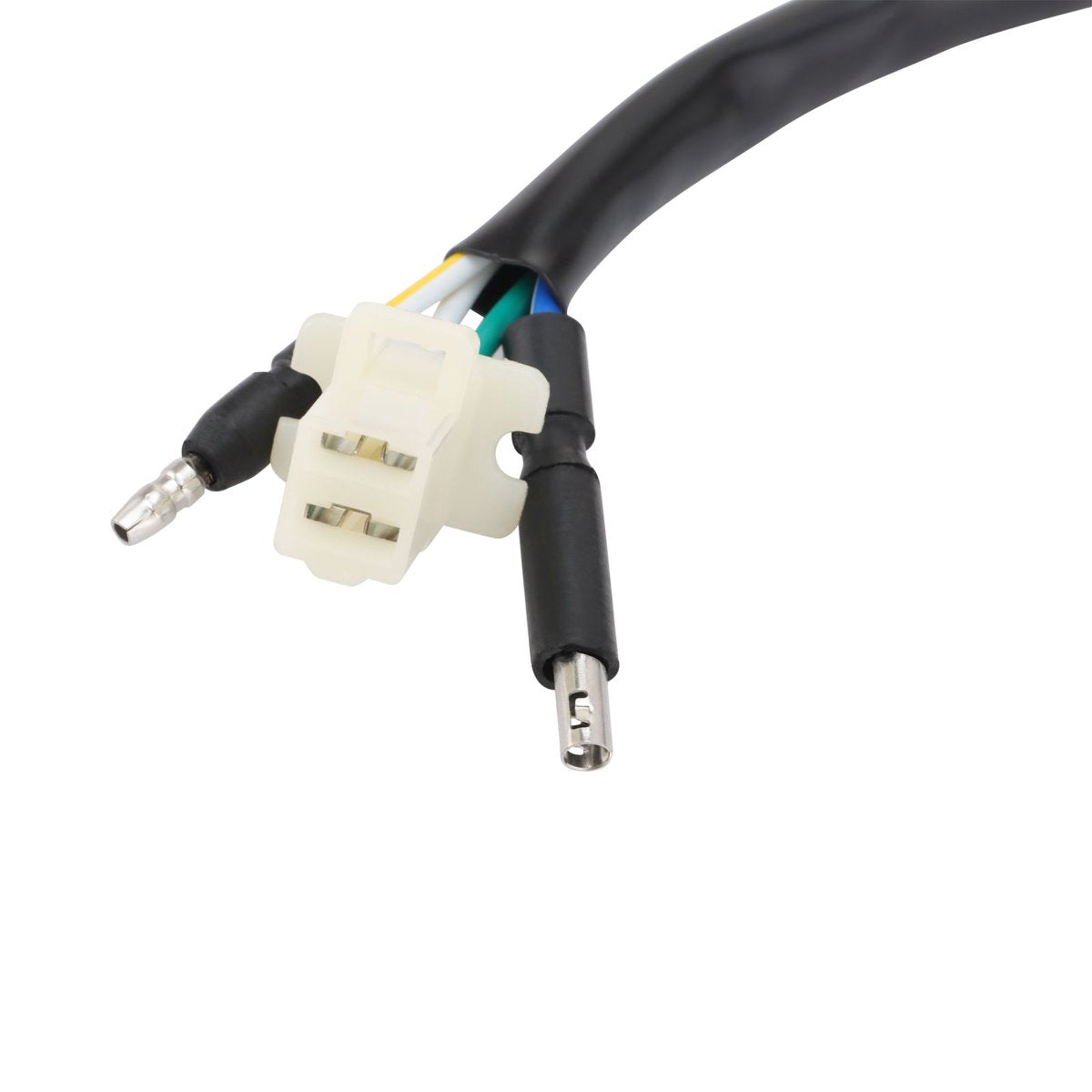

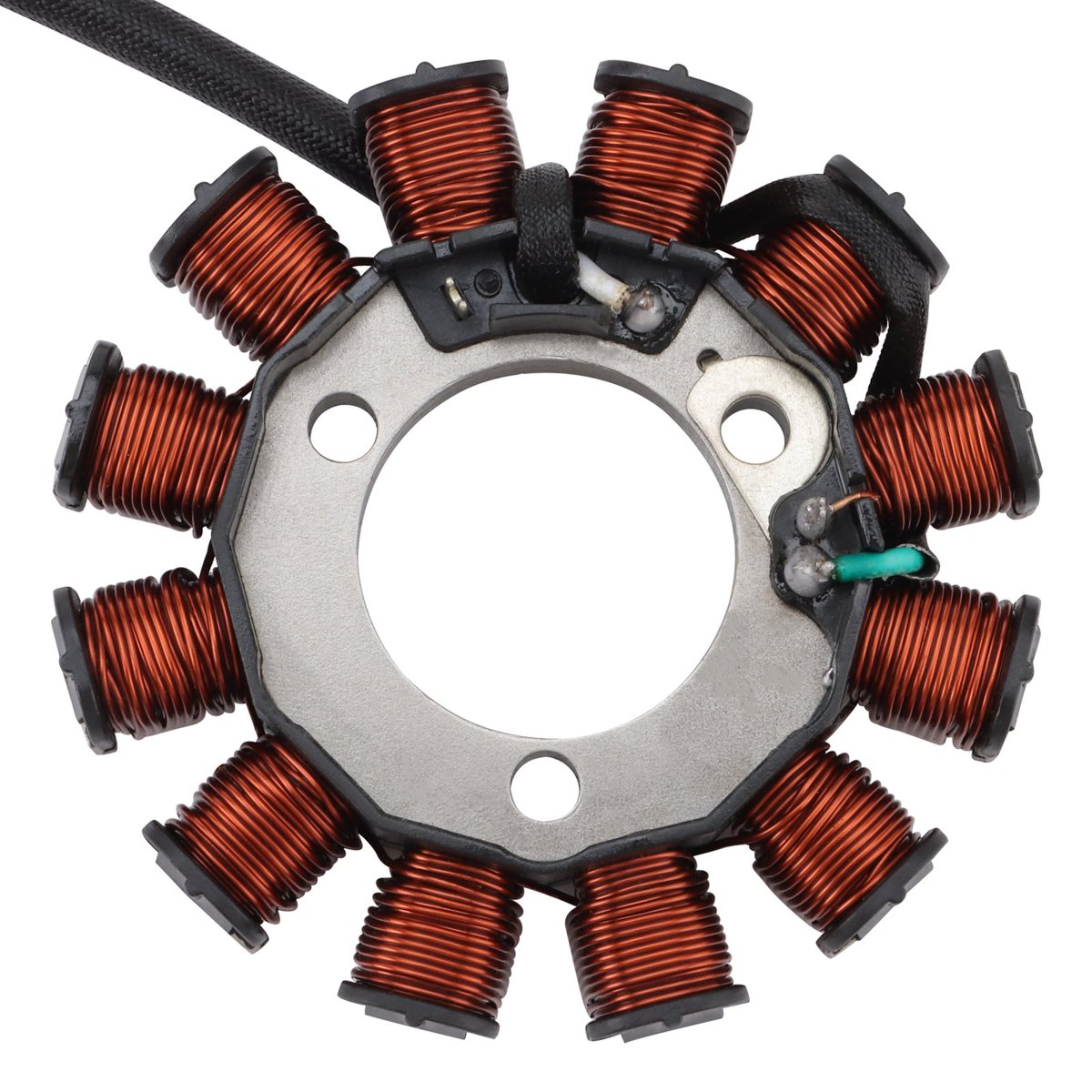

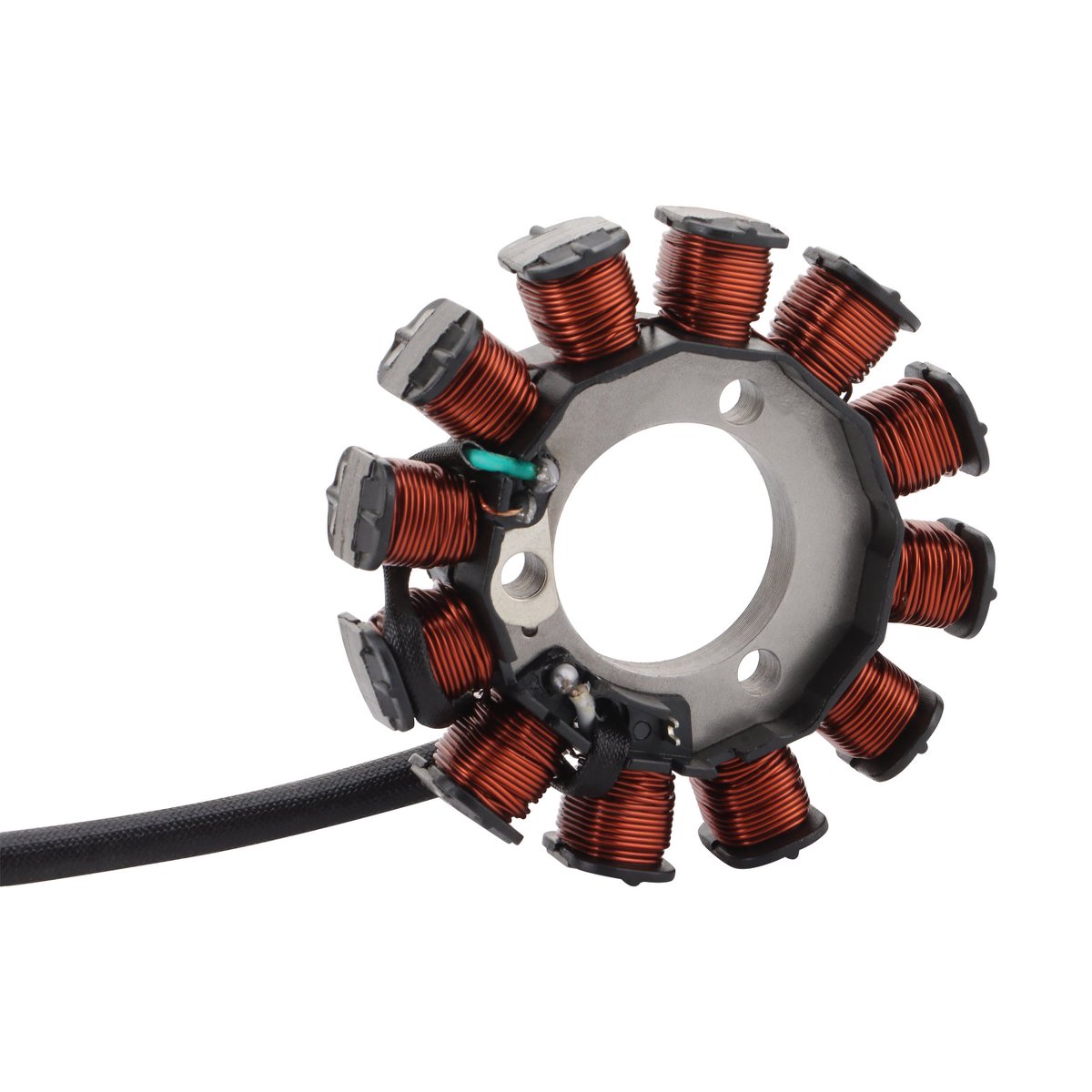

Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, and reliable daily riding use. Please compare your original stator’s OEM number, coil count, wire count, plug layout, trigger coil position, mounting hole distance, thickness, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Honda | CBF125 | 2008–2015 | 31120-KWF-941 | Main fitment; confirm original stator size and connector layout |
| Honda | CBF 125 | 2008–2015 | 31120-KWF-941 | Model-name variation; verify original part before ordering |
| Honda | CBF125 Motorcycle | 2008–2015 | 31120-KWF-941 | Fits matching 12-coil 4-wire stator version only |
Important Fitment Note:

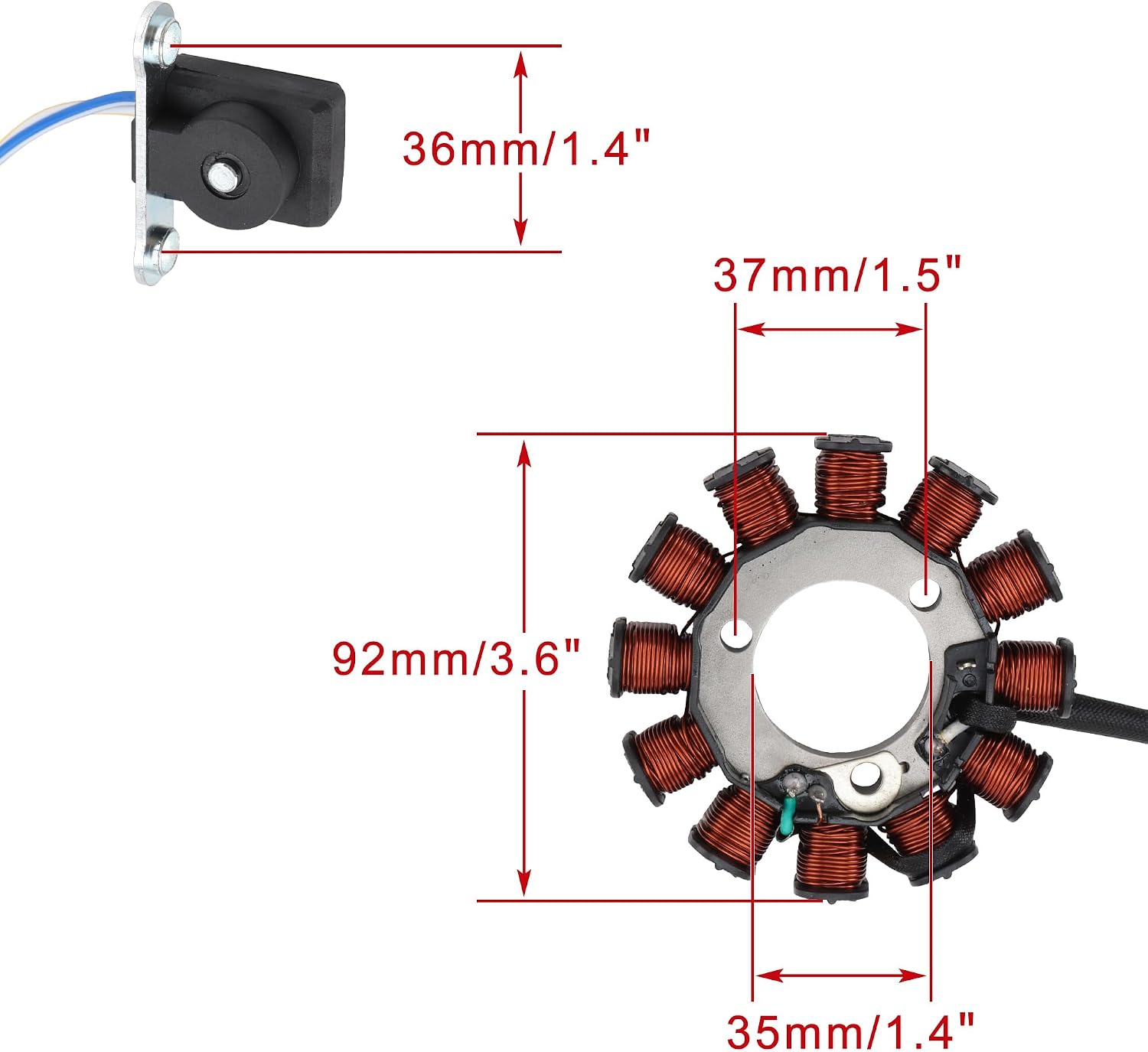

This part is not selected by model name alone. Honda CBF125 models may vary by market, year, wiring system, and production version. Please confirm your original stator matches OEM 31120-KWF-941, the 12-coil / 4-wire layout, DC type, 35mm inner diameter, 92mm outer diameter, 37mm mounting hole distance, 36mm trigger mounting hole distance, and overall plug layout before ordering.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Stator Coil |
| Coil Count | 12 Coils / 12 Poles |
| Wire Count | 4 Wire |
| Electrical Type | DC |
| Inner Diameter | 35mm / 1.4" |
| Outer Diameter | 92mm / 3.6" |

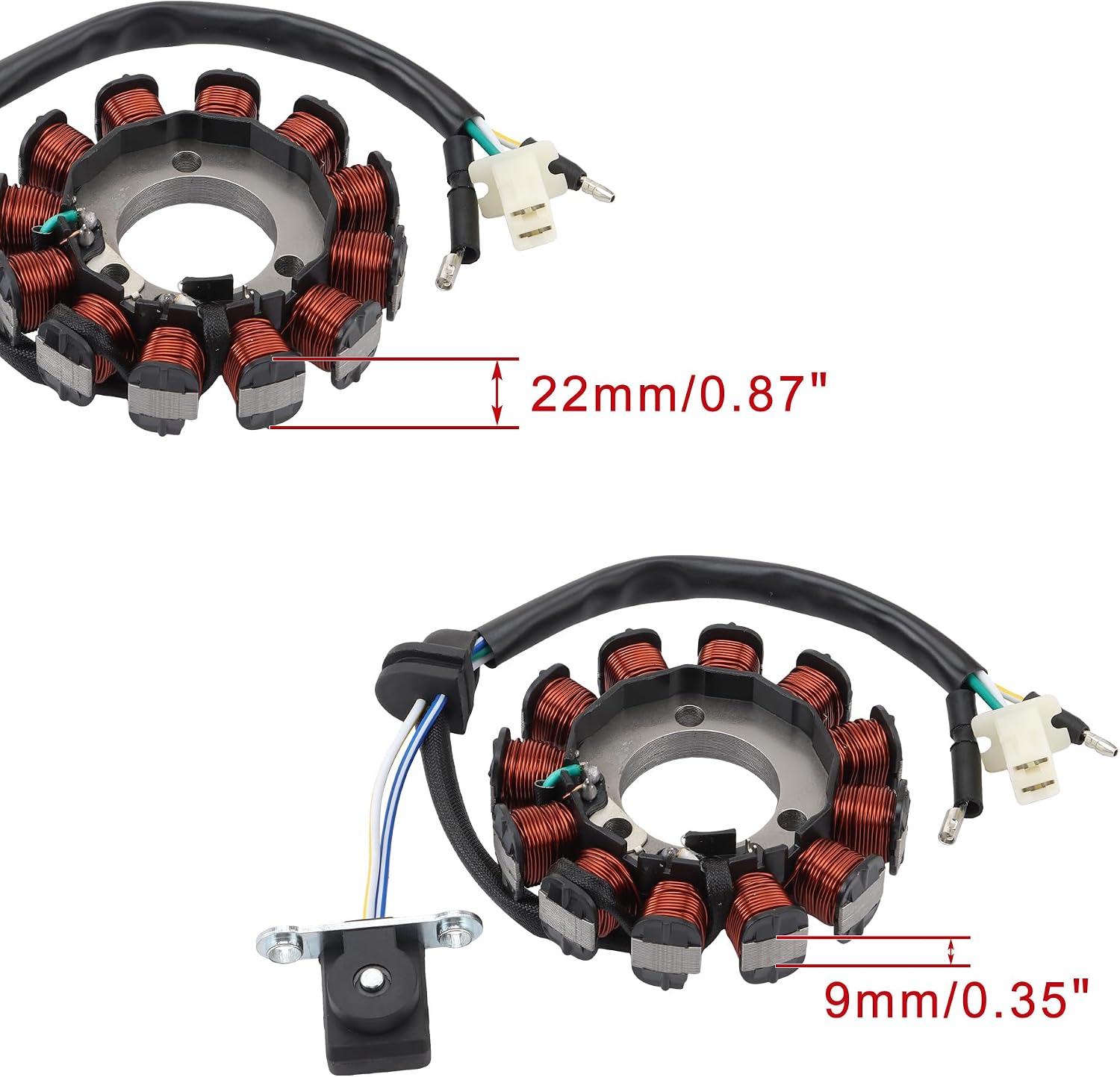

| Iron Core Height | 9mm / 0.35" |
| Mounting Hole Distance | 37mm / 1.5" |
| Thickness | 22mm / 0.87" |
| Trigger Mounting Hole Distance | 36mm / 1.4" |
| OEM Reference | 31120-KWF-941 |
| Application | Motorcycle Charging / Ignition System |
| Compatible Brand | Honda |
| Material | Metal Lamination Core + Copper Winding |
Key Features
- Designed for select 2008–2015 Honda CBF125 / CBF 125 motorcycles
- Replaces Honda OEM reference number 31120-KWF-941
- 12-coil 4-wire stator helps support charging and ignition system output
- Includes pickup / trigger coil position for matching CBF125 applications
- Helps address weak charging, low battery voltage, hard starting, dim lights, unstable output, or stator failure
- Copper winding supports stable conductivity and improved heat resistance
- Direct replacement style, but original OEM number, plug layout, thickness, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 31120-KWF-941 | Main Honda CBF125 stator reference |
| 31120KWF941 | Compact format of 31120-KWF-941 |
| 31120-KWF-9410 | Possible format variation on some listings; verify before purchase |
Please use the OEM/reference number together with physical dimensions and connector layout for fitment confirmation. If your original stator has a different wire count, outer diameter, inner diameter, trigger coil position, mounting hole spacing, thickness, or plug style, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select Honda CBF125 / CBF 125 motorcycles from 2008–2015 using OEM reference number 31120-KWF-941. Please compare your original stator’s OEM number, wire count, connector layout, inner diameter, outer diameter, mounting hole distance, trigger coil position, thickness, and overall shape before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM or reference number is strongly recommended. This stator replaces Honda OEM 31120-KWF-941. However, OEM number alone is not enough. Please also confirm the 12-coil 4-wire layout, DC electrical type, plug style, inner diameter, outer diameter, mounting hole distance, trigger mounting position, and stator thickness.
What models or situations does this part not fit?
This part does not fit Honda CBF125, CBR125, CG125, CB125F, or other Honda models that use a different stator diameter, different wire count, different connector layout, different trigger coil position, or different charging system design. It is also not a replacement for the regulator rectifier, CDI, ignition coil, battery, flywheel, starter motor, or complete wiring harness.
What should I check before ordering?
Before ordering, please check your motorcycle’s make, model, year, OEM/reference number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, trigger coil position, stator thickness, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
