1999–2006 Honda CBR1100XX Super Blackbird 18-Coil 3-Wire Stator 31120-MAT-E01
1999–2006 Honda CBR1100XX Super Blackbird 18-Coil 3-Wire Stator 31120-MAT-E01
Couldn't load pickup availability
Product Overview

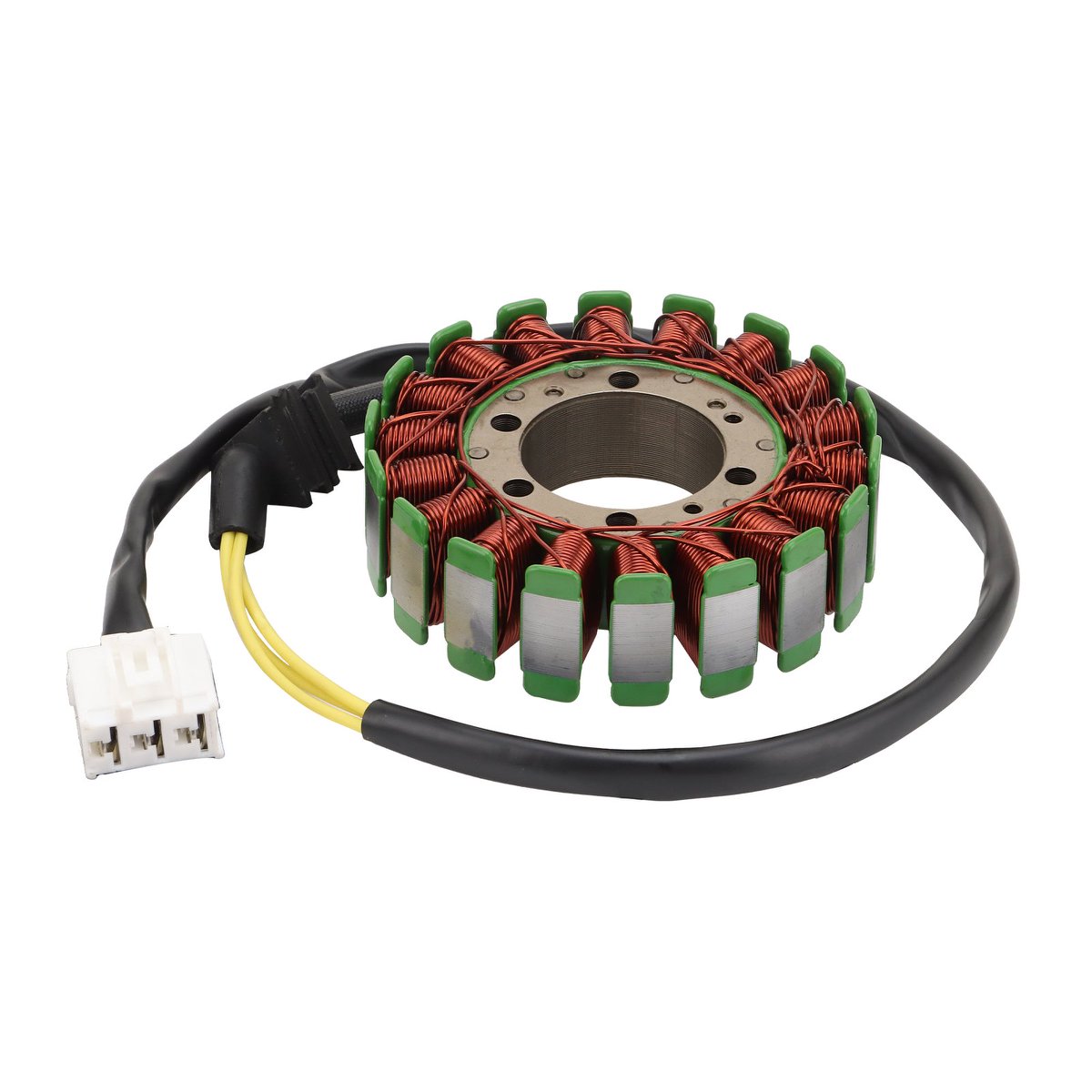

Replace a weak, burned, or failed stator with this 18-coil 3-wire magneto stator, designed for select Honda CBR1100XX Super Blackbird motorcycles from 1999–2006.
The stator is an important part of the motorcycle charging system. It helps generate electrical power while the engine is running, supporting the battery, lights, ignition system, and other electrical components. If your Honda CBR1100XX Blackbird has weak charging, dim lights, unstable voltage, repeated battery drain, or stator-related electrical failure, replacing the stator may help restore normal charging performance.

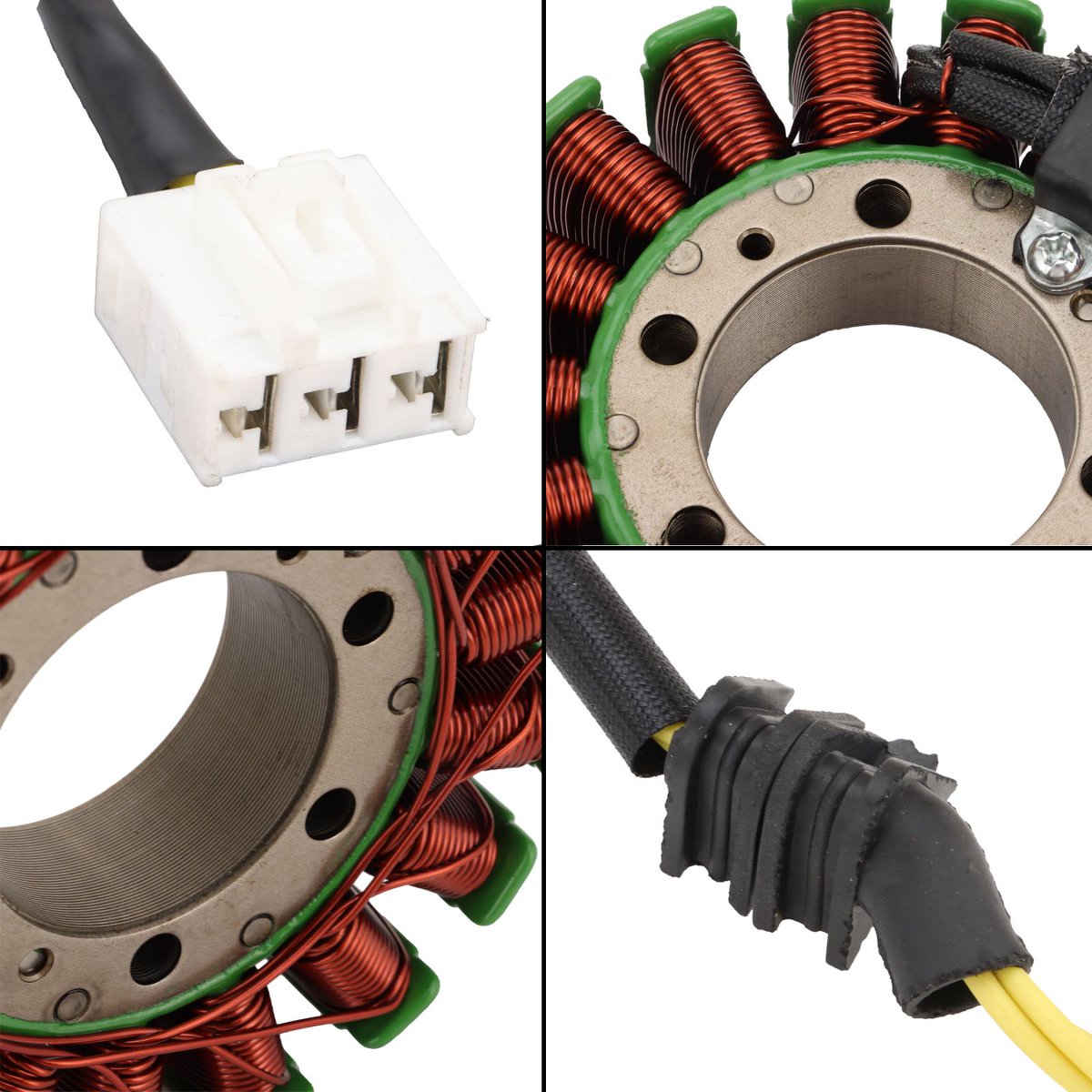

Built with high-quality metal lamination and copper windings, this replacement stator is designed for stable conductivity, rust and corrosion resistance, deformation resistance, and long-term durability. Please compare your original stator’s OEM number, wire count, plug layout, mounting hole distance, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Honda | CBR1100XX Super Blackbird | 1999–2003 | 31120-MAT-E01 | Common confirmed fitment; compare original stator and plug layout |
| Honda | CBR1100XX Blackbird | 2004–2006 | 31120-MAT-E01 | Aftermarket-listed fitment; verify OEM number, size, and connector before ordering |
| Honda | CBR1100XX / CBR 1100 XX | 1999–2006 | 31120-MAT-E01 | Fits only models using the matching 18-coil 3-wire stator |
| Honda | CB1100SF | Select applications | 31120-MAT-E01 | Possible related fitment only if original stator matches this design |
Important Fitment Note:
This part is not selected by engine size alone. Honda CBR1100XX models may use different charging components depending on year, market, and production version. Please confirm your original stator matches OEM 31120-MAT-E01, the 18-coil / 3-wire layout, connector style, mounting hole spacing, and dimensions listed below.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Coil |
| Coil Count | 18 Coils / 18 Poles |
| Wire Count | 3 Wire |
| Electrical Type | DC |

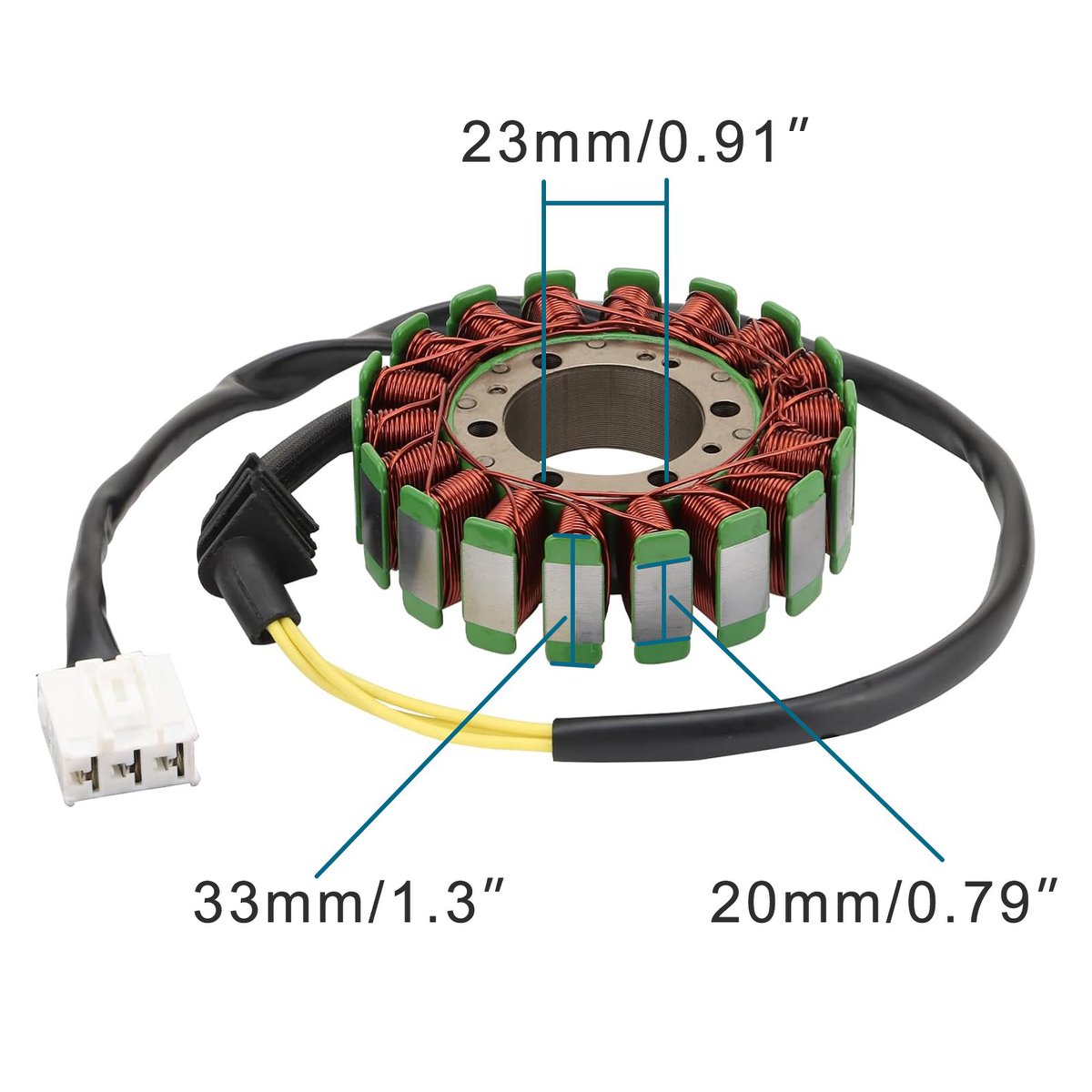

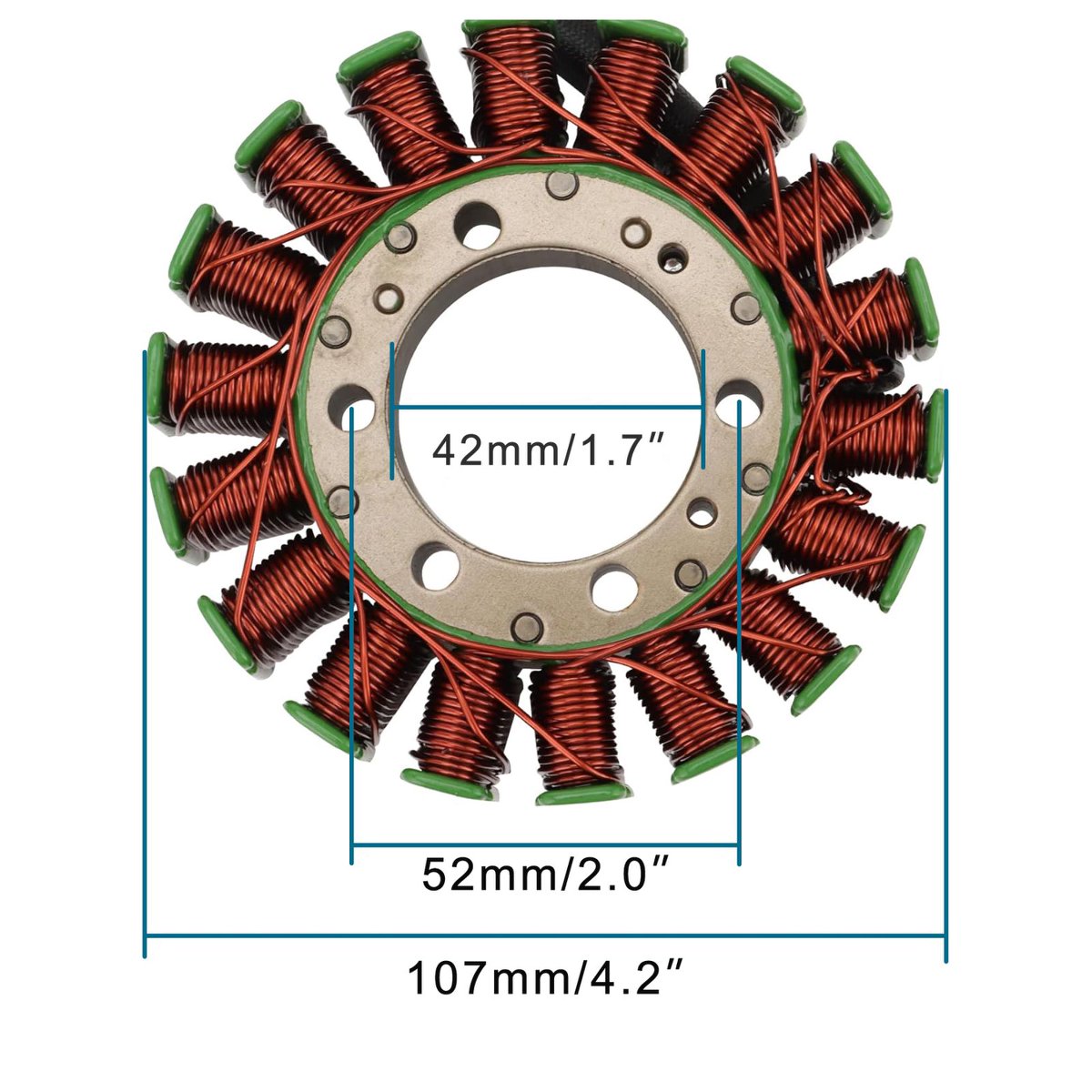

| Inner Diameter | 42mm / 1.7" |
| Outer Diameter | 107mm / 4.2" |
| Iron Core Height | 20mm / 0.79" |
| Mounting Hole Distance | 51mm / 2.0" and 23mm / 0.91" |
| Thickness | 33mm / 1.3" |
| OEM Reference | 31120-MAT-E01 |
| Material | Metal Lamination Core + Copper Winding |
| Application | Motorcycle Charging System |
| Compatible Brand | Honda |
Key Features
- Designed for select 1999–2006 Honda CBR1100XX Super Blackbird motorcycles
- Replaces common OEM reference number 31120-MAT-E01
- 18-coil 3-wire stator helps support stable charging system output
- Helps address weak charging, dim lights, unstable voltage, battery drain, or stator failure
- Copper winding supports stable conductivity and long-term durability
- Metal lamination core helps resist rust, corrosion, deformation, and heat-related wear
- Direct replacement style, but original OEM number, plug layout, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 31120-MAT-E01 | Common OEM reference for Honda CBR1100XX Super Blackbird stator applications |
| 31120-MBG-D01 | Possible cross-reference used on some CBR1100XX aftermarket stator listings; verify before purchase |
| 31120MATE01 | Alternate compact format sometimes used in aftermarket listings |
Please use the OEM number together with physical dimensions and connector layout for fitment confirmation. If your original stator has a different wire count, outer diameter, inner diameter, mounting hole spacing, thickness, or plug style, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select Honda CBR1100XX Super Blackbird models from 1999–2006 using OEM reference number 31120-MAT-E01. Please compare your original stator’s OEM number, wire count, connector layout, inner diameter, outer diameter, mounting hole distance, and thickness before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This stator commonly replaces OEM 31120-MAT-E01. Some aftermarket listings may also reference 31120-MBG-D01, but OEM number alone is not enough. Please also confirm the 18-coil 3-wire layout, plug style, inner diameter, outer diameter, mounting hole distance, and stator thickness.
What models or situations does this part not fit?
This part does not fit Honda CBR1100XX or other Honda models that use a different stator diameter, different wire count, different connector layout, different mounting hole spacing, or a different OEM charging system design. It is also not suitable if your issue is caused only by a bad regulator rectifier, weak battery, burned connector, damaged wiring, or poor ground connection.
What should I check before ordering?
Before ordering, please check your motorcycle’s make, model, year, OEM part number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, stator thickness, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
