1991–2016 Honda CMX250 Rebel CB250 Nighthawk 11-Coil 7-Wire Stator 31120-KEN-691
1991–2016 Honda CMX250 Rebel CB250 Nighthawk 11-Coil 7-Wire Stator 31120-KEN-691
Couldn't load pickup availability
Product Overview

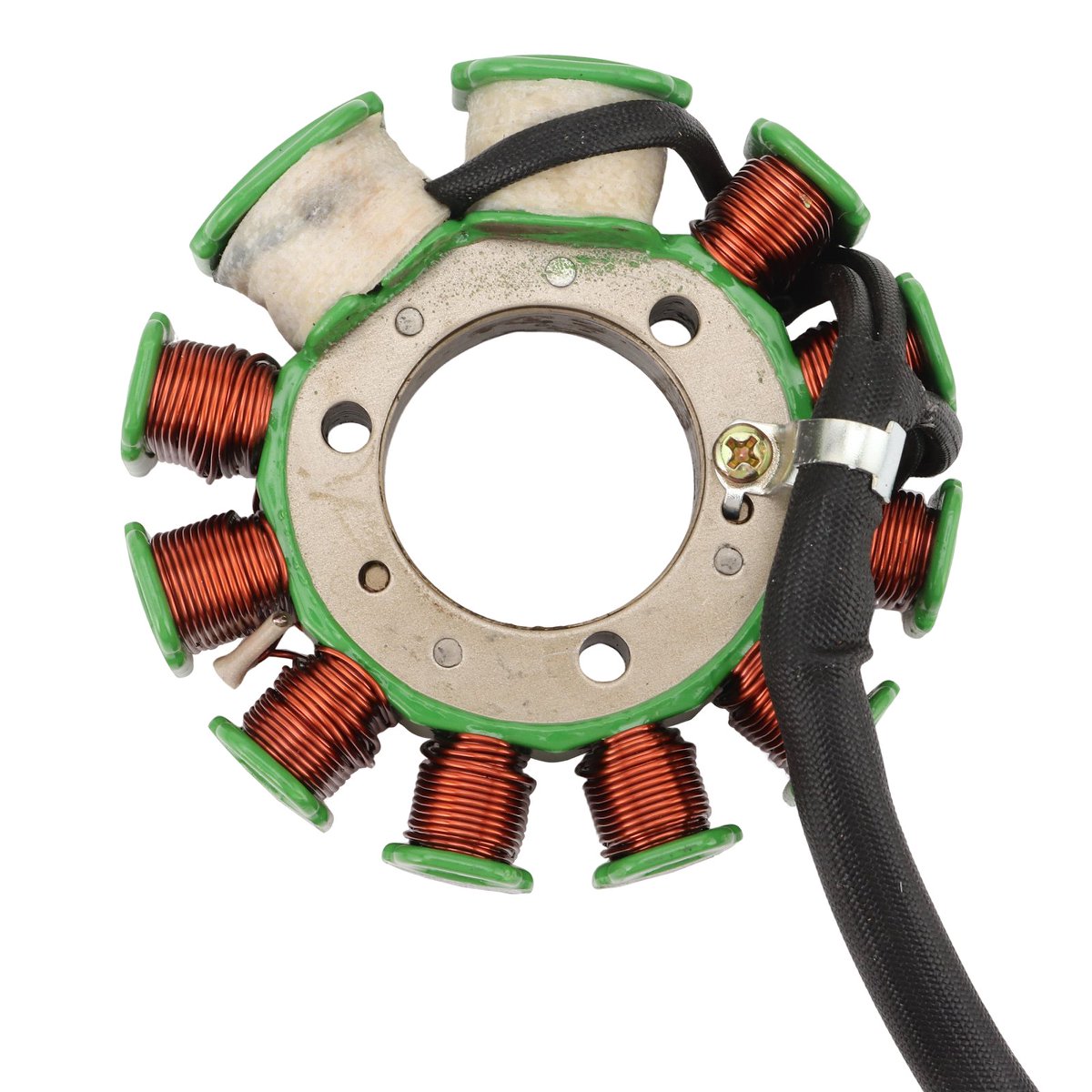

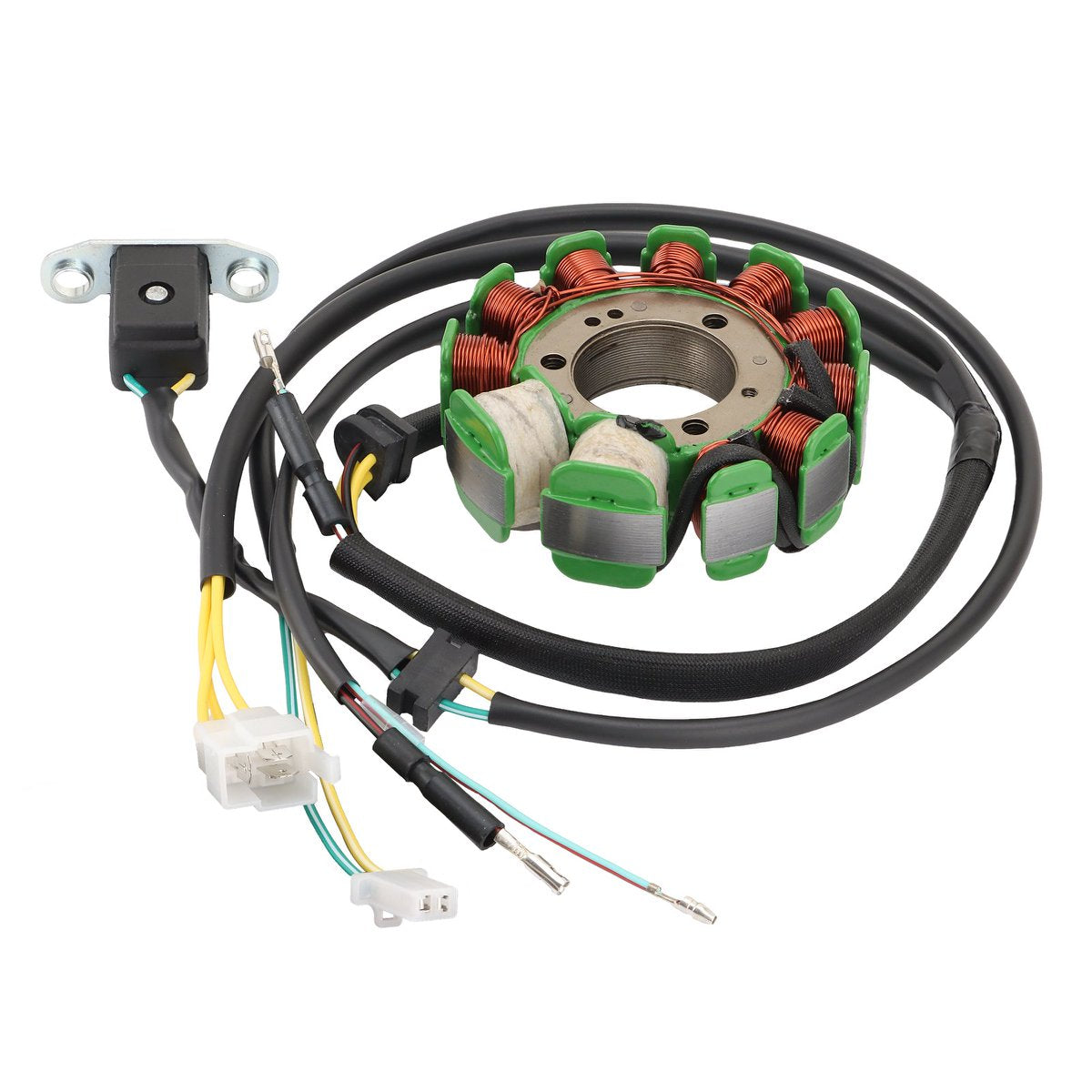

Replace a weak, burned, or failed stator with this 11-coil 7-wire magneto stator, designed for select Honda CMX250 Rebel, CMX250X Rebel, CB250 Nighthawk, and CB250 Two Fifty motorcycles using OEM reference numbers 31120-KEN-691, 31120-KBG-004, and 31120-KBG-A01.
The stator is an important part of the motorcycle charging and ignition system. It helps generate electrical power while the engine is running, supporting the battery, lights, ignition system, and other electrical components. If your Honda Rebel 250 or CB250 has weak charging, no spark, dim lights, unstable voltage, or repeated electrical failure, replacing the stator may help restore normal electrical performance.

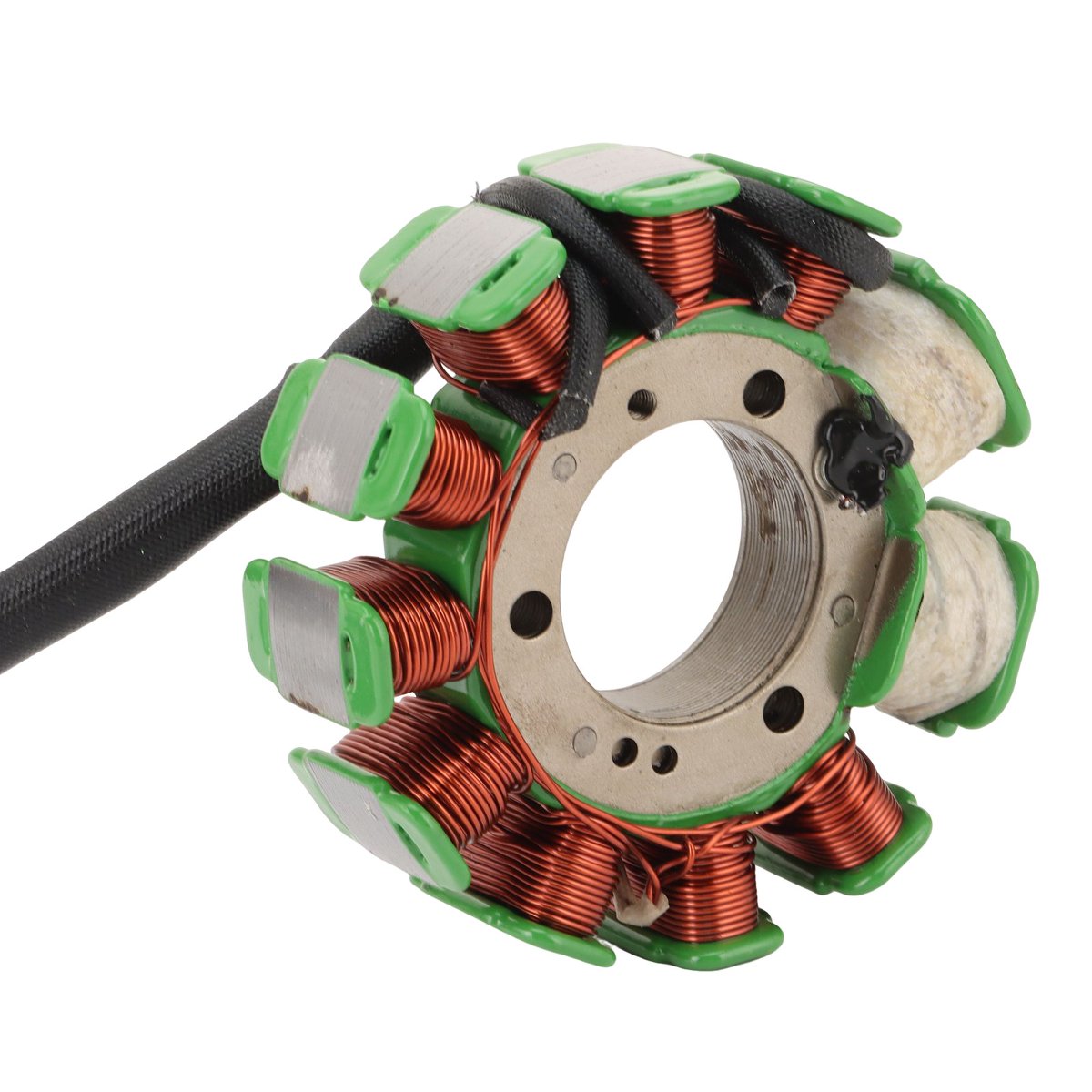

Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, and long service life. Please compare your original stator’s OEM number, wire count, plug layout, trigger coil position, mounting hole distance, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Honda | CMX250X Rebel | 1996–2016 | 31120-KEN-691 / 31120-KBG-004 / 31120-KBG-A01 | Main fitment; confirm original stator and plug layout |
| Honda | CMX250 Rebel | 1996–2014 | 31120-KEN-691 / 31120-KBG-004 / 31120-KBG-A01 | Fits matching 11-coil stator version only |
| Honda | CB250 Nighthawk | 1991–2008 | 31120-KBG-004 / 31120-KBG-A01 / 31120-KEN-691 | Compare OEM number and stator dimensions before purchase |
| Honda | CB250 Two Fifty | 1992–2000 | 31120-KBG-004 / 31120-KBG-A01 / 31120-KEN-691 | Confirm wire count, connector, and mounting holes |
| Honda | CB250 Police | 1996, 2004–2006 | 31120-KBG-A01 / related reference | Possible fitment only if the original stator matches this design |
Important Fitment Note:
This part is not selected by engine size alone. Honda CMX250 Rebel and CB250 models may use different stator versions depending on year, market, and wiring system. Please confirm your original stator matches the OEM reference, 11-coil / 7-wire layout, AC type, connector style, trigger coil position, and dimensions listed below.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Coil |
| Coil Count | 11 Coils |
| Wire Count | 7 Wire |
| Electrical Type | AC |

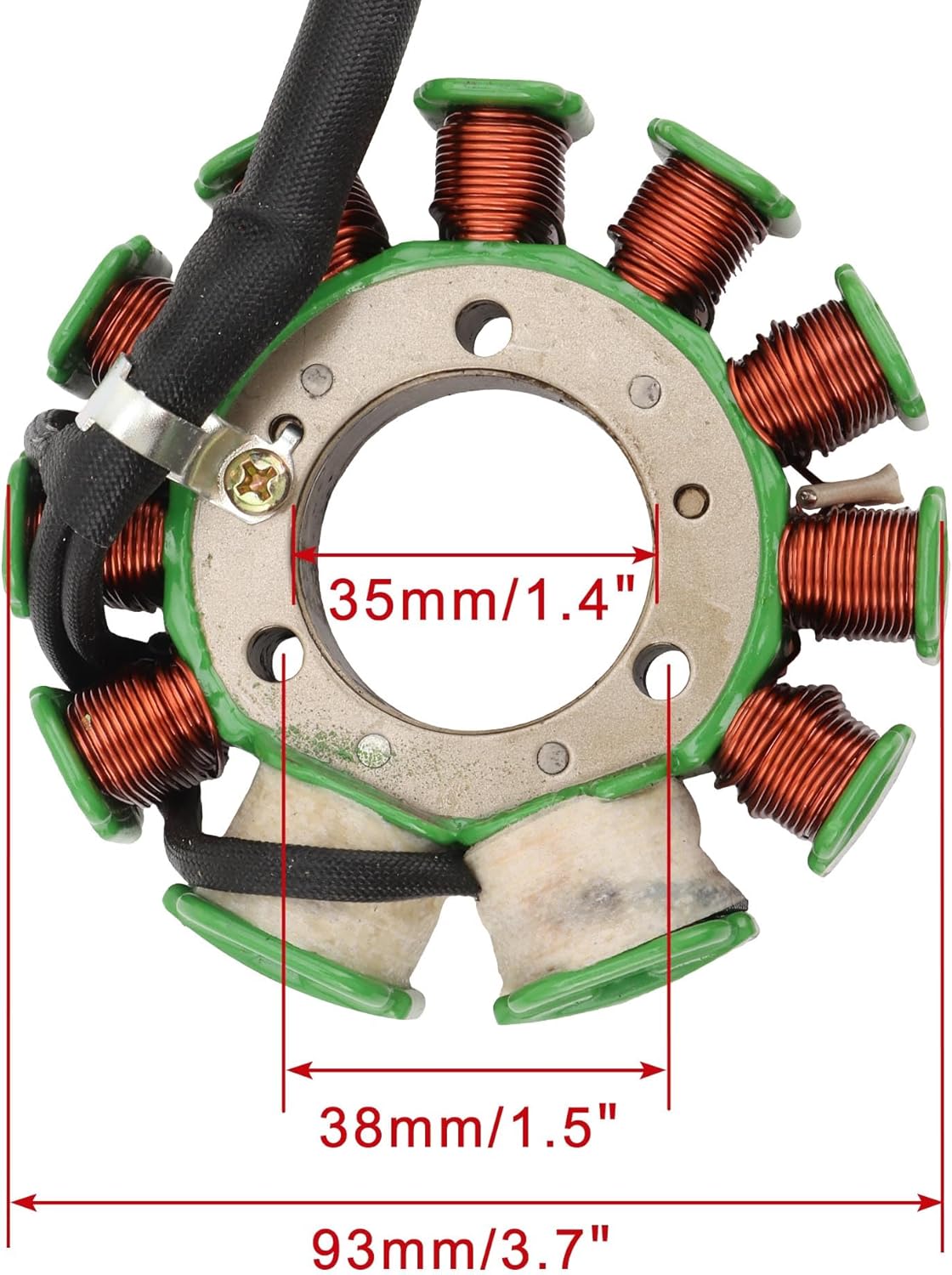

| Inner Diameter | 35mm / 1.4" |
| Outer Diameter | 93mm / 3.7" |

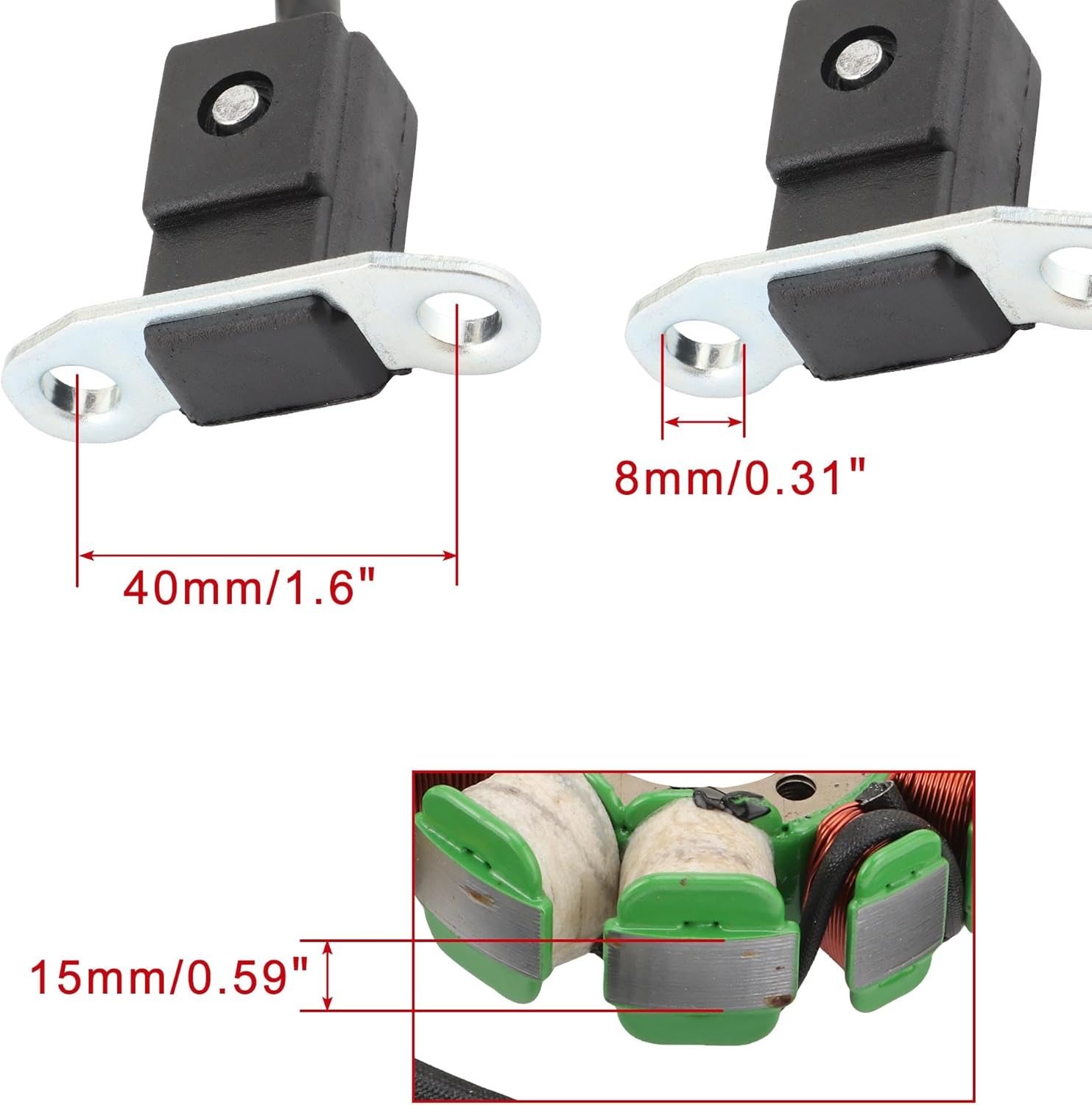

| Iron Core Height | 15mm / 0.59" |
| Mounting Hole Distance | 38mm / 1.5" |
| Thickness | 32mm / 1.3" |
| Trigger Mounting Hole Distance | 40mm / 1.6" |
| Trigger Mounting Hole Diameter | 8mm / 0.31" |
| OEM Reference | 31120-KBG-004 / 31120-KEN-691 / 31120-KBG-A01 |
| Material | Metal Lamination Core + Copper Winding |
| Application | Motorcycle Charging / Ignition System |
| Compatible Brand | Honda |
Key Features
- Designed for select Honda CMX250 Rebel, CMX250X Rebel, CB250 Nighthawk, and CB250 Two Fifty motorcycles
- Replaces OEM reference numbers 31120-KBG-004, 31120-KEN-691, and 31120-KBG-A01
- 11-coil 7-wire AC stator helps support charging and ignition system output
- Helps address weak charging, no spark, dim lights, unstable voltage, or stator failure
- Copper winding supports stable conductivity and improved heat resistance
- Durable metal lamination core helps resist deformation, rust, and corrosion
- Includes trigger coil position; original OEM number, plug layout, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 31120-KBG-004 | Common OEM reference for Honda CB250 Nighthawk / CMX250 stator applications |
| 31120-KEN-691 | Common OEM reference for Honda CMX250 Rebel stator applications |
| 31120-KBG-A01 | Common replacement reference for compatible Honda CB250 / CMX250 stator applications |
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select Honda CMX250X Rebel 1996–2016, CMX250 Rebel 1996–2014, CB250 Nighthawk 1991–2008, and CB250 Two Fifty 1992–2000 models using OEM reference numbers 31120-KBG-004, 31120-KEN-691, or 31120-KBG-A01. It may also fit select CB250 Police models if the original stator uses the same OEM reference, coil count, wire count, connector style, trigger coil position, and dimensions. Please compare your original stator before ordering.
Do I need to match the OEM part number?

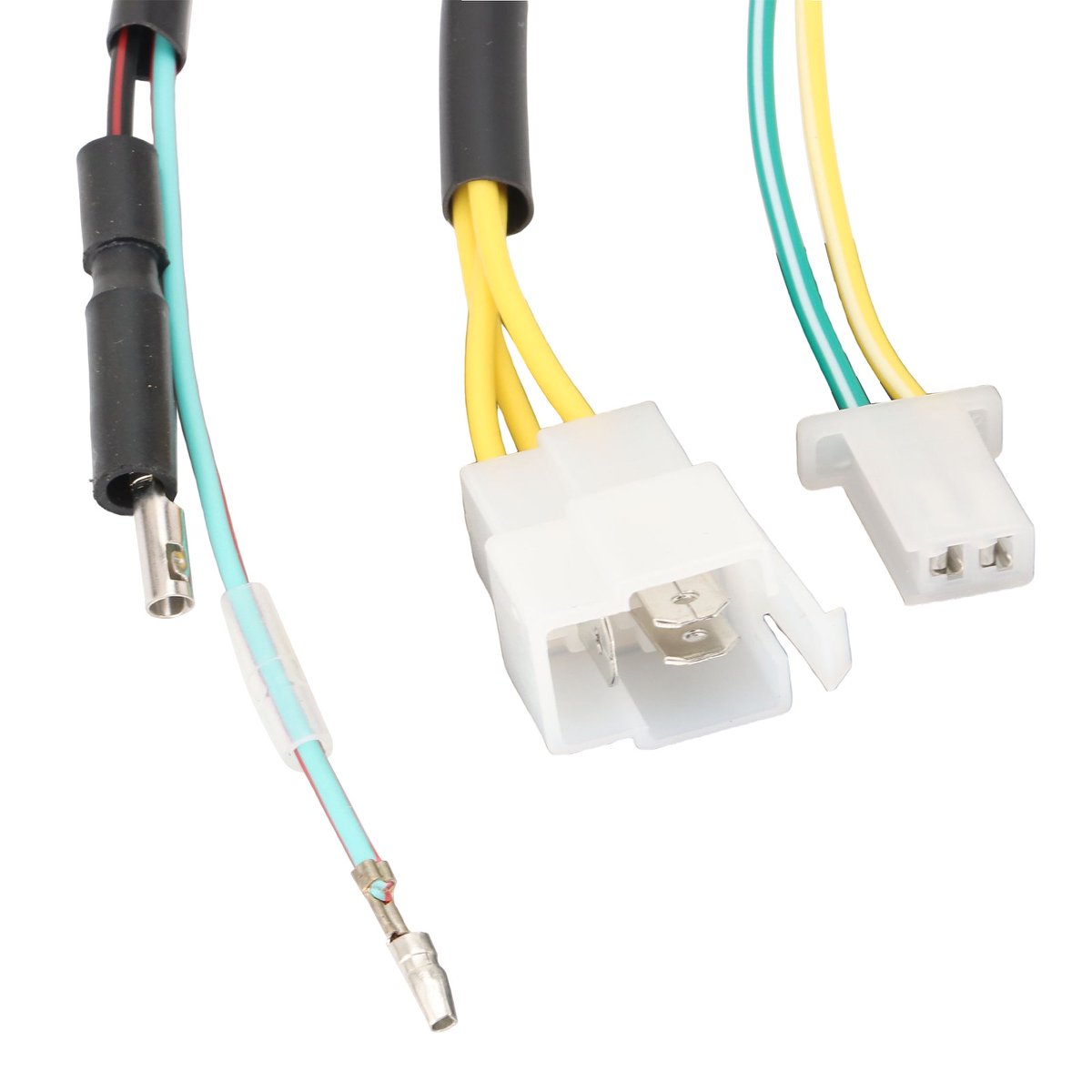

Yes, matching the OEM part number is strongly recommended. This stator replaces 31120-KBG-004, 31120-KEN-691, and 31120-KBG-A01. However, OEM number alone is not enough. Please also confirm the wire count, plug layout, inner diameter, outer diameter, mounting hole distance, trigger mounting position, and stator thickness.
What models or situations does this part not fit?
This part does not fit Honda Rebel, CB250, or Nighthawk models that use a different stator diameter, different wire count, different connector layout, different mounting hole spacing, or a different trigger coil position. It is also not suitable if your issue is caused only by a bad regulator rectifier, weak battery, faulty CDI, damaged ignition coil, burned wiring, or poor ground connection.
What should I check before ordering?
Before ordering, please check your motorcycle’s make, model, year, OEM part number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, trigger mounting hole distance, trigger mounting hole diameter, and stator thickness. For best fitment, compare the product photos and specifications with your original stator before purchase.
