Honda Rancher 350 TRX350 Stator 2000–2006 | 31120-HN5-M01
Honda Rancher 350 TRX350 Stator 2000–2006 | 31120-HN5-M01
Couldn't load pickup availability
Product Overview

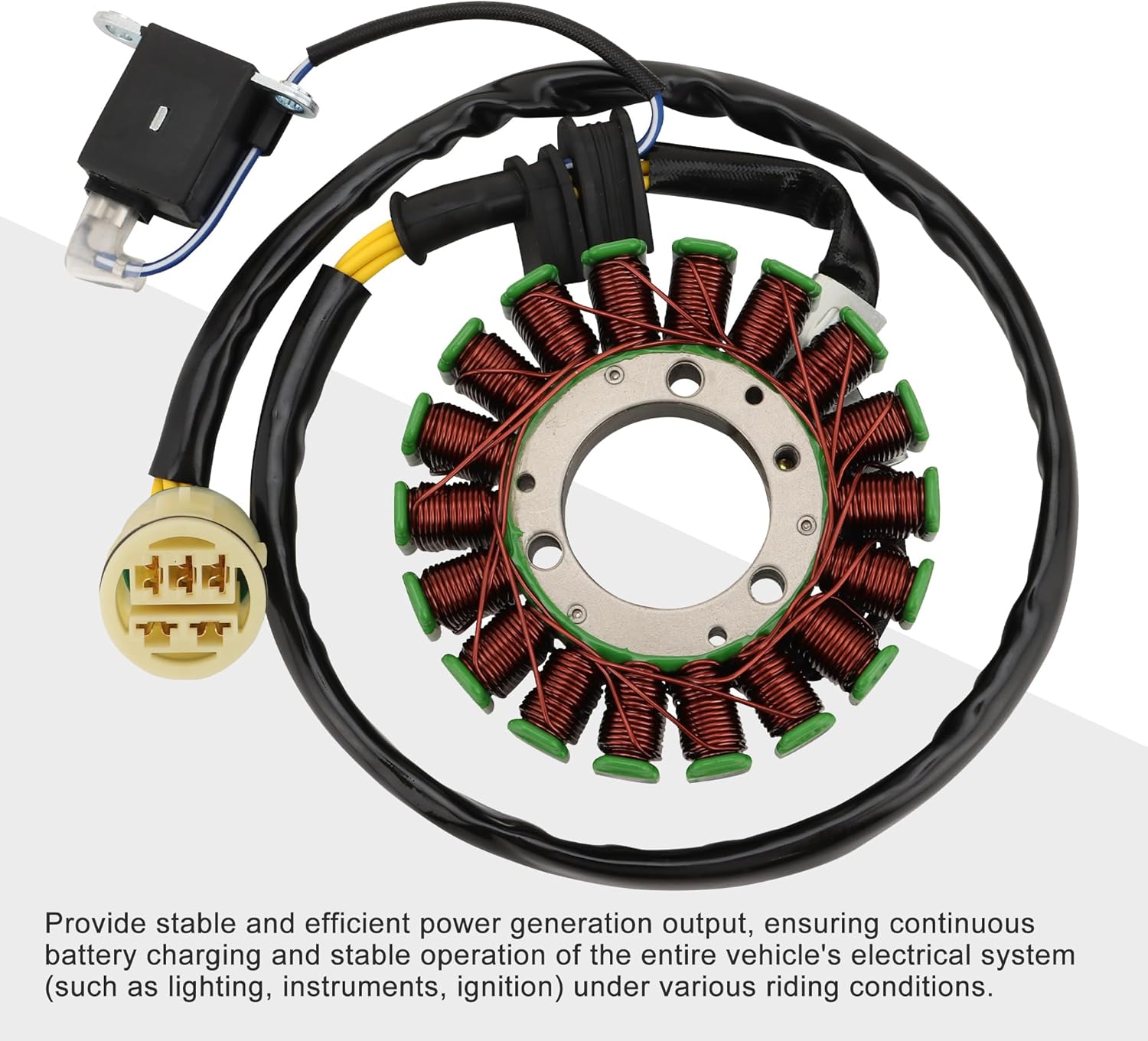

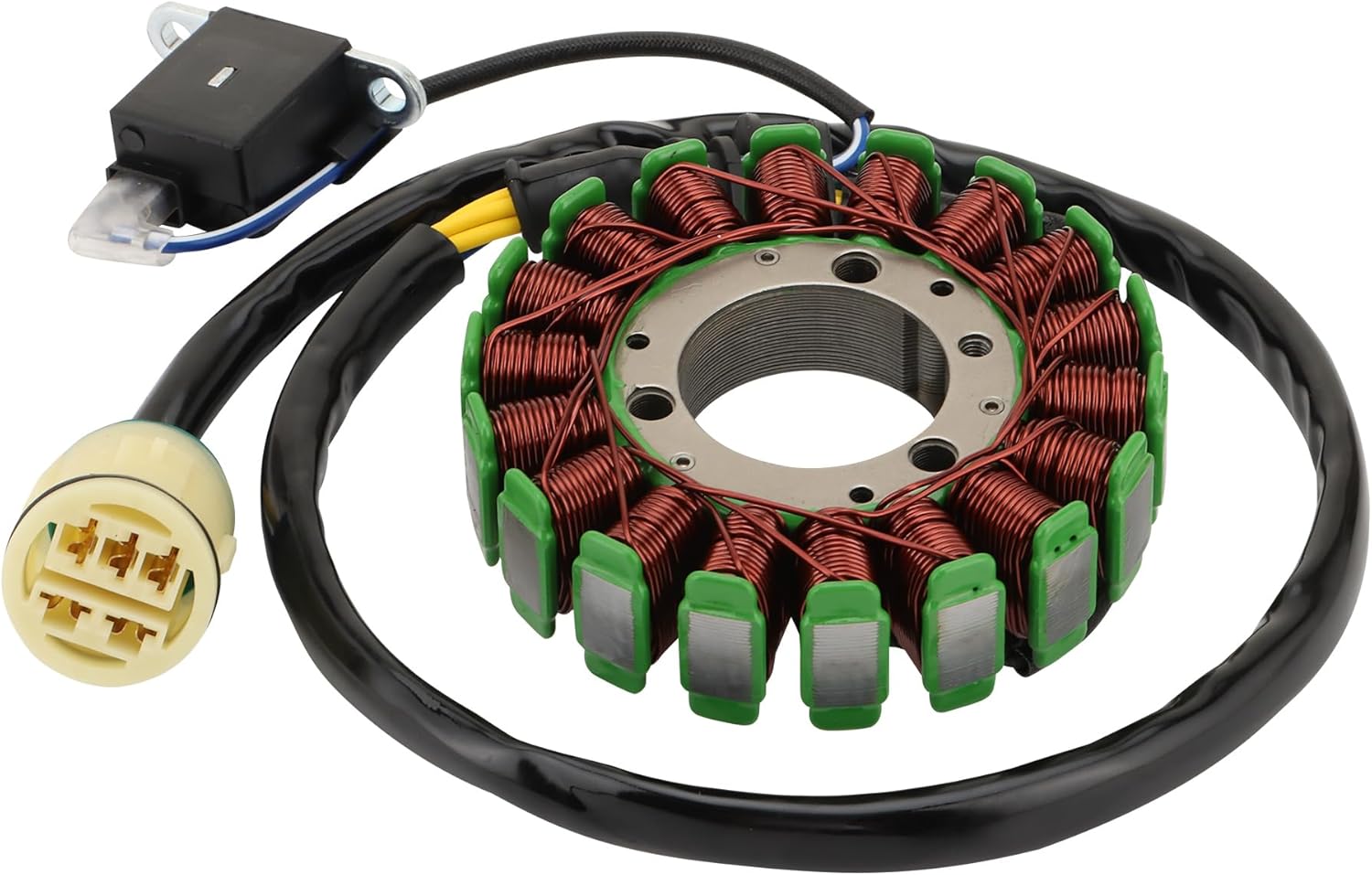

Restore reliable charging and ignition performance with this generator magneto stator coil, designed for selected Honda Rancher 350 / TRX350 ATV models from 2000 to 2006.
Built to replace 31120-HN5-M01 / 31120-HN5-671, this stator helps solve common electrical issues such as battery not charging, weak or no spark, hard starting, unstable voltage, and intermittent charging failure.

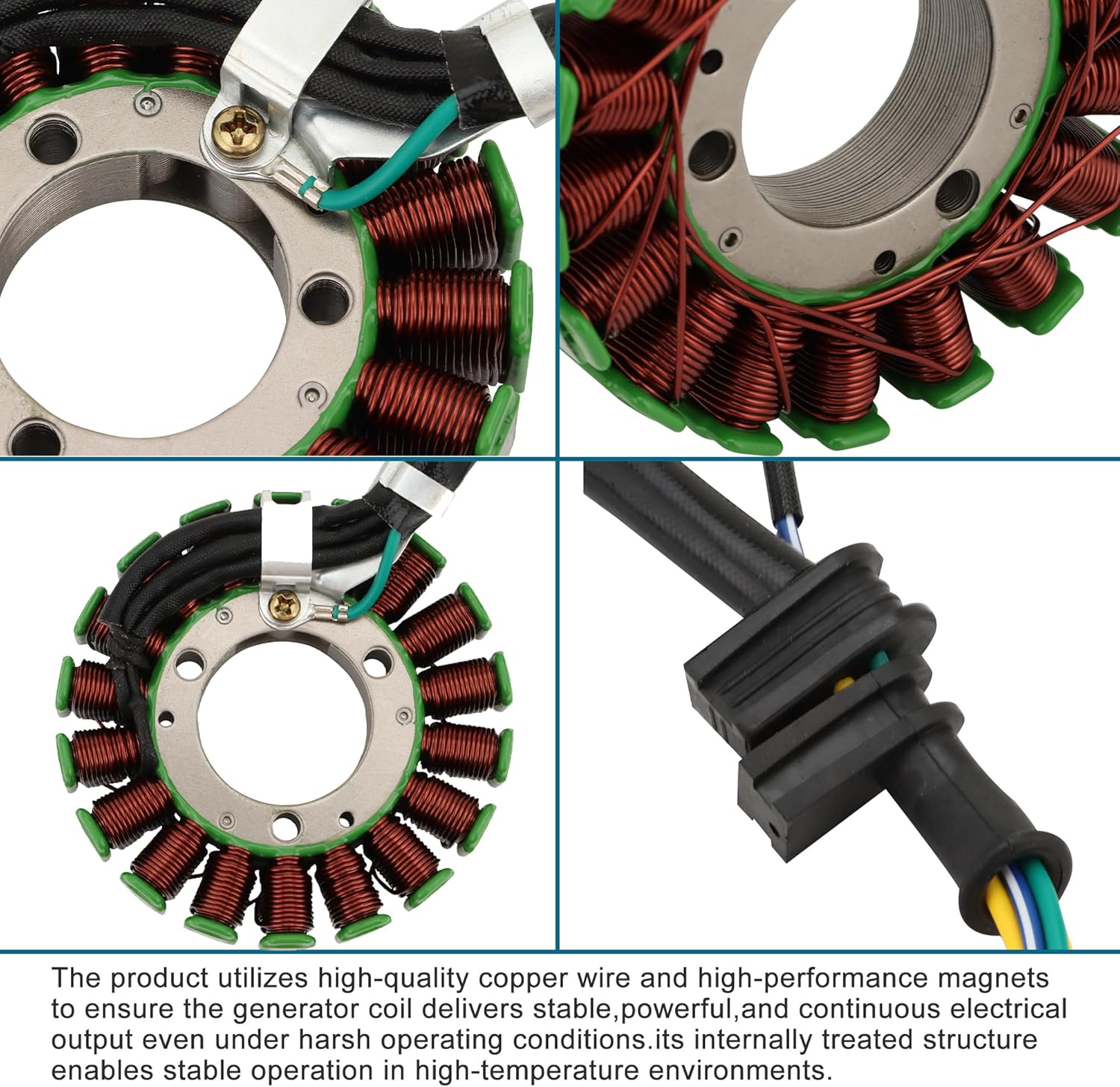

Made with high-quality copper wire and durable magnetic materials, this stator is designed to deliver stable, powerful, and continuous electrical output under ATV riding, trail, and utility conditions.
Product Compatibility
| Brand | Model | Engine / HP / CC | Year Range | Notes |
|---|---|---|---|---|
| Honda | TRX350FE Rancher 350 4x4 ES | 350cc | 2000–2006 | Verify OEM number, connector style, and stator dimensions before purchase |
| Honda | TRX350FM Rancher 350 4x4 S | 350cc | 2000–2006 | Verify OEM number, connector style, and stator dimensions before purchase |
| Honda | TRX350TE Rancher 350 2x4 ES | 350cc | 2000–2006 | Verify OEM number, connector style, and stator dimensions before purchase |
| Honda | TRX350TM Rancher 350 2x4 S | 350cc | 2000–2006 | Verify OEM number, connector style, and stator dimensions before purchase |
OEM Cross Reference:
31120-HN5-M01, 31120-HN5-671
Specifications
| Specification | Details |
|---|---|
| Part Type | Generator Magneto Stator Coil |

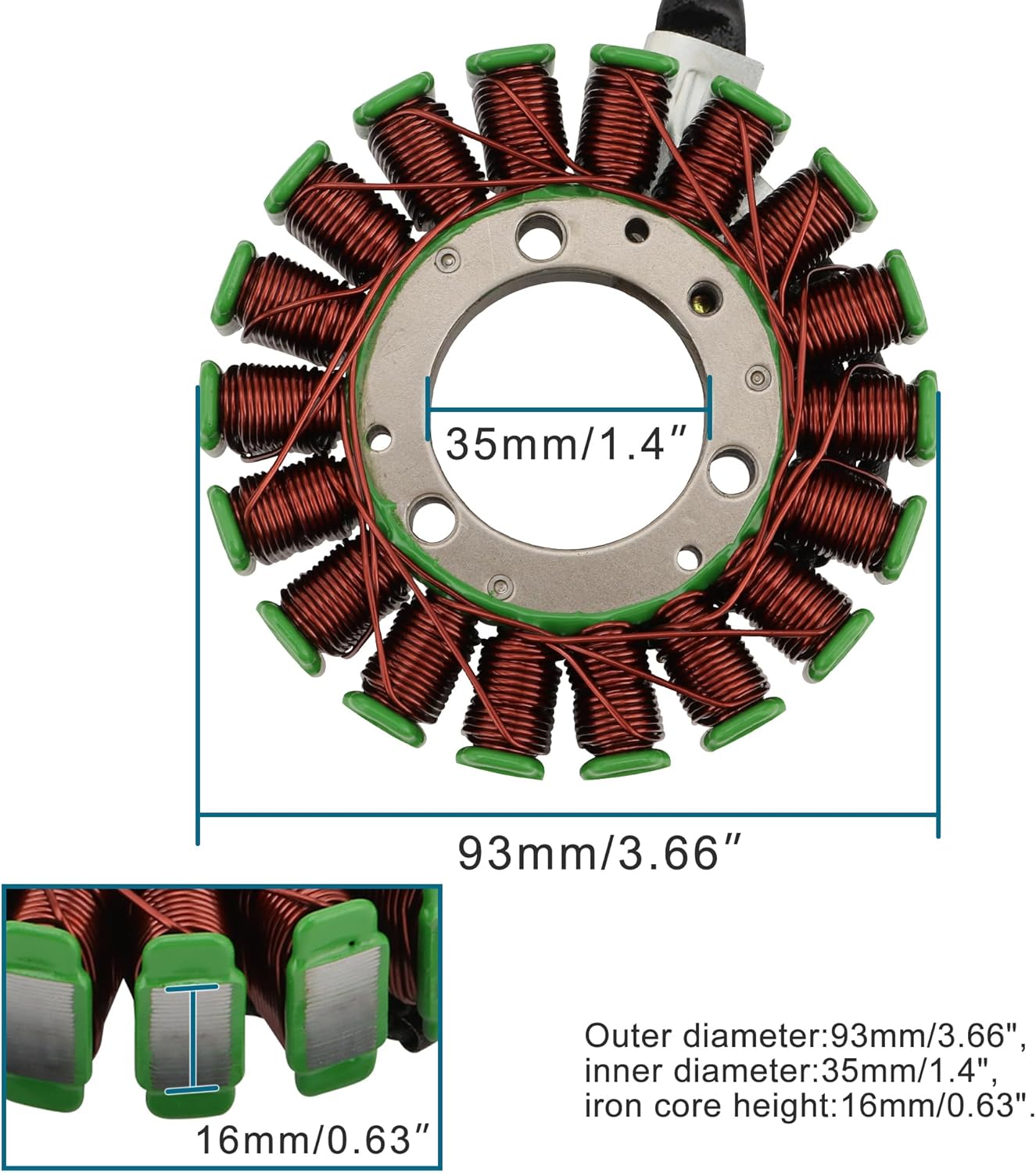

| Outer Diameter | 93 mm / 3.66" |
| Inner Diameter | 35 mm / 1.38" |
| Iron Core Height | 16 mm / 0.63" |
| OEM Replacement | 31120-HN5-M01 / 31120-HN5-671 |
| Material | Copper wire / Magnetic materials |
| Function | Charging and ignition system support |
| Installation | Direct replacement on correctly matched applications |
| Fitment Method | Match by OEM number, connector style, stator size, and original part layout |
| Condition | 100% New Aftermarket |
Key Features
- Honda Rancher 350 Fitment – Designed for selected TRX350 FE / FM / TE / TM models from 2000–2006
- OEM-Style Replacement – Built to replace Honda stator numbers 31120-HN5-M01 / 31120-HN5-671
- Stable Electrical Output – Helps support battery charging and ignition-system performance
- Copper Wire Construction – Designed for continuous power generation and long service life
- Heat-Resistant Internal Structure – Supports stable operation in high-temperature engine environments
- Direct Replacement Style – Designed for easier installation when dimensions and connector match
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Engine / HP / CC. Listed year information includes 2000–2006, 2000, 2006. It is best matched to original part number(s) 31120-HN5-M01, 31120-HN5-671. Key physical/spec details from the product data include Outer Diameter: 93 mm / 3.66", Inner Diameter: 35 mm / 1.38", Iron Core Height: 16 mm / 0.63". Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 31120-HN5-M01, 31120-HN5-671 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Honda TRX350/M01 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 31120-HN5-M01, 31120-HN5-671, treat the fitment as unconfirmed. Model years outside 2000–2006, 2000, 2006 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 31120-HN5-M01, 31120-HN5-671. Recheck listed specs such as Outer Diameter: 93 mm / 3.66", Inner Diameter: 35 mm / 1.38", Iron Core Height: 16 mm / 0.63". If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
