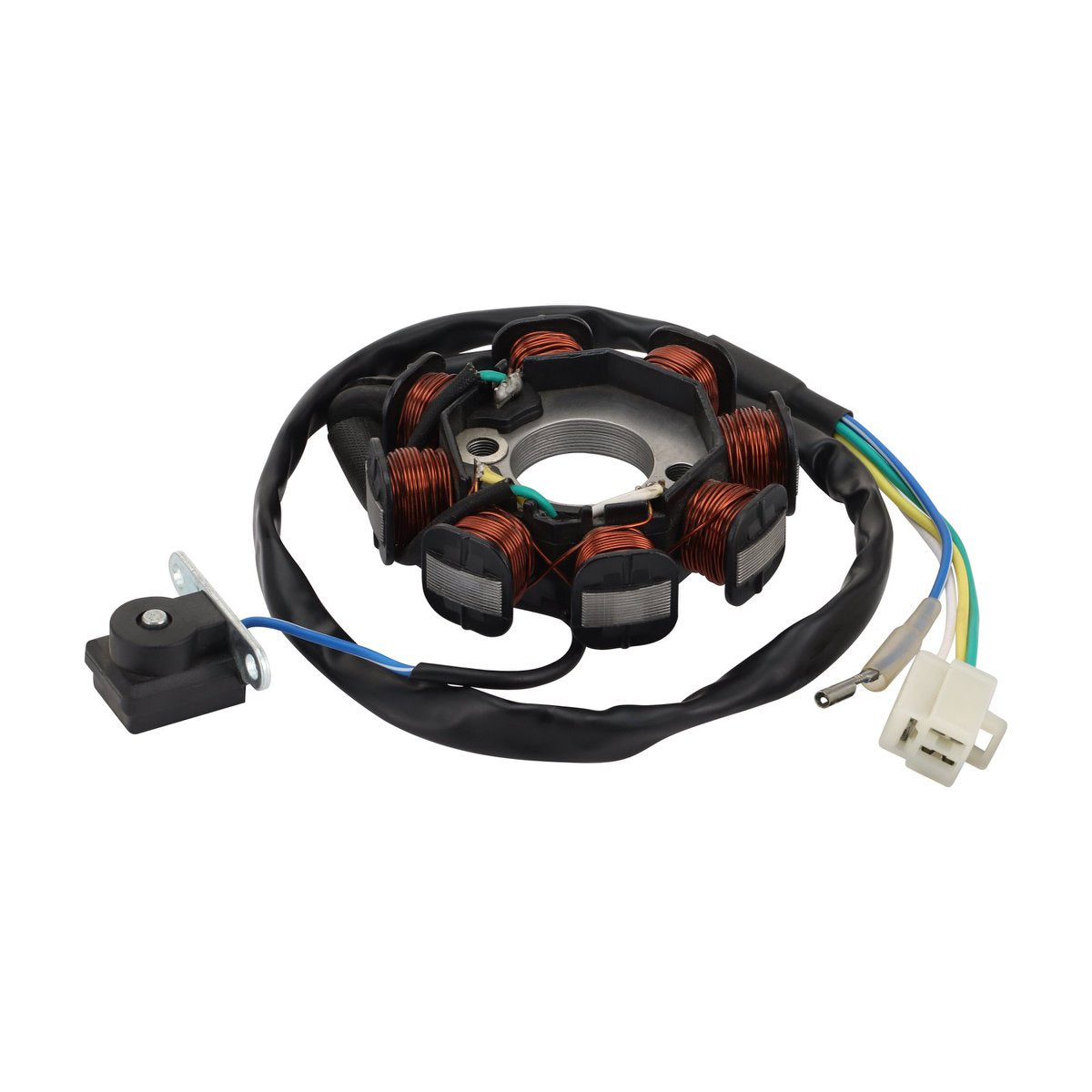

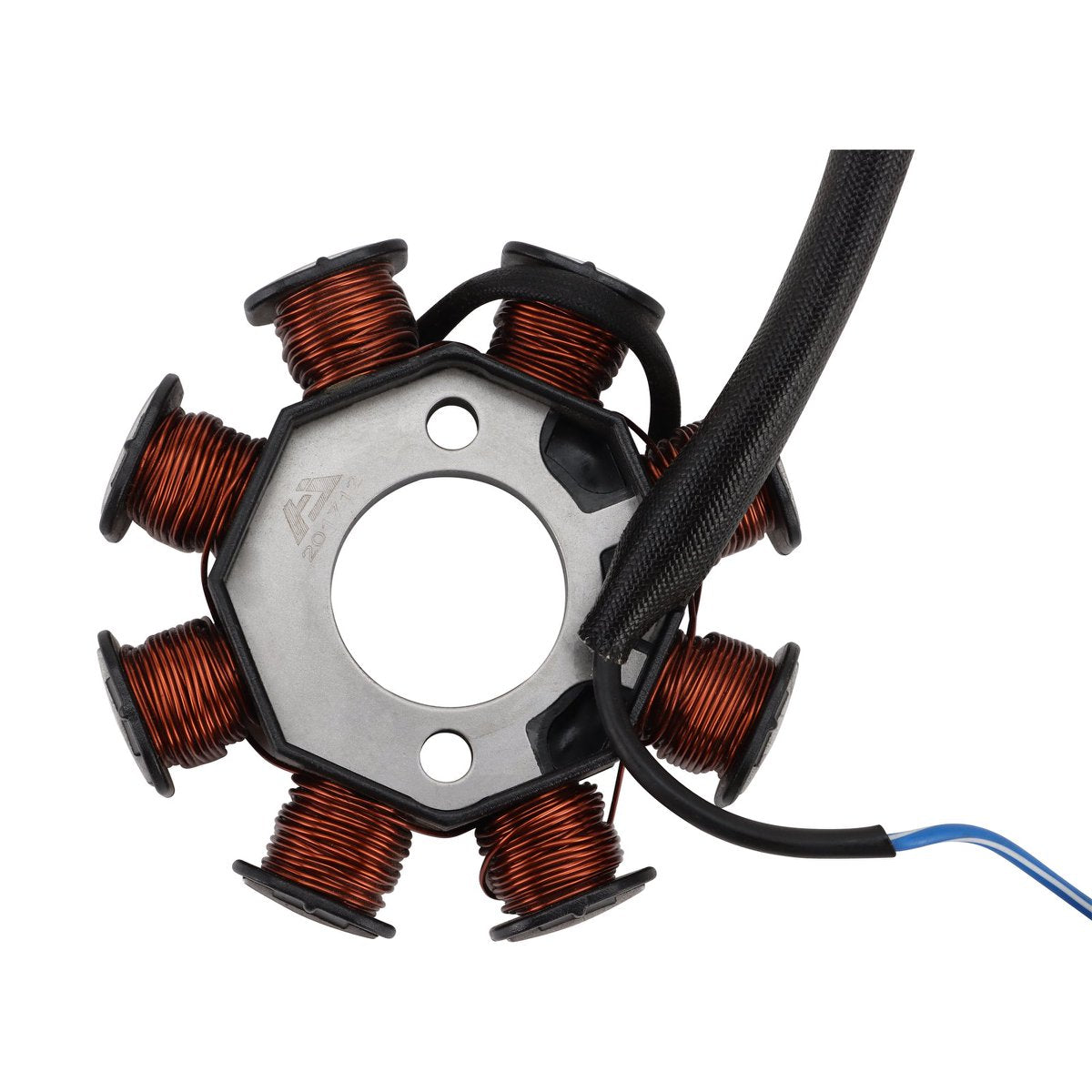

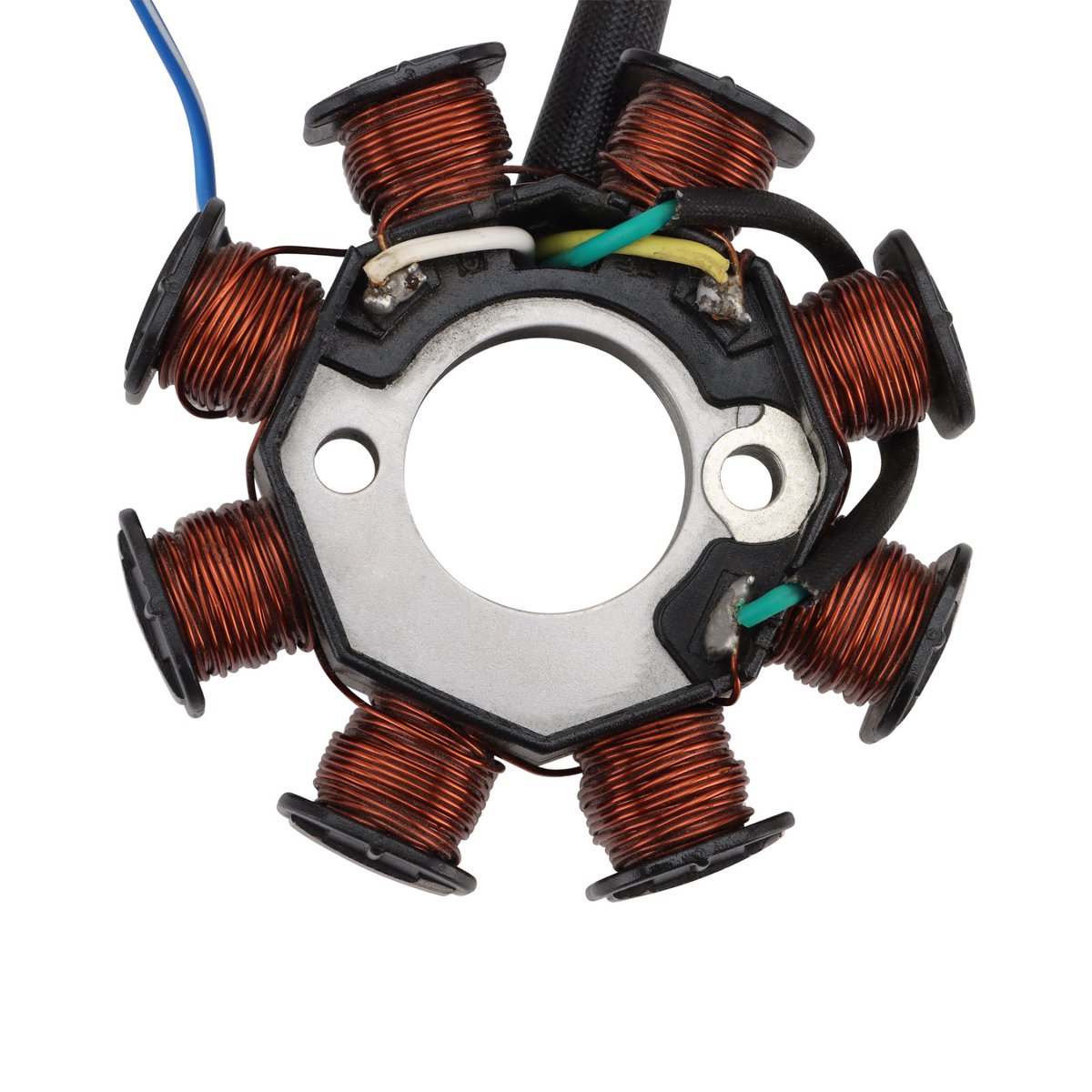

2003–2007 Honda SPACY 100 SCR100 8-Coil 4-Wire Magneto Stator
2003–2007 Honda SPACY 100 SCR100 8-Coil 4-Wire Magneto Stator
Couldn't load pickup availability
Product Overview
Replace a weak, burned, or failed stator with this 8-coil 4-wire magneto stator, designed for select Honda SPACY 100, SCR100, and SCR 100 scooter models from 2003–2007.
The stator is an important part of the scooter charging and ignition system. It helps generate electrical power while the engine is running, supporting the ignition circuit, battery, lights, and other electrical components. If your Honda SPACY 100 or SCR100 has weak charging, poor spark, dim lights, unstable voltage, or stator-related electrical failure, replacing the stator may help restore normal electrical performance.

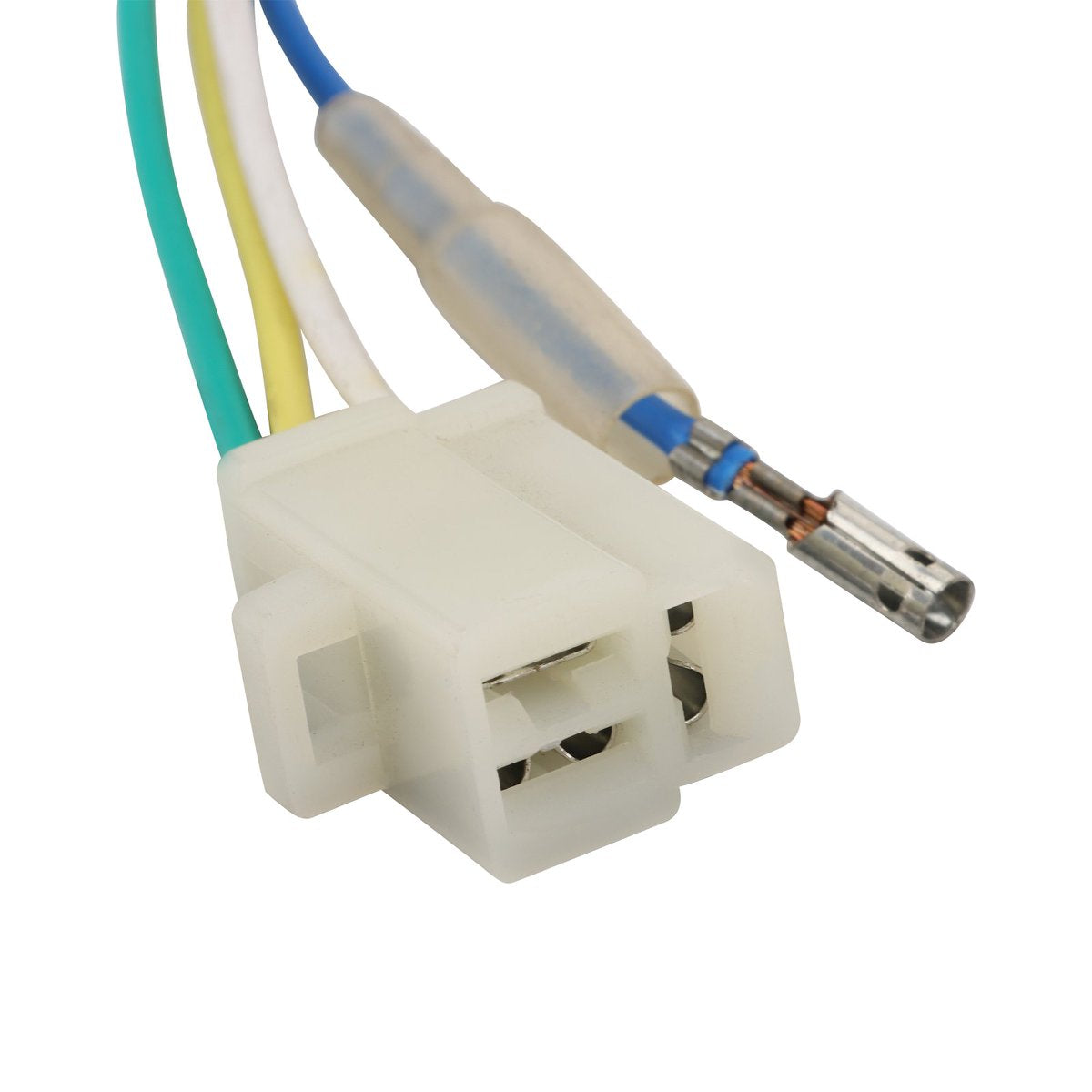

Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, and reliable daily use. Please compare your original stator’s coil count, wire count, plug layout, trigger coil position, mounting hole distance, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | Fitment Notes |
|---|---|---|---|
| Honda | SPACY 100 | 2003–2007 | Main fitment; confirm original stator size and plug layout |
| Honda | SCR100 | 2003–2007 | Fits models using the matching 8-coil 4-wire DC stator |
| Honda | SCR 100 | 2003–2007 | Compare wire count, connector shape, and mounting holes |
| Honda | SCR100WH / SPACY 100 JF13 | 2003–2007 | Possible fitment only if original stator matches this design |
Important Fitment Note:
This part is not selected by scooter engine size alone. Honda SPACY 100 and SCR100 models may use different stator versions depending on year, market, and wiring system. Please confirm your original stator matches the 8-coil / 4-wire layout, DC type, connector style, trigger coil position, and dimensions listed below.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Coil |
| Coil Count | 8 Coils / 8 Poles |
| Wire Count | 4 Wire |
| Electrical Type | DC |

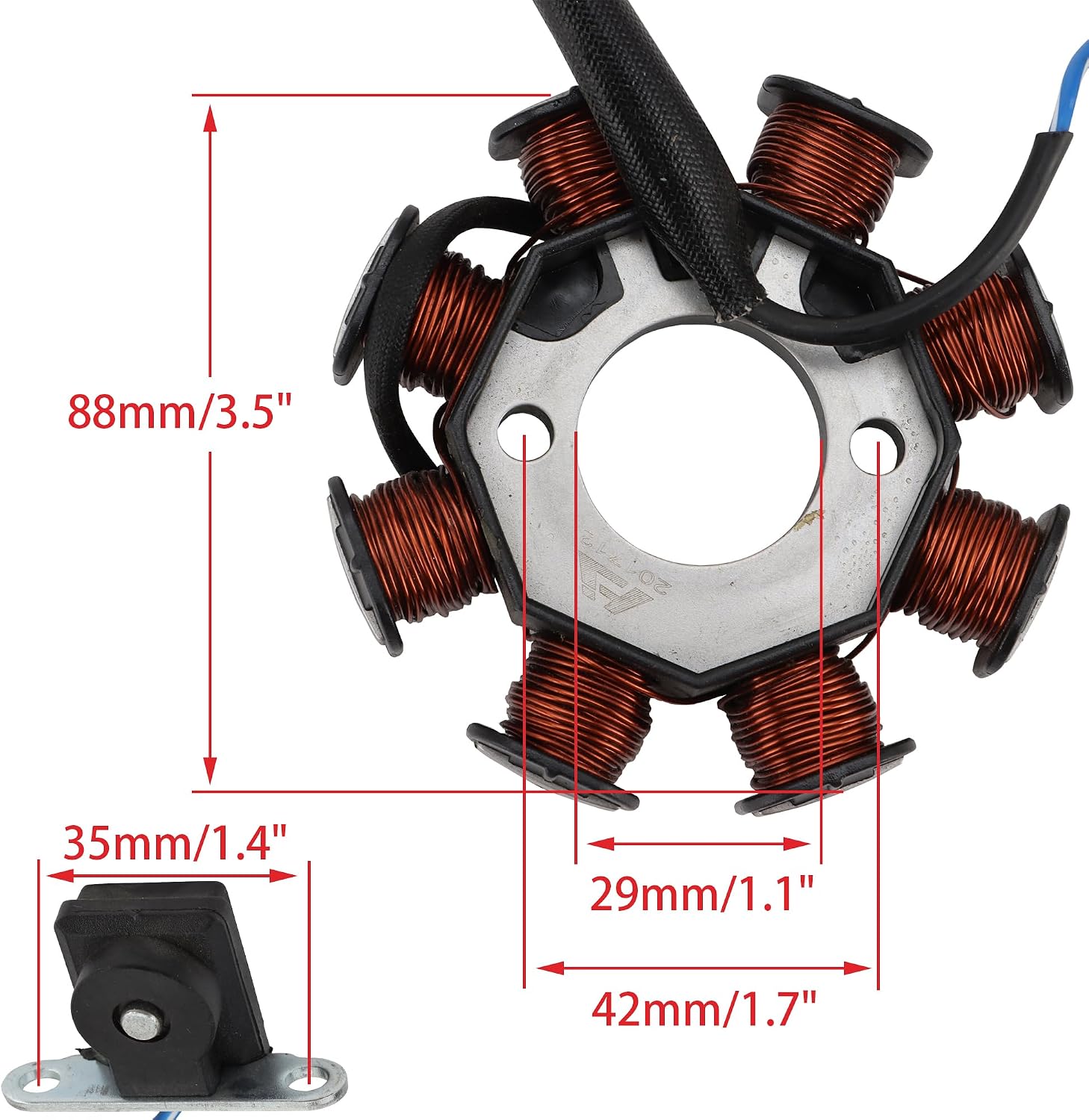

| Inner Diameter | 29mm / 1.1" |
| Outer Diameter | 88mm / 3.5" |
| Iron Core Height | 9mm / 0.35" |
| Mounting Hole Distance | 42mm / 1.7" |
| Thickness | 32mm / 1.3" |

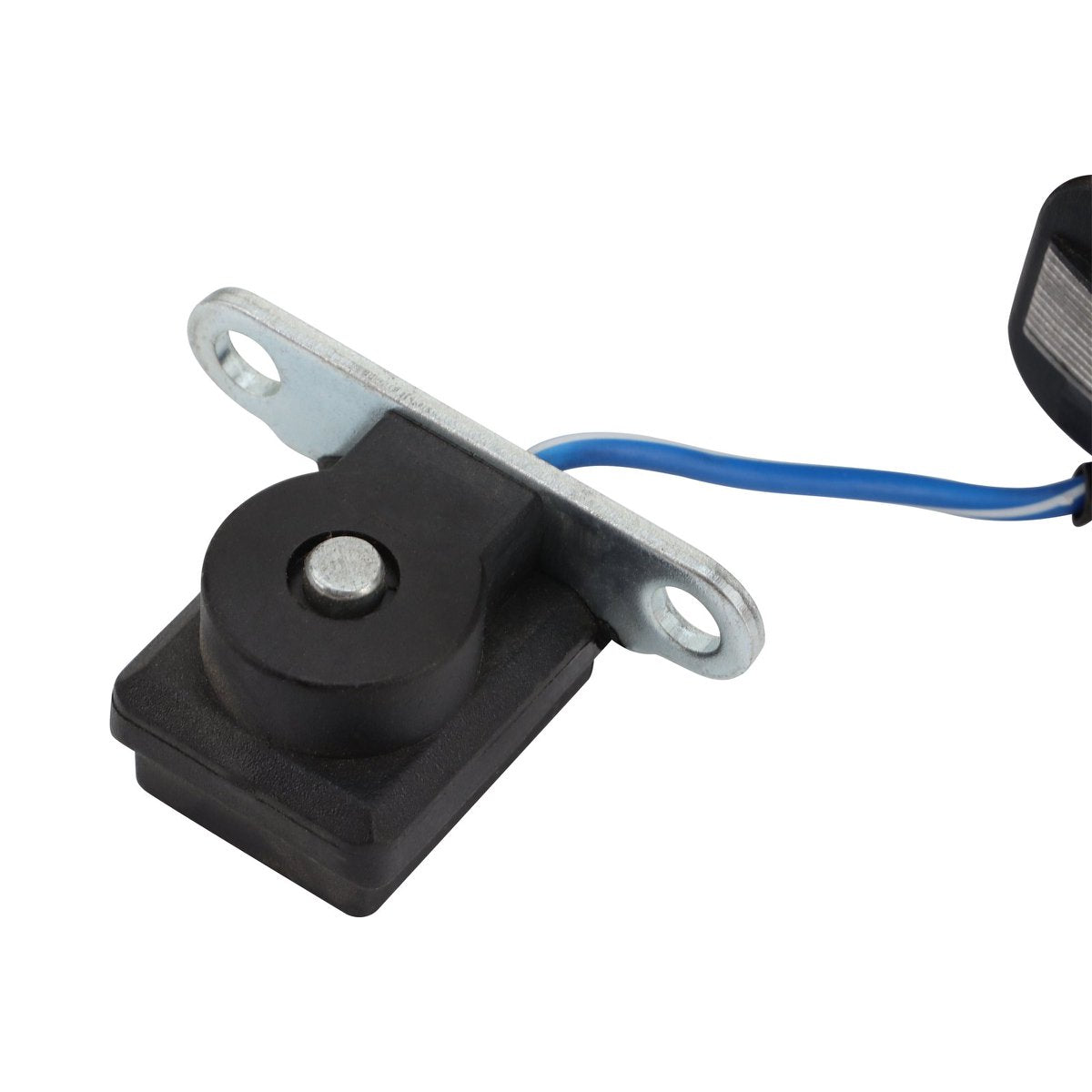

| Trigger Mounting Hole Distance | 35mm / 1.4" |
| Trigger Mounting Hole Diameter | 5mm / 0.20" |
| Material | Metal Lamination Core + Copper Winding |
| Application | Scooter Charging / Ignition System |
| Compatible Brand | Honda |
Key Features
- Designed for select Honda SPACY 100, SCR100, and SCR 100 scooter models
- 8-coil 4-wire DC stator helps support charging and ignition system output
- Helps address weak charging, poor spark, dim lights, unstable voltage, or stator failure
- Copper winding supports stable conductivity and improved heat resistance
- Durable metal lamination core helps resist deformation, rust, and corrosion
- Includes trigger coil position; original plug layout and dimensions must be checked before installation
- Direct replacement style for matching 2003–2007 Honda SPACY 100 / SCR100 stator applications
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select 2003–2007 Honda SPACY 100, SCR100, and SCR 100 scooter models using an 8-coil 4-wire DC stator setup. Fitment may vary by market and wiring system, so please compare your original stator’s wire count, connector layout, inner diameter, outer diameter, mounting hole distance, trigger coil position, and thickness before ordering.
Do I need to match the OEM part number?
An OEM part number is not provided for this product. If you do not have an OEM number, please confirm fitment by matching the original stator’s coil count, wire count, plug shape, inner diameter, outer diameter, mounting hole distance, trigger mounting hole distance, and trigger mounting hole diameter. If your original stator has a different wire count or plug layout, this part may not fit.
What models or situations does this part not fit?
This part does not fit Honda SPACY 100, SCR100, or other scooter models that use a different stator diameter, different wire count, different connector layout, different mounting hole spacing, or different trigger coil position. It is also not suitable if your issue is caused only by a bad regulator rectifier, weak battery, faulty CDI, damaged ignition coil, burned wiring, or poor ground connection.
What should I check before ordering?
Before ordering, please check your scooter’s make, model, year, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, trigger mounting hole distance, trigger mounting hole diameter, stator thickness, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
