Honda TRX250X FourTrax 250 2x4 Stator 1987–1988 | 31120-HC0-014
Honda TRX250X FourTrax 250 2x4 Stator 1987–1988 | 31120-HC0-014
Couldn't load pickup availability
Product Overview
Restore reliable charging and ignition performance with this motorcycle stator coil, designed for selected Honda TRX250X / FourTrax 250 2x4 models from 1987 to 1988.
Built to replace 31120-HC0-000 / 31120-HC0-004 / 31120-HC0-014, this stator helps solve common electrical issues such as battery not charging, weak or no spark, hard starting, unstable voltage, and intermittent charging failure.
Crafted with high-grade copper windings and lamination materials, this stator is designed to deliver stable power output, efficient charging performance, and long service life under ATV riding conditions.
Product Compatibility
| Brand | Model | Engine / HP / CC | Year Range | Notes |
|---|---|---|---|---|
| Honda | TRX250X FourTrax 250 2x4 | 250cc | 1987–1988 | Verify OEM number, connector style, and stator dimensions before purchase |
OEM Cross Reference:
31120-HC0-000, 31120-HC0-004, 31120-HC0-014
Specifications
| Specification | Details |
|---|---|
| Part Type | Motorcycle Stator Coil / Magneto Stator |

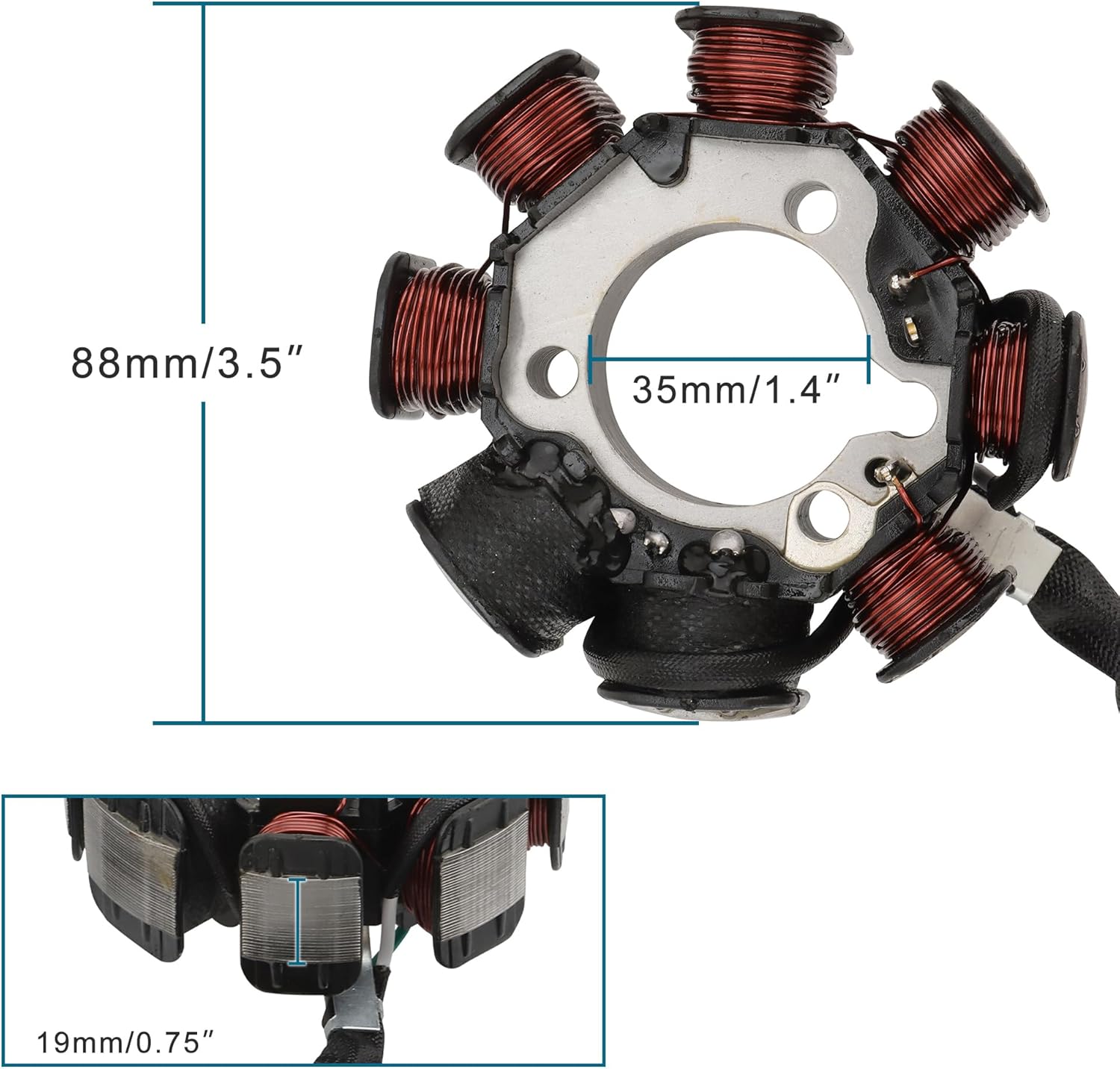

| Outer Diameter | 88 mm / 3.46" |
| Inner Diameter | 35 mm / 1.38" |
| Iron Core Height | 19 mm / 0.74" |
| OEM Replacement | 31120-HC0-000 / 31120-HC0-004 / 31120-HC0-014 |
| Material | Copper windings / High-grade lamination materials |
| Function | Charging and ignition system support |
| Installation | Direct replacement on correctly matched applications |
| Fitment Method | Match by OEM number, connector style, stator size, and original part layout |
| Condition | 100% New Aftermarket |
Key Features
- Honda TRX250X Fitment – Designed for selected FourTrax 250 2x4 ATV applications
- OEM-Style Replacement – Built to replace 31120-HC0-000 / 31120-HC0-004 / 31120-HC0-014
- Stable Power Output – Helps support reliable charging and ignition-system performance
- Copper Winding Construction – Helps deliver efficient electrical output and durability
- Direct Replacement Style – Designed for easier installation when dimensions and connector match
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Engine / HP / CC. Listed year information includes 1987–1988, 1987, 1988. It is best matched to original part number(s) 31120-HC0-000, 31120-HC0-004, 31120-HC0-014. Key physical/spec details from the product data include Outer Diameter: 88 mm / 3.46", Inner Diameter: 35 mm / 1.38", Iron Core Height: 19 mm / 0.74". Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 31120-HC0-000, 31120-HC0-004, 31120-HC0-014 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Honda TRX250X models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 31120-HC0-000, 31120-HC0-004, 31120-HC0-014, treat the fitment as unconfirmed. Model years outside 1987–1988, 1987, 1988 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 31120-HC0-000, 31120-HC0-004, 31120-HC0-014. Recheck listed specs such as Outer Diameter: 88 mm / 3.46", Inner Diameter: 35 mm / 1.38", Iron Core Height: 19 mm / 0.74". If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
