2006–2014 Honda TRX680 FourTrax Rincon 18-Coil 5-Wire Stator 31120-HN8-A62
2006–2014 Honda TRX680 FourTrax Rincon 18-Coil 5-Wire Stator 31120-HN8-A62
Couldn't load pickup availability
Product Overview

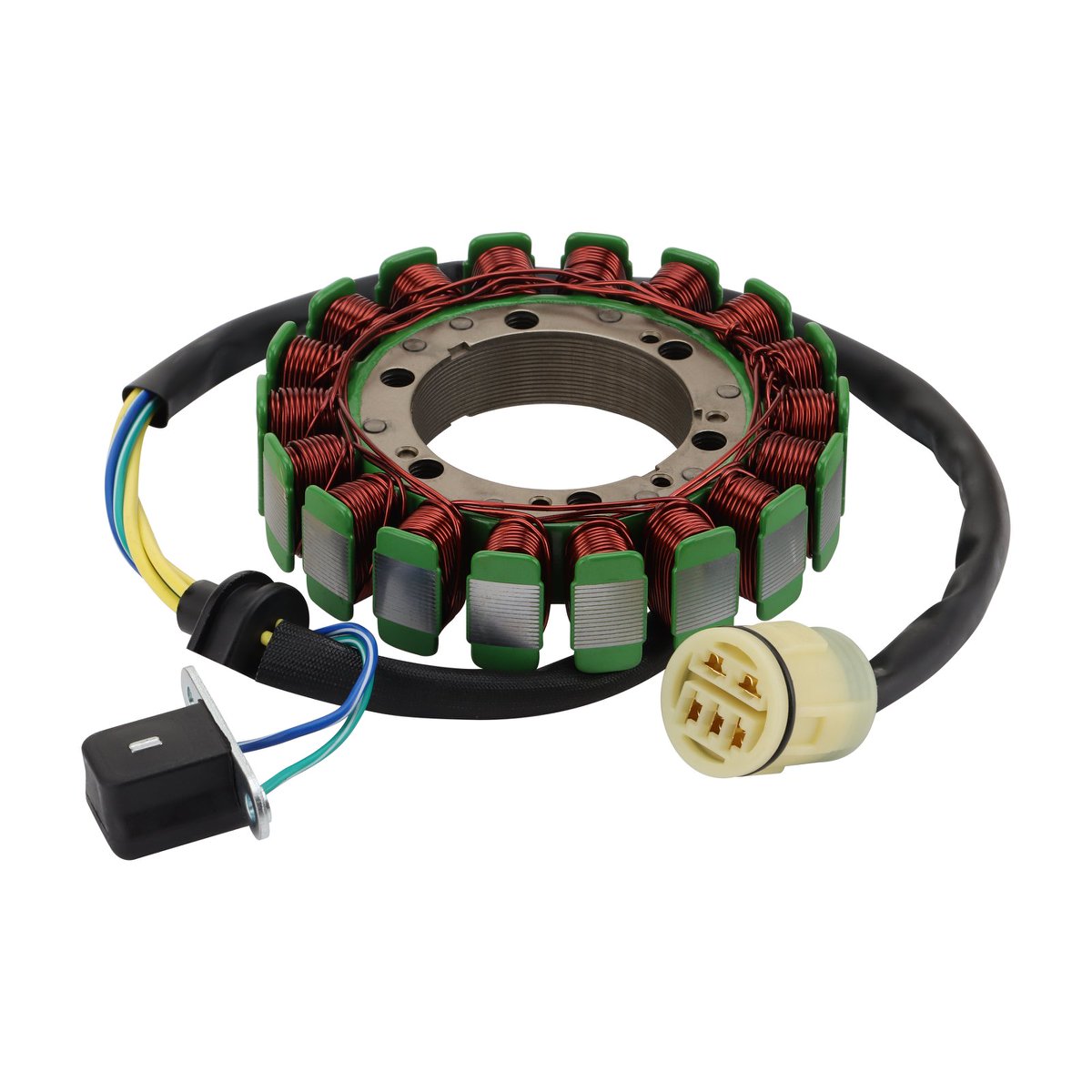

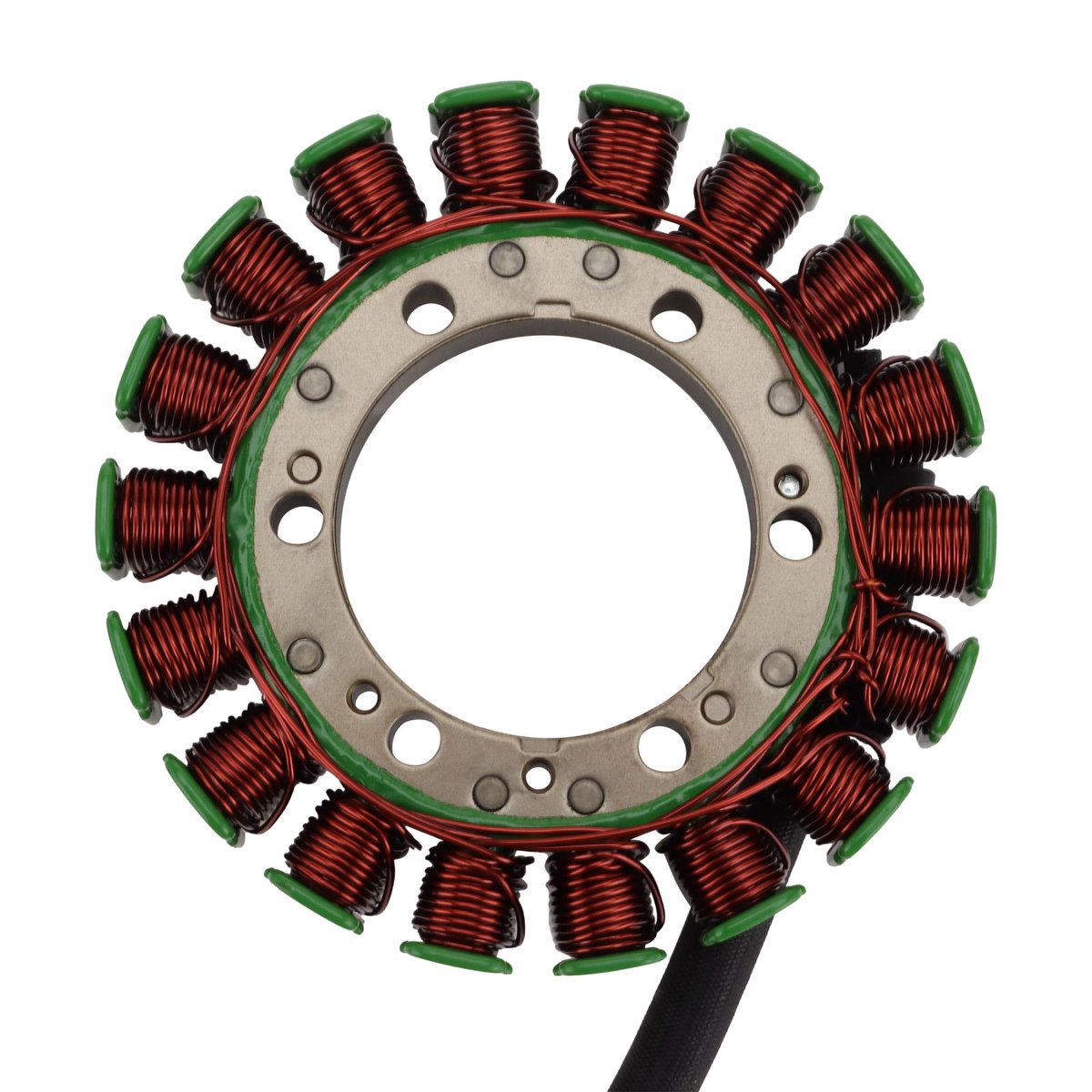

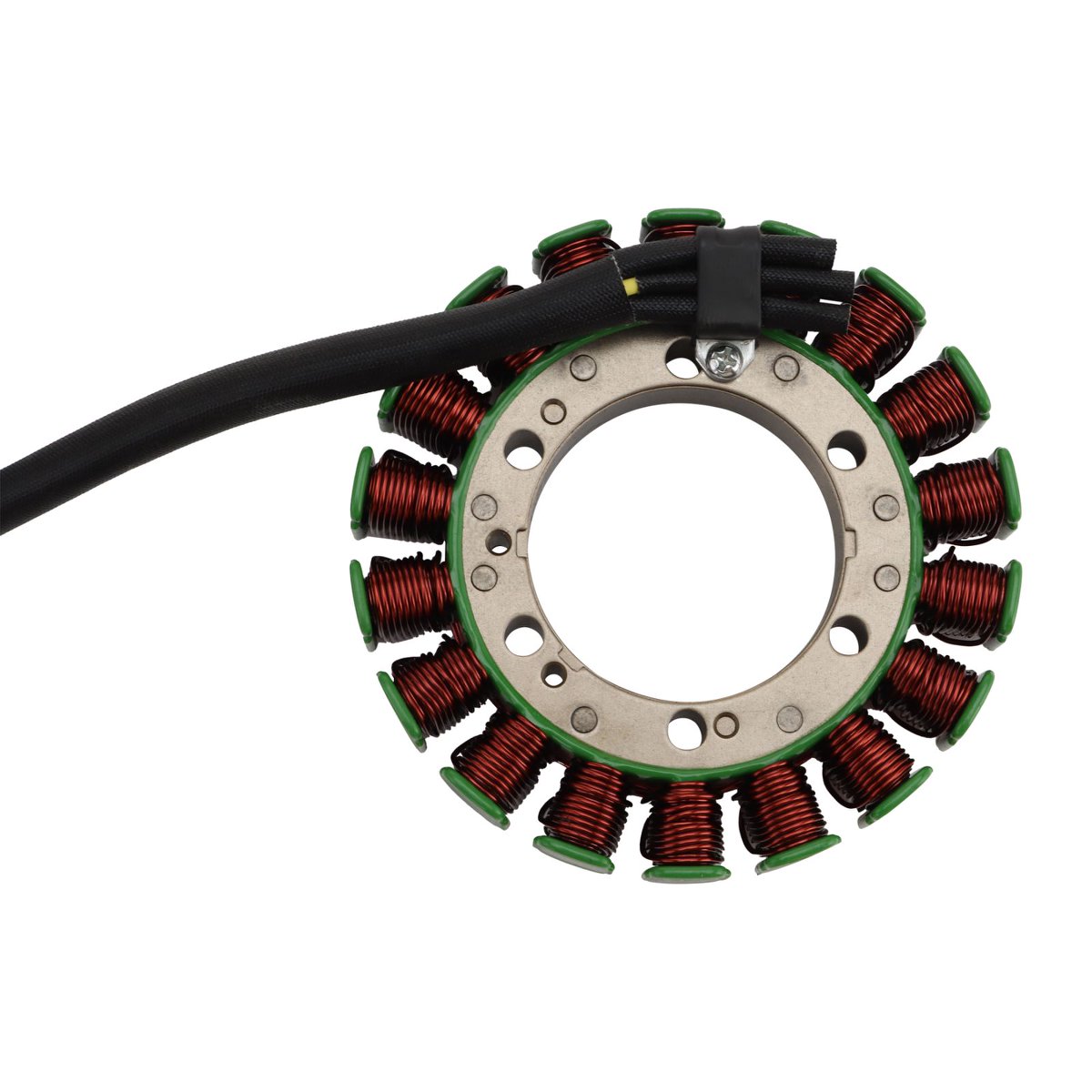

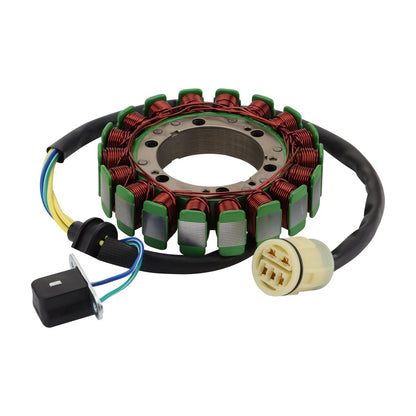

Replace a weak, burned, or failed stator with this 18-coil 5-wire magneto stator, designed for select Honda TRX680 FourTrax Rincon 680 ATV models using OEM reference numbers 31120-HN8-A60, 31120-HN8-A61, and 31120-HN8-A62.
The stator is an important part of the ATV charging and ignition system. It helps generate electrical power while the engine is running, supporting the battery, lights, ignition system, and other electrical components. If your Honda Rincon 680 has weak charging, low battery voltage, dim lights, unstable electrical output, or stator-related failure, replacing the stator may help restore normal charging performance.
Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, and long service life. Please compare your original stator’s OEM number, wire count, plug layout, mounting hole distance, installation hole spacing, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Honda | TRX680 FourTrax Rincon 680 | 2006–2014 | 31120-HN8-A60 / 31120-HN8-A61 / 31120-HN8-A62 | Main fitment; confirm original stator and plug layout |
| Honda | TRX680FA Rincon | 2006–2014 | 31120-HN8-A60 / 31120-HN8-A61 / 31120-HN8-A62 | Fits matching 18-coil 5-wire stator version |
| Honda | TRX680FGA Rincon | 2006–2014 | 31120-HN8-A60 / 31120-HN8-A61 / 31120-HN8-A62 | Compare OEM number and stator dimensions before purchase |
| Honda | TRX680FPA Rincon | 2006–2014 | 31120-HN8-A60 / 31120-HN8-A61 / 31120-HN8-A62 | Confirm wire count, plug style, and mounting holes |
| Honda | TRX680 Rincon | 2006–2014 | 31120-HN8-A60 / 31120-HN8-A61 / 31120-HN8-A62 | Fits only models using the same 18-pole 5-wire stator design |
Important Fitment Note:

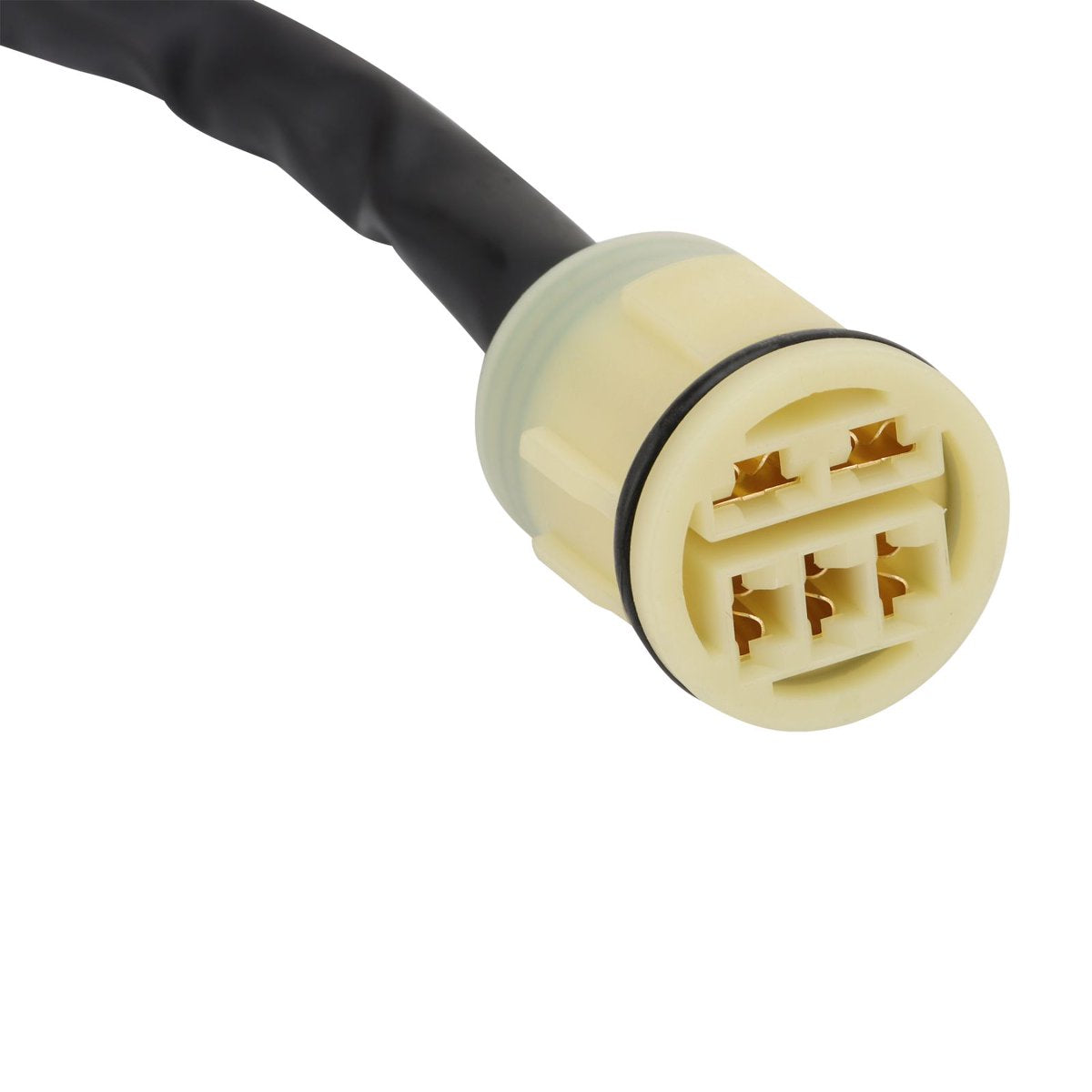

This part is not selected by engine size alone. Honda TRX680 Rincon models may use different charging components depending on year, trim, market, and wiring system. Please confirm your original stator matches the OEM reference, 18-coil / 5-wire layout, 115mm outside diameter, 54mm center hole diameter, mounting hole distance, installation hole spacing, and connector style before ordering.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Coil |
| Coil Count | 18 Coils / 18 Poles |
| Wire Count | 5 Wire |
| Electrical Type | DC |

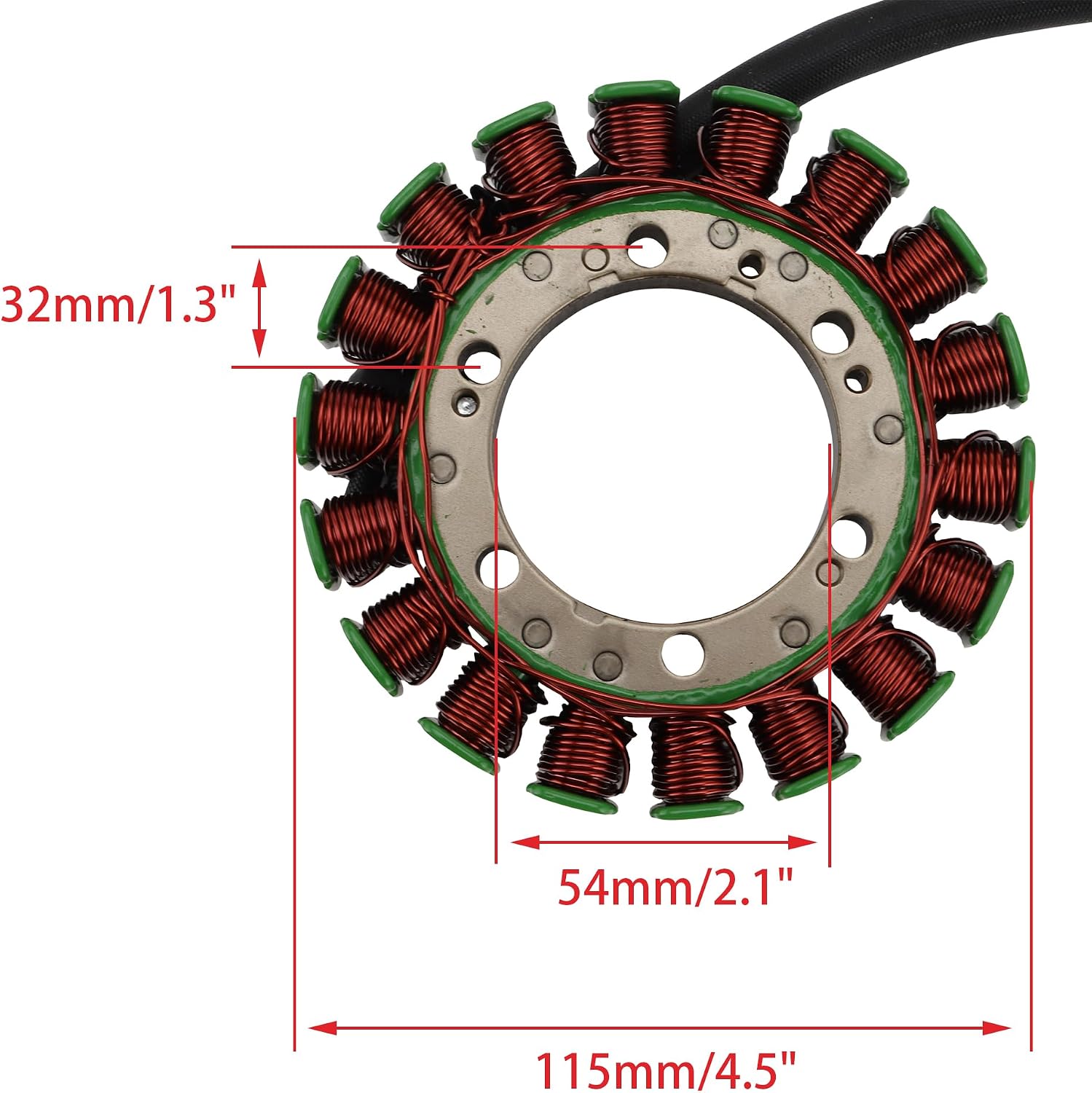

| Outside Diameter | 115mm / 4.5" |
| Center Hole Diameter | 54mm / 2.1" |
| Mounting Hole Distance | 32mm / 1.3" |
| Installation Hole Spacing | 35mm / 1.4" |
| OEM Reference | 31120-HN8-A60 / 31120-HN8-A61 / 31120-HN8-A62 |
| Material | Metal Lamination Core + Copper Winding |
| Application | ATV Charging / Ignition System |
| Compatible Brand | Honda |
Key Features
- Designed for 2006–2014 Honda TRX680 FourTrax Rincon 680 ATV models
- Replaces OEM reference numbers 31120-HN8-A60, 31120-HN8-A61, and 31120-HN8-A62
- 18-coil 5-wire stator helps support stable charging system output
- Helps address weak charging, low battery voltage, dim lights, unstable output, or stator failure
- Copper winding supports stable conductivity and improved heat resistance
- Durable metal lamination core helps resist deformation, rust, and corrosion
- Direct replacement style, but original OEM number, plug layout, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 31120-HN8-A60 | Common OEM reference for Honda TRX680 Rincon stator applications |
| 31120-HN8-A61 | Common replacement reference for compatible TRX680 Rincon stator applications |
| 31120-HN8-A62 | Main later OEM reference for Honda TRX680 FourTrax Rincon stator applications |
Please use the OEM number together with physical dimensions and connector layout for fitment confirmation. If your original stator has a different wire count, outside diameter, center hole diameter, mounting hole spacing, installation hole spacing, or plug style, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select Honda TRX680 FourTrax Rincon 680 models from 2006–2014, including TRX680FA, TRX680FGA, and TRX680FPA versions using OEM reference numbers 31120-HN8-A60, 31120-HN8-A61, or 31120-HN8-A62. Please compare your original stator’s OEM number, wire count, connector layout, outside diameter, center hole diameter, mounting hole distance, and installation hole spacing before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This stator replaces 31120-HN8-A60, 31120-HN8-A61, and 31120-HN8-A62. However, OEM number alone is not enough. Please also confirm the 18-coil 5-wire layout, plug style, outside diameter, center hole diameter, mounting hole distance, and installation hole spacing.
What models or situations does this part not fit?
This part does not fit Honda TRX680 Rincon models that use a different stator diameter, different wire count, different connector layout, different mounting hole spacing, or a different OEM charging system design. It is also not suitable if your issue is caused only by a bad regulator rectifier, weak battery, faulty ignition component, damaged wiring, burned connector, or poor ground connection.
What should I check before ordering?
Before ordering, please check your ATV’s make, model, year, submodel, OEM part number, original stator coil count, wire count, connector shape, outside diameter, center hole diameter, mounting hole distance, installation hole spacing, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
