Will this 18 coil magneto stator fit my Honda VF750C Magna V45?

This stator directly replaces OEM Honda part number 31120-MZ5-004 and is designed to fit the Honda VF750C Magna V45 models from 1994 to 2003. Before ordering, please confirm your bike’s year and model match these specifications, and compare your original stator’s connector style and mounting points to ensure perfect fitment.

What do I need to check before installing this stator on my Honda Magna V45?

Before installation, inspect your original stator for the number of coils, connector type, and overall diameter. Make sure your charging system wiring is in good condition and your battery is healthy. If your old stator failed due to oil contamination or overheating, address the underlying cause to avoid repeat failures.

Does this stator come with any warranty or guarantee?

Yes, the stator includes a standard manufacturer’s warranty against defects in materials and workmanship. If you experience any issues after installation, contact goofitmoto customer support with your order details for assistance or exchange.

Is this a plug-and-play replacement for the original Magna VF750C stator?

This stator is engineered as a direct replacement for the OEM 31120-MZ5-004 stator found in 1994–2003 Magna VF750C models. It matches the original in mounting holes and connector type, so installation is straightforward for experienced DIY mechanics. Always check all connections before first starting your motorcycle after replacement.

How can I ensure long-lasting reliability after installing this new Honda Magna stator?

For the best stator lifespan, check your regulator/rectifier and battery condition, and clean all electrical contacts before installing the new unit. Avoid overloading your charging system with extra electrical accessories, keep oil levels within spec, and periodically inspect wiring for corrosion. These steps help prevent future charging or electrical issues.

1 4

GOOFIT

Honda VF750C Magna V45 18 Coil Magneto Stator 1994–2003 | 31120-MZ5-004

$57.99

Sale Sold out

Shipping calculated at checkout.

Product Overview

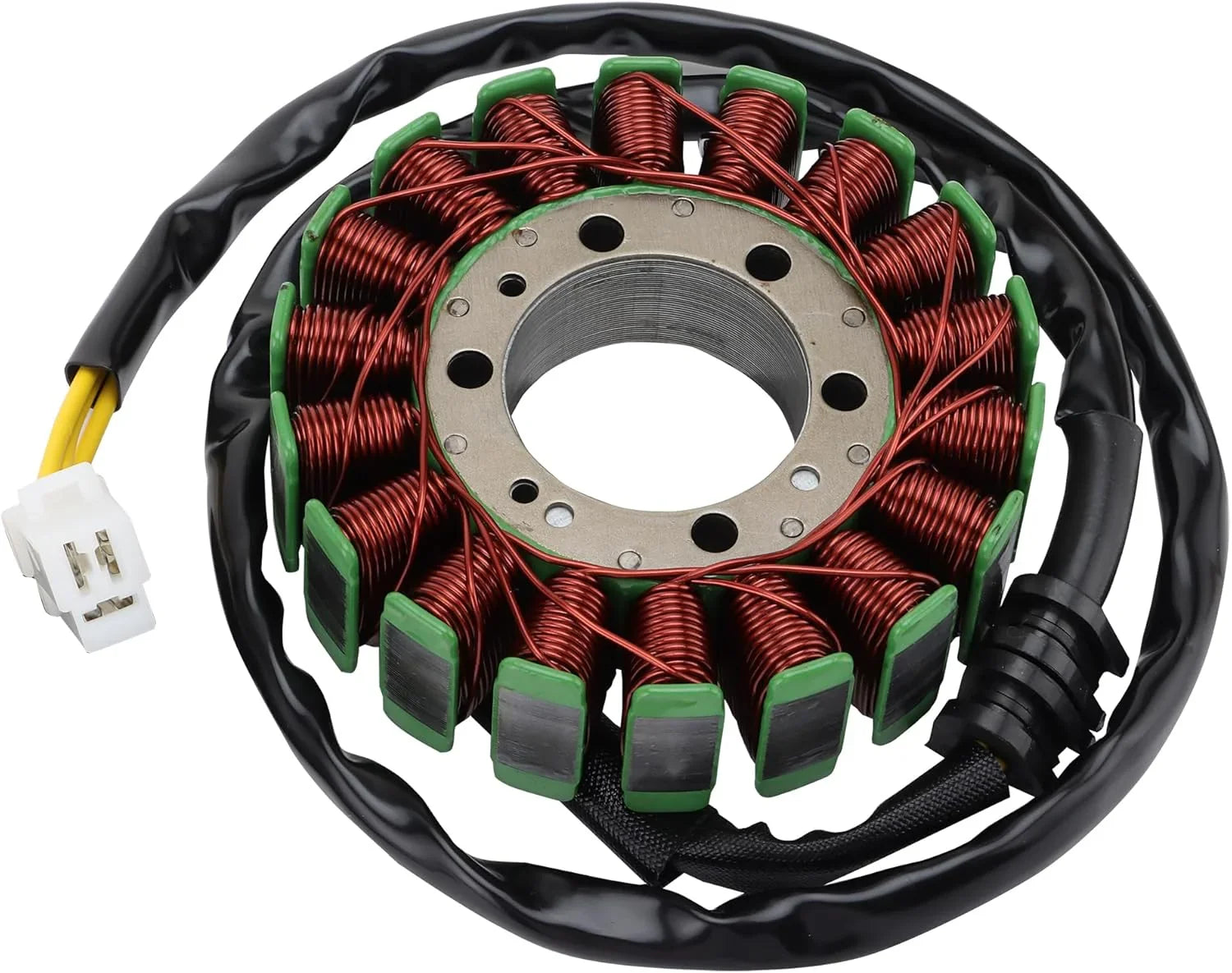

Restore reliable charging and ignition performance with this 18 coil magneto stator, designed for selected Honda VF750C Magna / V45 Magna models from 1994 to 2003.

Built to replace OEM 31120-MZ5-004, this stator helps solve common electrical issues such as battery not charging, weak or no spark, hard starting, unstable voltage, and intermittent charging failure.

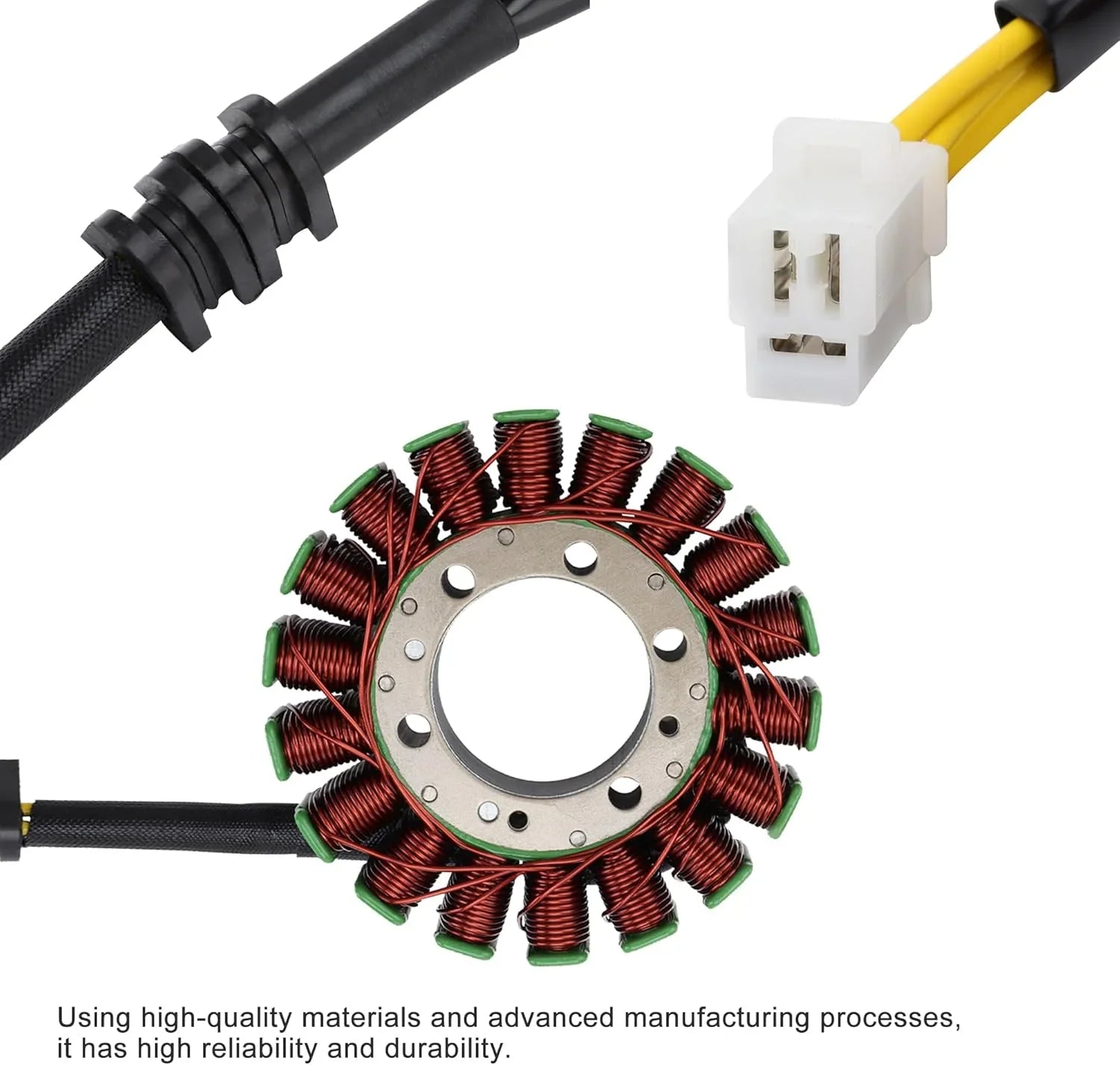

Made with copper windings, copper-clad steel wire, and a durable aluminum base plate, this magneto stator is designed to provide stable electrical output, reliable charging performance, and long service life under motorcycle riding conditions.

Product Compatibility

Brand	Model	Engine / HP / CC	Year Range	Notes
Honda	VF750C Magna / V45 Magna	750cc	1994–2003	Verify OEM number, connector style, and stator dimensions before purchase
Honda	VF750CD Magna Deluxe	750cc	1995–1996	Verify OEM number, connector style, and stator dimensions before purchase
Honda	VF750C2 Magna 2-Tone	750cc	1997–2000	Verify OEM number, connector style, and stator dimensions before purchase

OEM Cross Reference:
31120-MZ5-004

Specifications

Specification	Details
Part Type	Magneto Stator Coil
Configuration	18 Coil

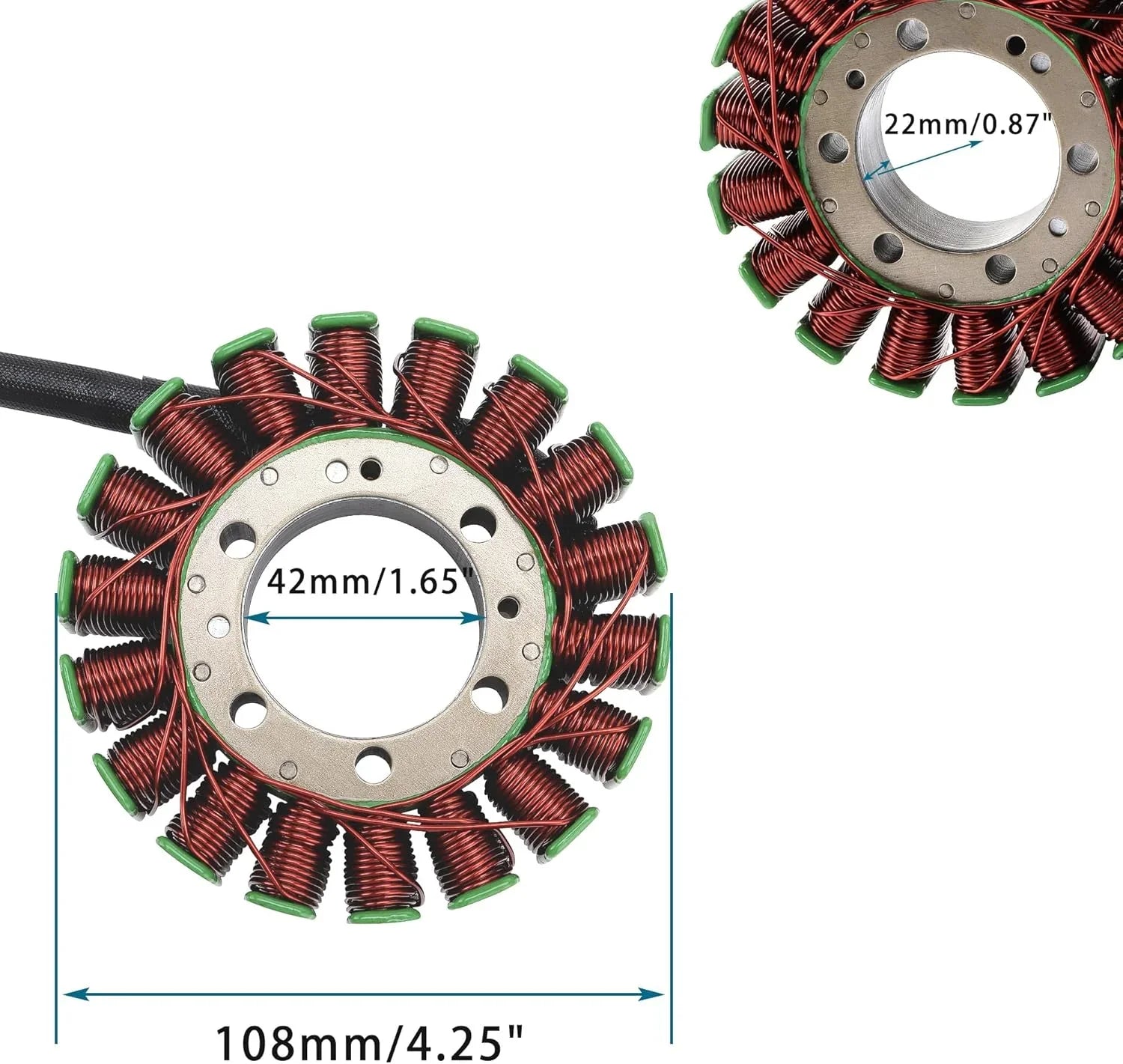

Outer Diameter	108 mm
Inner Diameter	42 mm
Thickness	22 mm
Material	Copper coil / Copper-clad steel wire / Aluminum plate
Function	Charging and ignition system support
Installation	Direct replacement on correctly matched applications
Fitment Method	Match by OEM number, connector style, stator size, and original part layout
Condition	100% New Aftermarket

Key Features

18 Coil Stator Design – Helps provide stable electrical output for the charging system
OEM-Style Replacement – Designed to replace Honda stator OEM 31120-MZ5-004
Reliable Charging Performance – Helps restore battery charging and electrical-system stability

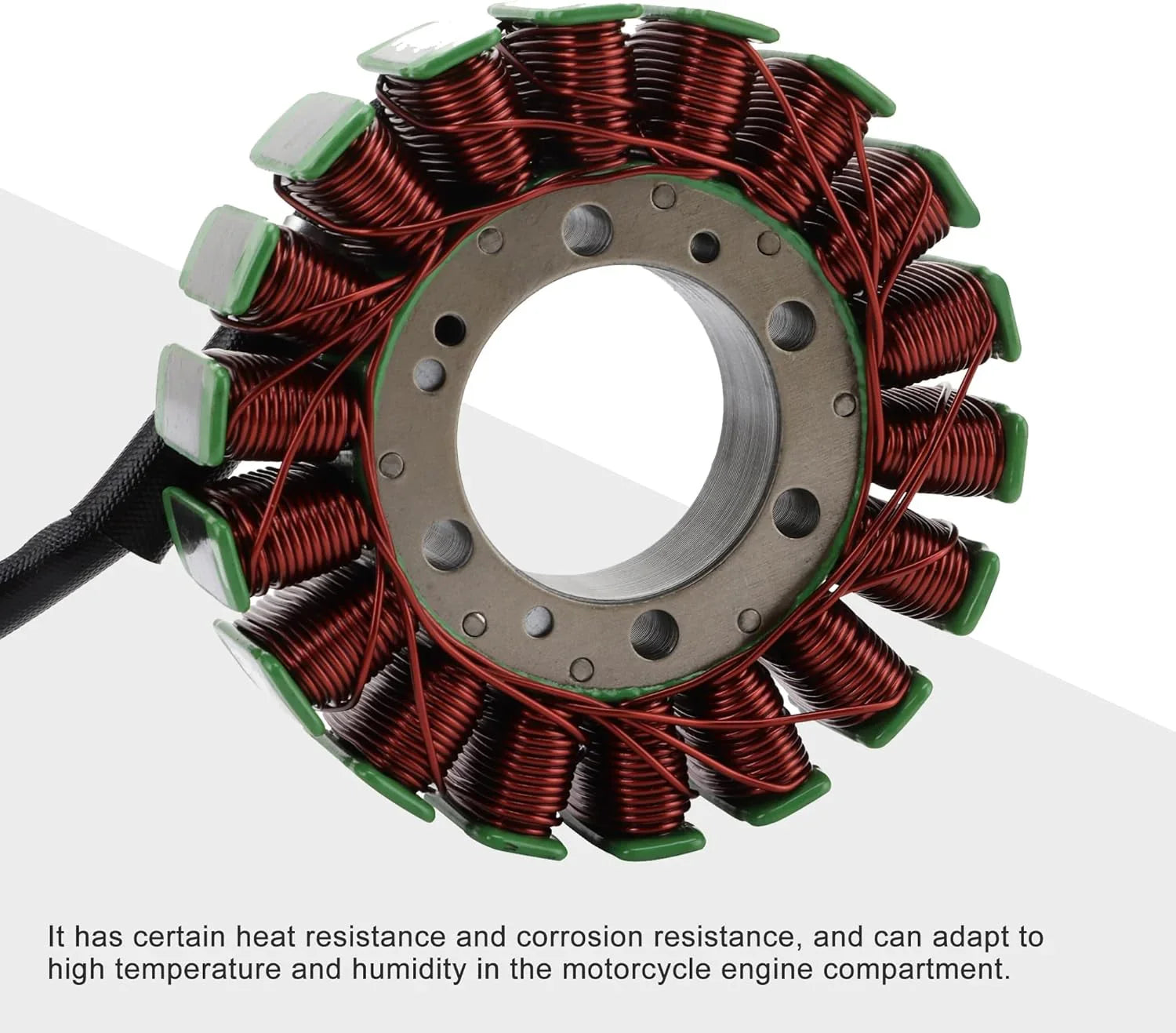

Durable Construction – Built with copper windings and an aluminum base plate for long service life
Stable Ignition Support – Helps improve spark stability, starting reliability, and throttle response
Easy Replacement Style – Designed for straightforward installation when connector and dimensions match

Common Problems This Part Can Help Solve

This product may help address issues such as:

Battery not charging
Weak or no spark
Hard starting
Intermittent electrical failure
Unstable charging voltage
Poor ignition performance
Burned or damaged original stator

Package Includes

1 × 18 Coil Magneto Stator Coil

Fitment Note

Please confirm your OEM part number, connector style, stator dimensions, thickness, and vehicle model/year before ordering.

This listing is intended for selected Honda VF750C Magna / V45 Magna 1994–2003 applications using the 31120-MZ5-004 stator family. Compatibility may vary by market version and wiring setup, so matching by OEM number + 108 mm outer diameter + 42 mm inner diameter + 22 mm thickness + connector style + original stator appearance is strongly recommended before purchase.

If you are unsure about compatibility, contact us with your model, year, OEM number, connector photos, and original stator measurements before purchase.

Installation Note

Professional installation is recommended.

Before installation, inspect related components such as the battery, regulator/rectifier, wiring harness, connectors, flywheel, and charging system to avoid repeat failure caused by another faulty part.

Burned connectors, a weak battery, or a faulty regulator/rectifier may cause repeated stator failure, so the full charging system should be checked before installing the new stator.
