1995–2007 Honda VT1100C2 VT1100C3 Shadow 18-Coil 3-Wire Stator 31120-MAH-005
1995–2007 Honda VT1100C2 VT1100C3 Shadow 18-Coil 3-Wire Stator 31120-MAH-005
Couldn't load pickup availability
Product Overview

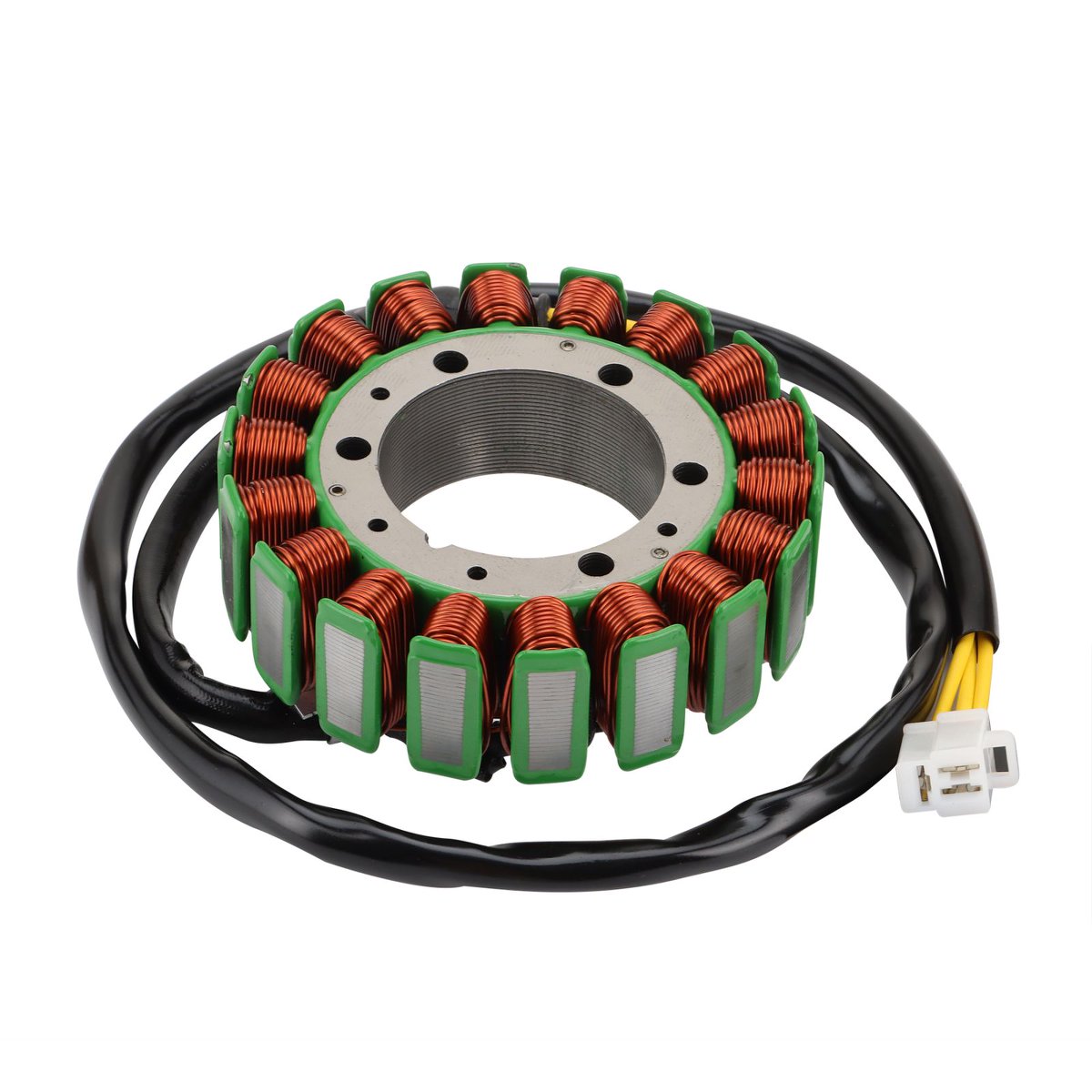

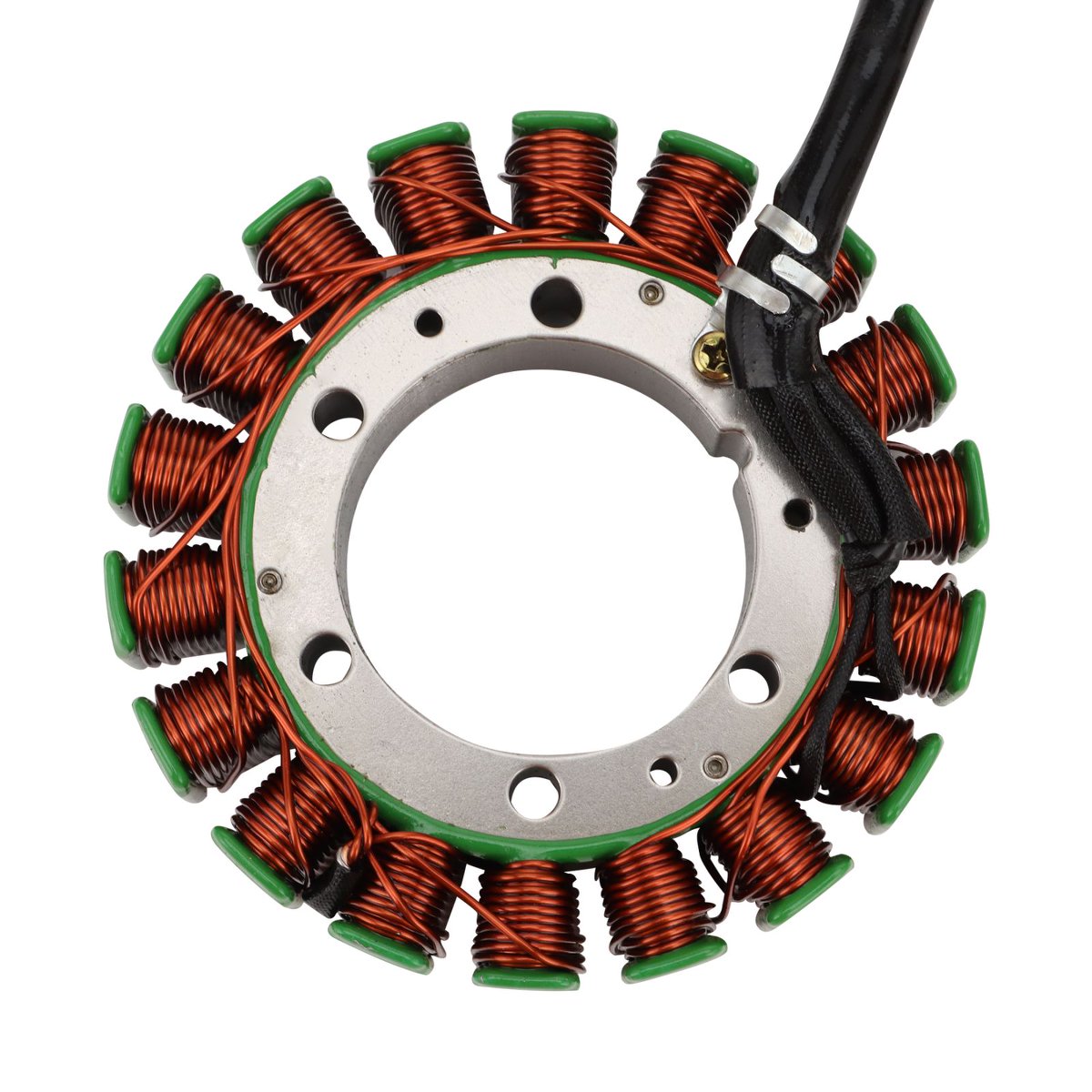

Replace a weak, burned, or failed stator with this 18-coil 3-wire magneto stator, designed for select Honda VT1100 Shadow motorcycles including VT1100C2 and VT1100C3 models using OEM reference number 31120-MAH-005.
The stator is a key part of the motorcycle charging system. It helps generate electrical power while the engine is running, supporting the battery, lights, ignition system, and other electrical components. If your Honda Shadow 1100 has battery charging problems, dim lights, unstable voltage, or repeated electrical failure, replacing the stator may help restore normal charging performance.

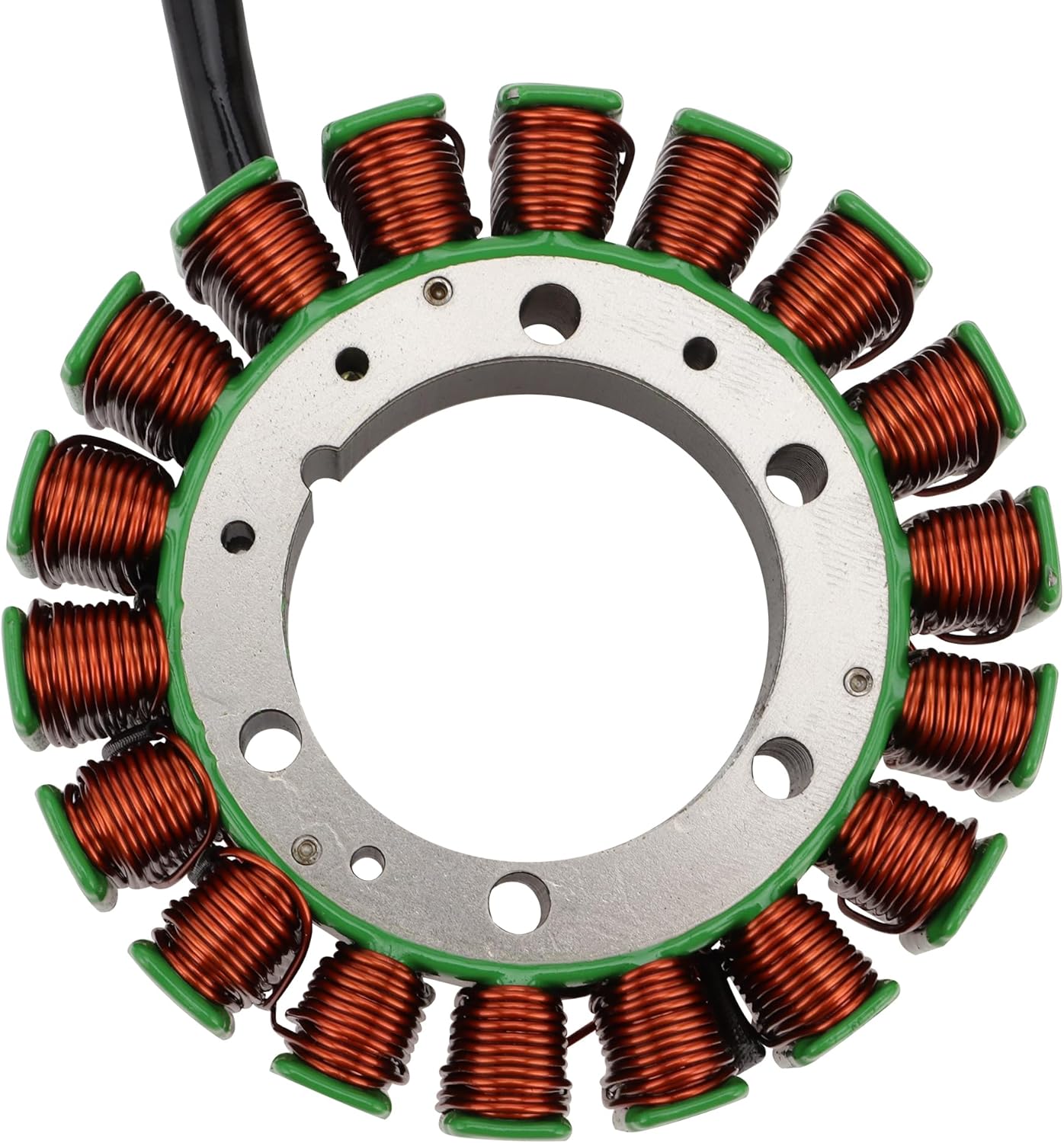

Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, and long service life. Please compare your original stator’s OEM number, wire count, connector style, mounting hole distance, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Honda | VT1100C2 Shadow A.C.E. | 1995–1999 | 31120-MAH-005 | Main fitment; confirm OEM number and stator dimensions |
| Honda | VT1100C2 Shadow Sabre | 2000–2007 | 31120-MAH-005 | Fits models using the matching 18-coil 3-wire stator |
| Honda | VT1100C3 Shadow Aero | 1998–2002 | 31120-MAH-005 | Main fitment; compare original plug and mounting holes |
| Honda | VT1100C Shadow Spirit | 1997–2007 | 31120-MAH-005 / related OEM | Possible fitment only if the original stator matches this design |
| Honda | VT1100T Shadow A.C.E. Tourer | 1998–2001 | 31120-MAH-005 / related OEM | Possible fitment; verify OEM number, connector, and dimensions |
Important Fitment Note:
This part is not selected by engine size alone. Honda VT1100 Shadow models may use different stator versions depending on trim, year, and market. Please confirm your original stator matches OEM 31120-MAH-005, the 18-coil / 3-wire layout, and the dimensions listed below.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Coil |
| Coil Count | 18 Coils / 18 Poles |
| Wire Count | 3 Wire |
| Electrical Type | DC |

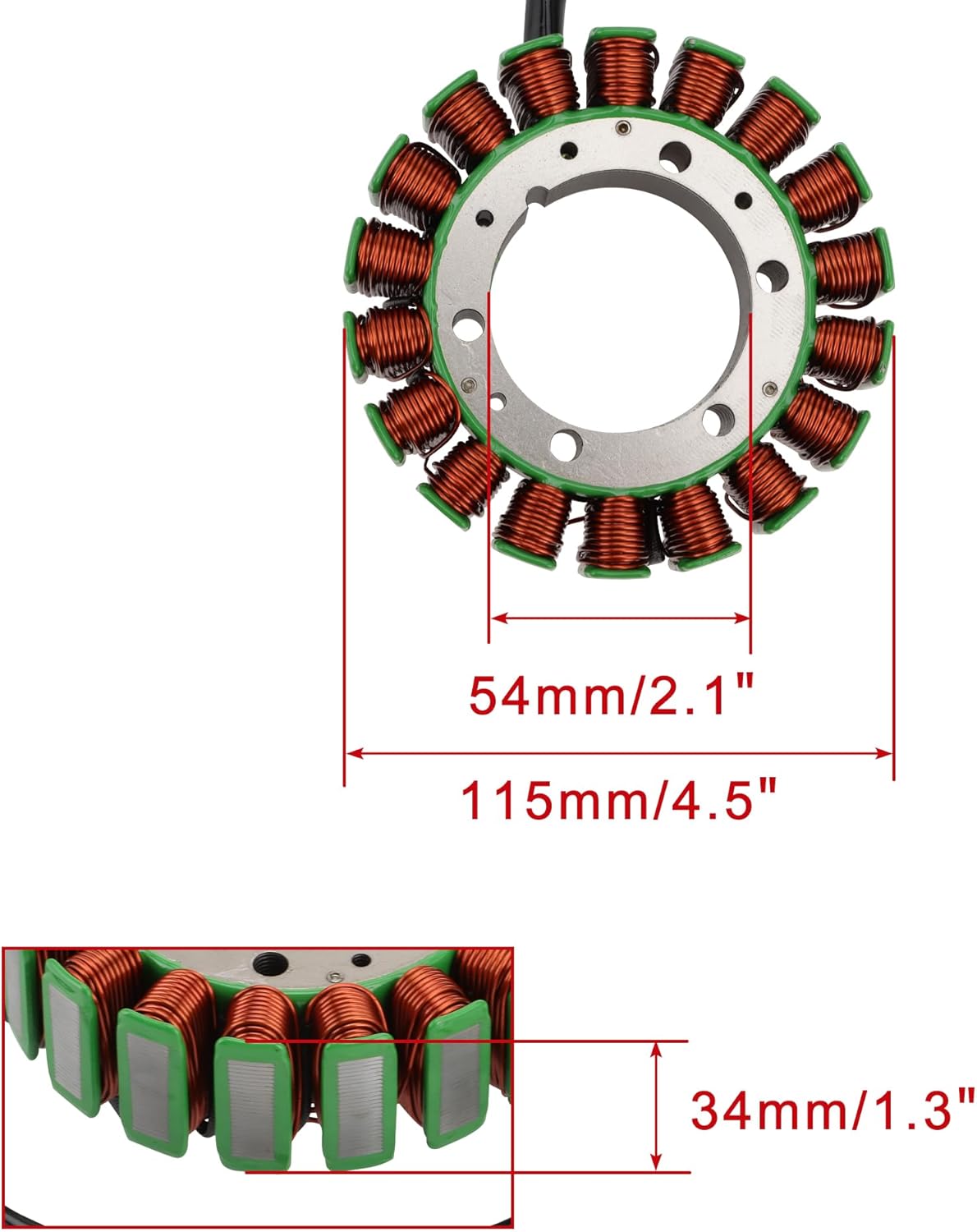

| Inner Diameter | 54mm / 2.1" |
| Outer Diameter | 115mm / 4.5" |

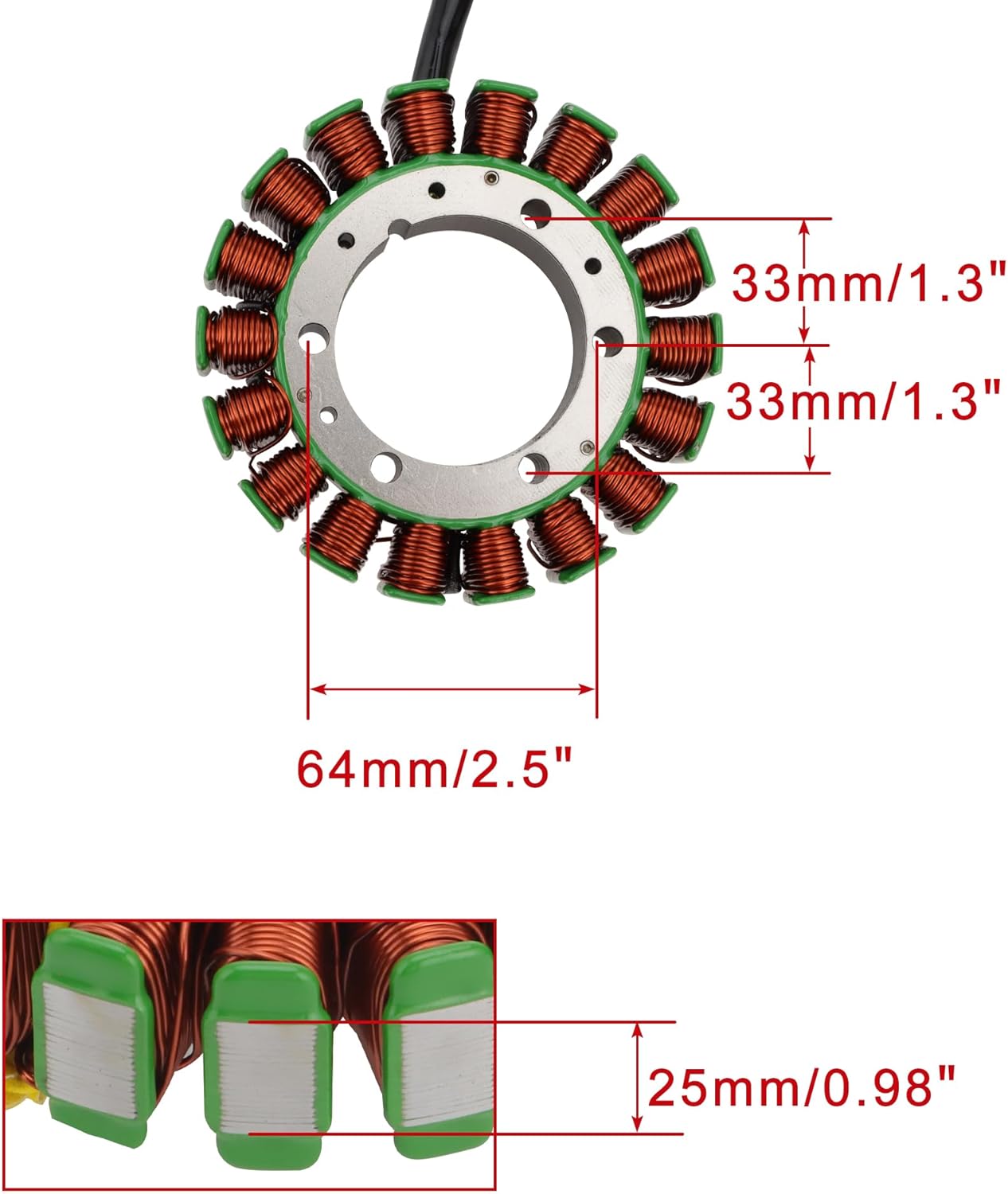

| Iron Core Height | 25mm / 0.98" |
| Mounting Hole Distance | 33mm / 1.3" and 64mm / 2.5" |
| Thickness | 34mm / 1.3" |
| OEM Reference | 31120-MAH-005 |
| Material | Metal Lamination Core + Copper Winding |
| Application | Motorcycle Charging System |
| Compatible Brand | Honda |
Key Features
- Designed for select Honda VT1100C2 and VT1100C3 Shadow 1100 motorcycles
- Replaces OEM reference number 31120-MAH-005
- 18-coil 3-wire stator helps support stable charging system output
- Helps address weak battery charging, dim lights, unstable voltage, or stator failure
- Copper winding supports stable conductivity and improved heat resistance
- Durable metal lamination core helps resist deformation, rust, and corrosion
- Direct replacement style, but original OEM number, plug, and dimensions must be checked before installation
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select Honda VT1100 Shadow 1100 models, including VT1100C2 Shadow A.C.E. 1995–1999, VT1100C2 Shadow Sabre 2000–2007, and VT1100C3 Shadow Aero 1998–2002 using OEM reference number 31120-MAH-005. It may also fit some related VT1100 Shadow models if the original stator uses the same OEM reference, 18-coil 3-wire layout, connector style, and dimensions. Please compare your original part before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This stator is mainly listed as a replacement for OEM 31120-MAH-005. Some related listings may also reference 31120-MAA-005, 31120-MCK-000, 31120-MA1-005, or 31120-MC7-005, but OEM number alone is not enough. Please also confirm the wire count, plug layout, inner diameter, outer diameter, mounting hole distance, and thickness.
What models or situations does this part not fit?
This part does not fit Honda VT1100 Shadow models that use a different stator diameter, different wire count, different connector layout, different mounting hole spacing, or a different OEM design. It is also not suitable if your charging issue is caused only by a bad regulator rectifier, weak battery, damaged wiring, burned connector, or poor ground connection.
What should I check before ordering?
Before ordering, please check your motorcycle’s make, model, year, OEM part number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, stator thickness, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
