1982–1983 Honda XL250R XL500R 12-Coil 5-Wire Stator 31120-KB7-004
1982–1983 Honda XL250R XL500R 12-Coil 5-Wire Stator 31120-KB7-004
Couldn't load pickup availability
Product Overview

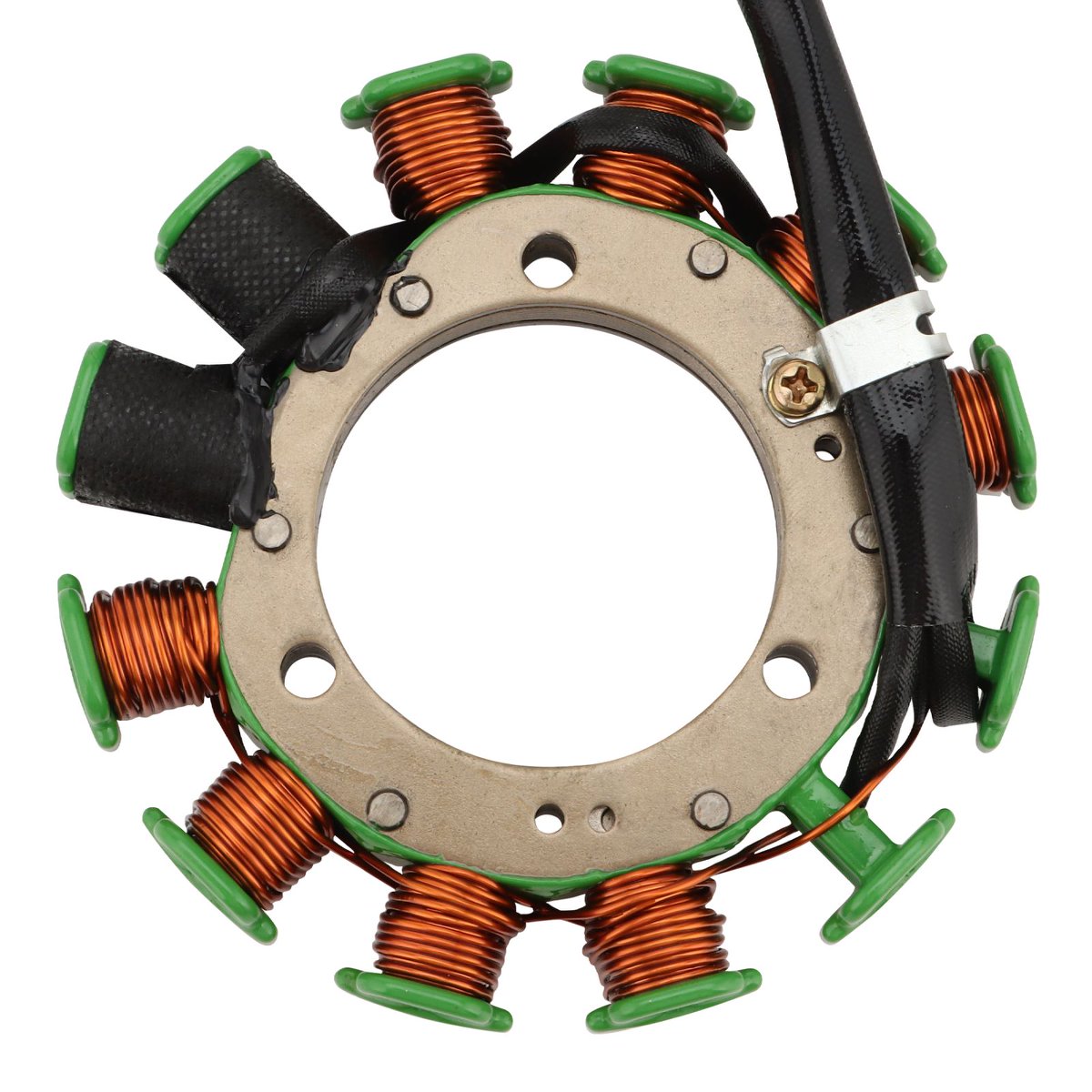

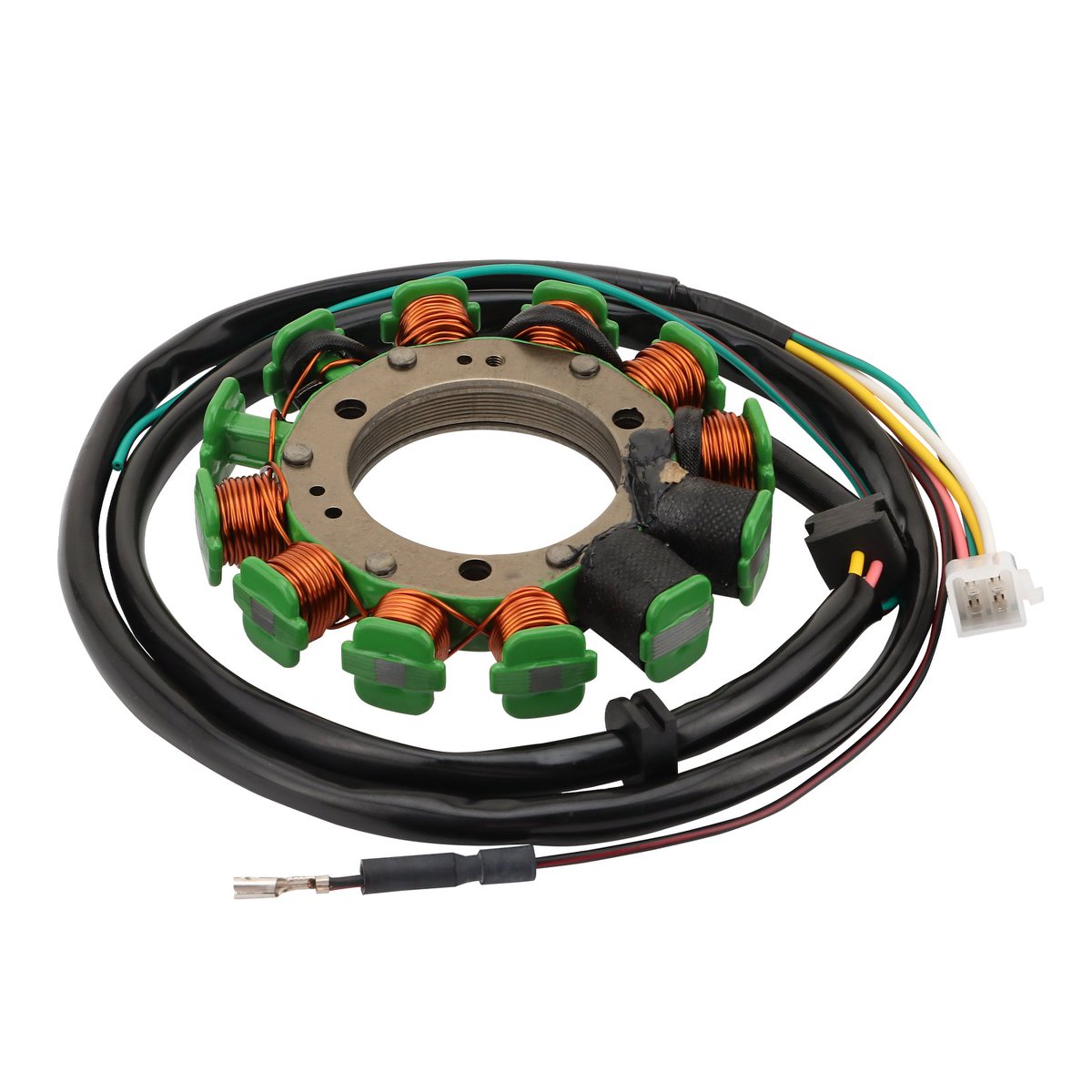

Replace a weak, burned, or failed stator with this 12-coil 5-wire magneto stator, designed for select Honda XL250R and XL500R dual-sport motorcycles using OEM reference numbers 31120-KB7-004, 31120-KB7-405, and 31120-KB7-415.
The stator is an important part of the motorcycle ignition and electrical system. It helps generate electrical output while the engine is running, supporting spark, lighting, battery charging if equipped, and related electrical components. If your Honda XL250R or XL500R has no spark, weak spark, dim lights, hard starting, unstable electrical output, or stator-related failure, replacing the stator may help restore normal operation.
Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, and long service life. Please compare your original stator’s OEM number, wire count, plug layout, mounting hole distance, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Honda | XL250R AC | 1983 | 31120-KB7-004 / 31120-KB7-405 / 31120-KB7-415 | Main fitment; confirm original stator and connector layout |
| Honda | XL250R A | 1982–1983 | 31120-KB7-004 / 31120-KB7-405 / 31120-KB7-415 | Fits matching 12-coil 5-wire AC stator version |
| Honda | XL250 / XL250R | 1982–1983 | 31120-KB7-004 / 31120-KB7-405 / 31120-KB7-415 | Model-name variation; verify exact XL250R application |
| Honda | XL500R A | 1982 | 31120-KB7-004 / 31120-KB7-405 / 31120-KB7-415 | Compare OEM number, wire count, and physical dimensions |
| Honda | XL500 / XL500R | 1982 | 31120-KB7-004 / 31120-KB7-405 / 31120-KB7-415 | Fits only if original stator matches this design |
Important Fitment Note:

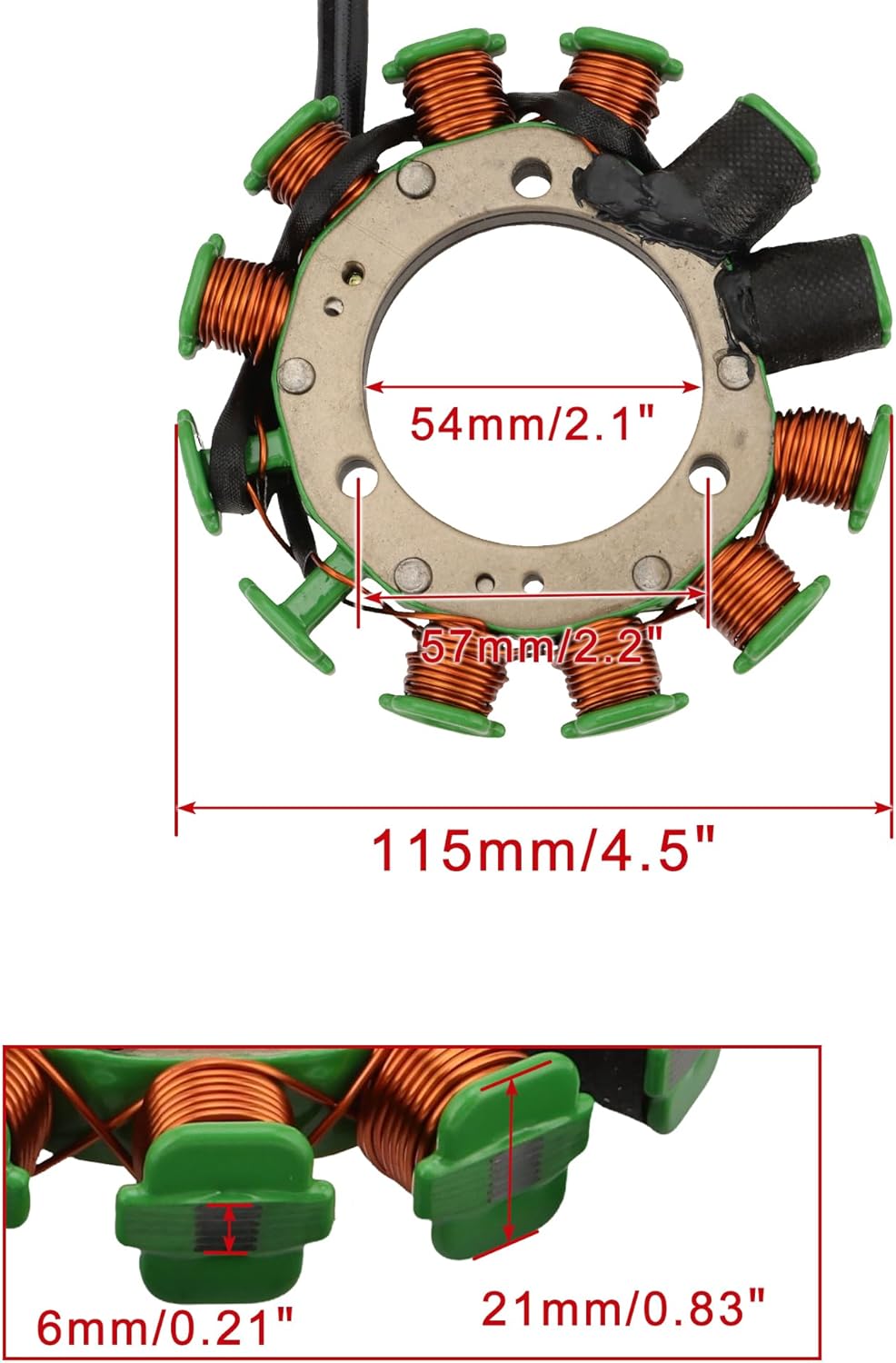

This part is not selected by engine size or XL model name alone. Honda XL250R and XL500R models may use different stator versions depending on year, market, and wiring system. Please confirm your original stator matches the OEM reference, 12-coil / 5-wire layout, AC type, connector style, 54mm inner diameter, 115mm outer diameter, 57mm mounting hole distance, and overall shape before ordering.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Coil |
| Coil Count | 12 Coils |
| Wire Count | 5 Wire |
| Electrical Type | AC |
| Inner Diameter | 54mm / 2.1" |
| Outer Diameter | 115mm / 4.5" |
| Iron Core Height | 6mm / 0.24" |
| Mounting Hole Distance | 57mm / 2.2" |
| Thickness | 21mm / 0.83" |
| OEM Reference | 31120-KB7-004 / 31120-KB7-405 / 31120-KB7-415 |
| Material | Metal Lamination Core + Copper Winding |
| Application | Dual-Sport Motorcycle Ignition / Electrical System |
| Compatible Brand | Honda |
Key Features
- Designed for select 1982–1983 Honda XL250R and 1982 Honda XL500R applications
- Replaces OEM references 31120-KB7-004, 31120-KB7-405, and 31120-KB7-415
- 12-coil 5-wire AC stator helps support ignition and electrical system output
- Helps address no spark, weak spark, hard starting, dim lights, unstable output, or stator failure
- Copper winding supports stable conductivity and improved heat resistance
- Metal lamination core helps resist rust, corrosion, and deformation
- Direct replacement style, but original OEM number, wire count, plug layout, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 31120-KB7-004 | Main Honda XL250R / XL500R stator reference |
| 31120-KB7-405 | Common replacement reference for compatible XL250R / XL500R stator listings |
| 31120-KB7-415 | Common replacement reference for compatible XL250R / XL500R stator listings |
| 31120KB7004 | Compact format of 31120-KB7-004 |
| 31120KB7405 | Compact format of 31120-KB7-405 |
| 31120KB7415 | Compact format of 31120-KB7-415 |
Please use the OEM number together with physical dimensions and connector layout for fitment confirmation. If your original stator has a different wire count, outer diameter, inner diameter, mounting hole spacing, thickness, or plug style, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select Honda XL250R models from 1982–1983 and Honda XL500R models from 1982 using OEM reference numbers 31120-KB7-004, 31120-KB7-405, or 31120-KB7-415. Please compare your original stator’s OEM number, wire count, connector layout, inner diameter, outer diameter, mounting hole distance, thickness, and overall shape before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This stator replaces 31120-KB7-004, 31120-KB7-405, and 31120-KB7-415. However, OEM number alone is not enough. Please also confirm the 12-coil 5-wire layout, AC electrical type, plug style, inner diameter, outer diameter, mounting hole distance, and stator thickness.
What models or situations does this part not fit?
This part does not fit Honda XL250R, XL500R, XR, XL, or other Honda models that use a different stator diameter, different wire count, different connector layout, different mounting hole spacing, or a different ignition system design. It is also not a replacement for the CDI, ignition coil, spark plug, regulator rectifier, flywheel, or complete wiring harness.
What should I check before ordering?
Before ordering, please check your motorcycle’s make, model, year, OEM part number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, stator thickness, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
